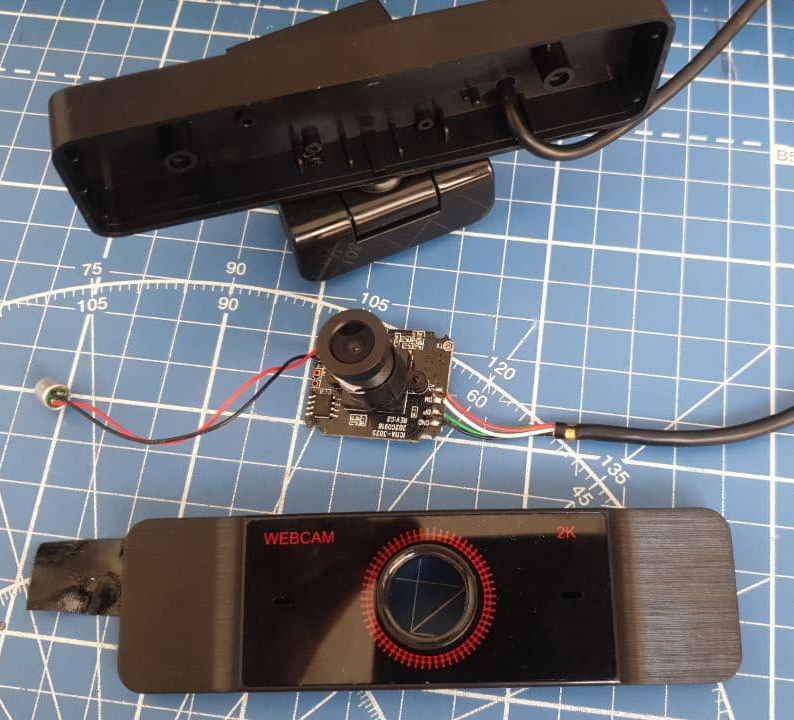

Bought FullHD webcam from Ali (https://aliexpi.com/auuy)

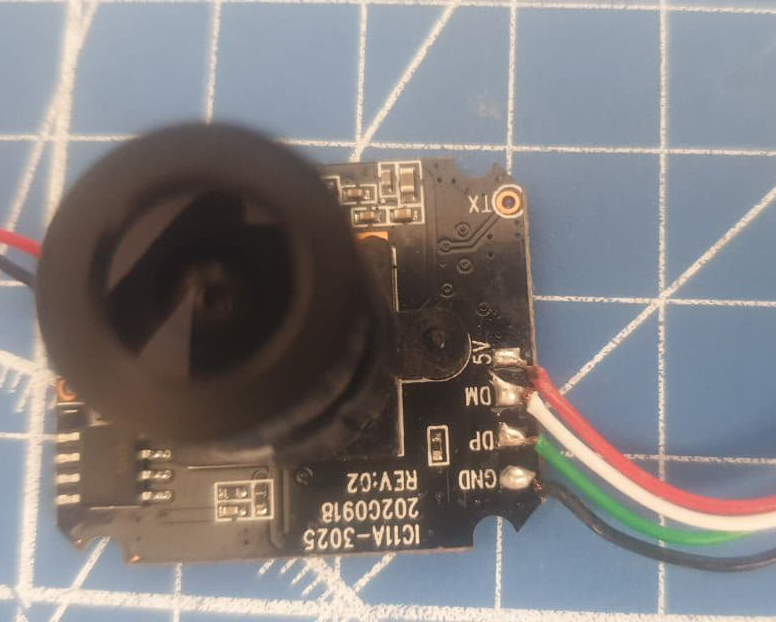

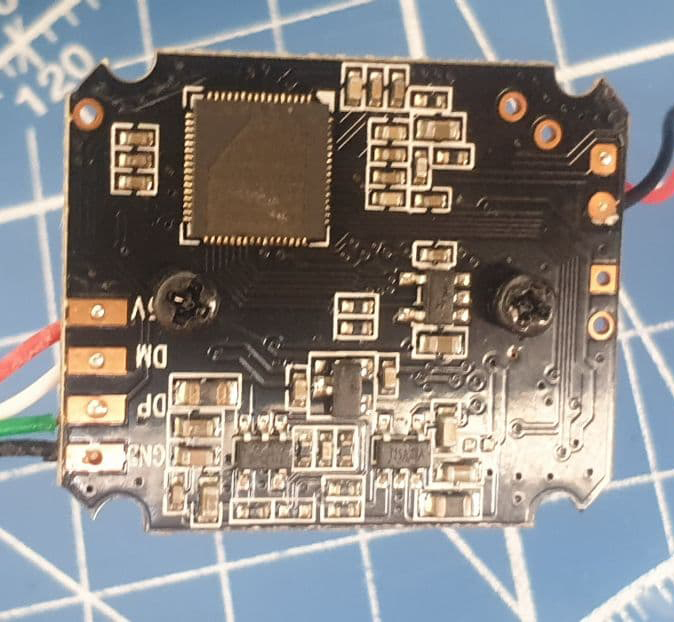

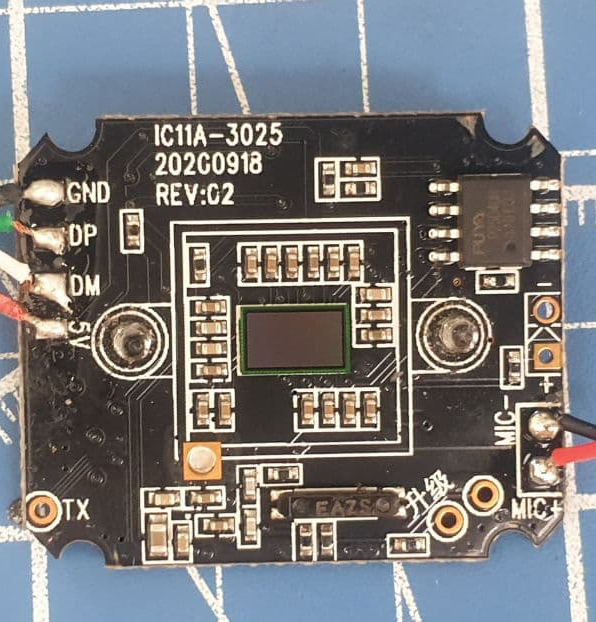

The housing is huge, but inside I found a very common 24x24x24mm webcam module.
Since those modules are very common among those chinese webcams, I decided to make my own housing for it.
Final dimensions are 35x35x25mm
You can still use its original mount
To assemble you will need 4pcs M3x10 DIN912 screws, they selftap into the plastic bottom.
As soon I find 2.6V LED, I will update the model with a version that also houses it.
Remove one of two lids to get a hole for a cable
Print Settings
Supports:
No
Notes:
Models are optimized for 0.4mm nozzle and 0.2mm layer height
Category: Camera
