Eachine QX90 tilted camera support - Front mounted
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution

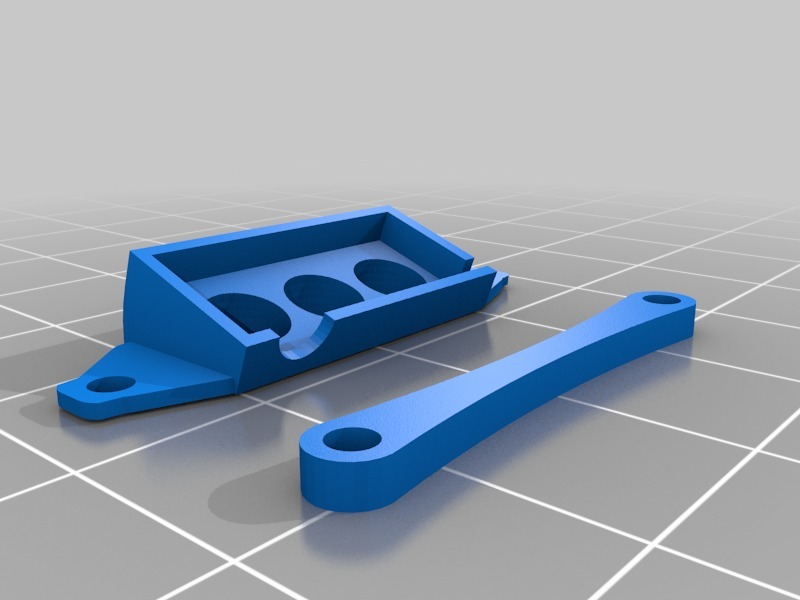

this is a tilted camera support for EACHINE QX90 micro quad copter.
Tilt is 20 degrees.

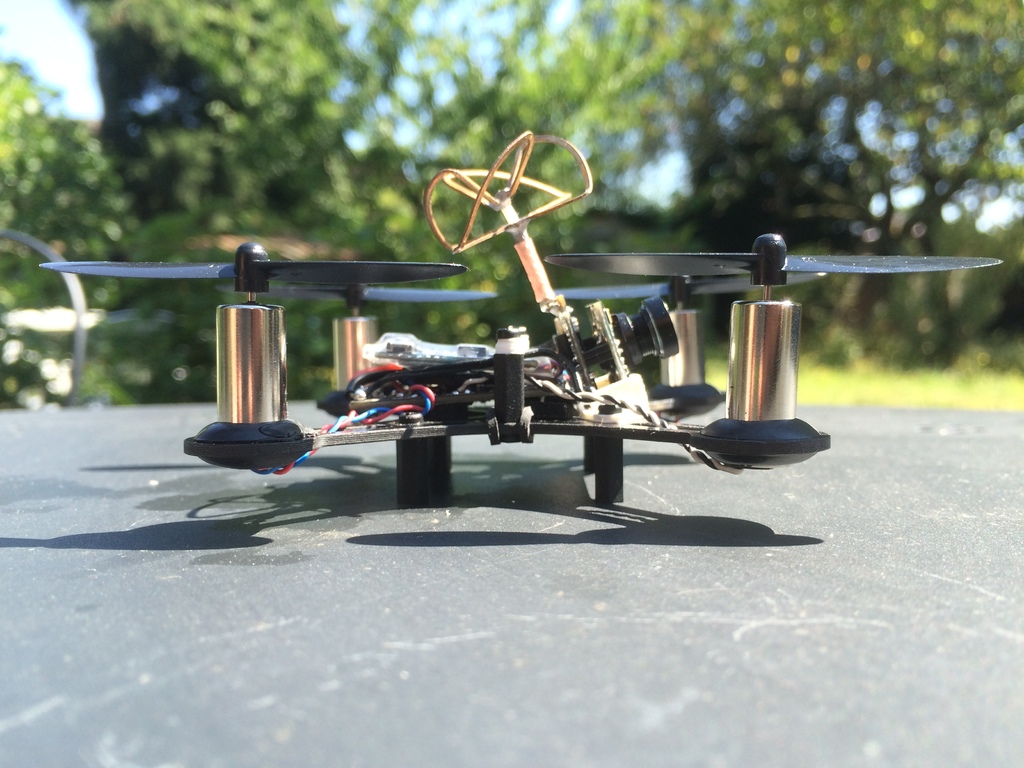

This remix lets you mount the camera in the front of the quadcopter, significantly reducing the total height, and moving the props away from the center of the view.
The flight controller has to be moved a little backward and the upper plate also has to be replaced to accomodate the new position
Thanks denisvic for the original file!
Print Settings
Printer Brand:
RepRap
Printer:
Prusa i3 hephestos
Rafts:
No
Supports:
No
Resolution:
0.1
Infill:
20
Notes:
PLA or Flex filament for the camera support
PLA for the upper plate replacement
Category: R/C Vehicles
