Coronation Cube
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Puzzles & Brain-teasers
- Licencja
- Creative Commons — Attribution — Noncommercial — NoDerivatives
This puzzle was my entry for the 2014 IPP Puzzle Design Competition. http://www.johnrausch.com/DesignCompetition/2014/

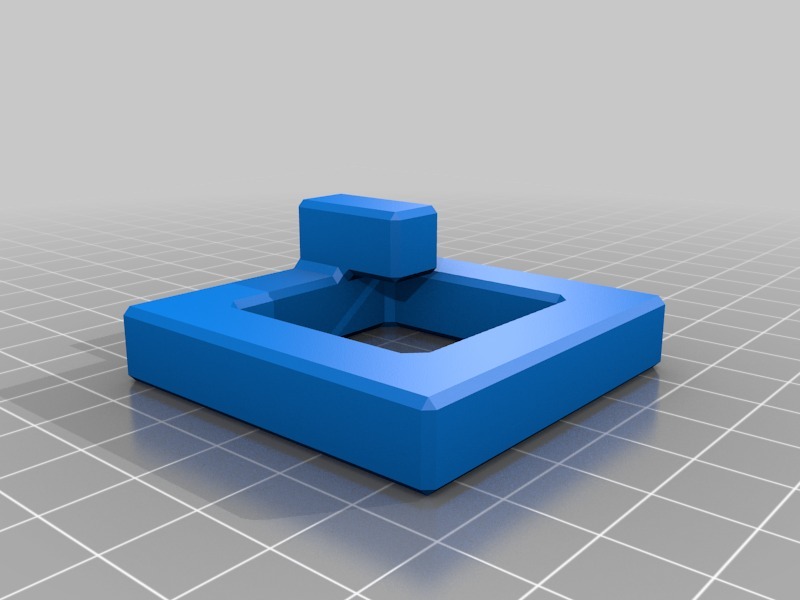

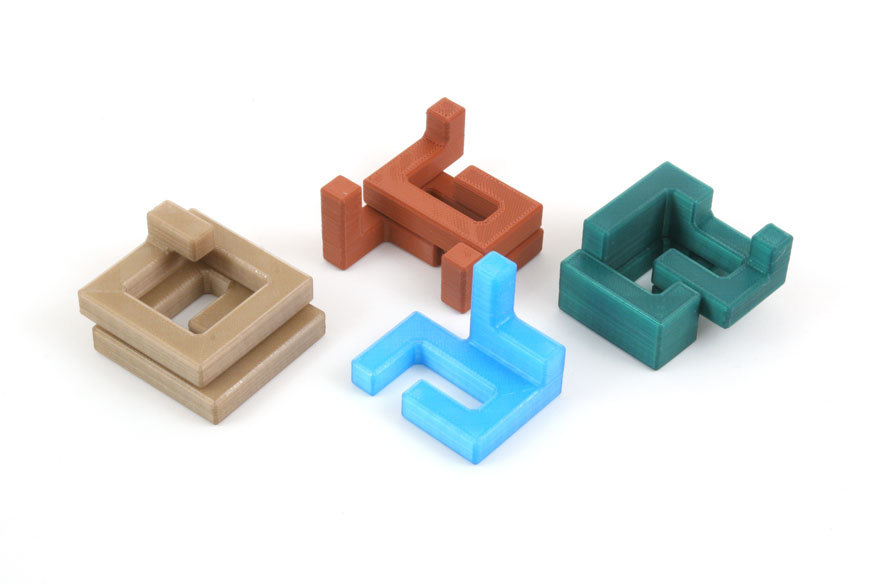

It is an interlocking 5x5x5 cube which is 99% printable without support. Only the short tab on the ring piece needs support turned on. http://puzzlewillbeplayed.com/555/CoronationCube/
If you like this puzzle and fancy an extra challenge, perhaps you would consider paying just £3 for my latest and best design from here https://www.etsy.com/uk/listing/831851235/digital-files-for-printable-interlocking
Print Settings
Printer:
Mendel90
Rafts:
No
Supports:
Yes
Resolution:
0.2 mm
Infill:
25
Notes:
A nice easy print that only needs support for one of the pieces.

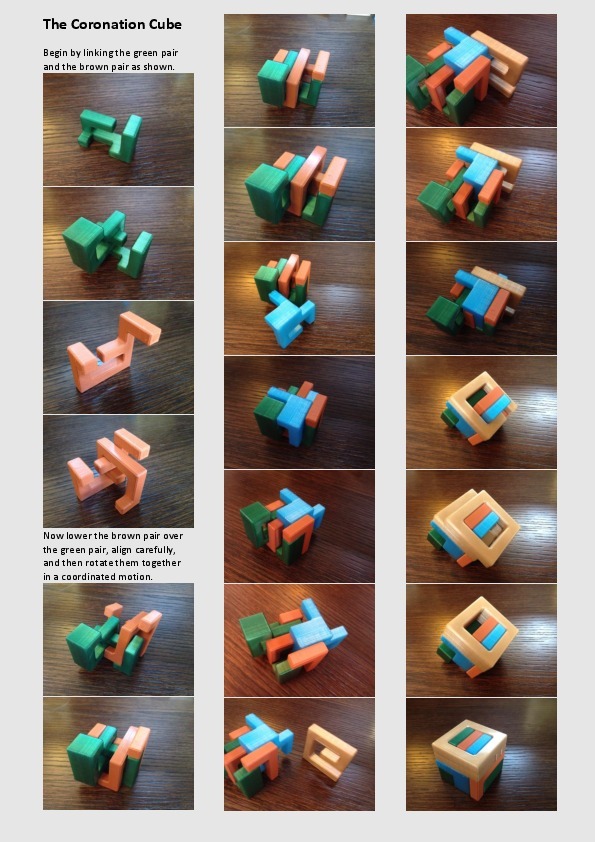

The puzzle is not easy to solve as it requires rotations. I have included the solution document here, but please feel free to try and solve it on your own first if you feel up to the challenge.
How I Designed This
this puzzle was designed using Live Cubes and then replicated in Burr Tools.
The STL files were exported from Burr Tools with cube size 10 mm, bevel 1 mm and offset 0.07 mm.
Category: Puzzles
