This is clamp for hold cylindrical tool.

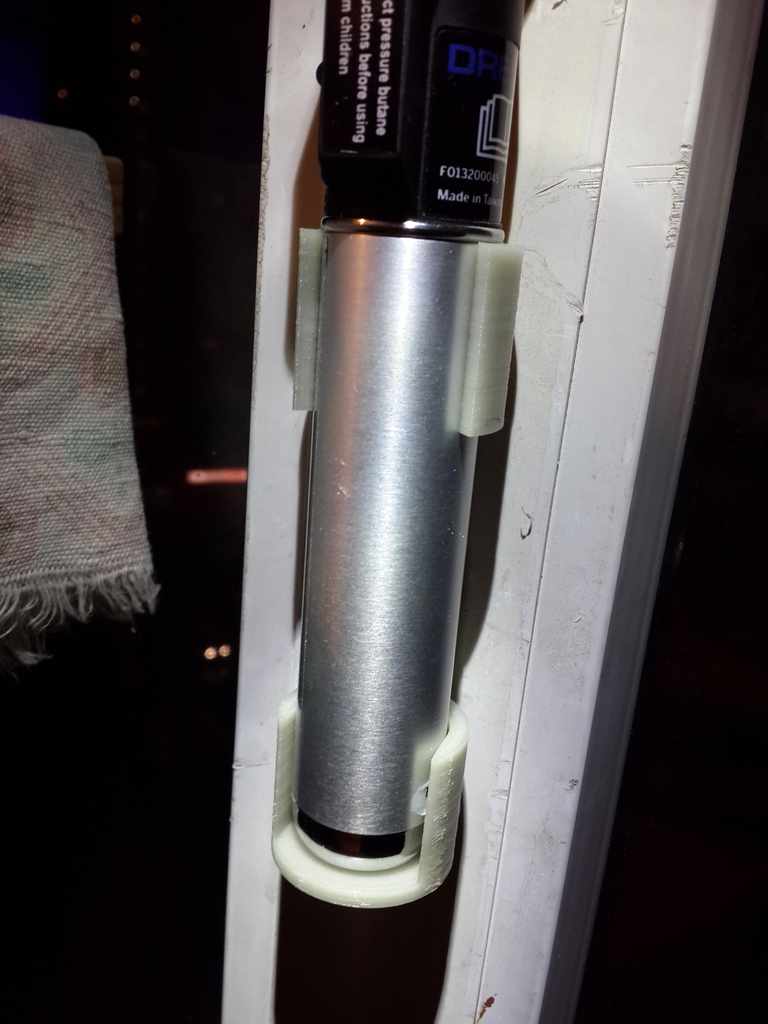

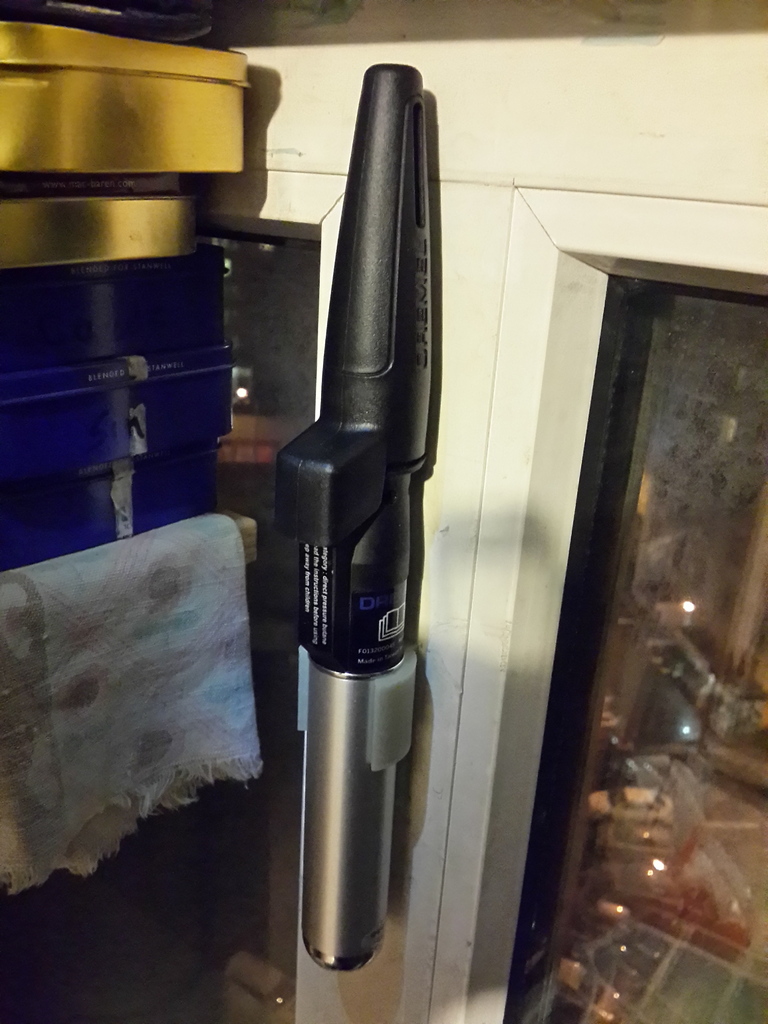

It was designed to hold DREMEL® VersaTip (2000-6).
Instructions
Originaly, it was designed to hold DREMEL® VersaTip (2000-6).

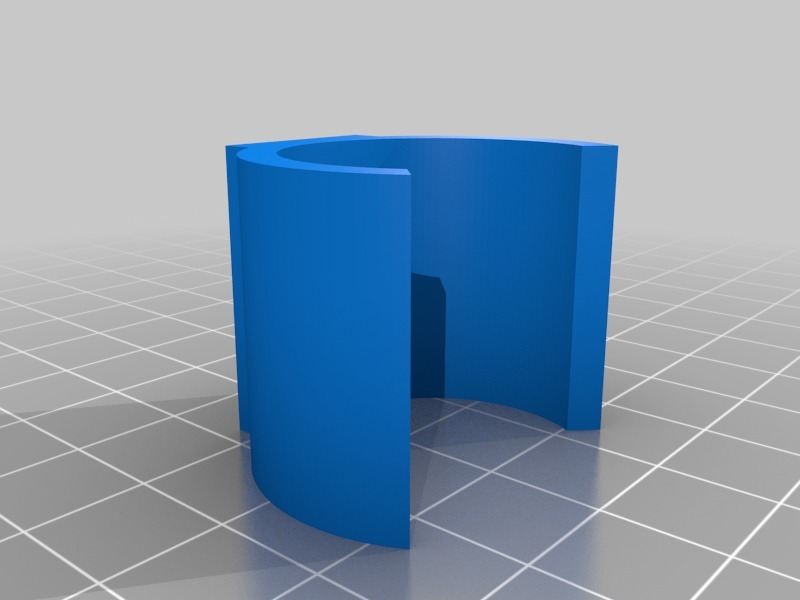

-- To hold this tool "Versatip_stand_x.x_simle.stl" is enough, but this clamp can rotate around mounting screw.

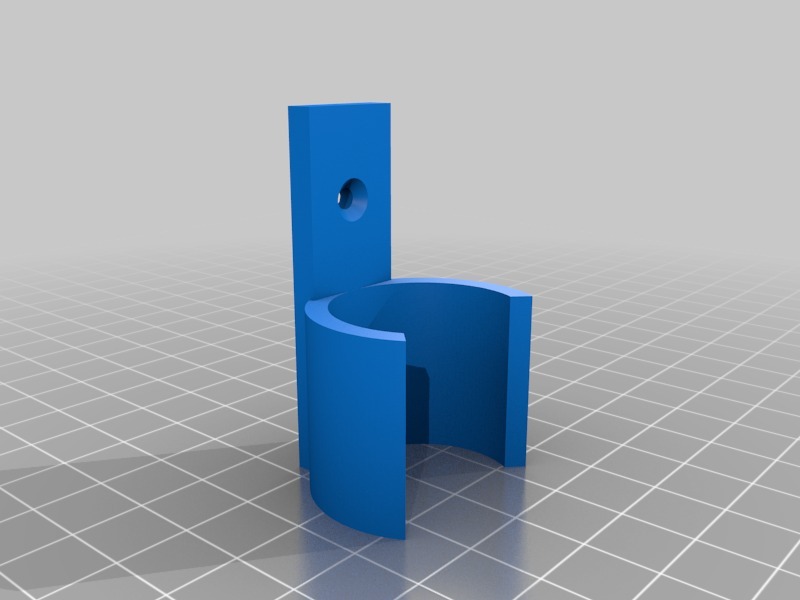

-- To prevent rotation use "Versatip_stand_x.x_top.stl"

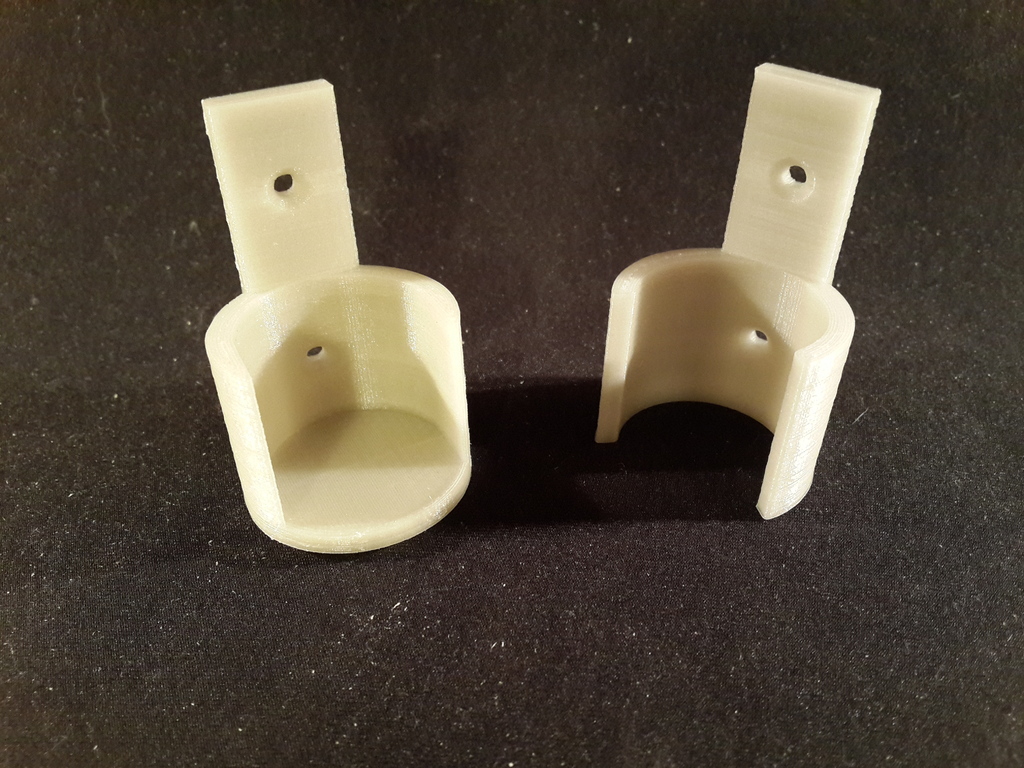

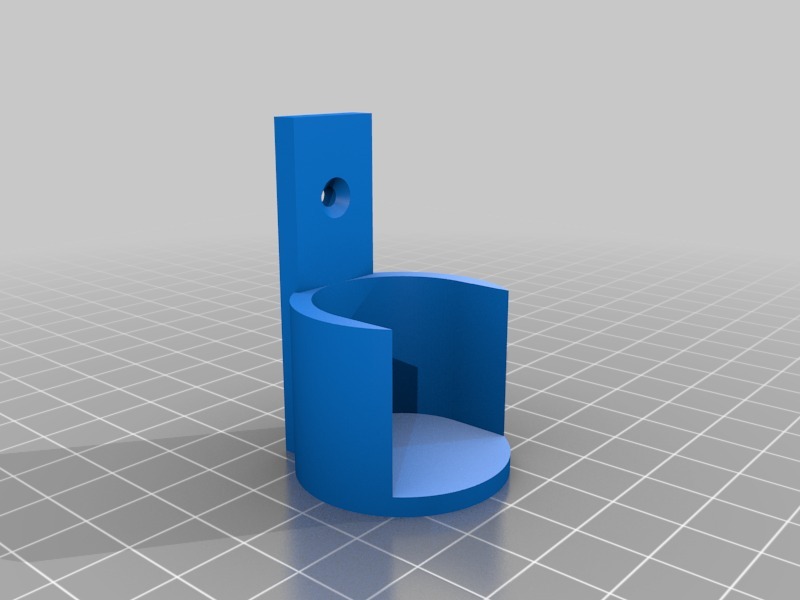

-- To hold tool which can fall through clamp use two part holder "Versatip_stand_x.x_top.stl" and "Versatip_stand_x.x_bottom.stl".
All thees parts was generated by one OpenSCAD module.
Module parameters are:
- Tool diameter
- Wall thickness
- Horizontall wall thickness
- Mount thickness
- Clamp gap wide
- Stand height
- Mount holes metric (mm)
