3 inch micro quadcopter

This was an experimental project that has become one of my favorite quads.   Initially intended to be a 2s Li-Ion cruiser, I have found that a light 450mah 4s battery really lets this guy scream.

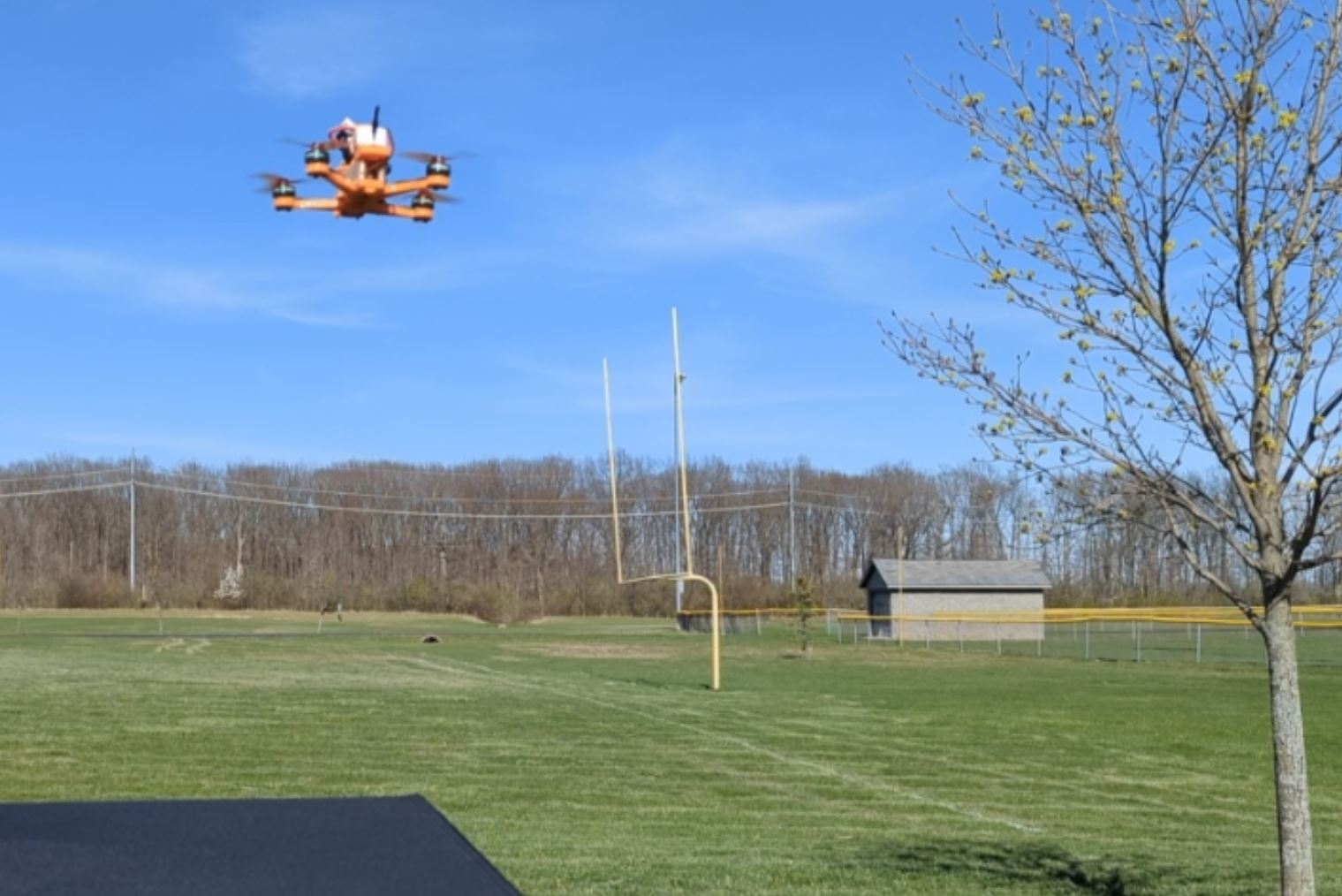

A gentle flight.

a not so gentle flight

Be sure to take standard precautions when testing.  the nature of a plastic frame causes vibrations to resonate.  Turn up the filtering before trying to fly and have the disarm covered.  My initial arm, it jumped 6 feet in the air.  Once I found the right mix of filters and PIDs, it has been a reliable craft.

Rigid pieces are all printed in ABS, but any technical filament should work.  I chose ABS so I could fuse parts using acetone.  side covers if you choose to use them differ in how they attach to the standoffs.  They also serve to insulate the outrigger short standoff.  they are completely optional

Files in the alternate folder are mods I have tried, some have become my primary, such as the top plate with a battery strap cutout.  Others, such as the prop guard plate were functional and promising, but could use additional refinement for durability.

additional hardware:

Diatone Mamba F4 mk2 30A

Diatone Mamba 1404 4500kv

HGLRC M80 GPS Glonass Module

Gemfan Hurricane 3020 3-Blade Props

M2 Male Female Hex Brass Spacer Standoff

Runcam Racer2

M2 x 4mm/6mm/8mm/10mm/12mm/16mm/20mm Steel Hex Socket Head
