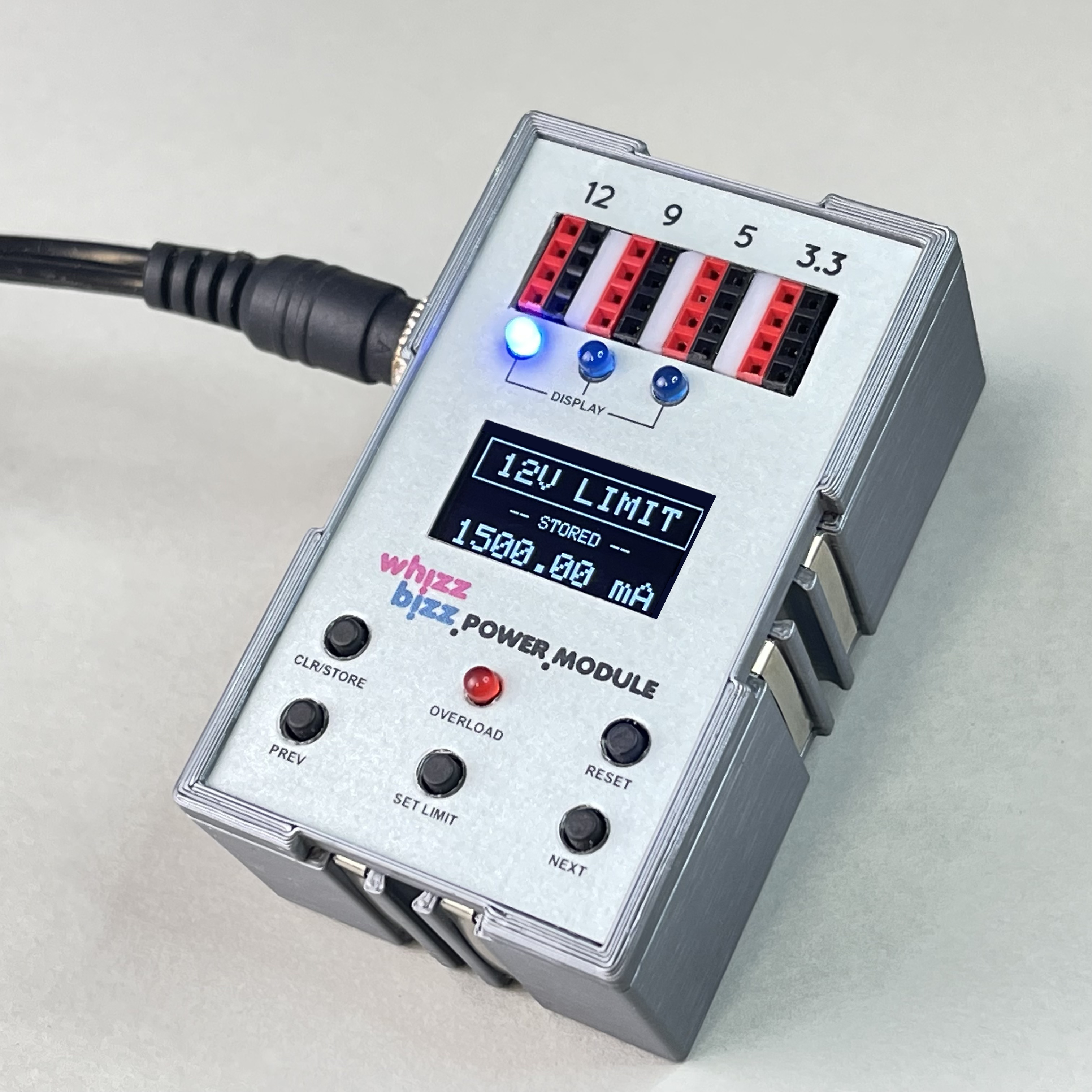

Sometimes things can get completely out of hand when your wishlist is longer than most ready made power modules can handle. Then you switch to DIY. The Ultimate Multi Power Module is small (3.5 by 7 cm!) and offers four power supply voltages: 3.3, 5, 9 and 12 volt. The voltage, (peak) current and power are monitored per output on a small screen. And there is even a programmable automatic fuse!

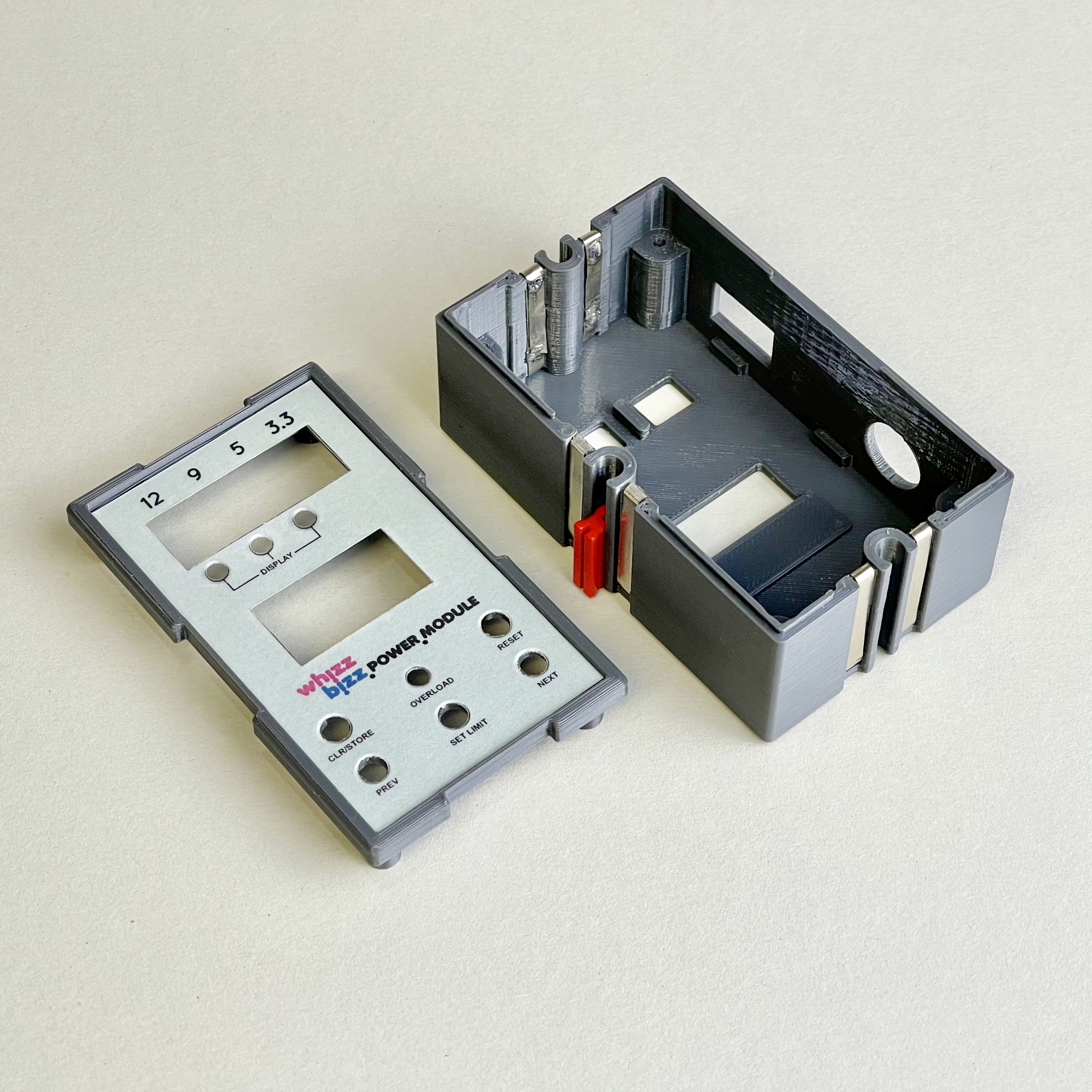

I initially made this module to be used with the fischertechnik construction system. It has the same form factor as fischertechnik's traditional 'Silberlingen'.
Project pages on:
– https://www.whizzbizz.com/en/power-module-part1
– https://www.whizzbizz.com/en/power-module-part2
– https://www.whizzbizz.com/en/power-module-part3
