OctoPrint Spool Holder
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Accessories
- Licencja
- Creative Commons — Attribution — Noncommercial
OctoPrint Spool Holder

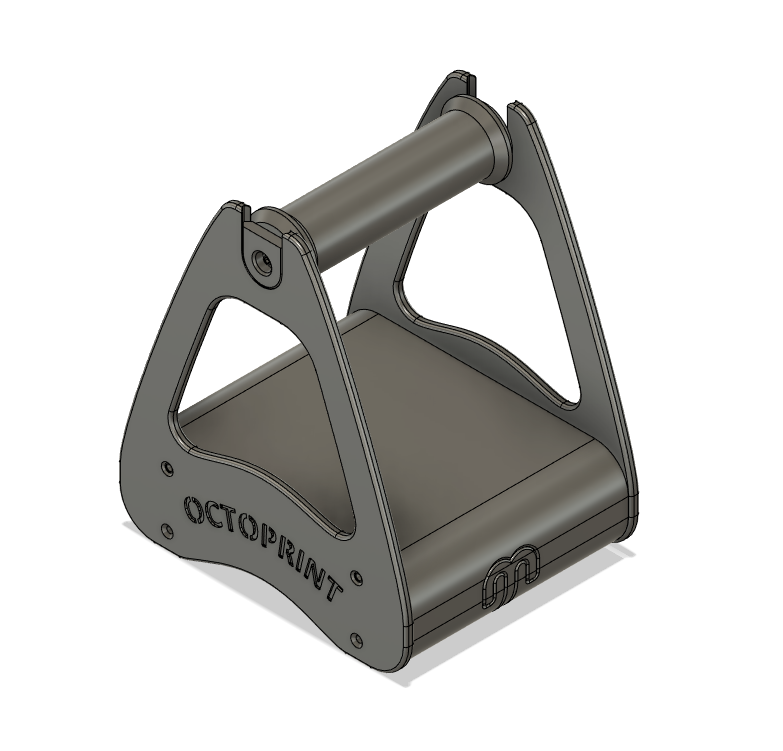

A spool holder and RPi case for using OctoPrint with a touch of RGB
Print settings :
Side Logo, Side, Led mount, Difuser and Lock:
| Layer height | 0.2mm |
| Infill | 30% |
| Support | No |
| Build plate adhesion | None |
Difuser shield:
| Layer height | 0.2mm |
| Infill | 99% |
| Support | No |
| Build plate adhesion | None |
The infill ratio is high to block light from the LEDs
Settings Base, Roll:
| Layer height | 0.2mm |
| Infill | 30 |
| Support | No |
| Build plate adhesion | Raft |
The roll and base should be printed upright
Materials:
| Material | Quantity | Part |
| Insert M3 | 8 | Base |
| Insert M2.5 | 5 | Base |
| Flathead M3 x 10mm | 8 | Sides, base |
| Rounded head M2.5 x 6mm | 5 | RPI, LED mount |
| Rounded head M4 x 16mm | 2 | Roll, Lock |
Ball bearing (Optional) Shaft OD 12mm, Housing ID 18mm, Width 4mm | 2 | Roll |
LED strip (WS2812 or SK6812) + wiring Length needed 0.1m (60l/m) | 1 | LED mount |
| Rubber pads 10mm | 4 | Base |
Assembly:
Base:
- Place the M3 inserts for mounting the sides

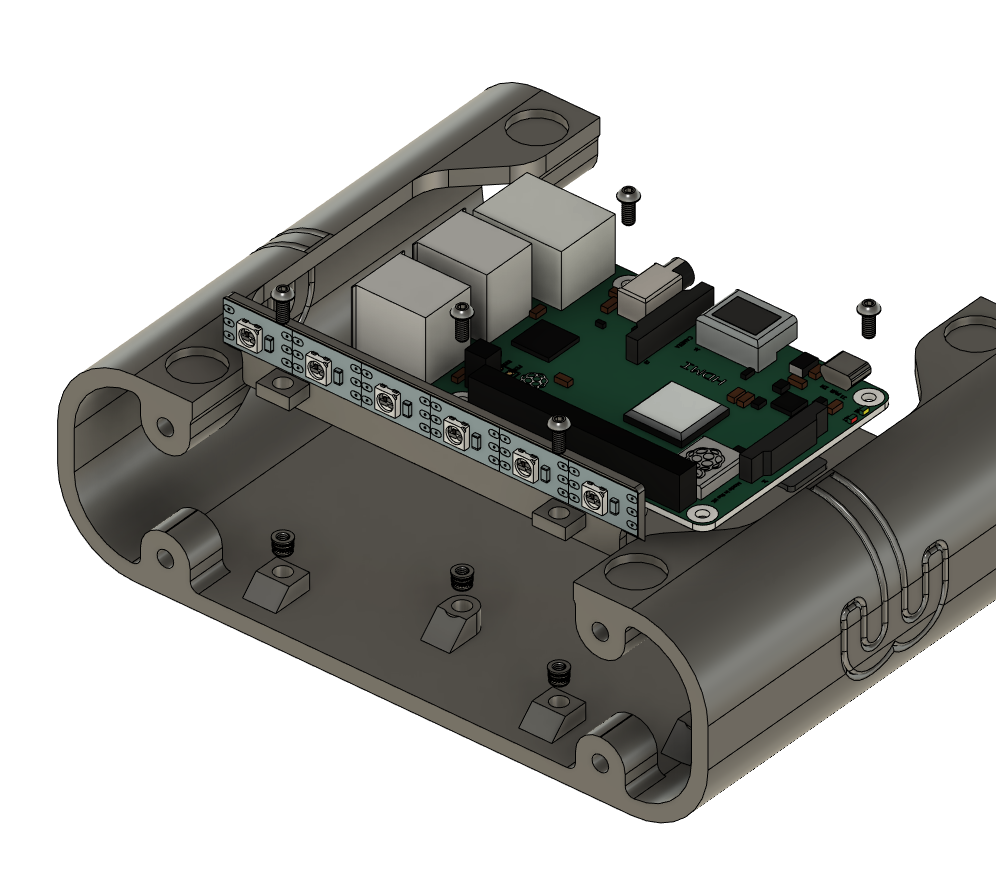

- Place the M2.5 inserts for mounting the RPI and the LED mount
- Mount LED strip to LED mount
- Use 2x 2.5mm screws to mount LEDs
- Use 3x 2.5mm screws to mount RPI
- Connect LEDs

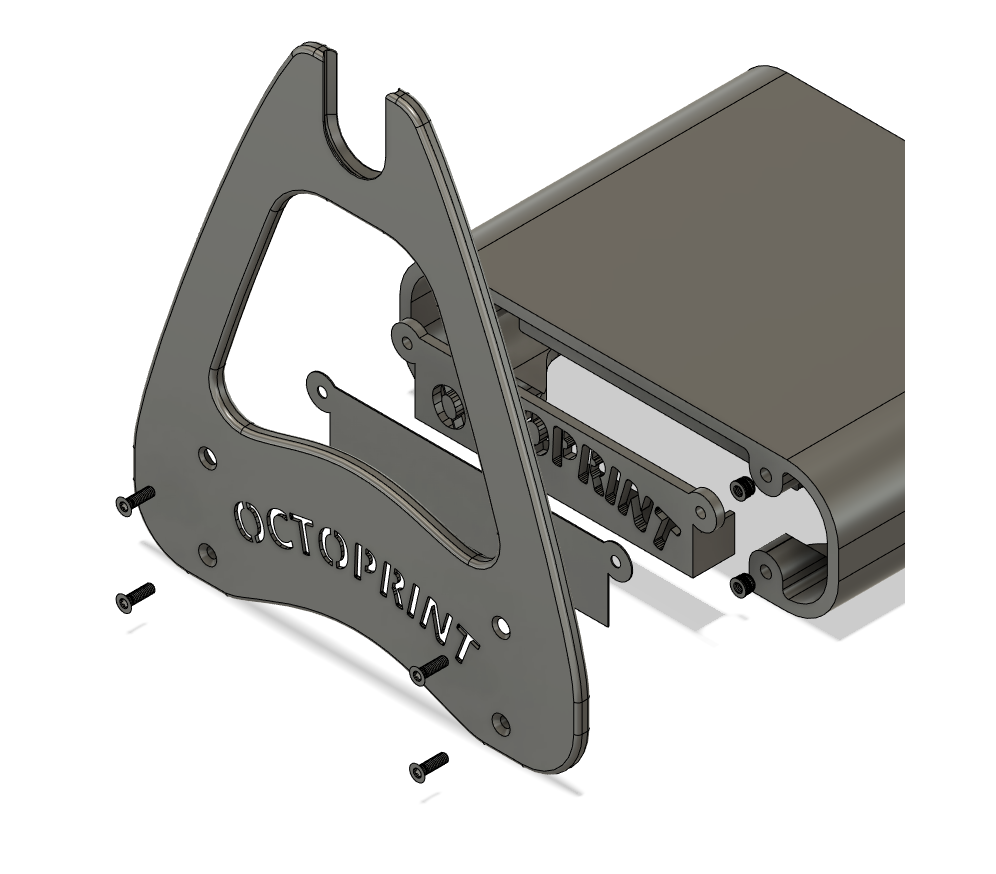

- Mount sides using 8x 3mm screws (The logo side includes the difuser and difuser shield)
- Optional the support material in the base can be removed to route the cables
- Add the rubber pads
Roll:

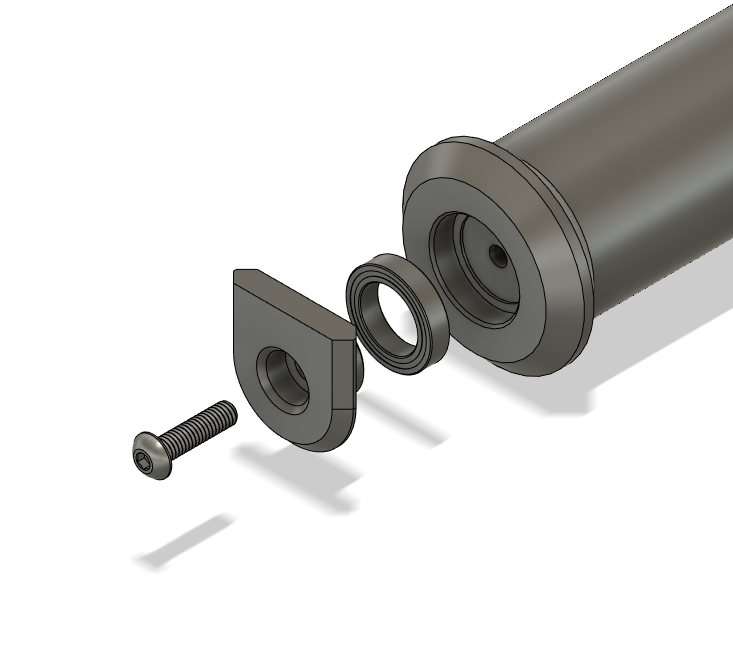

- Use the M4 screws to mount the lock to the roll (Optional a ball bearing can be used) When using a ball bearing the roll may unwind itself. If this happens you can tighten the M4 screw or remove the ball bearing.
Cooling:

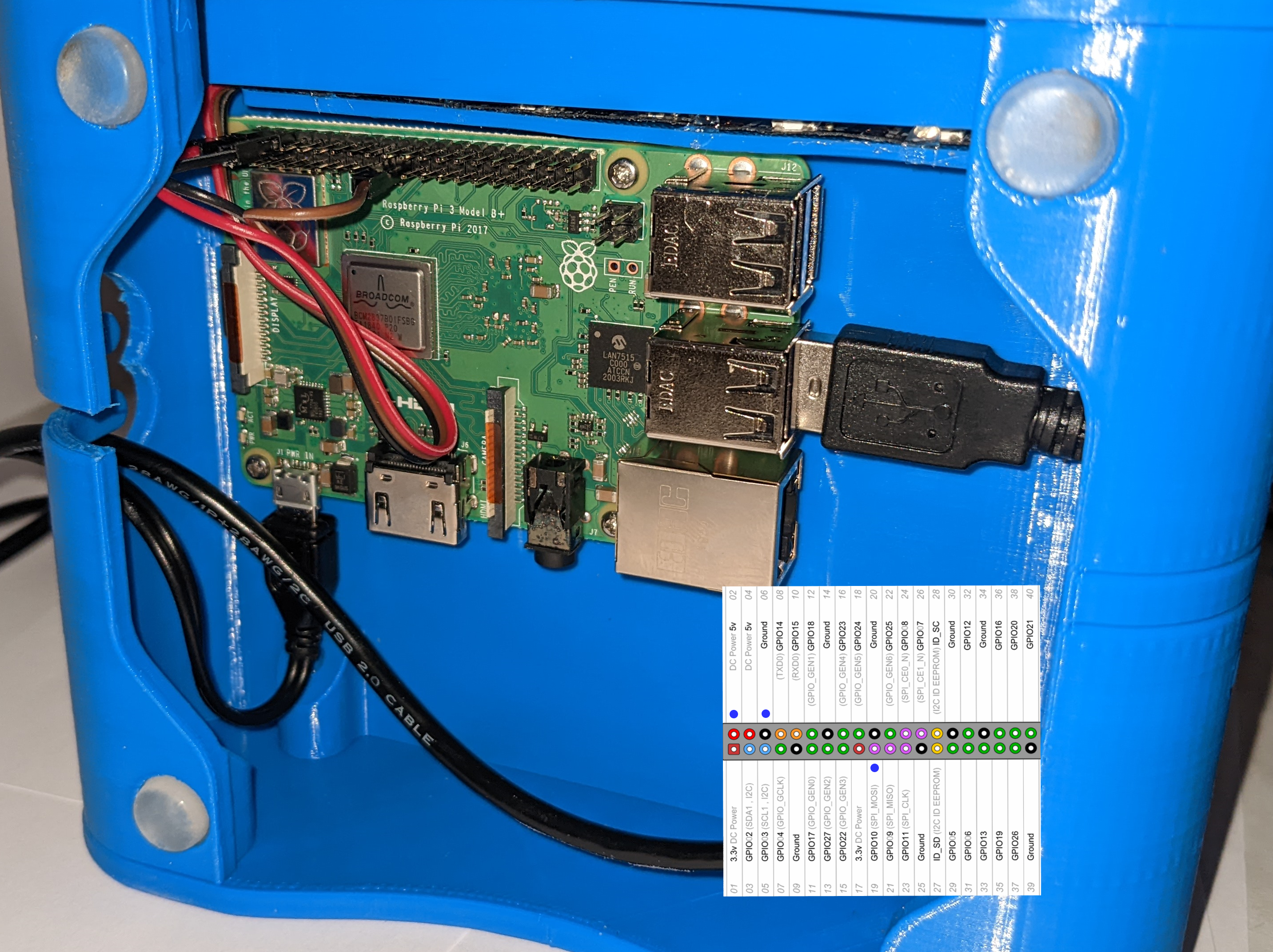

Tested with the Raspberry PI 3 B+ without problems. But the board gets pretty hot with the upside mounting position and no airflow. For the model RPi 4 forced cooling probably will be necessary.
OctoPrint plugin:

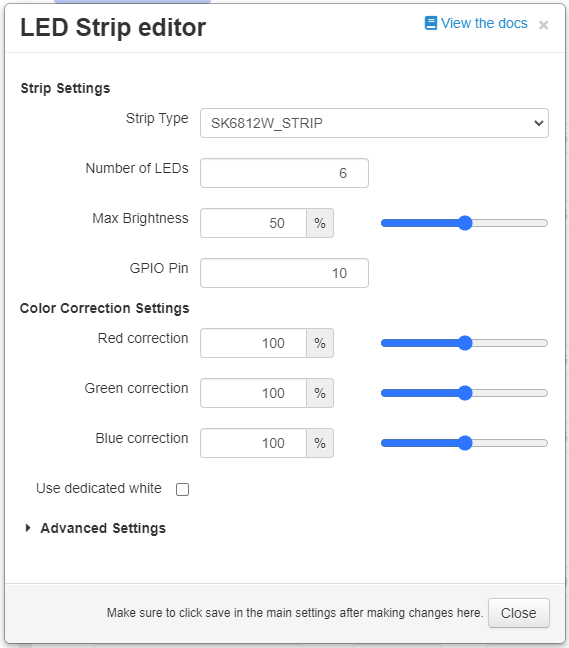

Use the excellent “WS281x LED Status” plugin to control the led strip.
Tested with the SK6812W leds. Reduce the brightness to reduce power and extend lifetime LEDs
