Household hanger
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other House Equipment
- Licencja
- Creative Commons — Attribution

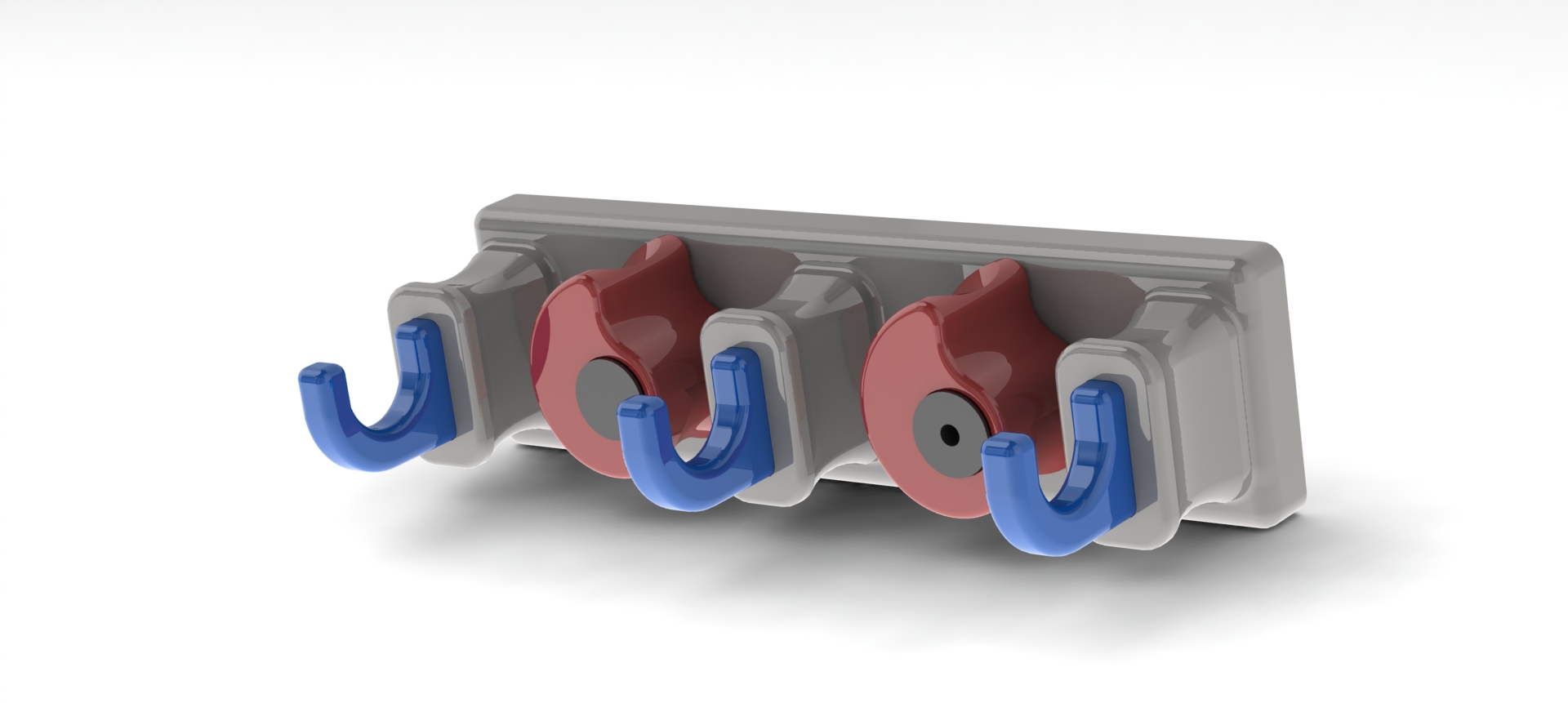

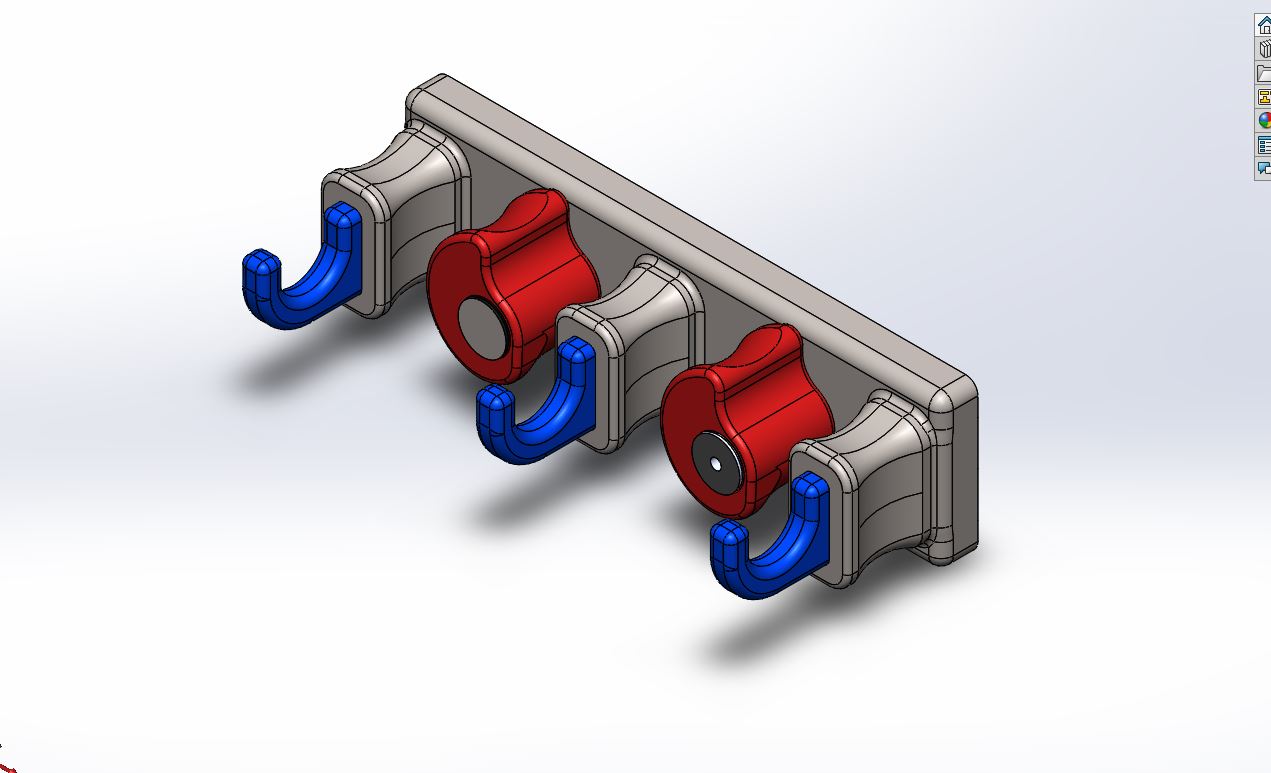

Another household wall hanger with hooks and squeezers. I think the pictures tell everything. Because the print materials are slippery you have to use some adhesive textile tapes on the squeezing surfaces. (The green color on the pictures)

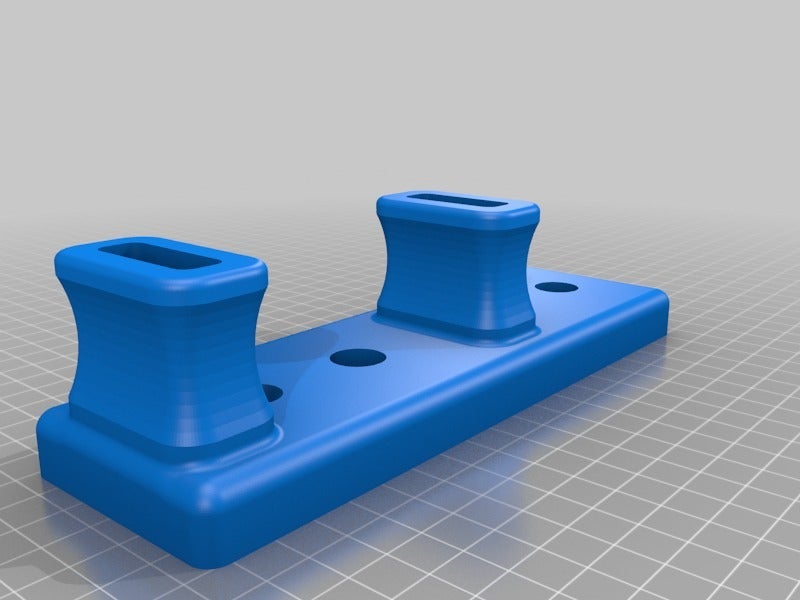

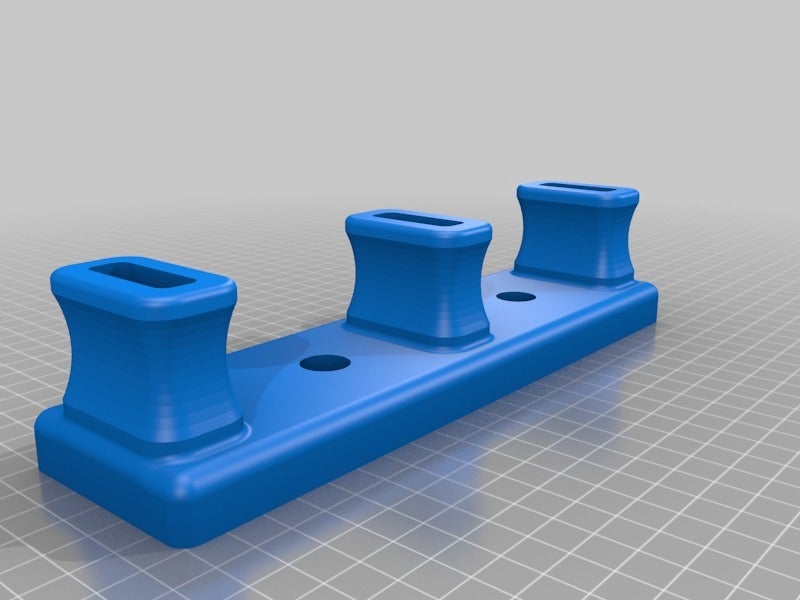

There is a base plate with 2 hooks and one with 3 hooks. They can be placed in serial on the wall.
No supports needed, but take care on the bridging direction to have them short.
The included print files are good for a full set with 5 hooks.
I used brims on the base plates because they have a hollowed back. The hooks and squeezers are printed with 3 perimeters. Otherwise all settings are the ususal 0.2 mm for the Prusa I3MK3S, so printing is easy.
Print instructions
Category: Organization Print Settings
Printer Brand: Prusa
Printer: i3 MK3
Rafts: No
Supports: No
Resolution: 0,2
Infill: 20
Filament: PETG Black and Red
