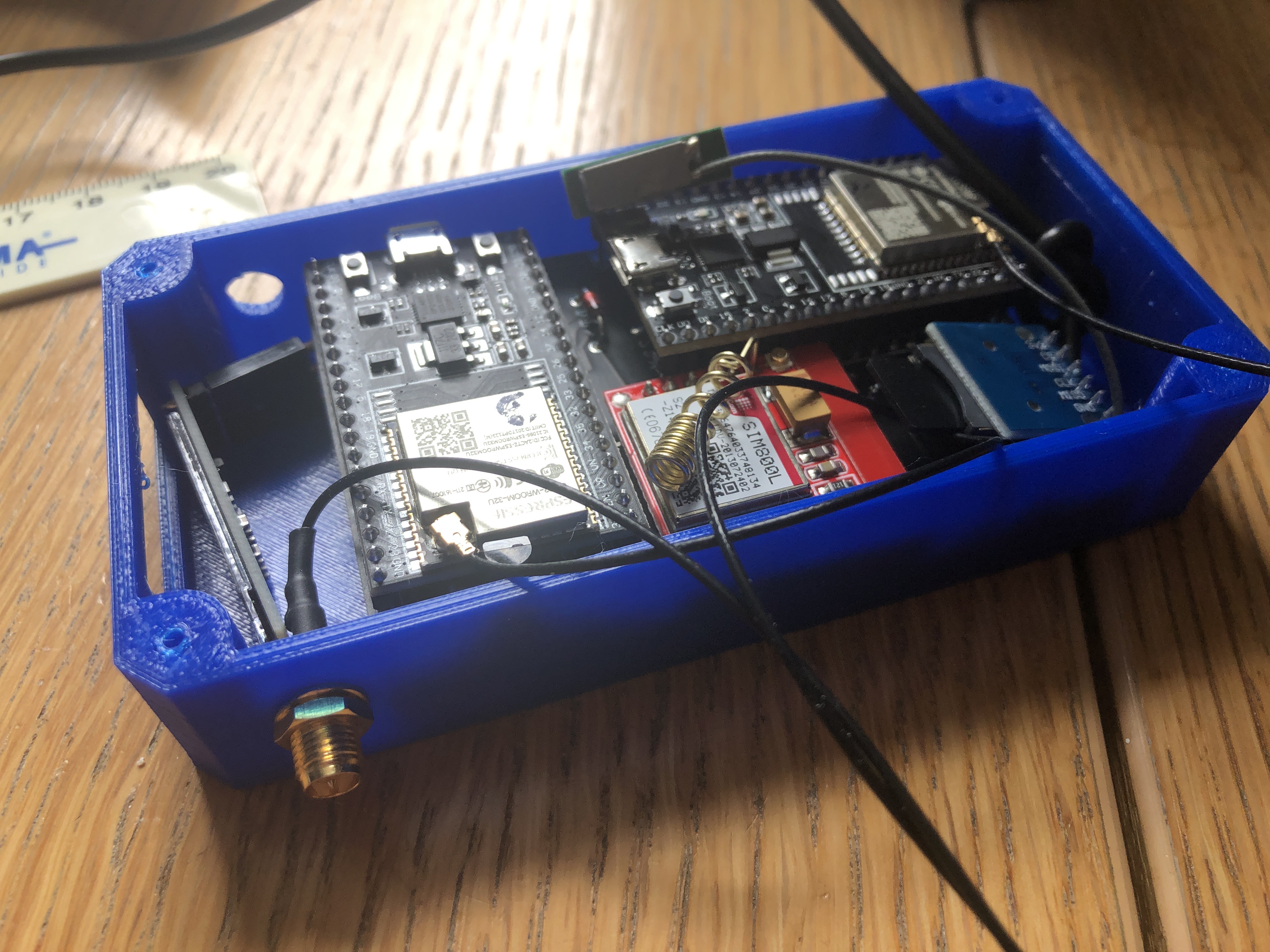

Joseph Hewett created a Wardriving PCB. I struggled to get all the parts into the recommended size case, so created this with a little more space. This is for the V3 board.

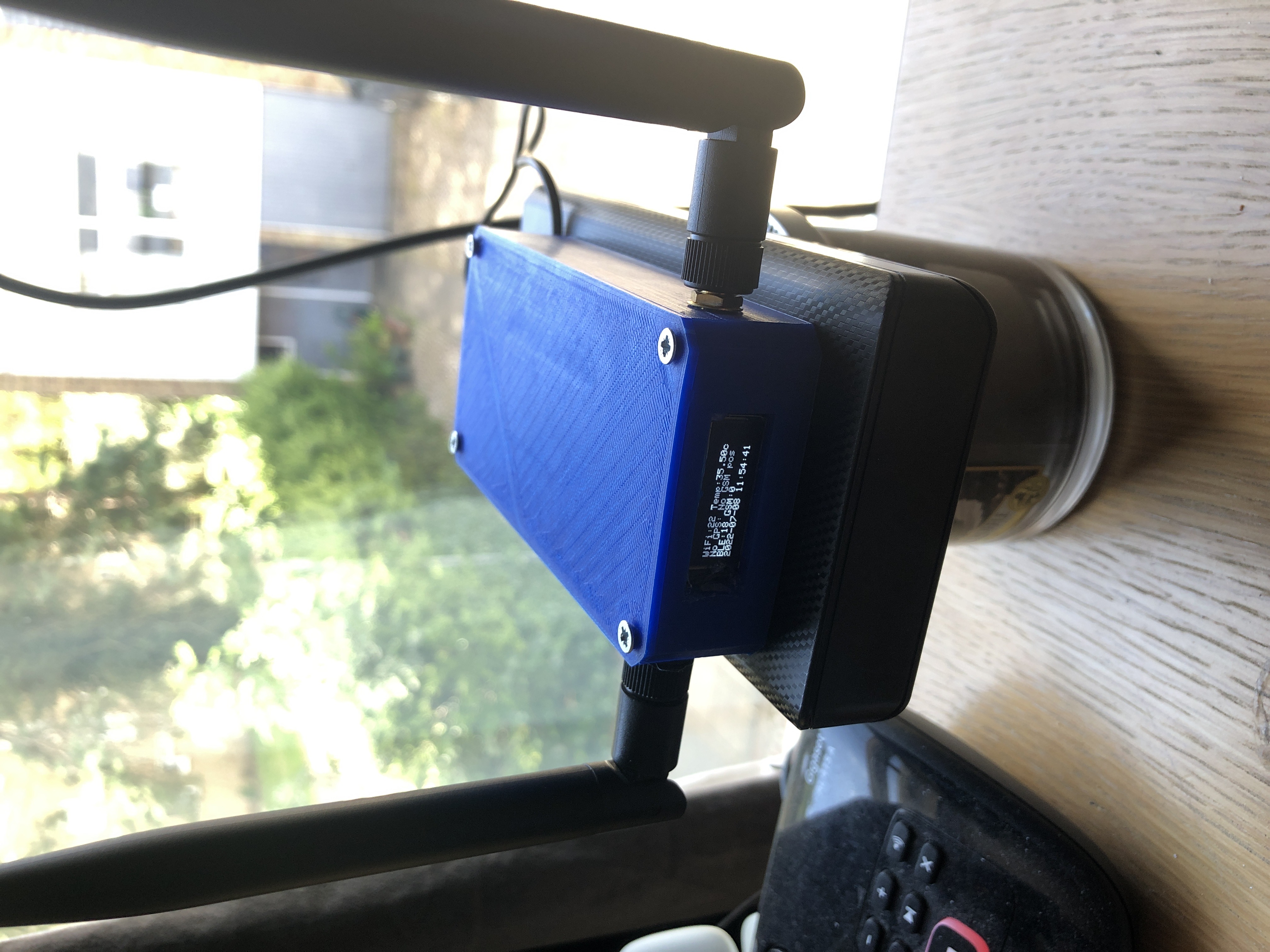

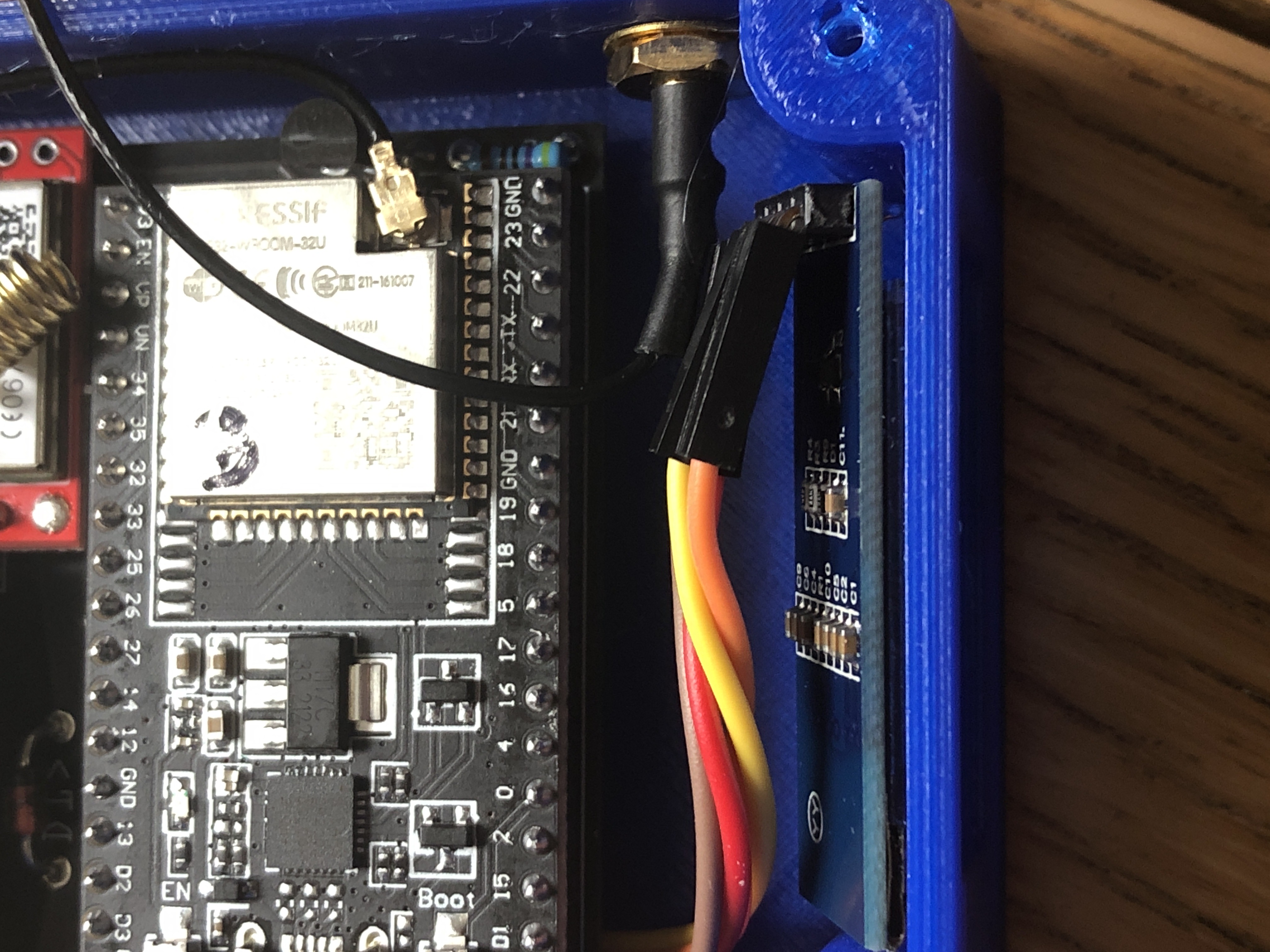

Ideally the square window needs shrinking a little, (see photo) is a little too large but its fine for my purposes. Depending on your OLED display you may have to remove or bend the pins (I bent mine see the images), some come with the header pins soldered on, some come with the pins seperate and you attatch them as you need.
You will need to notch the case to get the power in, between the top and the lid. I re-used an old USB lead and have it feeding from a USB A plug to the power-in solder points. You could also put another hole in a side and connect to one of the Micro USB's on the ESP32 board.
