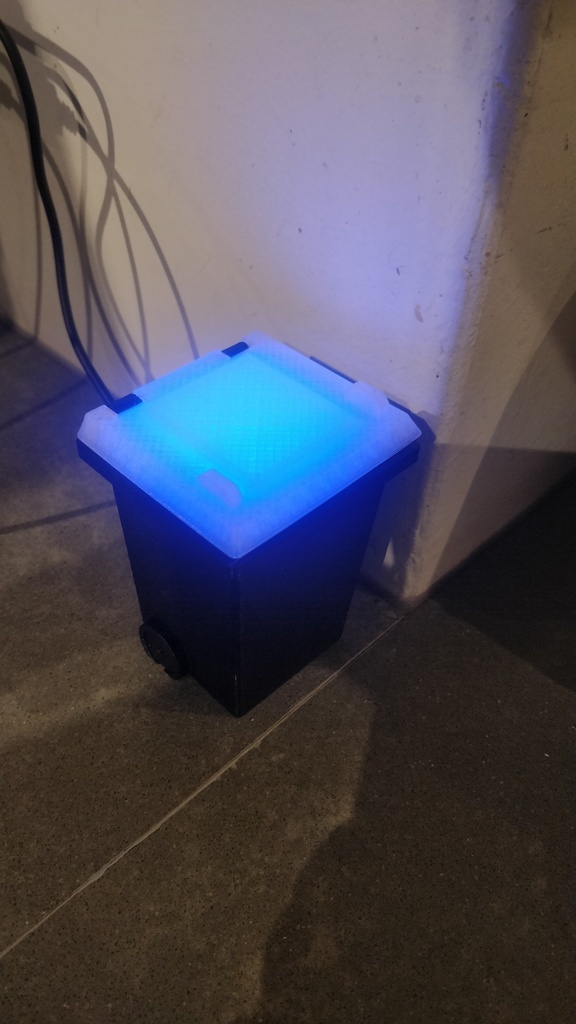

Which bin do I have to put at the curb for collection today?
This notifier will tell you by coloring its lid in the color of the bin!
(In my municipality we have 4 colors: green = compost, blue = paper, orange = plastic, gray = all other.)
I saw the wheelie bin of Jigsawnz (https://www.thingiverse.com/thing:2247931) and this idea popped in my mind. Full description of the project is here: https://www.ewak.net/blog/2021/20210118-wastebin-notifier/
I hope this inspires you to create awesome things!
Print Settings
Printer Brand:
Prusa
Printer:
i3 MK3 MMU 2
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
10%
Filament: ColorFabb PLA-PHA Black and transparent
Notes:

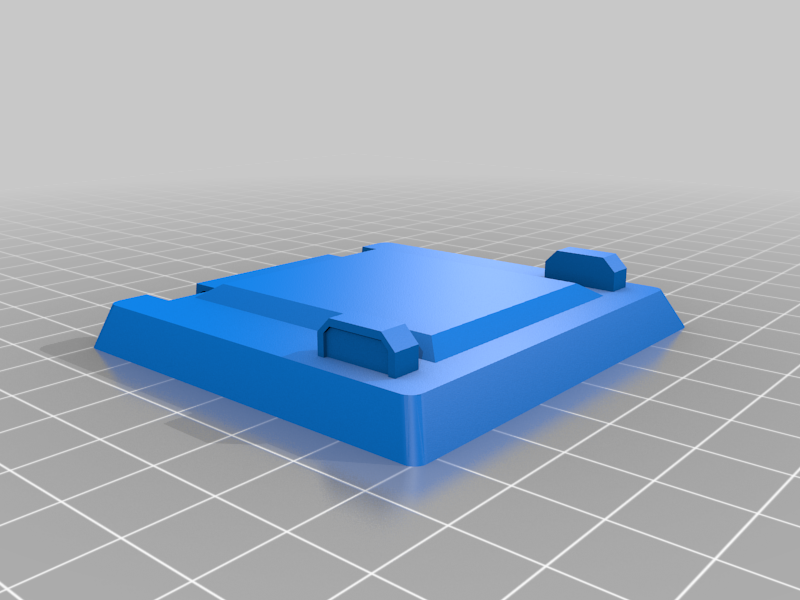

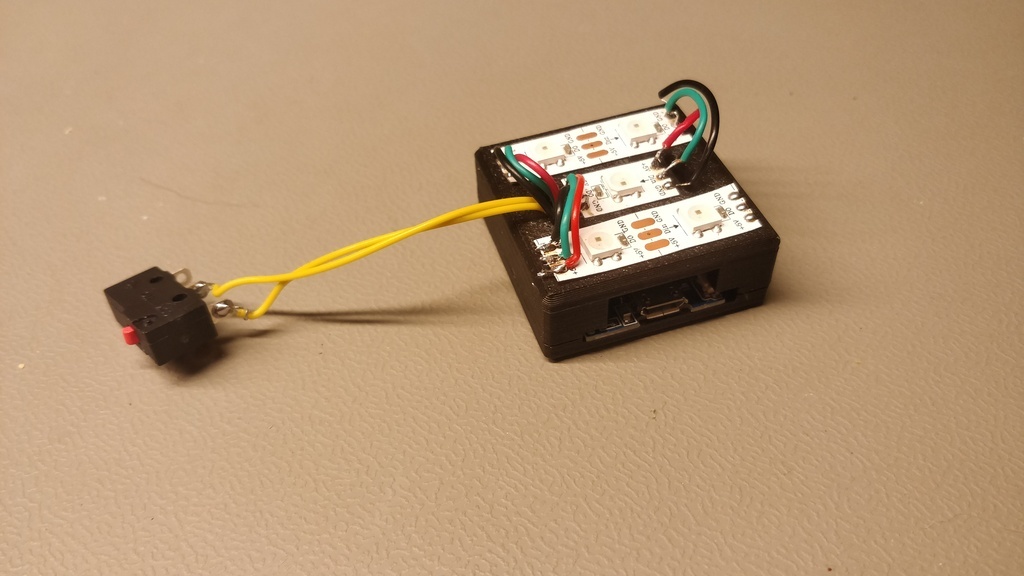

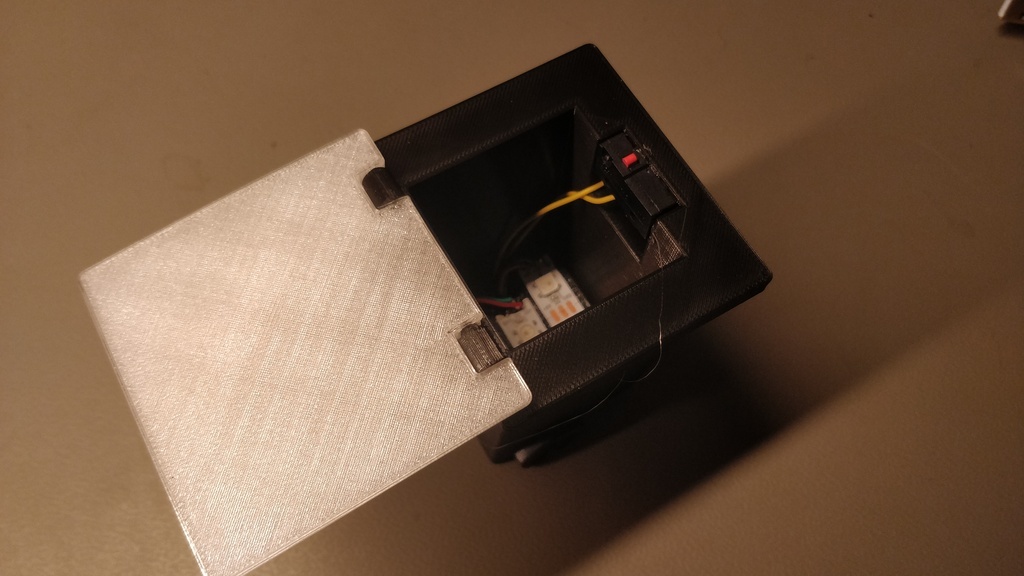

The lid is press-fit to the body. It might take some wiggling to get it on. The LED's are connected to D4, The switch is connected between D2 and D3. D3 is the input and D2 is providing the Enable signal. If D2 is high, the switch is enabled (see included yaml file with ESPhome sketch).
