LED array stand
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Ideas
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

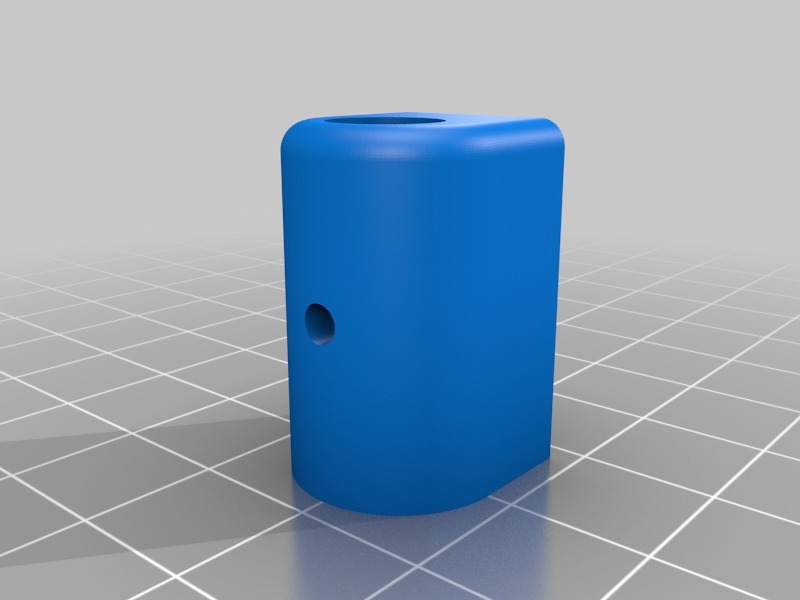

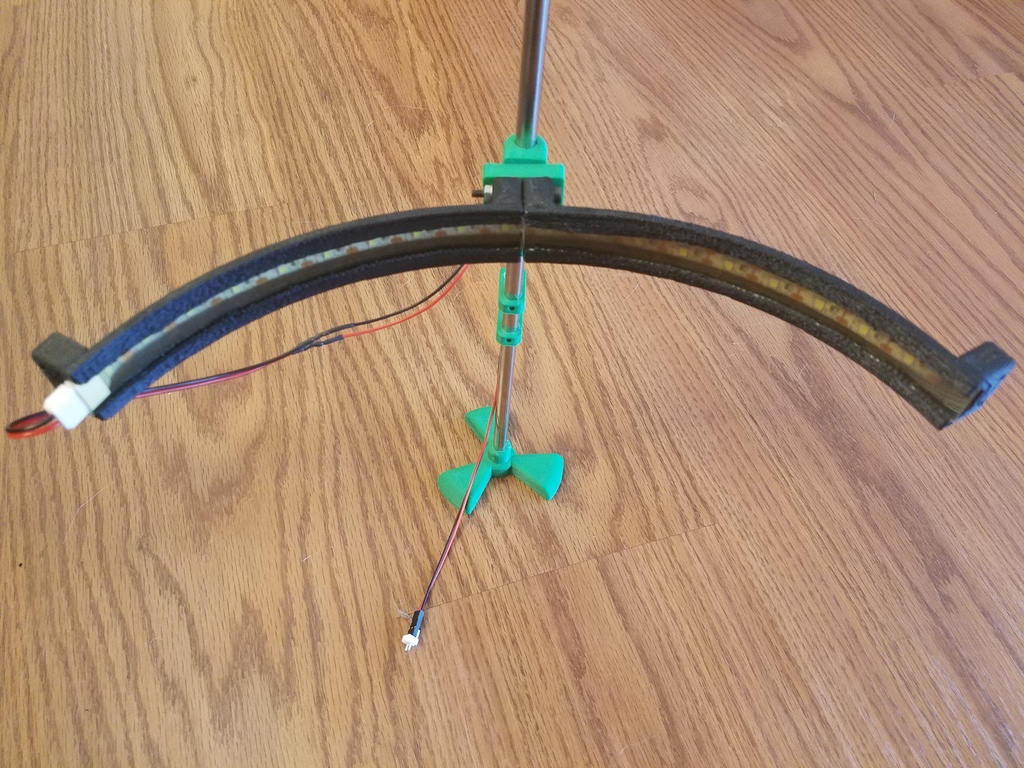

Fancy LED array stand for 3258 SMD strip LEDs (1M 60LED/M). Strip fits within groove of holder behind light diffuser. Mounts to an 8 mm rod stand. Design requires printing 2X LED array (with a cut-away strip), a mounting plate, retention clamp, 8 mm stand, and cable management guides. I used a 3528 LED strip connectors to wire it. Requires 2x M3x30mm screws to hold together (best to use a tap to thread the holes) and 2X M3 screws to attach the retention clamp to the array.
Print Settings
Printer Brand:
RepRap
Printer:
Prusa Wilson
Rafts:
No
Supports:
No
Resolution:
200 um
Infill:
35%
Notes:
After printing the LED array, use a scalpel to remove excess material where the LEDs will sit. Can use double-sided tape to adhere the strip to the back of the array. Groove is present to insert a strip of light-diffusing material (~2mm thick).
How I Designed This
Designed in Autodesk Inventor
Category: DIY
