Printer Bed Scraper for Replaceable Printed Blades (Two-piece handle version)
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Accessories
- Licencja
- Creative Commons — Attribution — Noncommercial

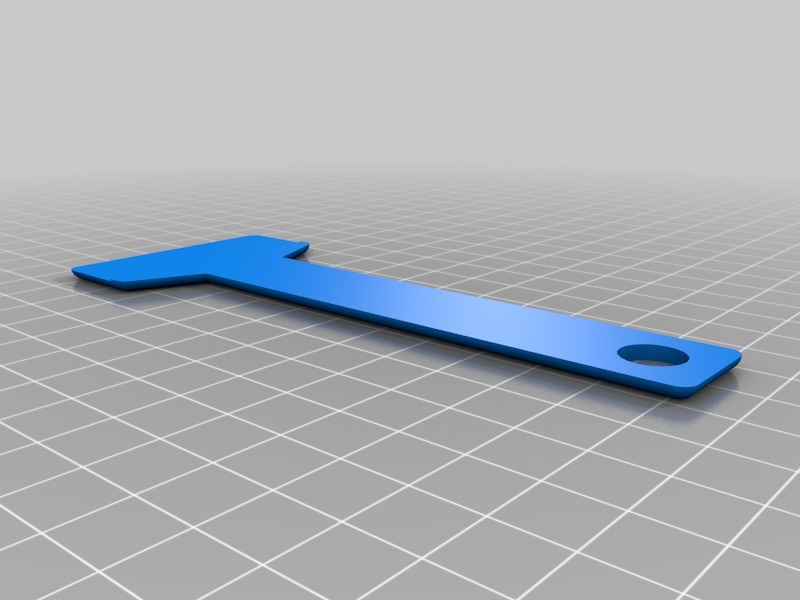

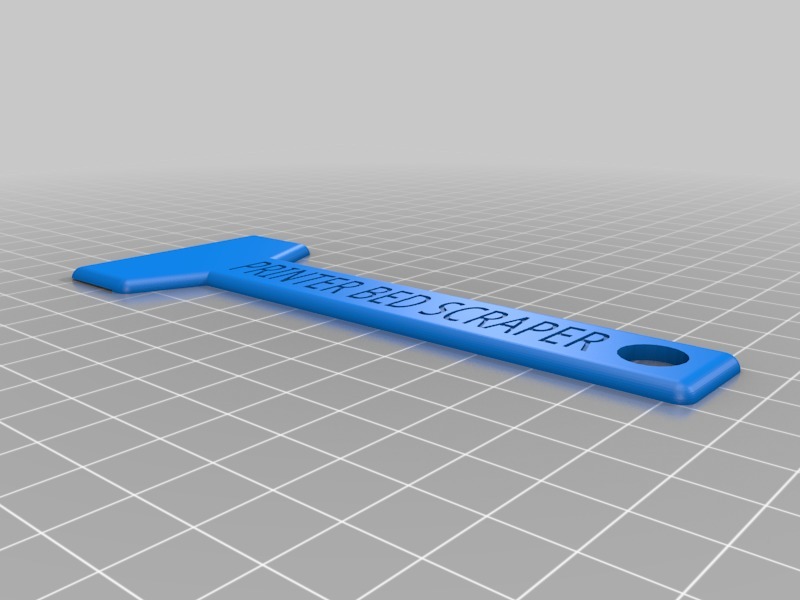

I liked the concept of this design but found support removal impossible. To eliminate the necessity for supports I cut the handle in half.
The files are large to ensure accuracy and the top half of the handle needs to be flipped over to print correctly. I may refine the design, time permitting.
UPDATE: Tool works well. I feel obligated to improve on my alterations. Recommended, thanks for the original design!
NEXT UPDATE: I've since moved on to a more traditional bed scraper. I recommend a 10"/27cm frosting/cake decorating spatula with an offset handle, something like this one.
Print Settings
Printer:
Anet A8
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
20%
Notes:
0.4mm nozzle, three top/bottom and three perimeters, 60mm/sec, 205c hotend, 45c bed.
Print time:45mins
Filament:
LESHP brand blue PLA @ $15.60/kg
4379.4mm
13.17g (0.03lb)
$0.38 cost.
Post-Printing

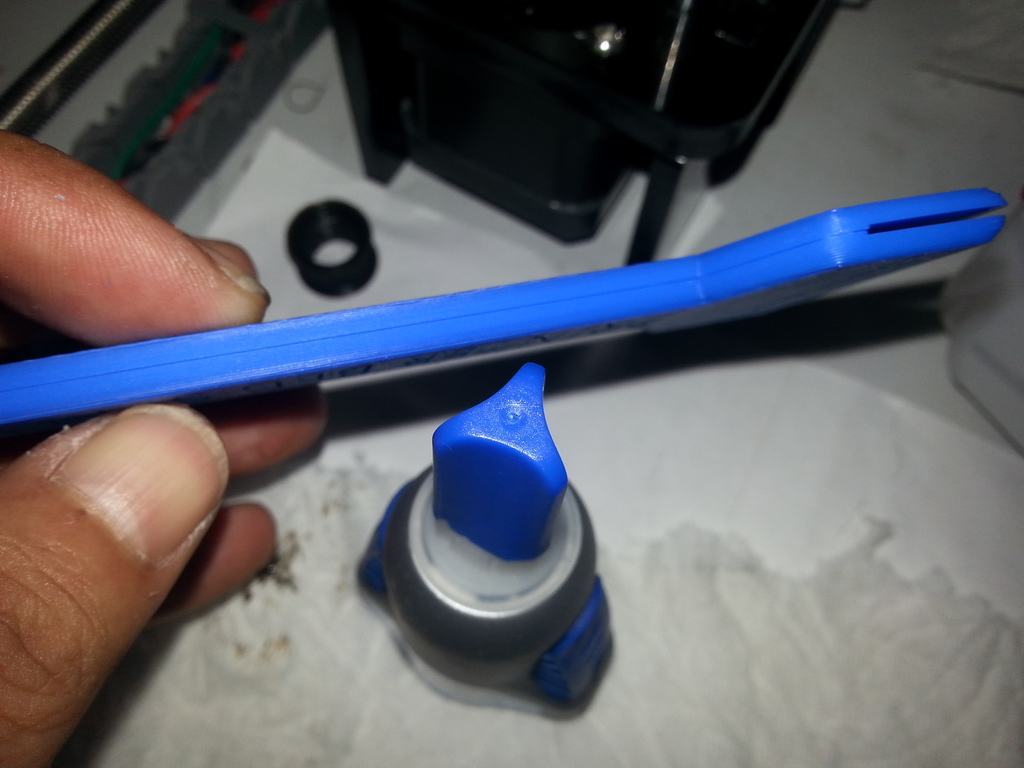

Glue both halves together, I used CA.
How I Designed This
Used Meshmixer's plane cut feature.
Category: 3D Printer Accessories
