Rotho Compost bin hinge

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

3x M4x8 Socket head screws

3x M4 nuts

- There are tow parts included, Left and Right

- I also included Step files if you need to adjust something

- I included 2 presliced files with the Print Pause included for PETG and supports

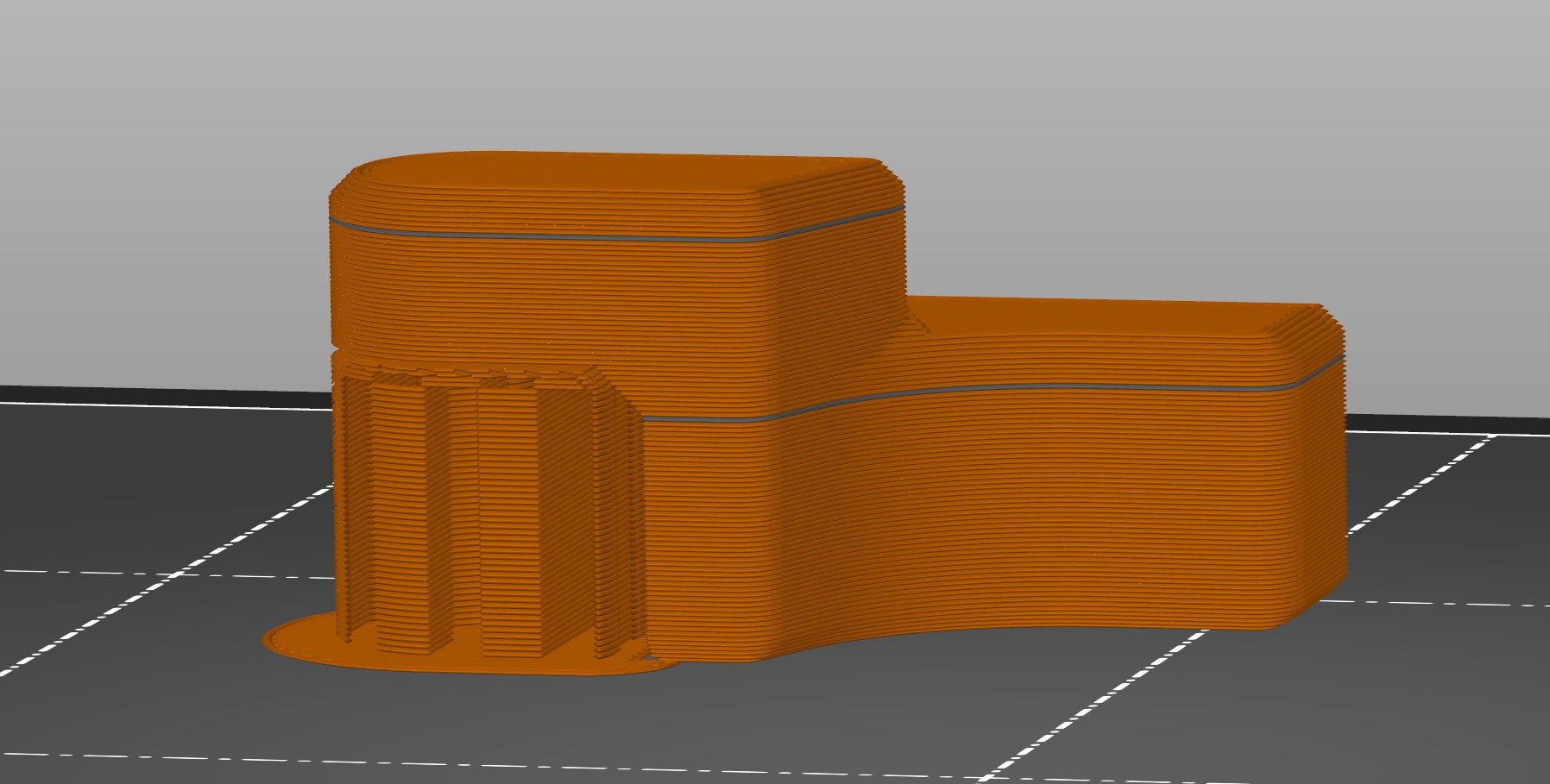

- If you slice it your self, add paint on support only as shown in the picture

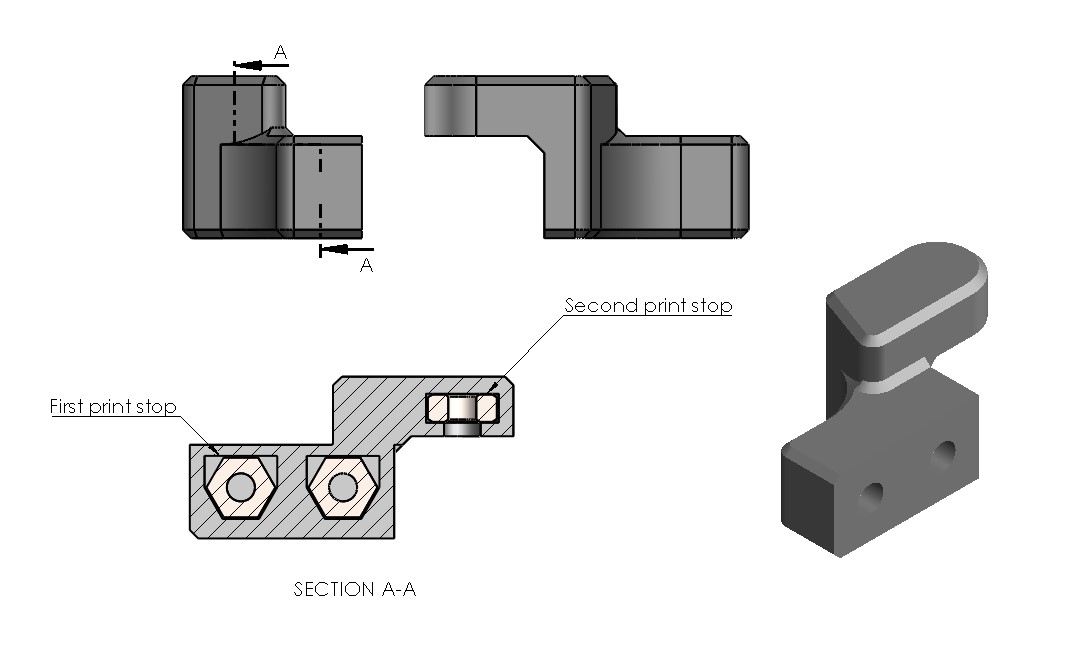

- Add pause print after the holes for the nuts

- Grind away the rest of the broken hinge

- Use the template to drill Ø4mm or Ø4.5mm holes

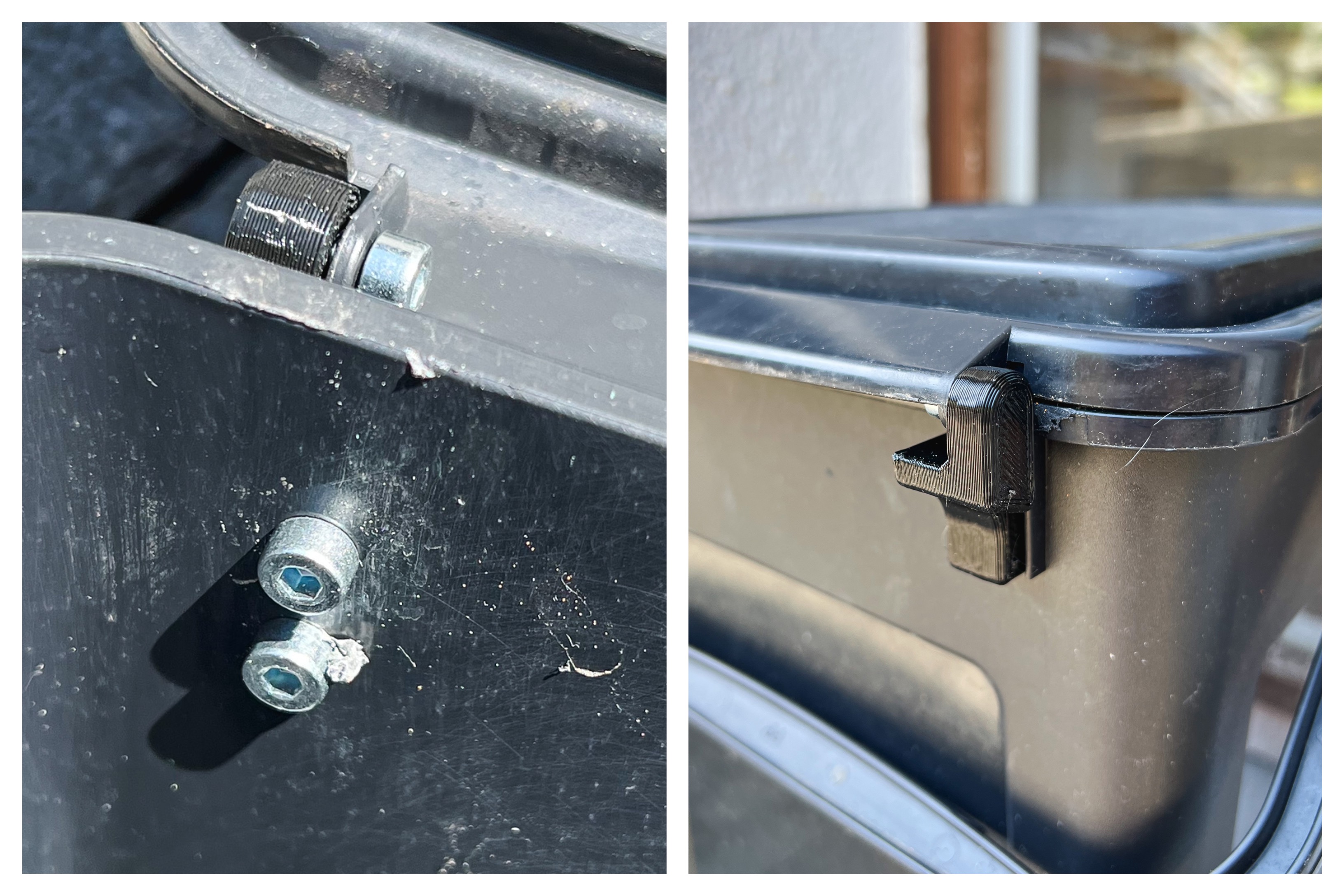

- Install two screws in the bin to attach the hinge

- Install the screw for the lid. Use loctite if needed
