This is my first "thing" i have designed, its an enclosure for the BrewPiLess. There is another rendition of a BrewPiLess enclosure around here, but its bigger, and uses a different board. Here is a parts list:
- NodeMcu
- 2 Channel Relay
- 20x4 LCD
- AC - DC 120v to 5v Switching Power Supply
- Mini XLR Male Connectors
- Mini XLR Femail Connectors
- x2 AC Outlets
- 3 Position Screw Terminal Block
- AC Inlet Socket with Rocker Switch
- x2 Temperature Probes
misc screws, wires, and connectors

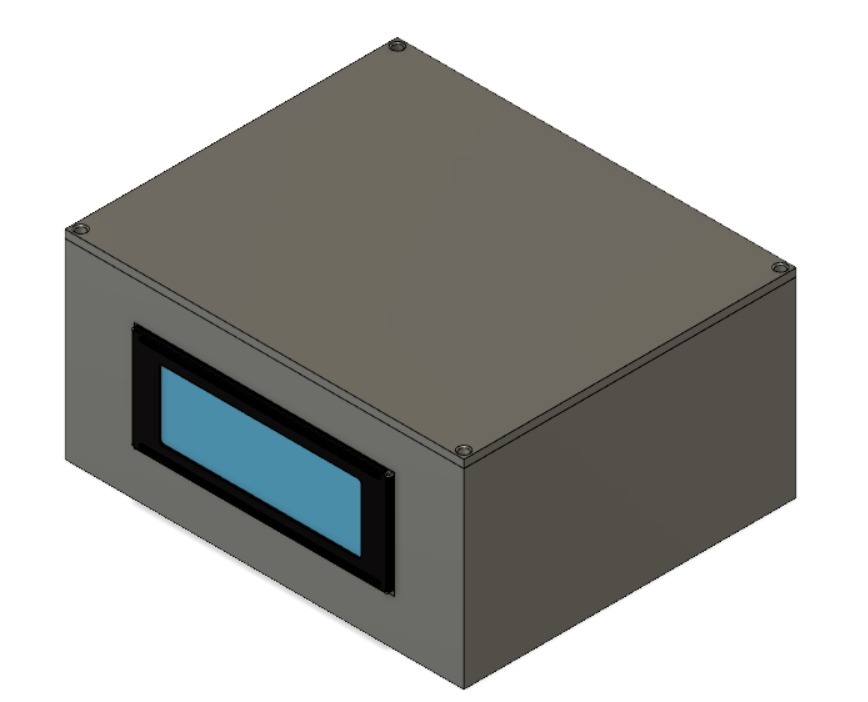

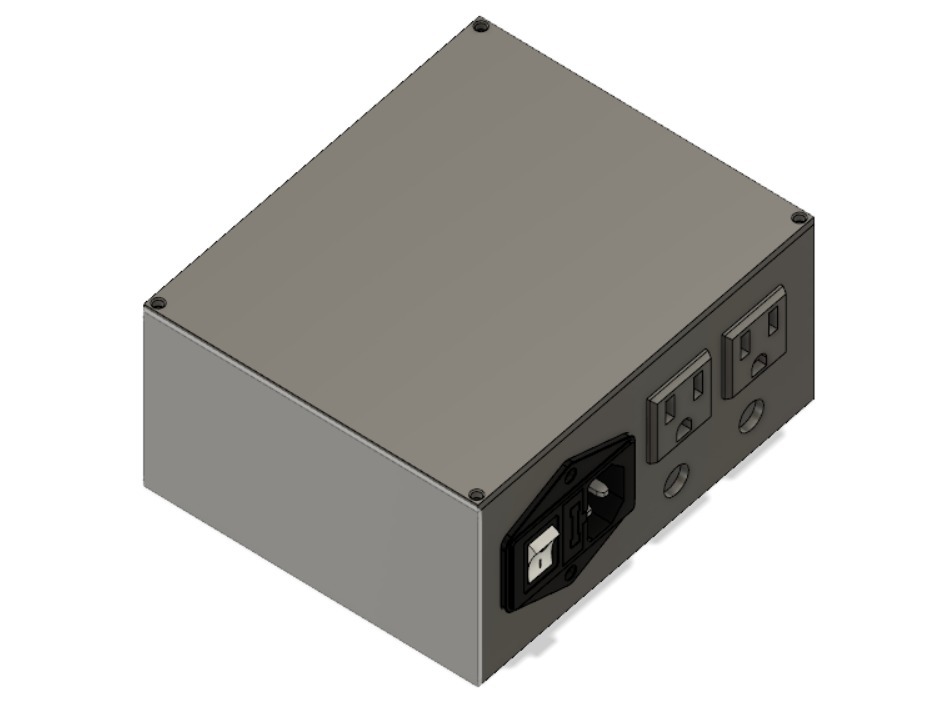

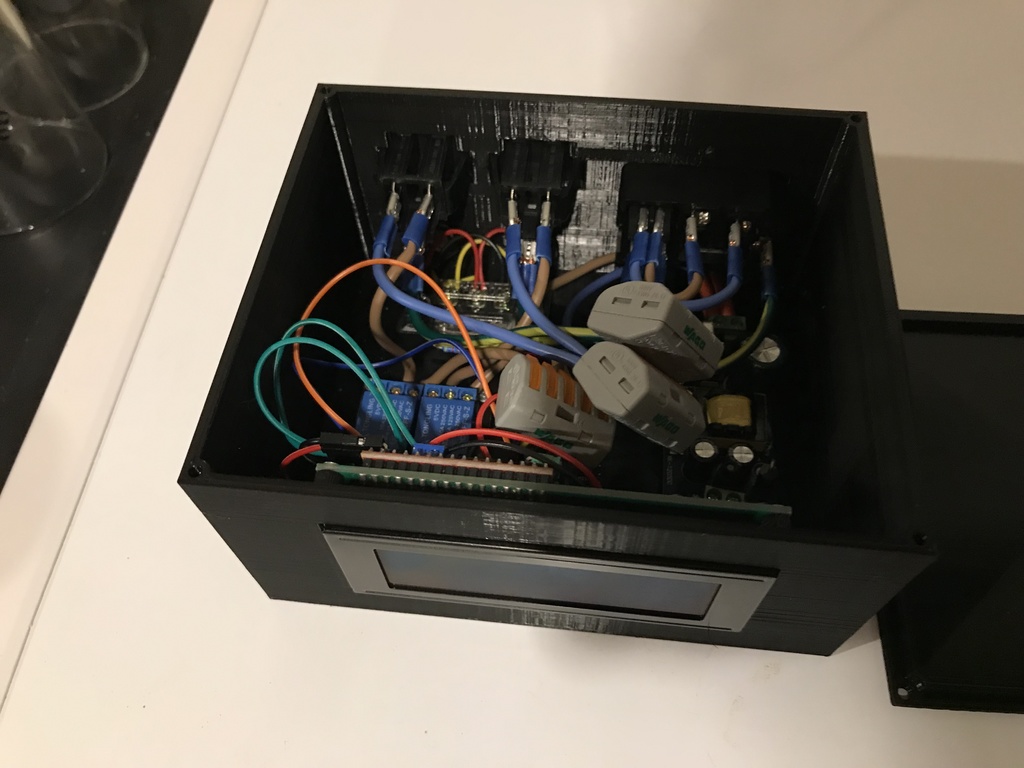

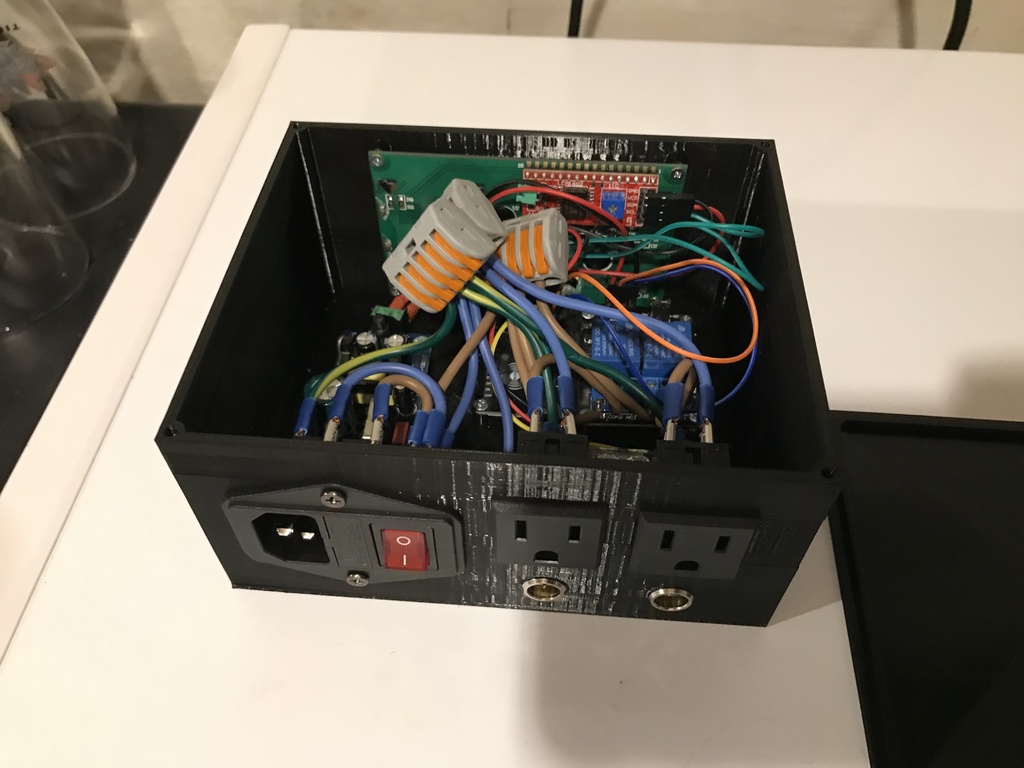

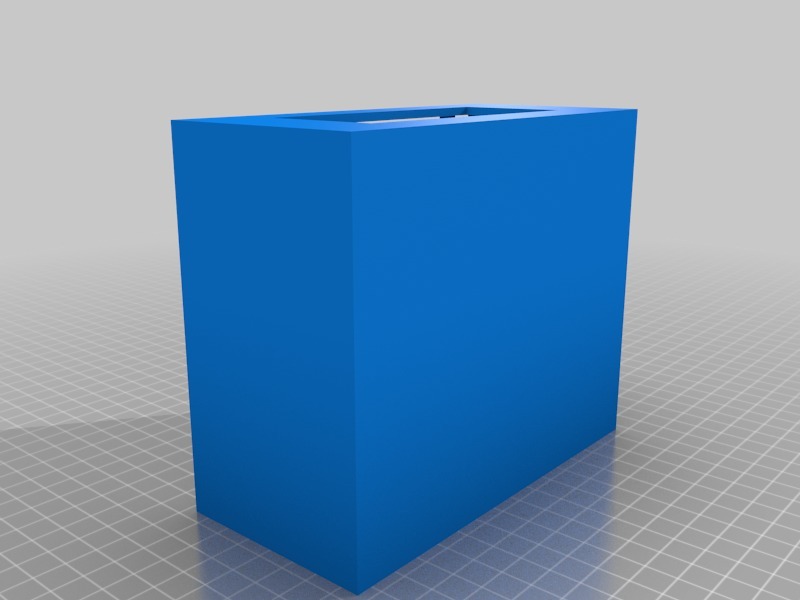

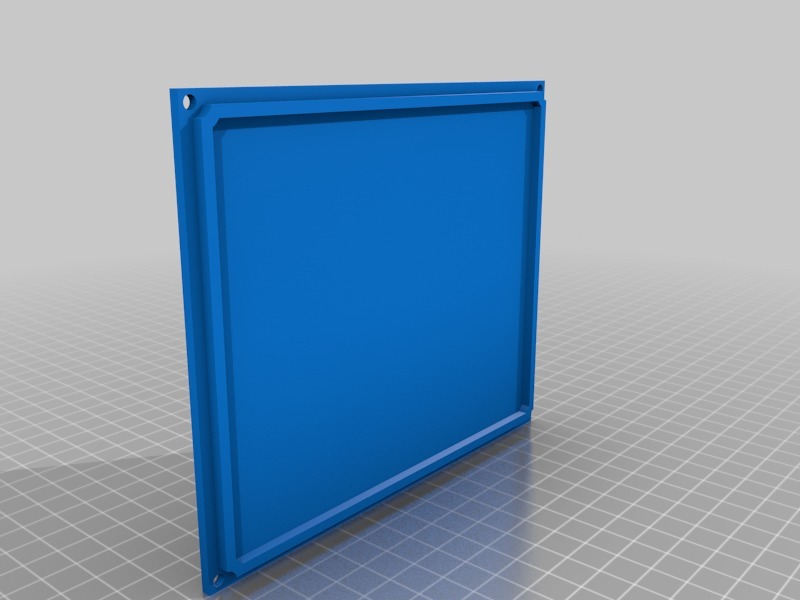

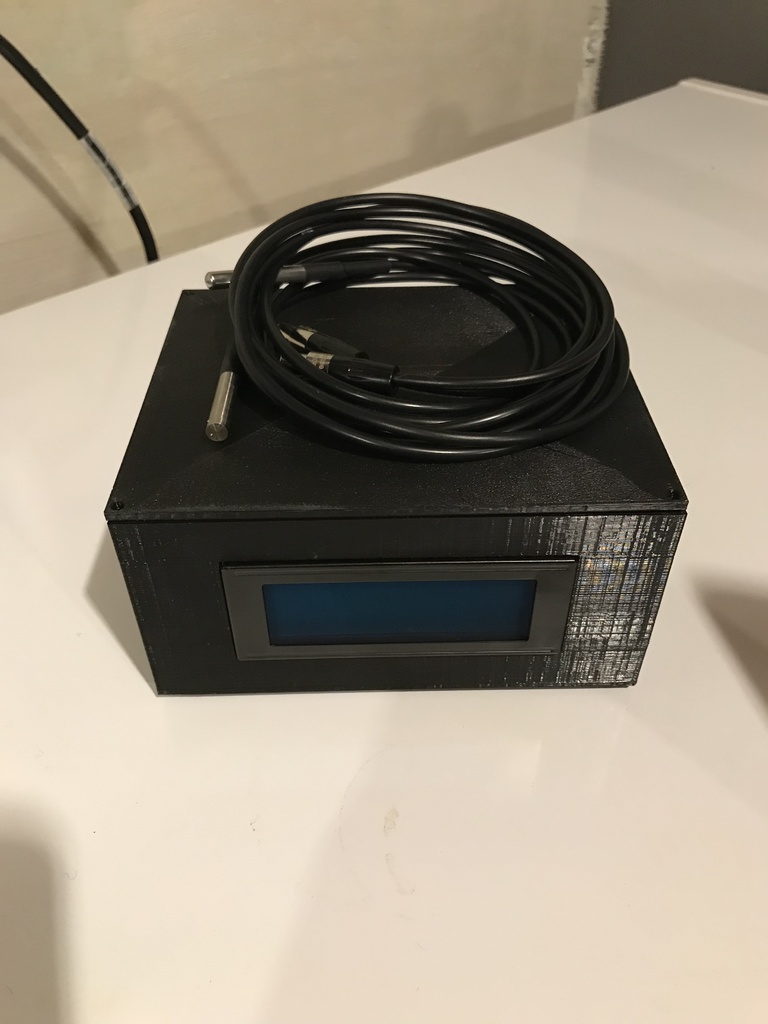

This box is a bit smaller then the other on thingiverse, so wiring is a bit tight just and FYI. I was going to make screws hold down the terminal block, but i just made posts that hold it pretty good, and i put a little dab of glue on it.
(i couldn't find models for the 5v power supply or the mini XLR connectors).
