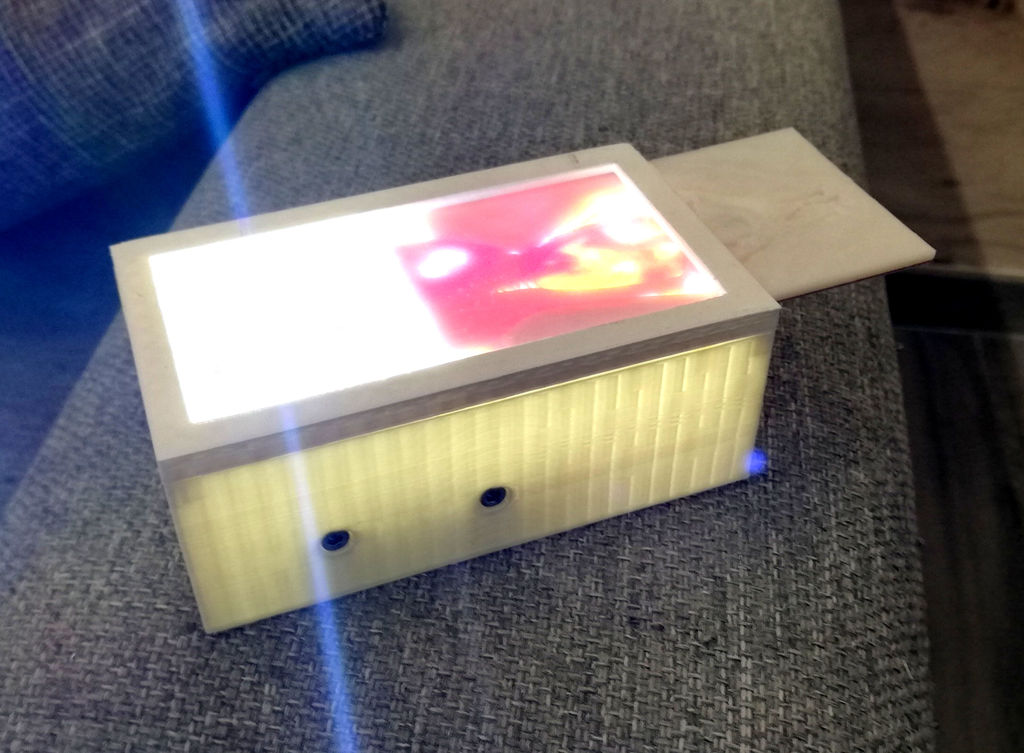

Lithophane viewer 100X53 mm
I have also included the "empty" .jpg file to create the customised lithophanes
Components:
3 chip led 3V - 3W
1 reed switch 2 X 16 mm
1 Switch, tactile SPST, through hole
1 9V battery
1 round magnet 15X5 mm
2 Allen head screws M3 X 6 mm
2 Allen head screws M3 X 20 mm

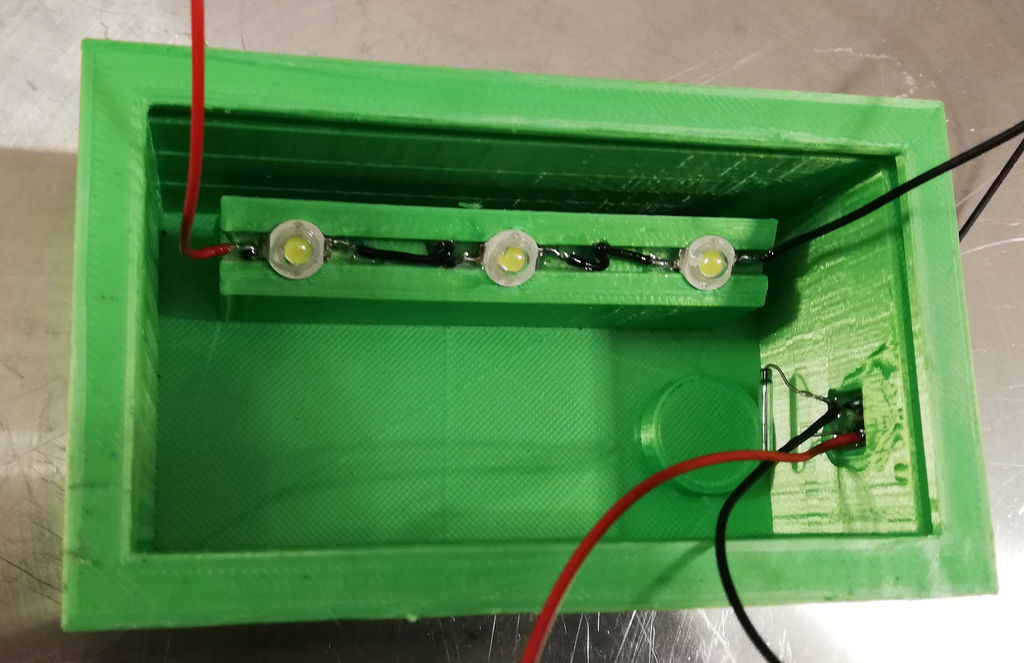

the switch and the 3 leds are fixed with two-component glue.

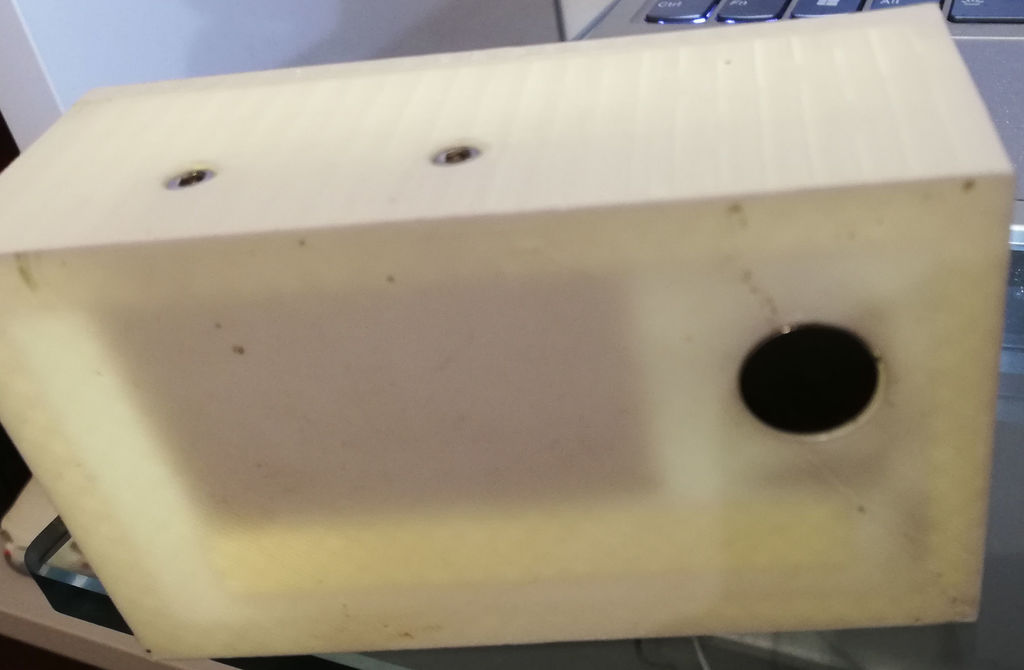

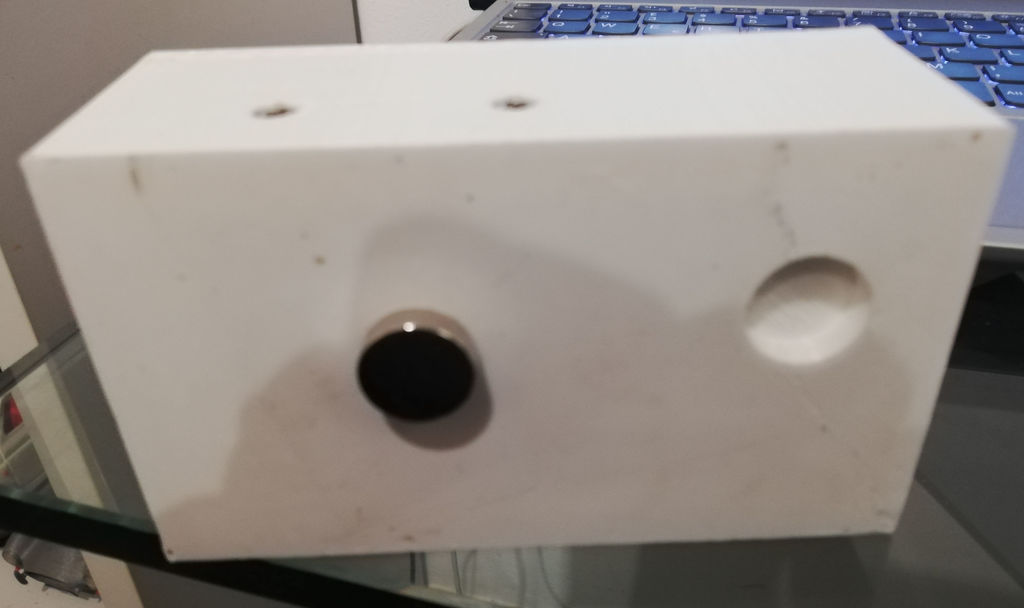

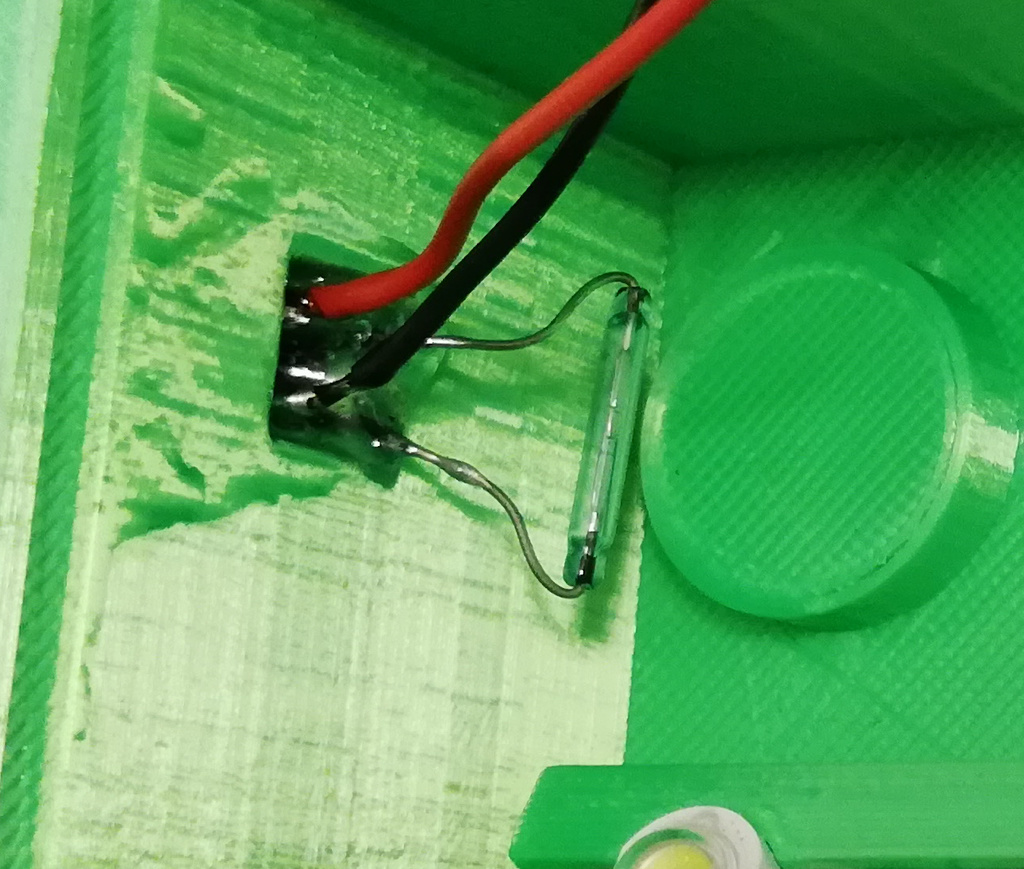

The reed switch is in parallel with the momentary switch.

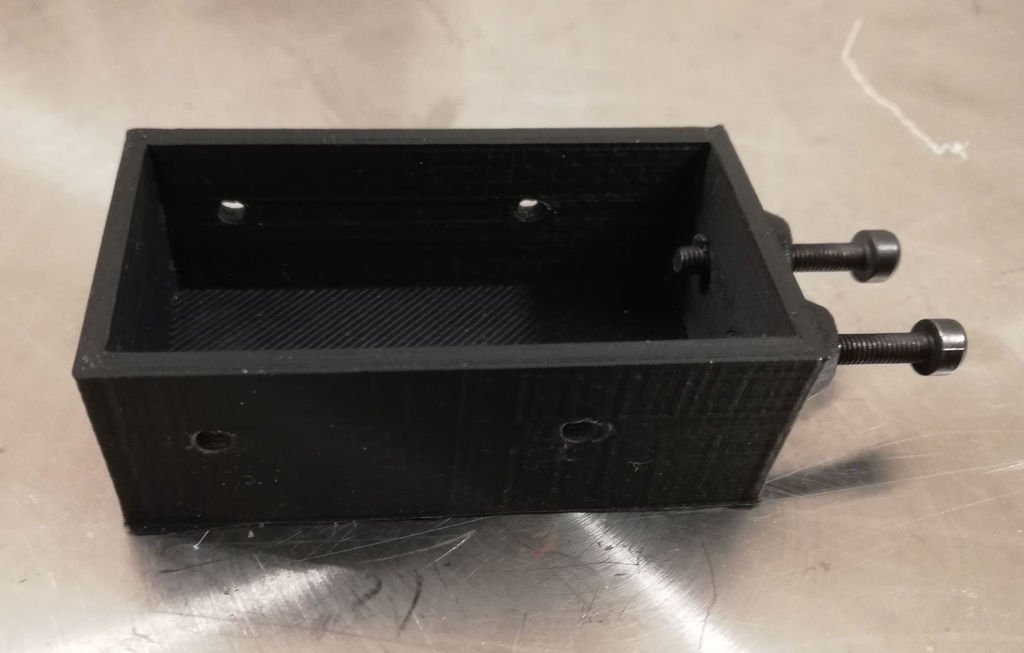

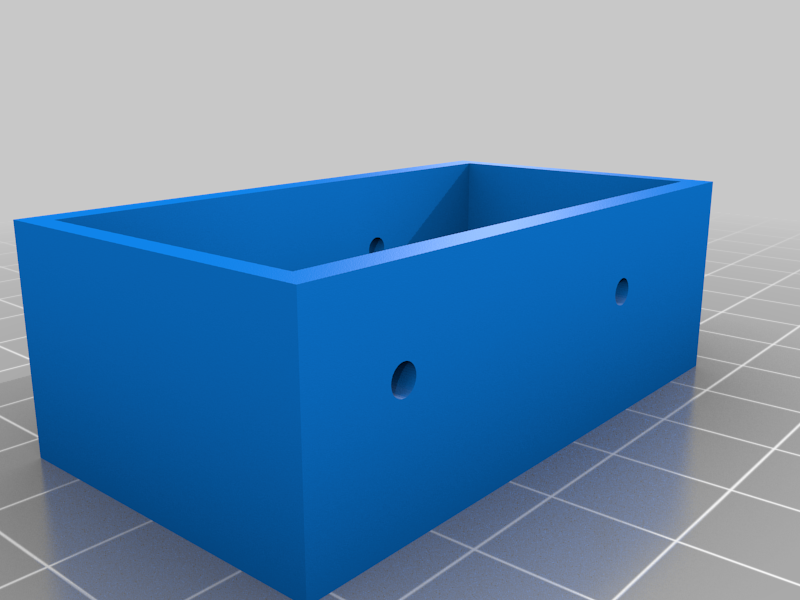

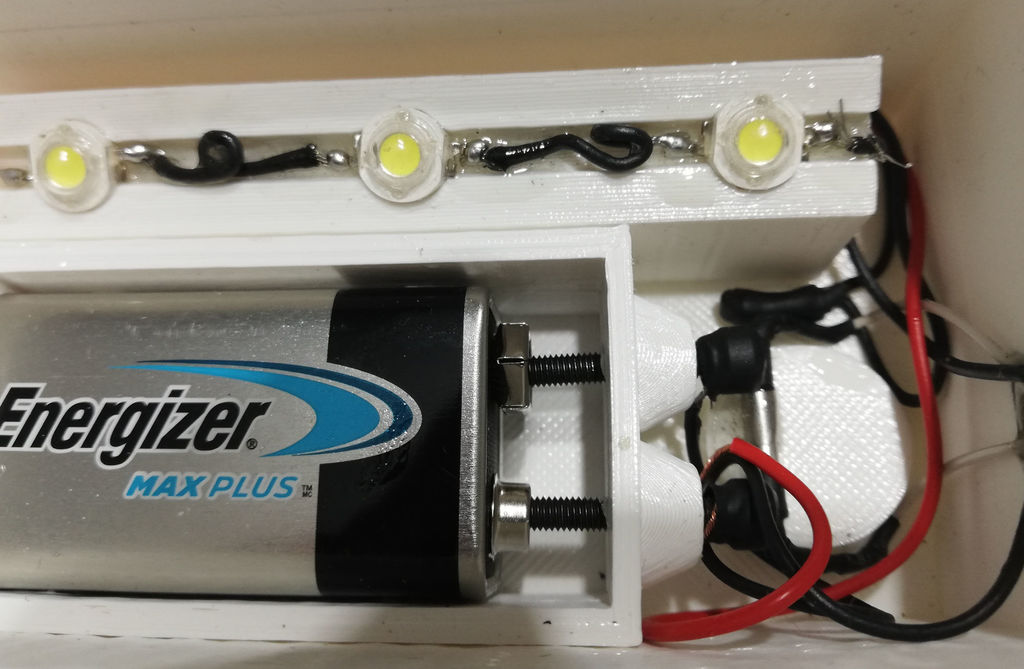

The holes in the battery holder are M3 threaded.
The battery wires are secured with heat shrink tubing

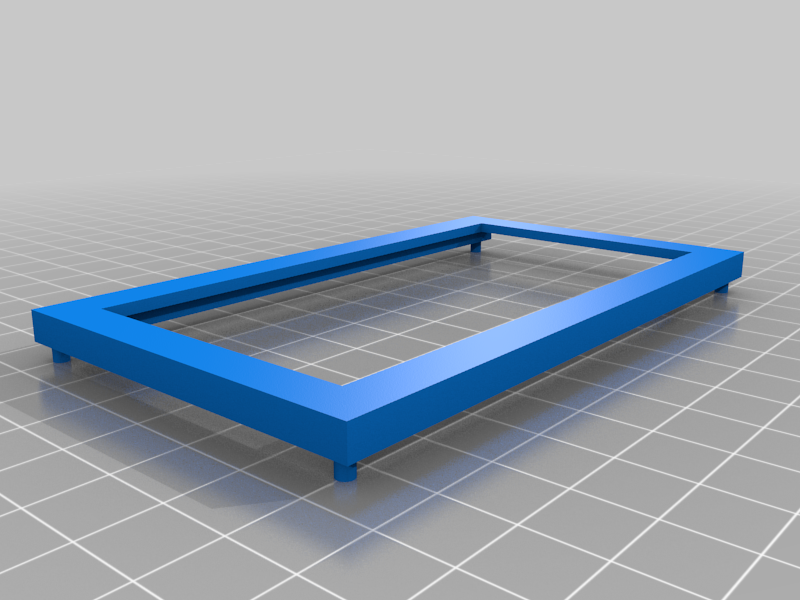

The cover is fixed with two-component glue
On this page the applications for generating litophanes https://lithophanemaker.com/index.html
Print Settings
Printer:
IeC 9/12 and Flsun qq-s
Rafts:
No
Supports:
No
Resolution:
0.1
Infill:
100%
Filament:
FiloAlfa Pla5 colorsPost-Printing=============
