Corner Protractor
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
A neat little protractor for measuring all those odd little corners in life.
- Ocena
- 4,5 / 5
- Polubienia
- 126
- Pobrania
- 557
- Wydruki
- 6
- Wyświetlenia
- 2223
- Oceny
- 4
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools
- Licencja
- Creative Commons — Attribution

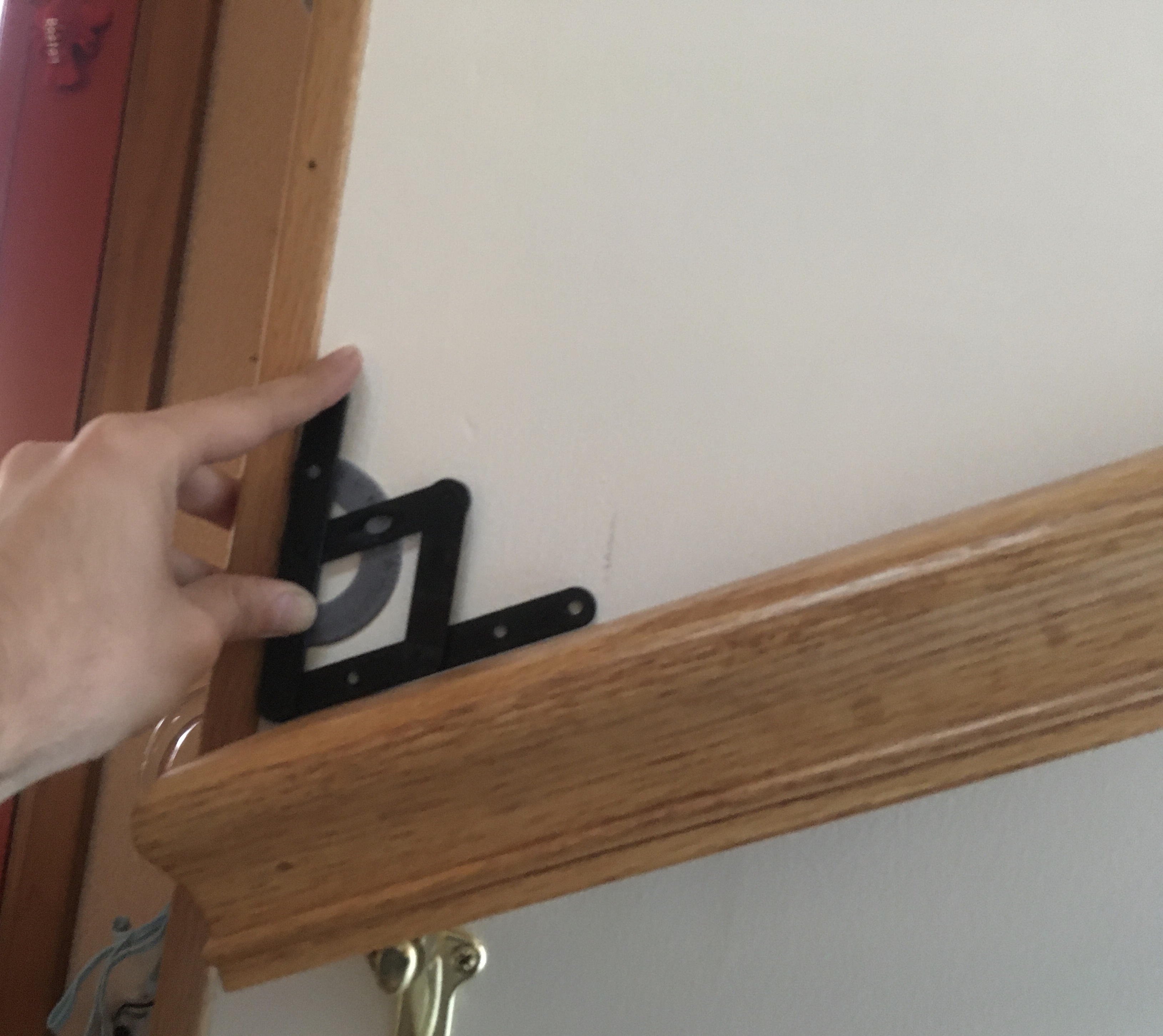

This is a protractor for measuring corners. For instance it can be used to determine the angle between two walls. It has the advantage of being able to push up against two flat surfaces as opposed to a regular protractor that is more of a 2 dimensional approach to measuring angles.

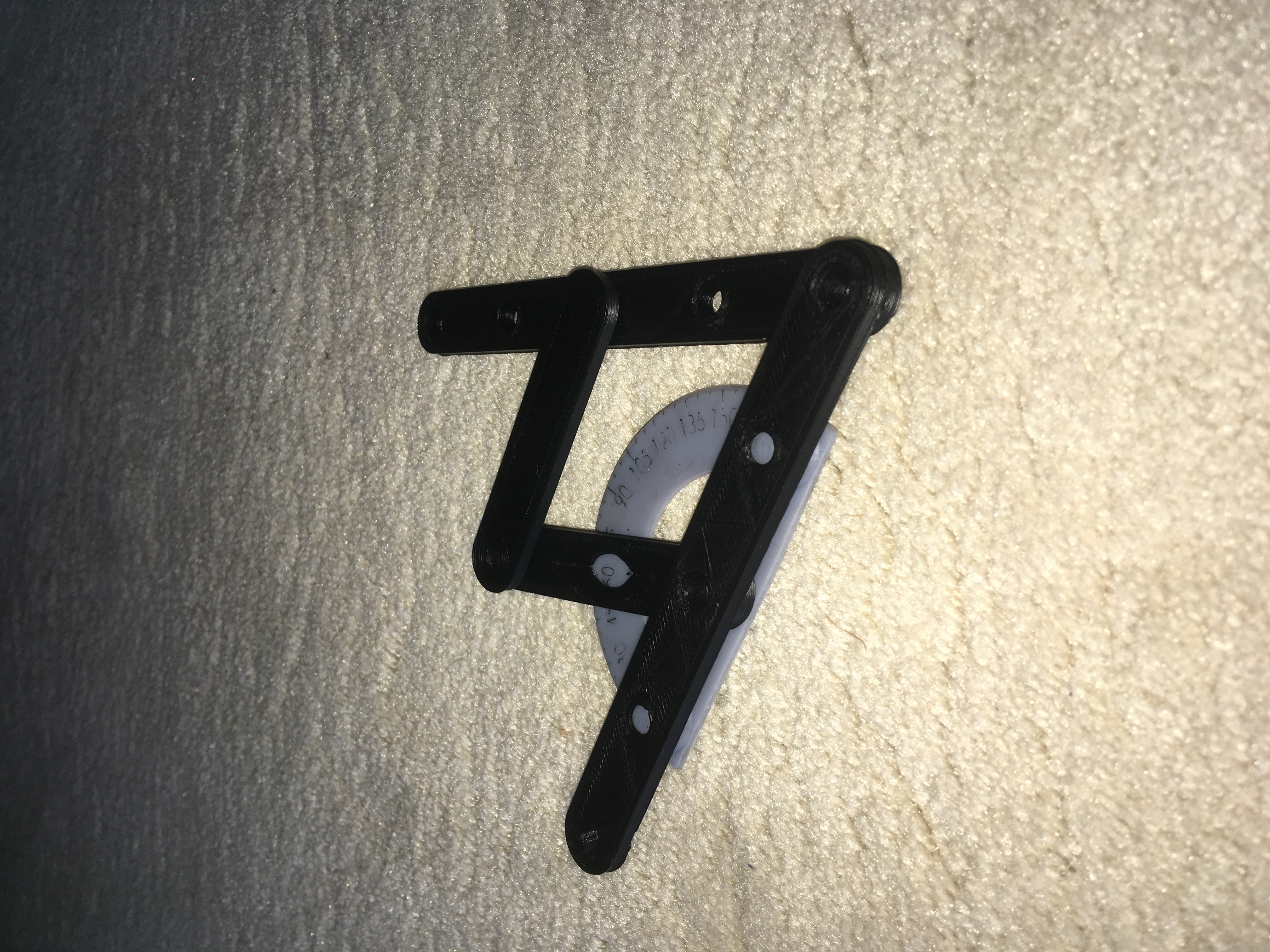

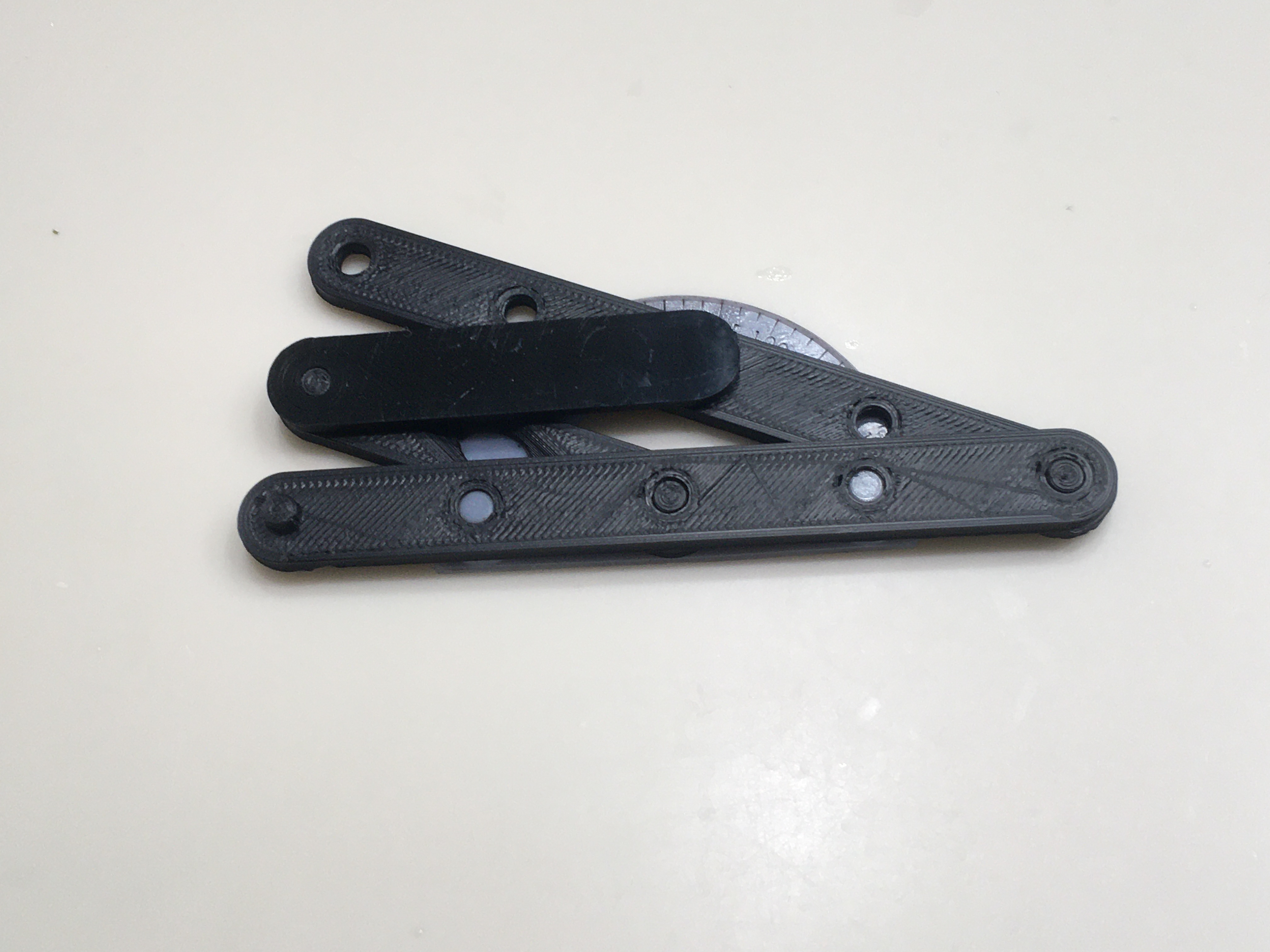

To complete the protractor, you will need two main arms one gauge arm, one cross arm and the protractor piece.
I designed the model in Solidworks. I printed the arm pieces with my Qidi tech with black ABS filament and I printed the protractor with the Anycubic Photon in order to have fine enough resolution to make out the numbers and graduations.
