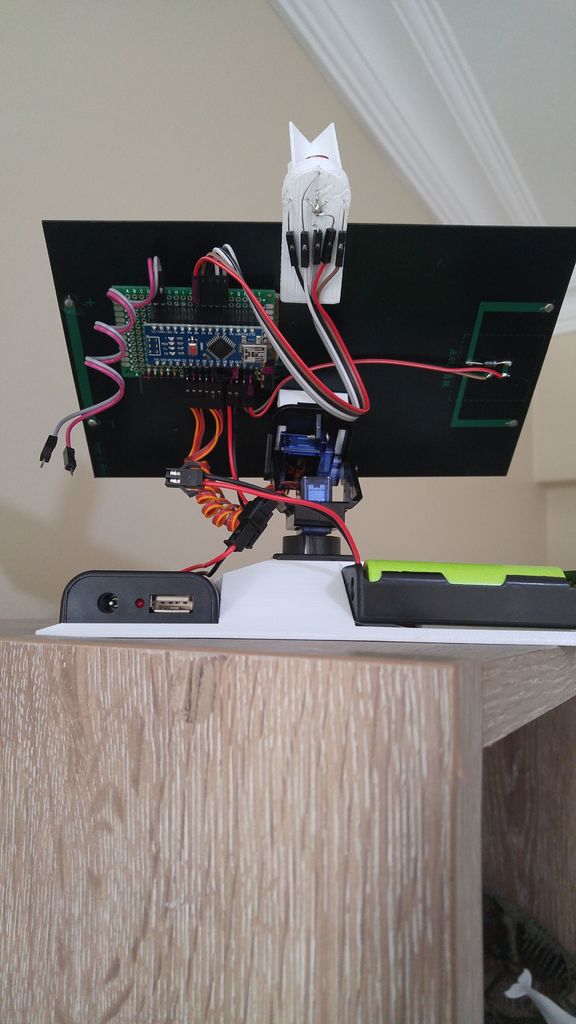

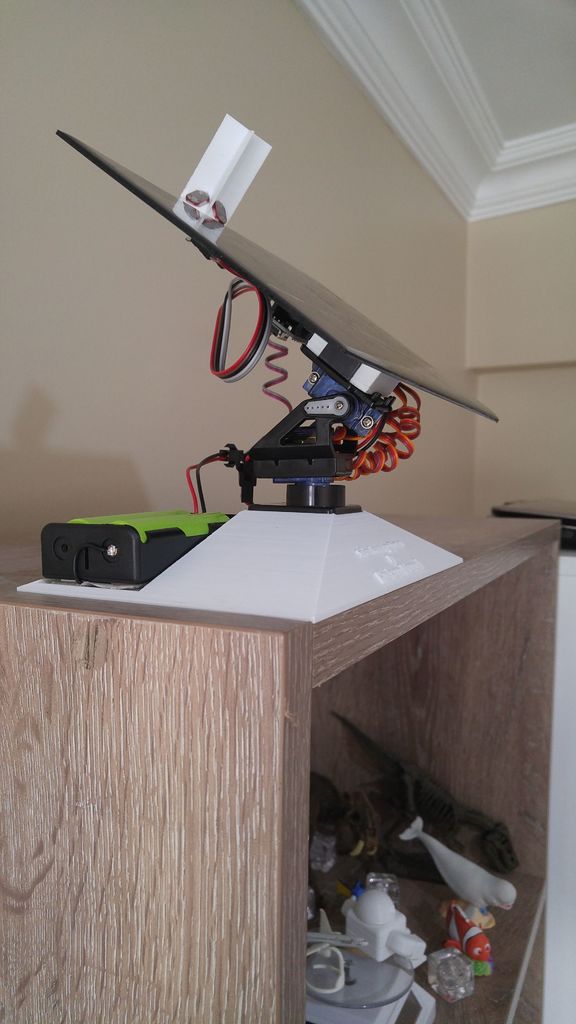

this is a DIY Solar Tracking System for USB mobile charging
Designed By Hisham
the part list is shown below
arduino code file uploaded with files
wiring also uploaded with file using Fritzing App http://www.fritzing.org
Print Settings
Printer:
Anet A8
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
10%
Custom Section
Parts List
1: solar panel 9V 3W 330mA
https://www.aliexpress.com/item/Hot-Sale-9V-3W-330mA-Mini-monocrystalline-polycrystalline-solar-battery-Panel-charge/32287195860.html
3: servo motor 9g x2 + Mount https://www.aliexpress.com/item/Hobbywing-LED-Program-Card-For-FlyFun-SkyWalker-Brushless-ESC-Airplane-Heli-Free-Shipping/32508992281.html
4: 3.7v 18650 x2 https://www.aliexpress.com/item/Pkcell-4pc-lot-18650-2200mAh-3-7V-Rechargeable-Li-ion-Battery-for-LED-torch-flashlight-Digital/706472078.html
5: 7.4V 8.4V 18650 Li-ion Lithium Battery Charging Protection Board x1 https://www.aliexpress.com/item/5pcs-2S-7-4V-8-4V-18650-Li-ion-Lithium-Battery-Charging-Protection-Board-PCB-40/32799110698.html
6: dual battery 18650 holder x1 https://www.aliexpress.com/item/2015-Hot-Sale-Battery-Storage-Case-Plastic-for-2-x-18650-Box-Holder-Black-With-Wire/32581651720.html
7: LDR 10mm x4
8: resistor 1k x2 2.2k x2 10k x4
9: diod x2
10: on-board slid switch x2
11: pin header male
12: pin header female
13: prototype board 6x4
14: wires
15: bluetooth model hc-05 (optional) https://www.aliexpress.com/item/LCD-Board-LJ41-04812a-Y-board-S50FH-YB01-In-stock-Best-price-and-good-service/752107582.html
Category: DIY
