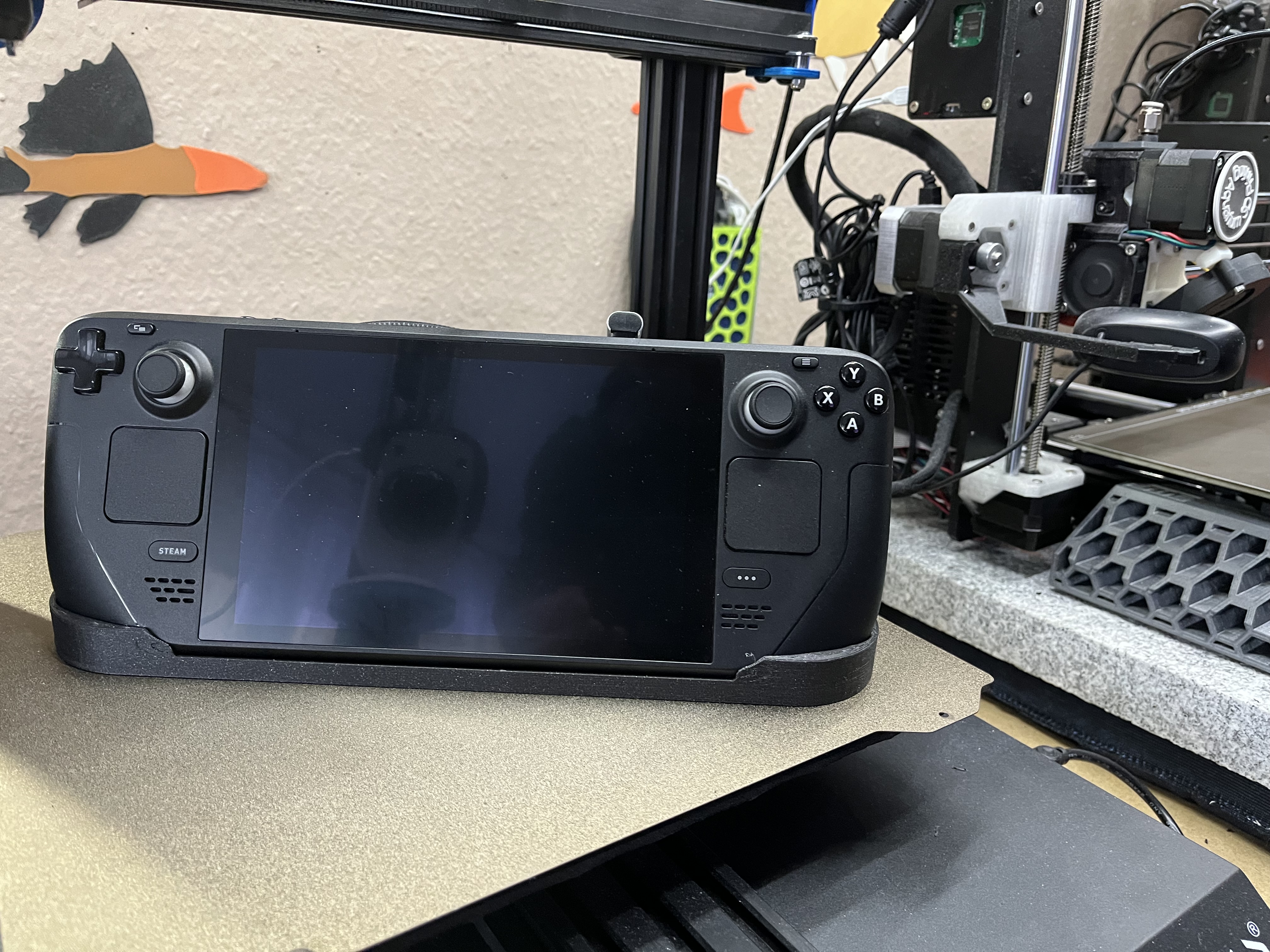

Modular Steam Deck Docking Station

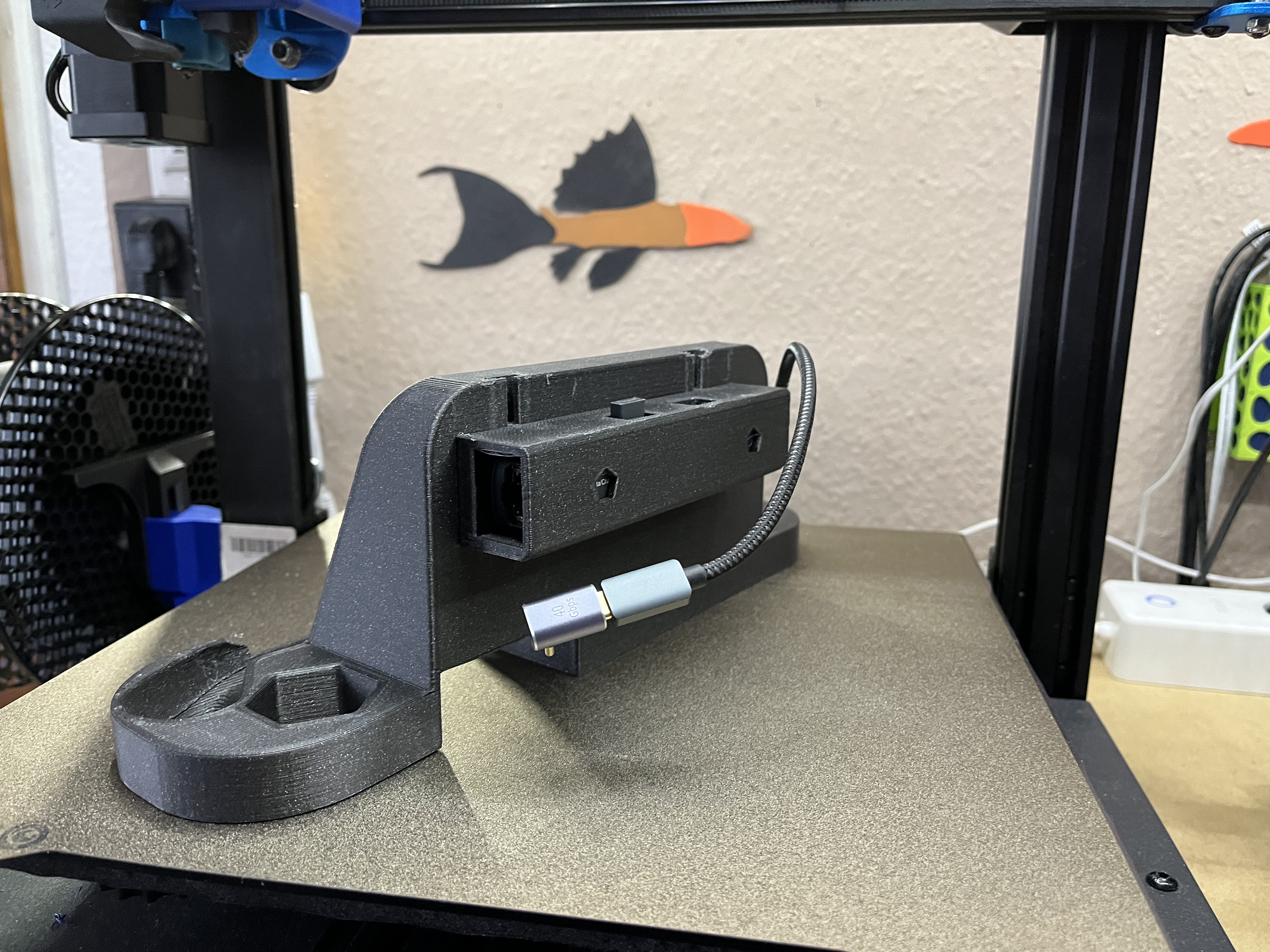

This is a Docking Station for the Steam Deck. On back side are grooves which allow you to create your on mounts for 3rd-party docking stations from Amazon, Banggood, etc.
Just print the docking station and a docking station mount. Slide in the docking station mount and enjoy :-)
The step-files are provided, so you can create your own custom mounts for your 3rd-party docking station.
An example mount is provided for this docking station from Amazon:
The file was created with the help of the wonderful step-file for the Steam Deck provided by Valve, which is available here:
https://gitlab.steamos.cloud/SteamDeck/hardware
This model is too big to print on a MK3S or Ender 3. You either have to split the file into parts or use a bigger printer like the Sidewinder X2.
Printing instructions:
0.2 layer height
4-5 perimeters
10% infill using lightning infill from PrusaSlicer
No supports required.
