Tactical torch mount for Nerf Elite Rails

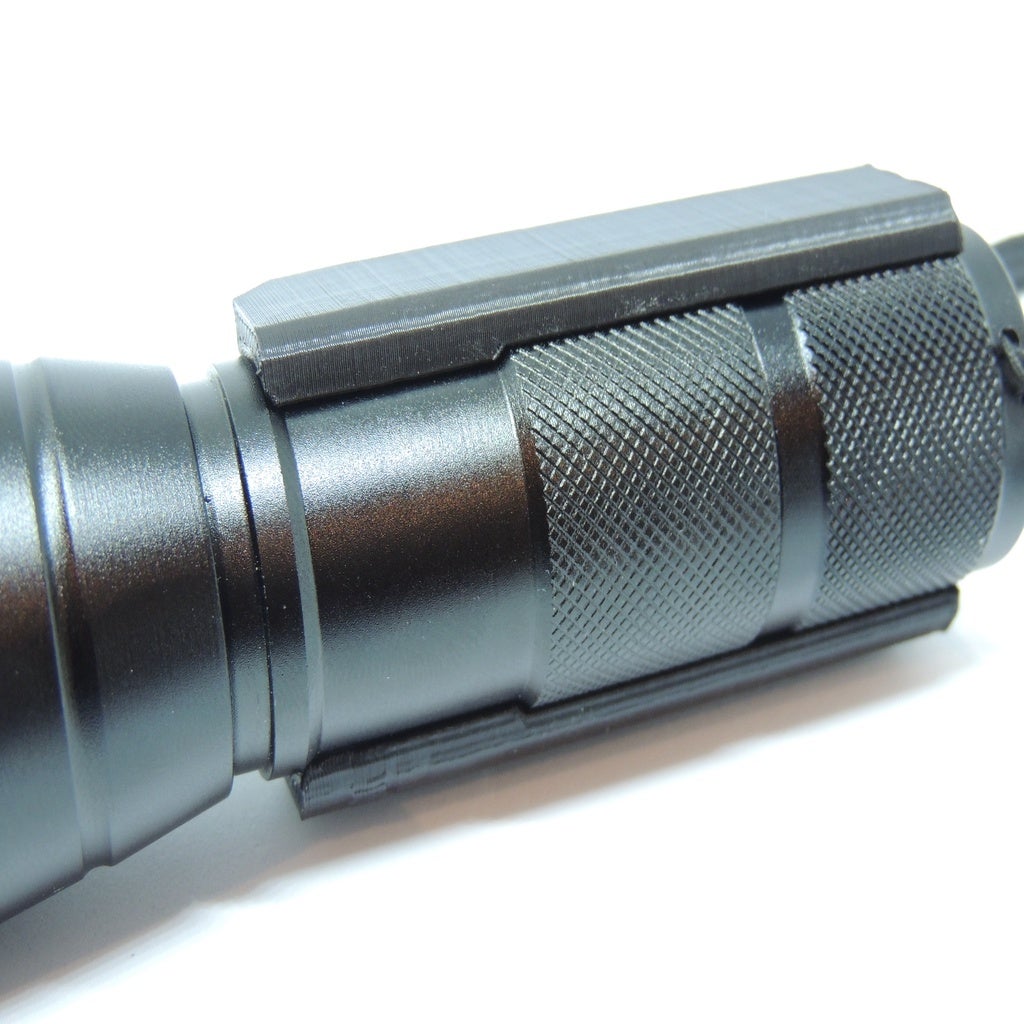

This print is a torch mount for Nerf Rails. Designed for the zoomable "2000 Lumen LED Torches" you can find on Amazon. Parts needed are:
- 2 or 3 Cable Ties
- M3 Bolt 25mm long
- M3 Nut
- Torch
- Nerf gun
How does it work?
The hole takes a M3 bolt through it and is designed to sit in the dips/divots on the Nerf Rail. This prevents the attachment from falling off. The 3 holes on the side are for cable ties to hold the torch in place, though in this case aren't necessary. The print is designed for the Torch to be held in by the plastic but it never hurt to have the option to make it more secure.
Please note that this only works with Elite Rails and has only been tested on a Stryfe.
This is designed to print without supports upright, which also allows for the greatest strength for holding the torch.
What are the files?
There are 2 files with this, marked Tight and Loose. This is to take into account painted and unpainted Nerf guns. If you have a painted Nerf gun, select Loose. Unpainted takes Tight. I do not give any guarantees that it won't scratch off paint, use at your own risk. The differences are also marked on the model with a small 'T' or 'L' on one end.
