A fully 3d printed Turn Coordinator for Flight Simulation
- Ocena
- 5 / 5
- Polubienia
- 95
- Pobrania
- 895
- Wydruki
- 5
- Wyświetlenia
- 3302
- Oceny
- 2
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Video Games
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
And finally a fully 3D printed Turn Coordinator. Articulation by two standard stepper motors similar to the Gyro Compass.

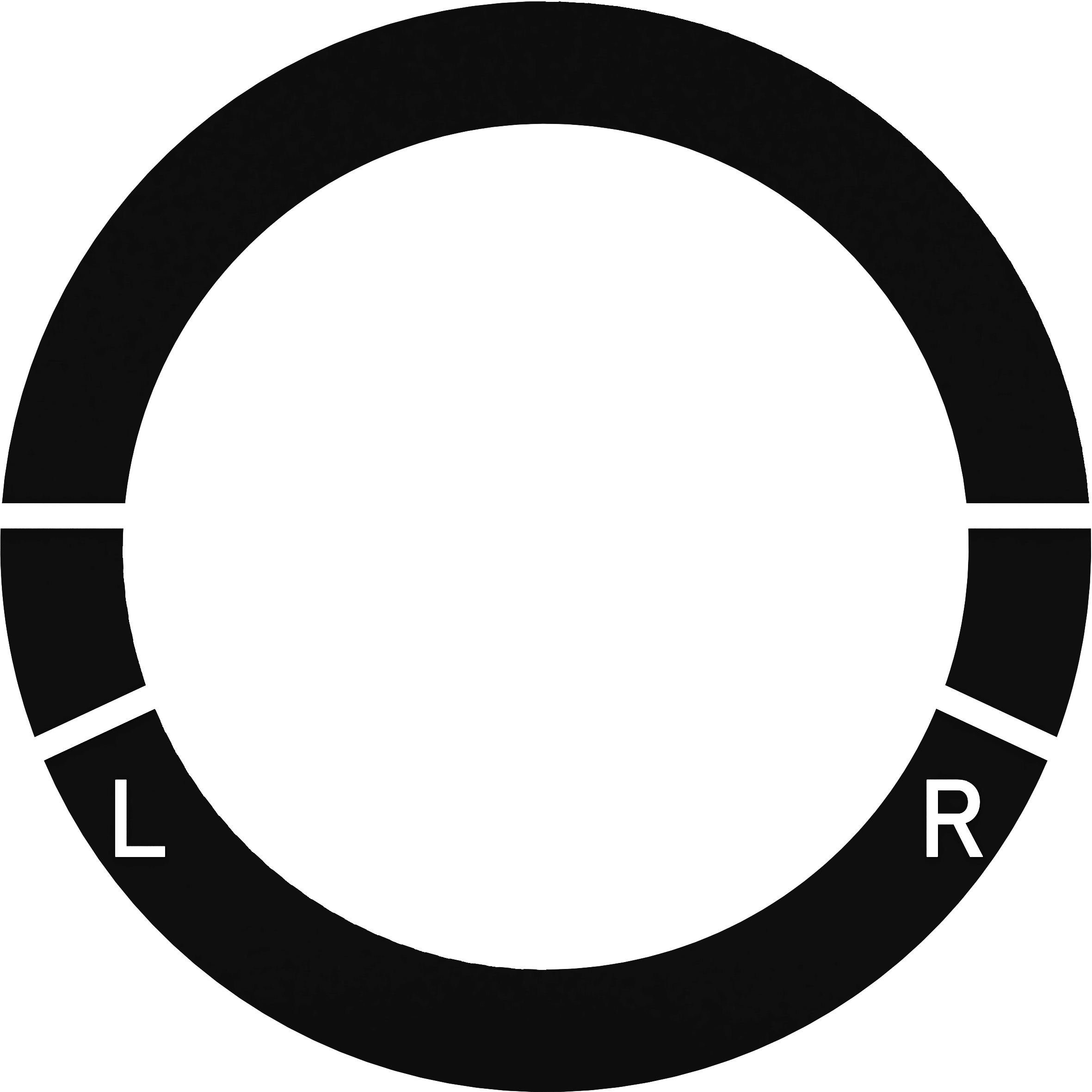

Adapted spacer frame is included in this model to hold the marking frame.
Update 2024-12-21: Fusion 360 Source added
Material needed:
4 Screws M4x10
4 Screws M4x20
2 Steppers 28BYJ-48 plus driver board
Software for X-Plane 12 for the complete Sixpack can be found on Github MartinRusk/Sixpack (github.com)
See also my other Flight Instruments:
Altimeter for Flight Simulation
Airspeed Indicator for Flight Simulation
Variometer for Flight Simulation
Attitude Indicator for Flight Simulation
Gyro Compass for Flight Simulation
and my
Modular Cockpit Panel for Flight Simulation
to integrate everything without the need for woodwork.
Please visit also the FlightSimMaker Discord!
Stay tuned - some more instruments and updates will come!
