I have all my printers runing with octoprint and my new MonoPrice Mini Delta is joining the club. But I need something to keep the raspberry pi and the printer in one single body. Also, wanna try the new raspberry 3 model A. So I searched and found these 2 models and make a remix of both.

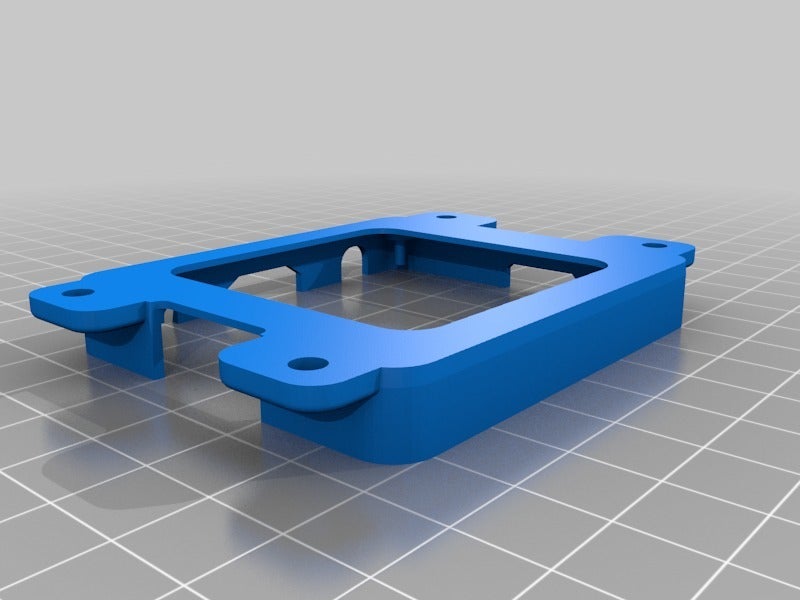

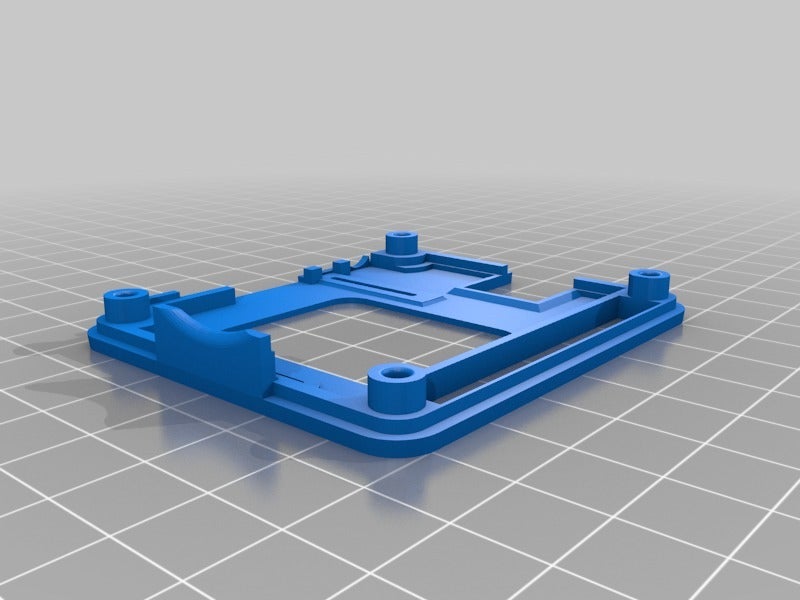

The case for the Raspberry has 2 big holes, one in the front other in the back for heat disipation. I got 2 ceramic heatsink for that.

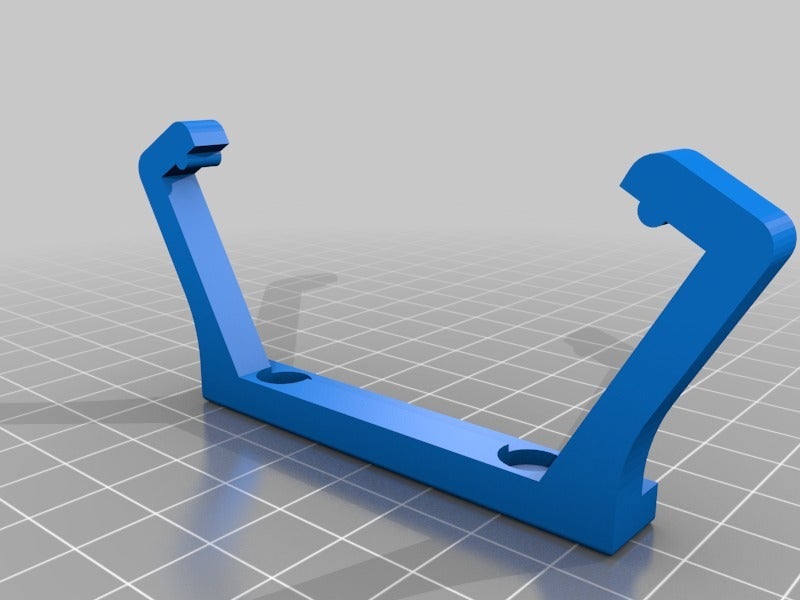

For the union between the clips and the case you need to use any m3 screw (you need 4), if it is too long, put the head of the screw in the interior part.

This is the version 1 of this desing. the next version will remove the needs of screws and add the support for the webcam directly on the clip.

If you have any sugestions, please let me know.

Print instructions

Category: 3D Printer Accessories Summary

The case for the Raspberry has 2 big holes, one in the front other in the back for heat disipation. I got 2 ceramic heatsink for that.

For the union between the clips and the case you need to use any m3 screw (you need 4), if it is too long, put the head of the screw in the interior part.

This is the version 1 of this desing. the next version will remove the needs of screws and add the support for the webcam directly on the clip.

If you have any sugestions, please let me know.

Print Settings

Printer: Cartesian, prusa like printer.

Rafts: No

Supports: No

Resolution: 0.16

Infill: 20

Filament: any PLA/PETG any
