A metric spacer set in a compact box for multipurpose use.
- Ocena
- 5 / 5
- Polubienia
- 41
- Pobrania
- 278
- Wydruki
- 1
- Wyświetlenia
- 1188
- Oceny
- 1
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
A set of 48 multifunctional shims with anti-slip surface (1mm excepted) in 8 different thicknesses and colors: 1-2-3-4-5-6-8-10mm, size 60x40mm. Note that the thickness accuracy depends on the calibration of your 3D printer.

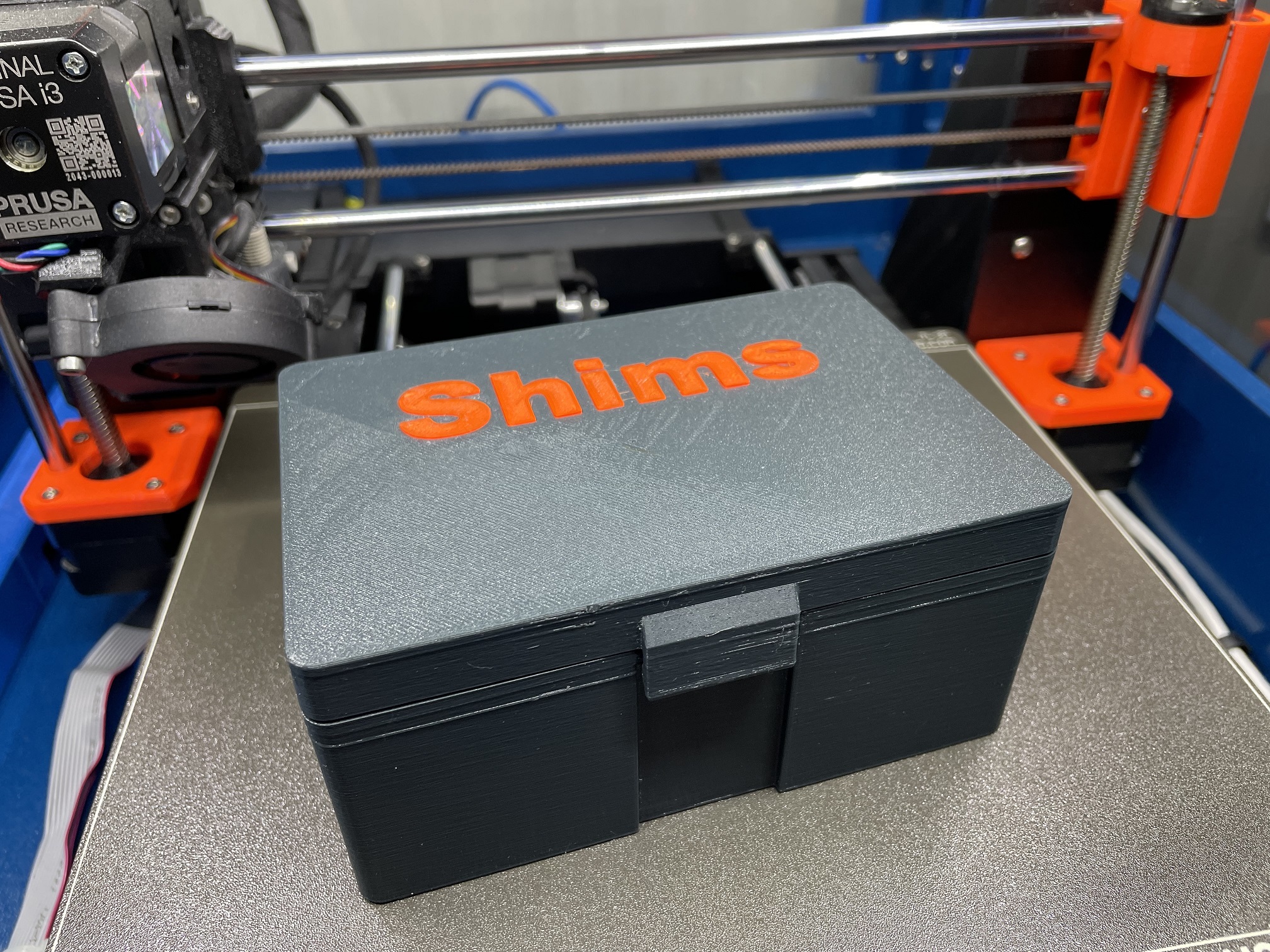

The box is not my design, all credits go to user Yanev. I only customized the layout, the text on the lid and the outer dimensions (WxDxH 139x94x64.6mm). Note that the layout has changed and does not match the photos. The thinnest shims are now on the front of the box. To assemble the box you need 2 screws M3x30mm.
The box has compartments for 8 packs of 6 shims of each size. The packs have a clearance of 0.6 mm all around. Most dimensions are parametric and can be changed in the added Fusion 360 files.
Print settings
Layer height: 0.2 mm
Infill: 15%
No support
Filament
PLA or PETG
