PiCam quick mount upgrade

this quick mounts are for a well-known Pi camera mounting system “IR-Pi Cam Prusa i3 MK3/MK3s Camera mount Swivel Package”

I wanted to quickly mount the Pi Camera from one place to another without having to screw it all the time.

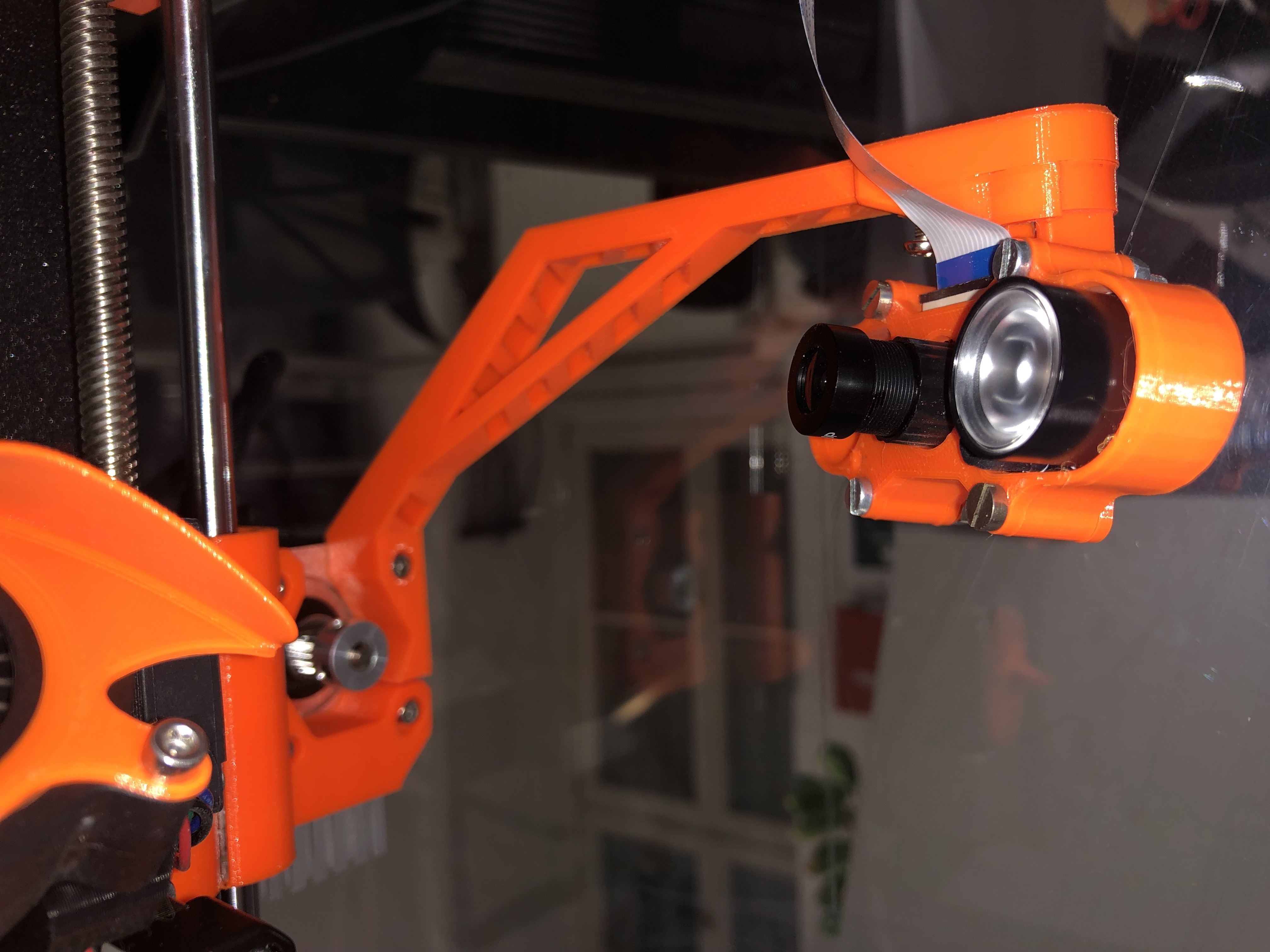

The quick mount for the arm on the Z-axis stepper is simply pushed onto the camera arm and locks in place automatically.

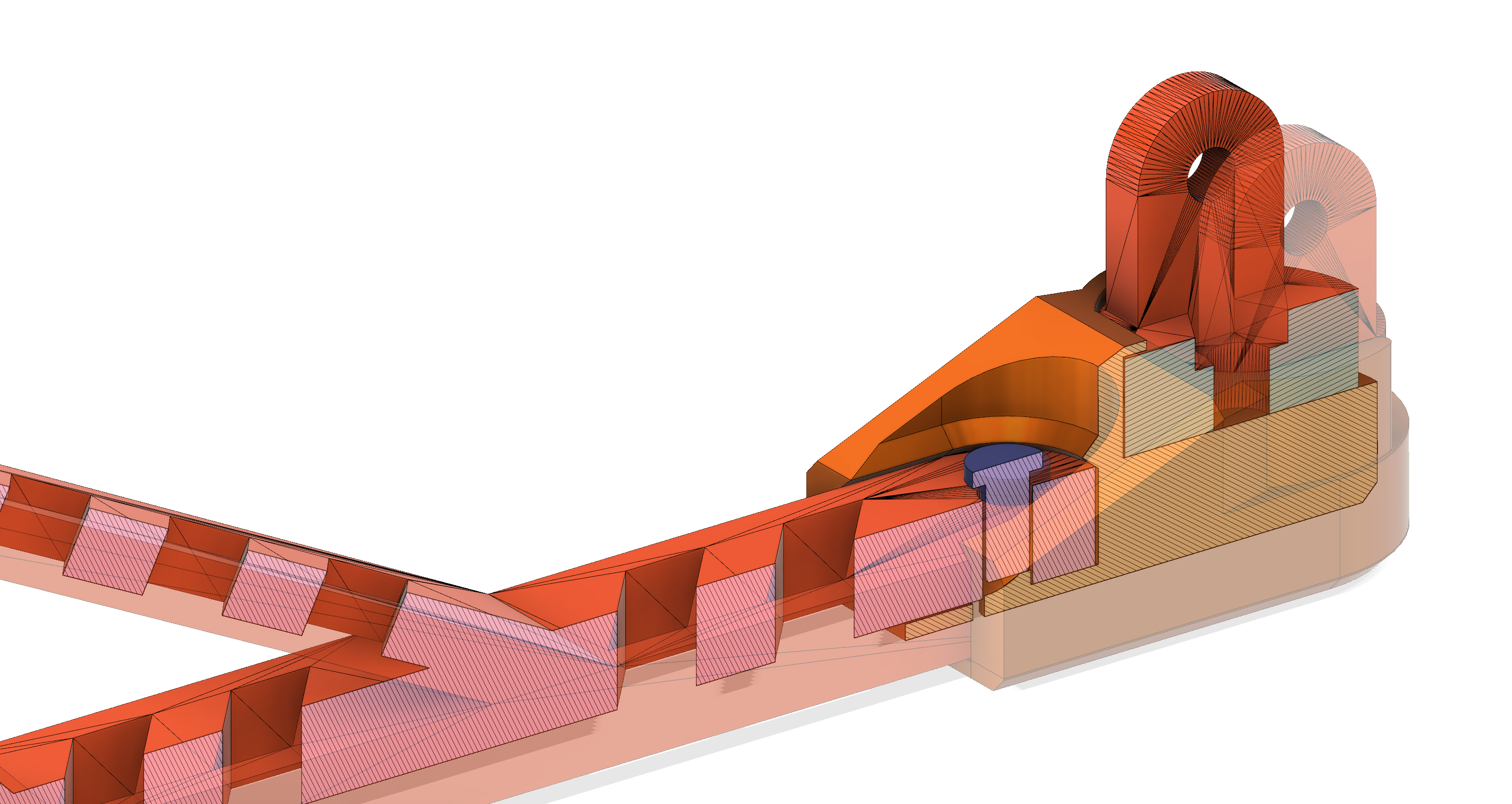

There is a small pin to print out so that you can easily remove the part again with one press.

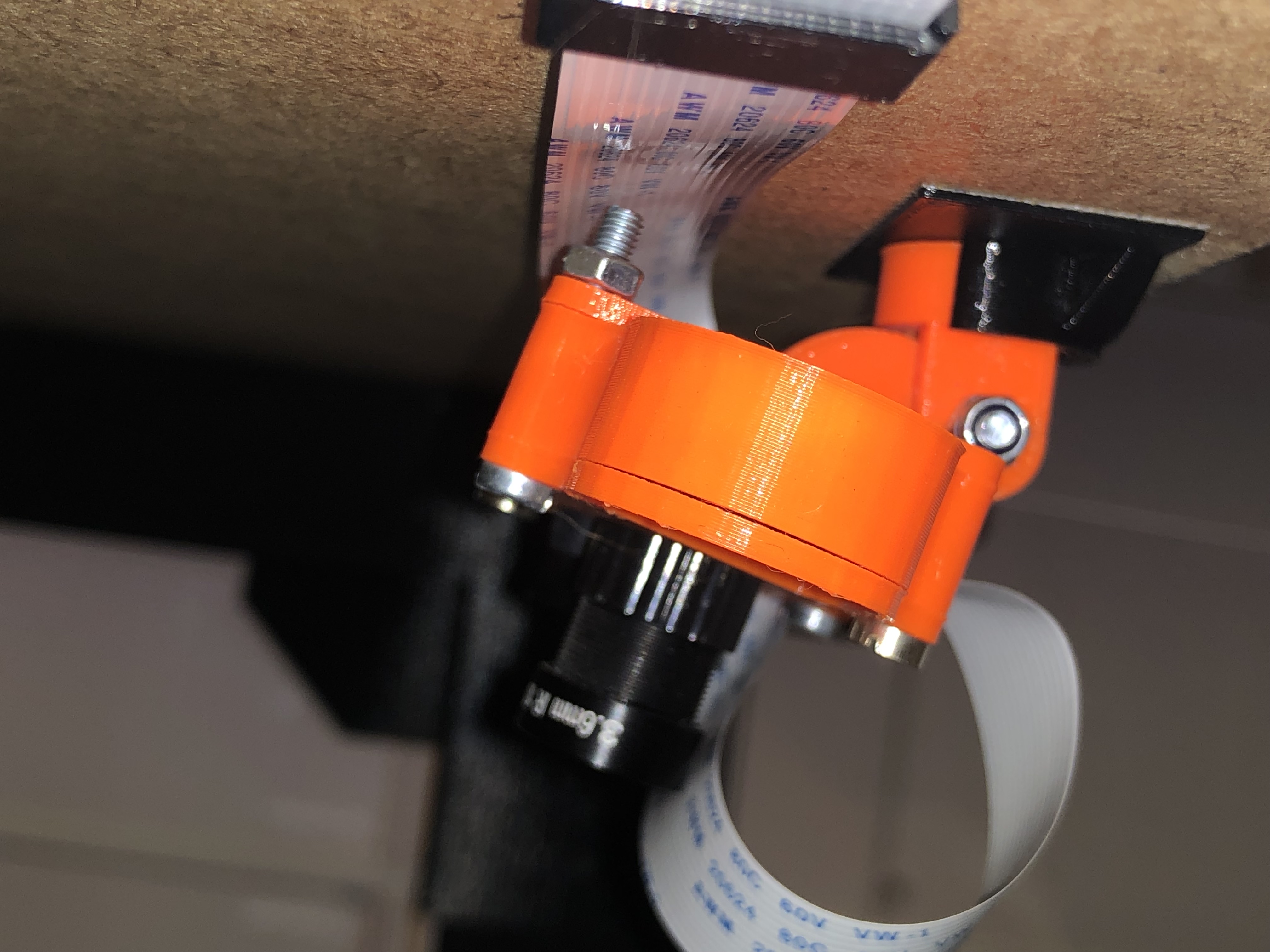

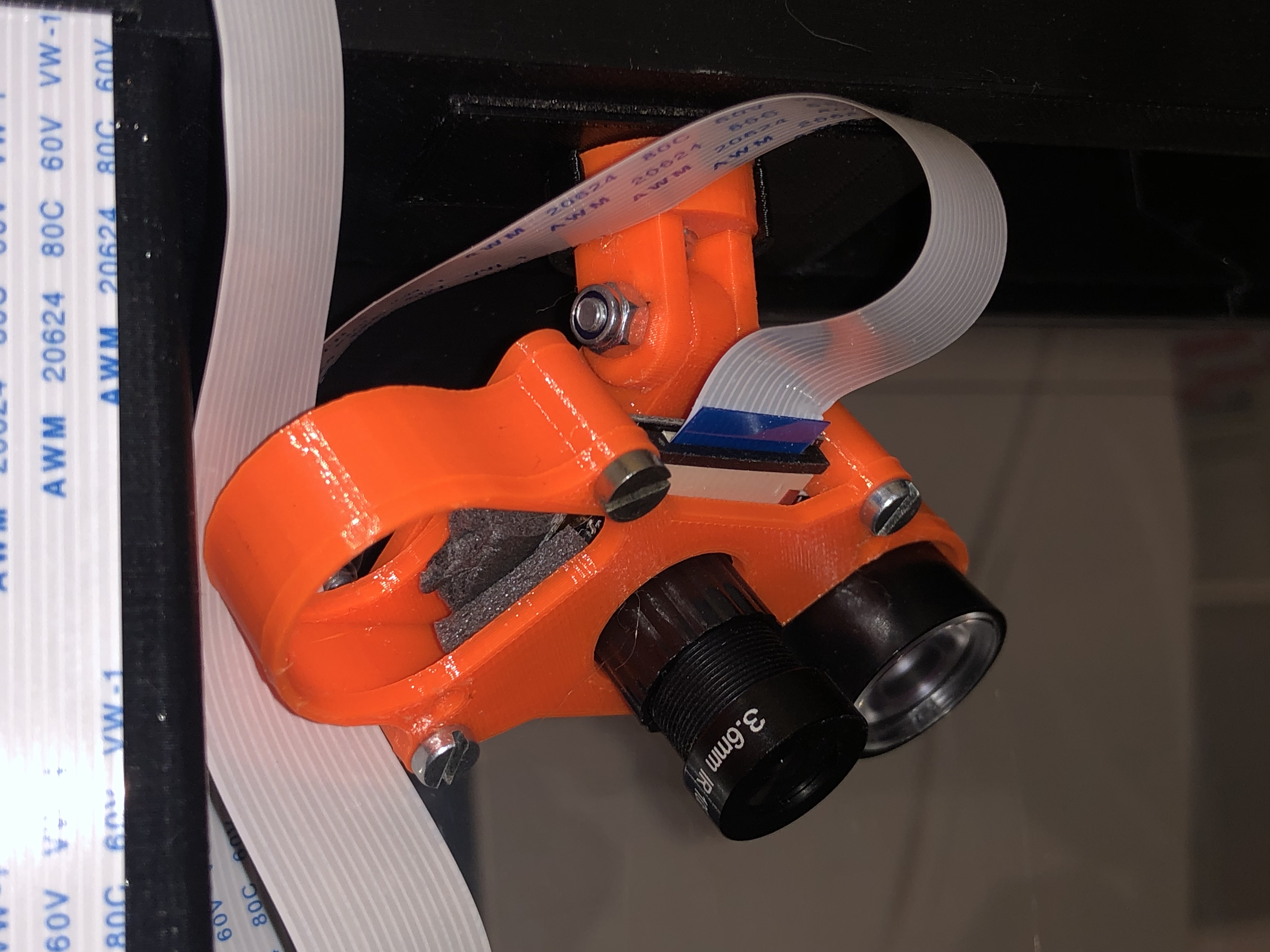

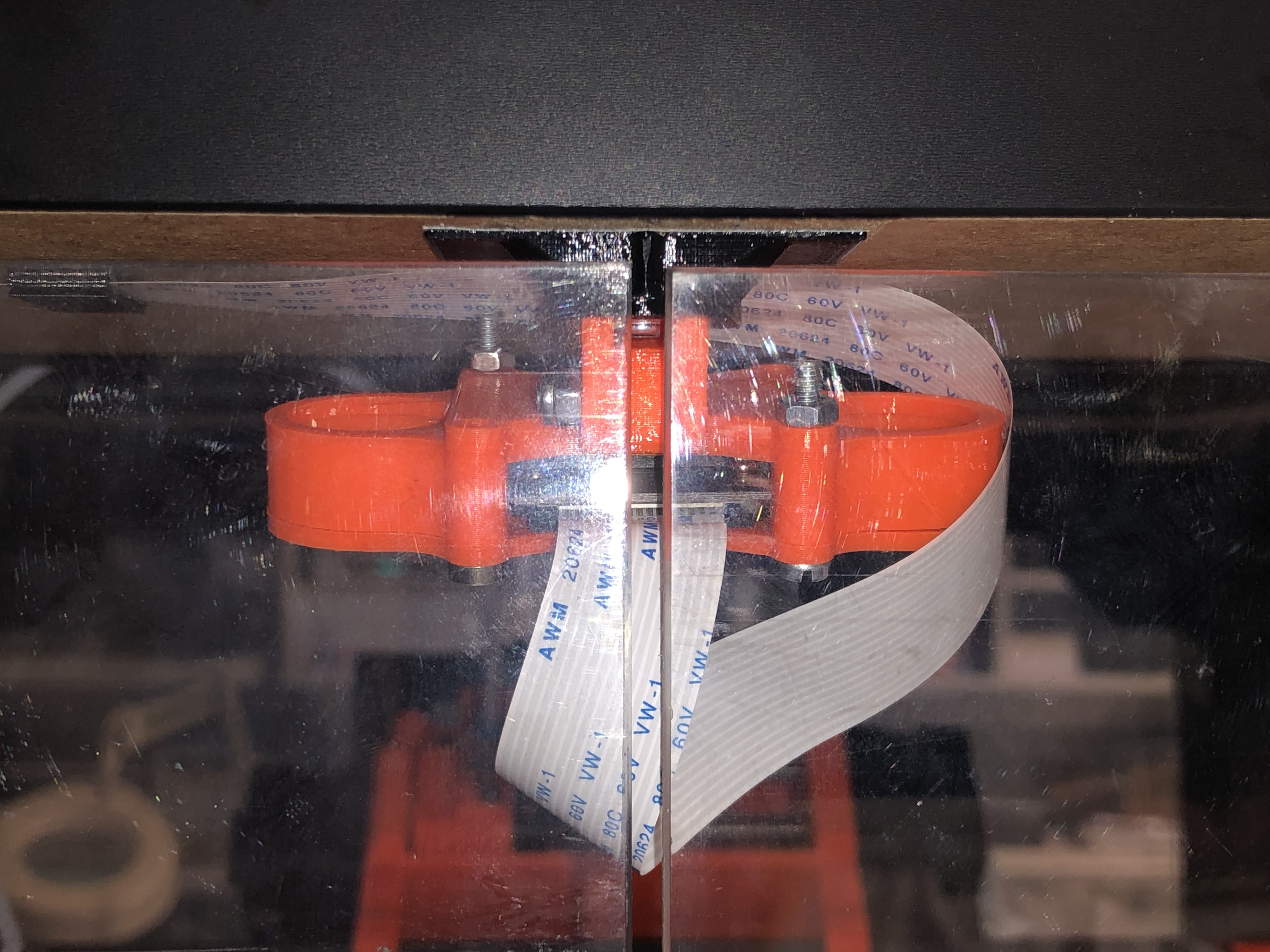

The clips for ceiling or side wall mounting can either be glued on with double-sided adhesive tape. But there is also a version with mounting holes for small wood screws.

I used these files, which you also need to download if you start over:

• MK3-MK3s_Extended_Strengthened_v4_fixed.stl
• 03_Cam_Backplate_v2_WithIRConfigHoles.stl
• 04_Cam_Frontplate_v1.stl (other front plates are available for different cameras)
• 05_Cam_Backplate_Attachment.stl
• 02_Arm_Swivel.stl

I printed everything with Prusament PETG with 0.2mm layer height, no supports needed.

happy printing and please post a make, i would really appreciate it :)
