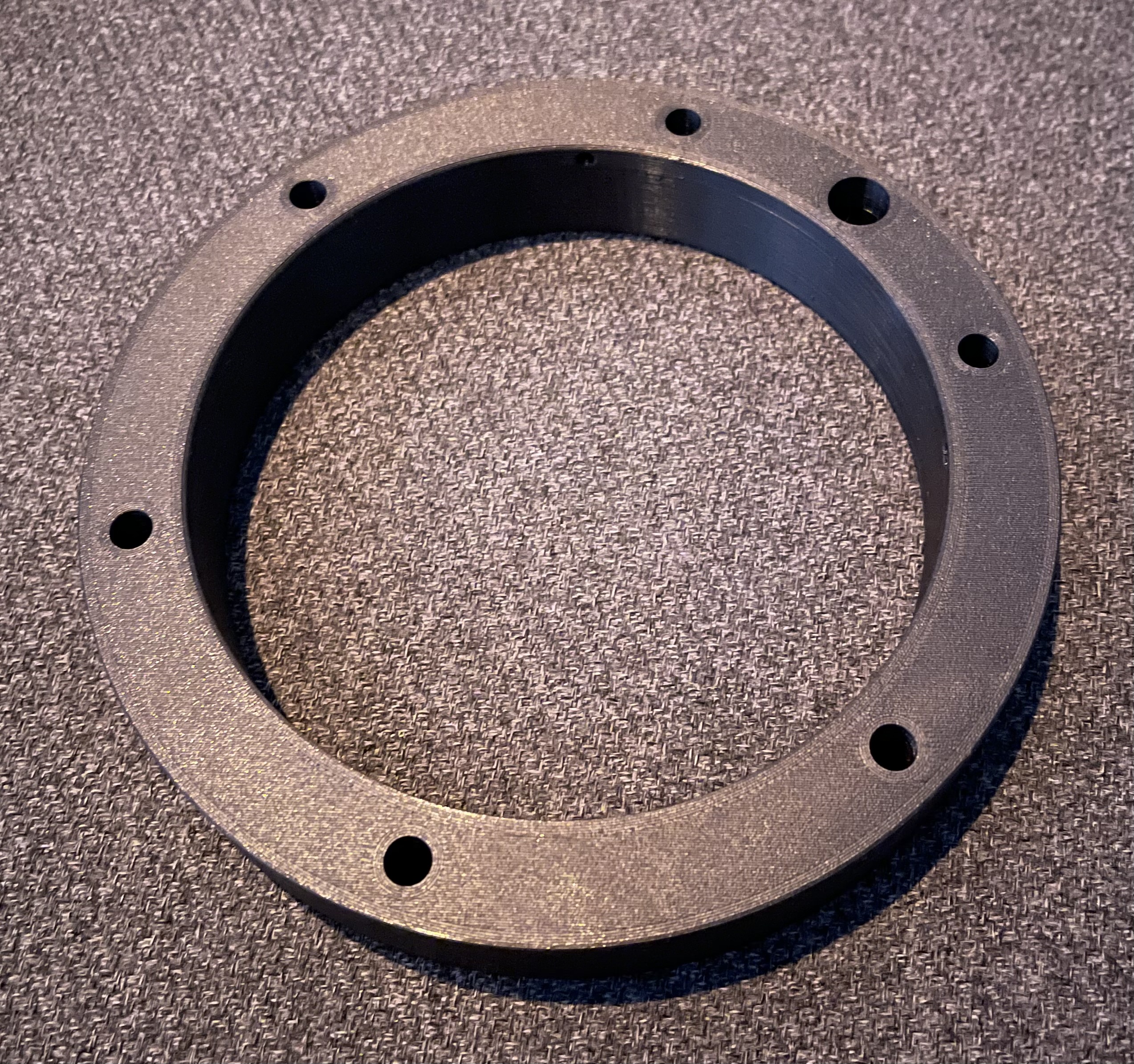

Cooling distributor ring made for a Haas Mini Mill.
- Ocena
- 0 / 5
- Polubienia
- 3
- Pobrania
- 63
- Wydruki
- 0
- Wyświetlenia
- 472
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Mechanical Parts
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

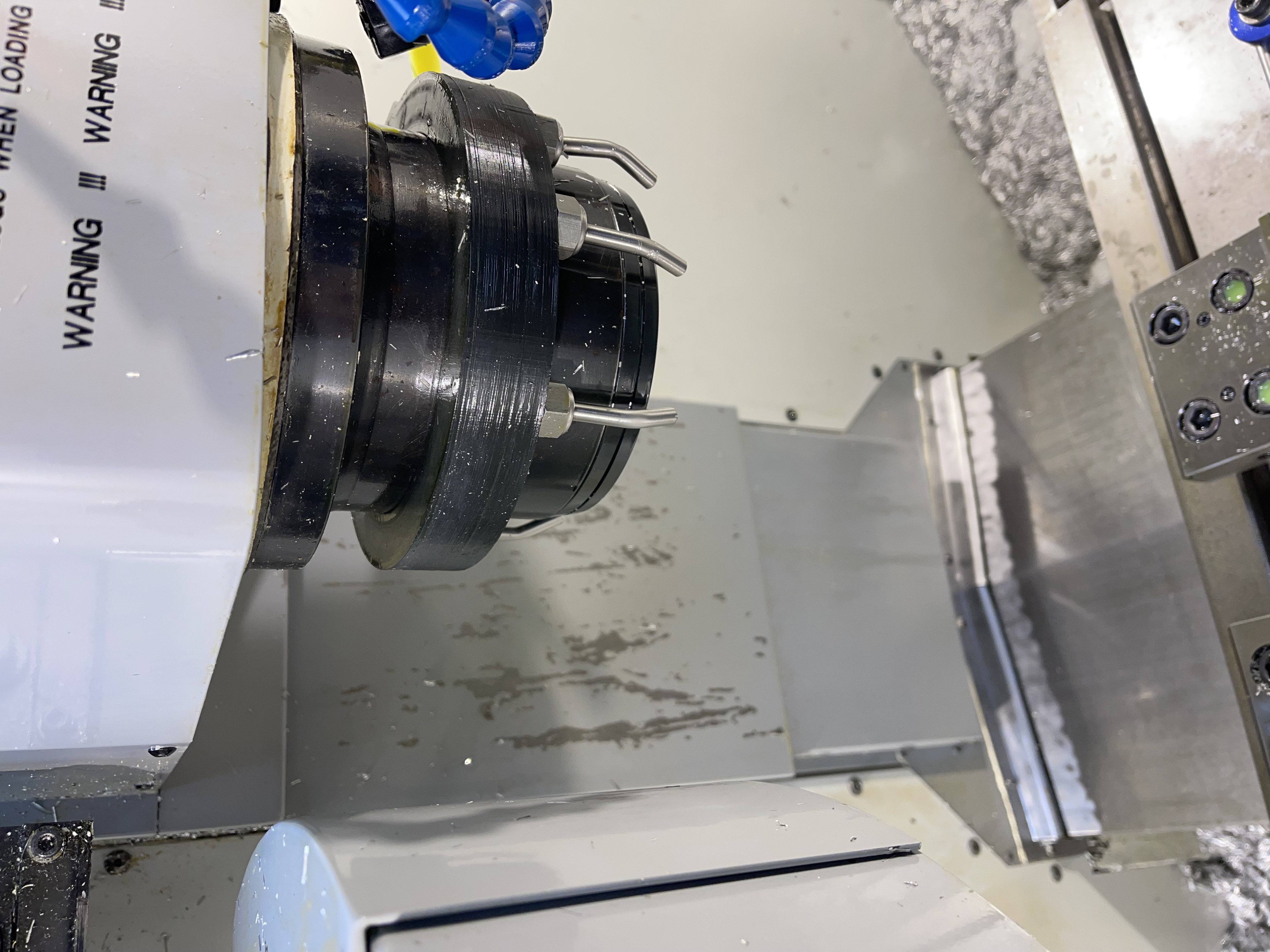

The cooling distributor provides nozzles around the spindle nose without coliding with the umbrella during toolchange.
Will fit all 5.2" (132mm) spindles.

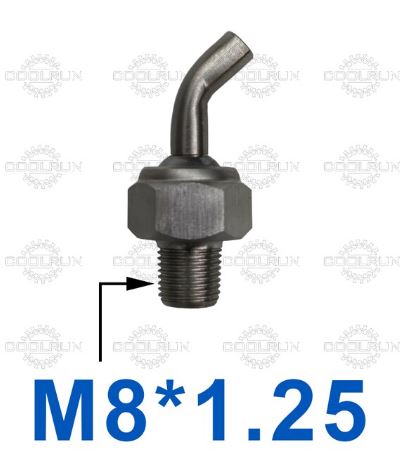

I have used nozzles with M8x1,25 threads, and they have been purchased here:
https://www.aliexpress.com/item/1005001865466758.html?pdp_npi=2%40dis%21NOK%21NOK%2044.37%21NOK%2044.37%21%21%21%21%21%40210318bb16737639449862702e5a9e%2112000021239406189%21sh01&spm=a2g0o.store_pc_home.productList_70912211.pic_7
The inlet is made for G1/4" threaded nipple. The 2 z-screw holes are made for M4.
Make sure you tap the holes prior to mounting the nozzles and fitting.
I have made them in PETG
4 perimeters, 0.2 layer height, 40% infill
Print with holes facing the bed
