This is a hardware containment for a 443 MHz radio notification device. The hardware will send a code over 433 MHz as soon as it is powered on. There are two cables running out of the case that need to be connected in order to turn on the device. I am using a reed switch together with a magnet on my postbox that will connect the cables as soon as the magnet moves away (open postbox).

Notification examples

  • Postbox notification (as described)
  • Door/window sensor (with a reed switch).
  • Smart button (notification when the button was pressed)

  • When the wardrobe was opened (with a normally closed switch)
    #### Additional resources

  • A detailed project description can be found on my blog: New letter in postbox notification with Arduino and ATtiny85

  • The model can be found/copied and modified at Onshape Postbox Model

Print instructions

Category: Electronics Summary

This is a hardware containment for a 443 MHz radio notification device. The hardware will send a code over 433 MHz as soon as it is powered on. There are two cables running out of the case that need to be connected in order to turn on the device. I am using a reed switch together with a magnet on my postbox that will connect the cables as soon as the magnet moves away (open postbox).

Notification examples

  • Postbox notification (as described)
  • Door/window sensor (with a reed switch).
  • Smart button (notification when the button was pressed)

  • When the wardrobe was opened (with a normally closed switch)
    #### Additional resources

  • A detailed project description can be found on my blog: New letter in postbox notification with Arduino and ATtiny85

  • The model can be found/copied and modified at Onshape Postbox Model

    Print Settings

Printer: da Vinci nano

Rafts: No

Supports: Yes

Resolution: 0.3

Infill: 50%

Notes:

Layer Height: 0.1
Supports Gap: 1
Extend Supports: 1
Print Speed: Slow

Post-Printing

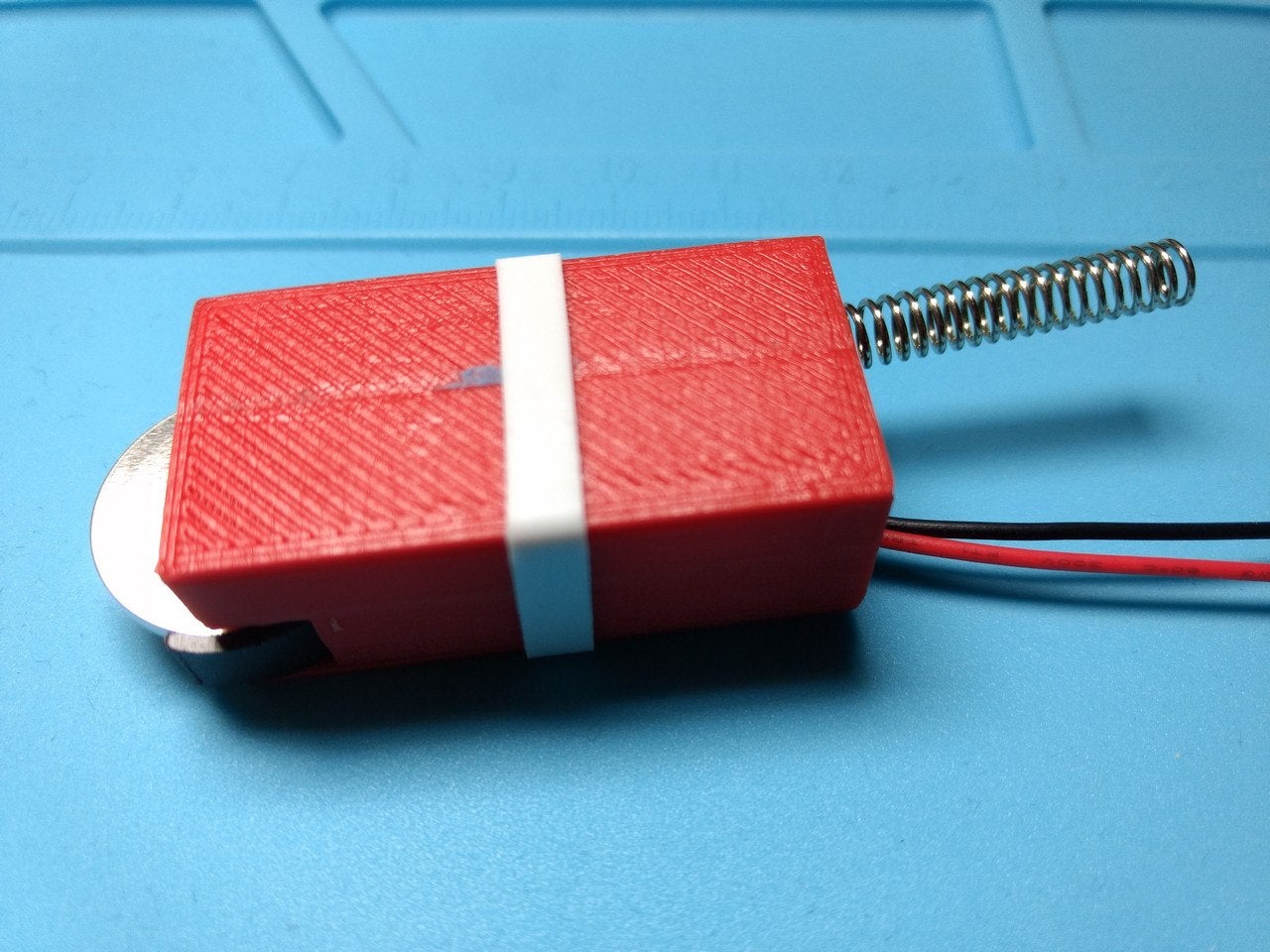

Case assembly close-up

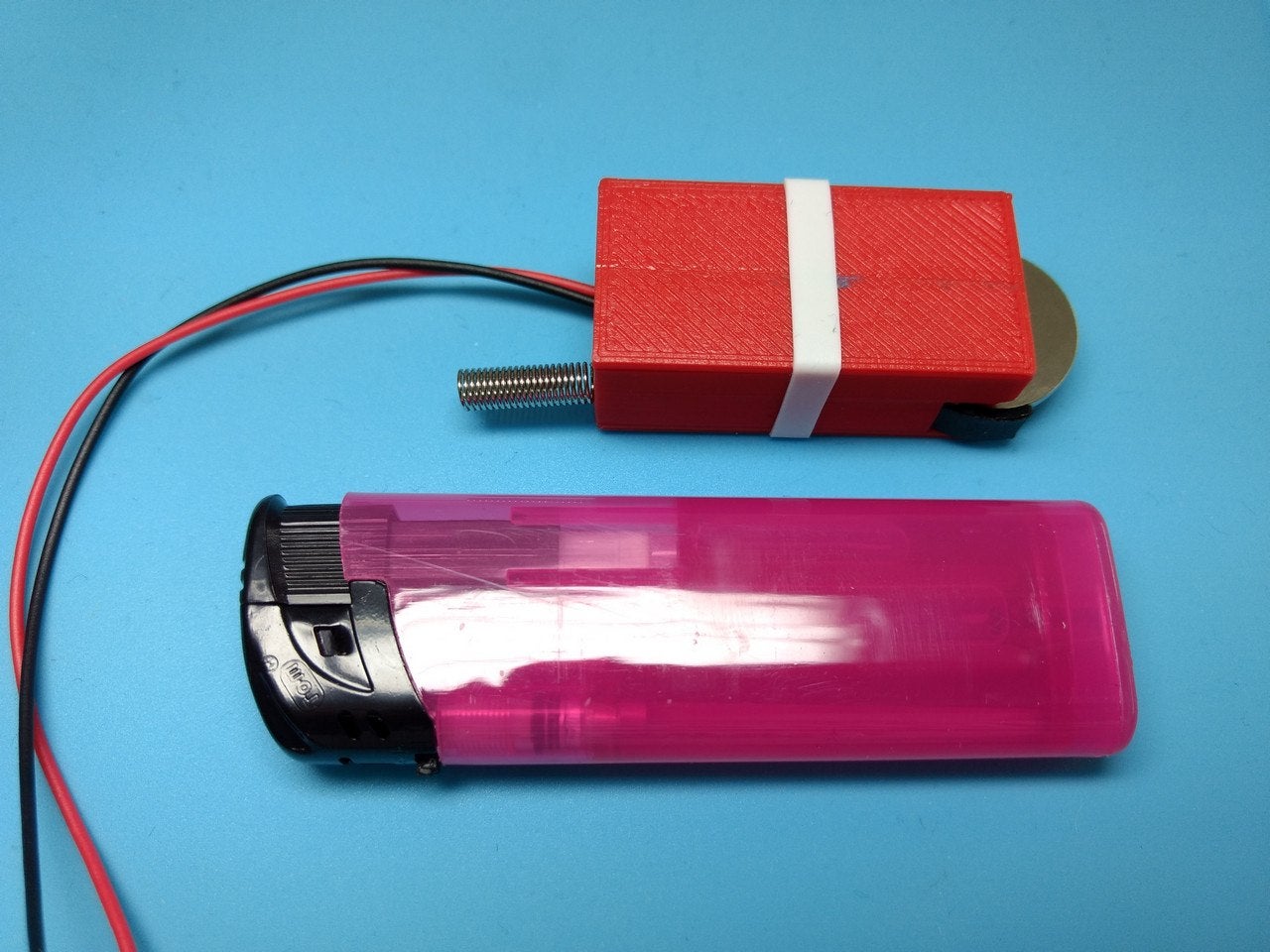

Case assembly comparison with lighter

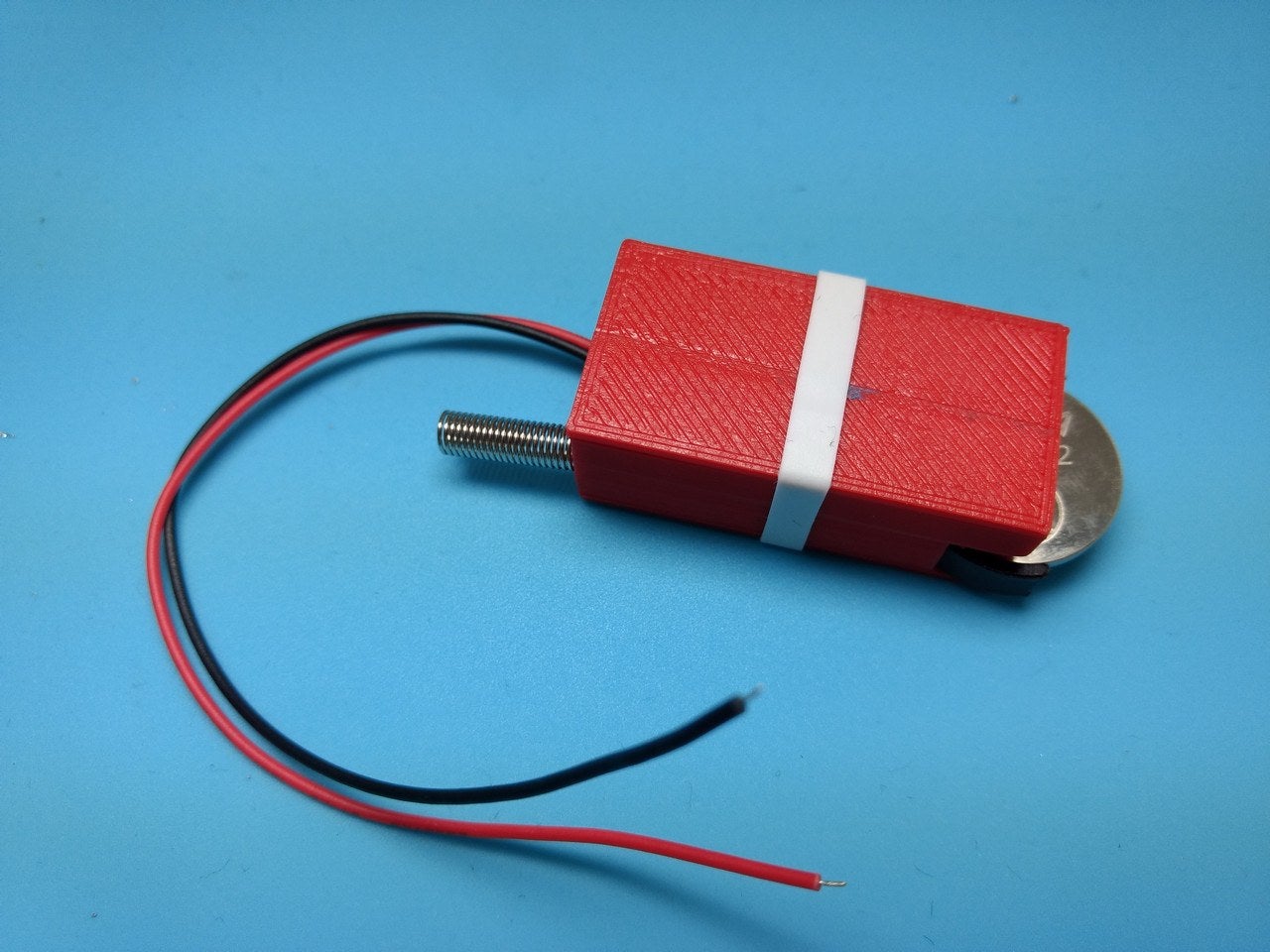

Case assembly final product

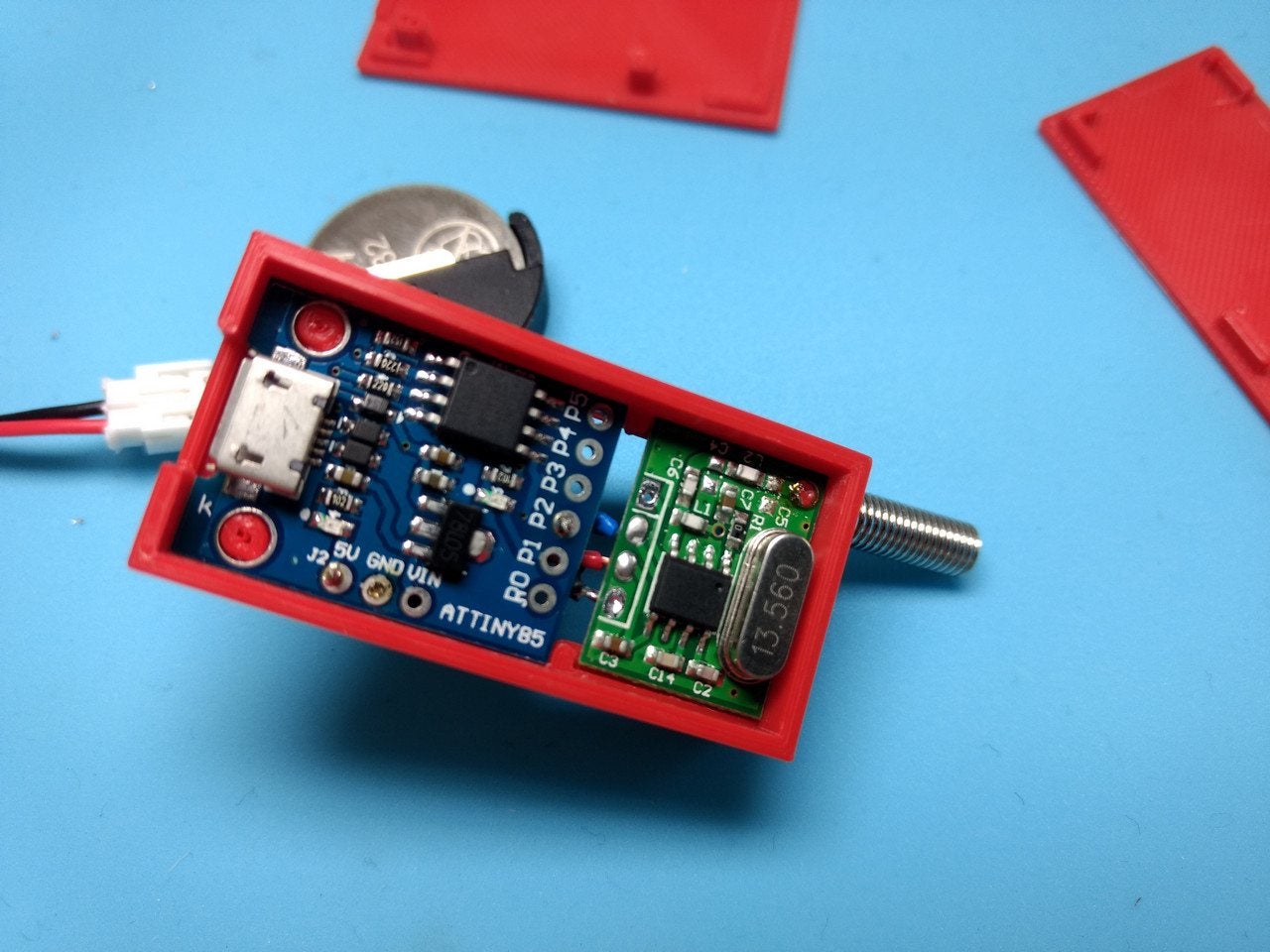

Case assembly top view

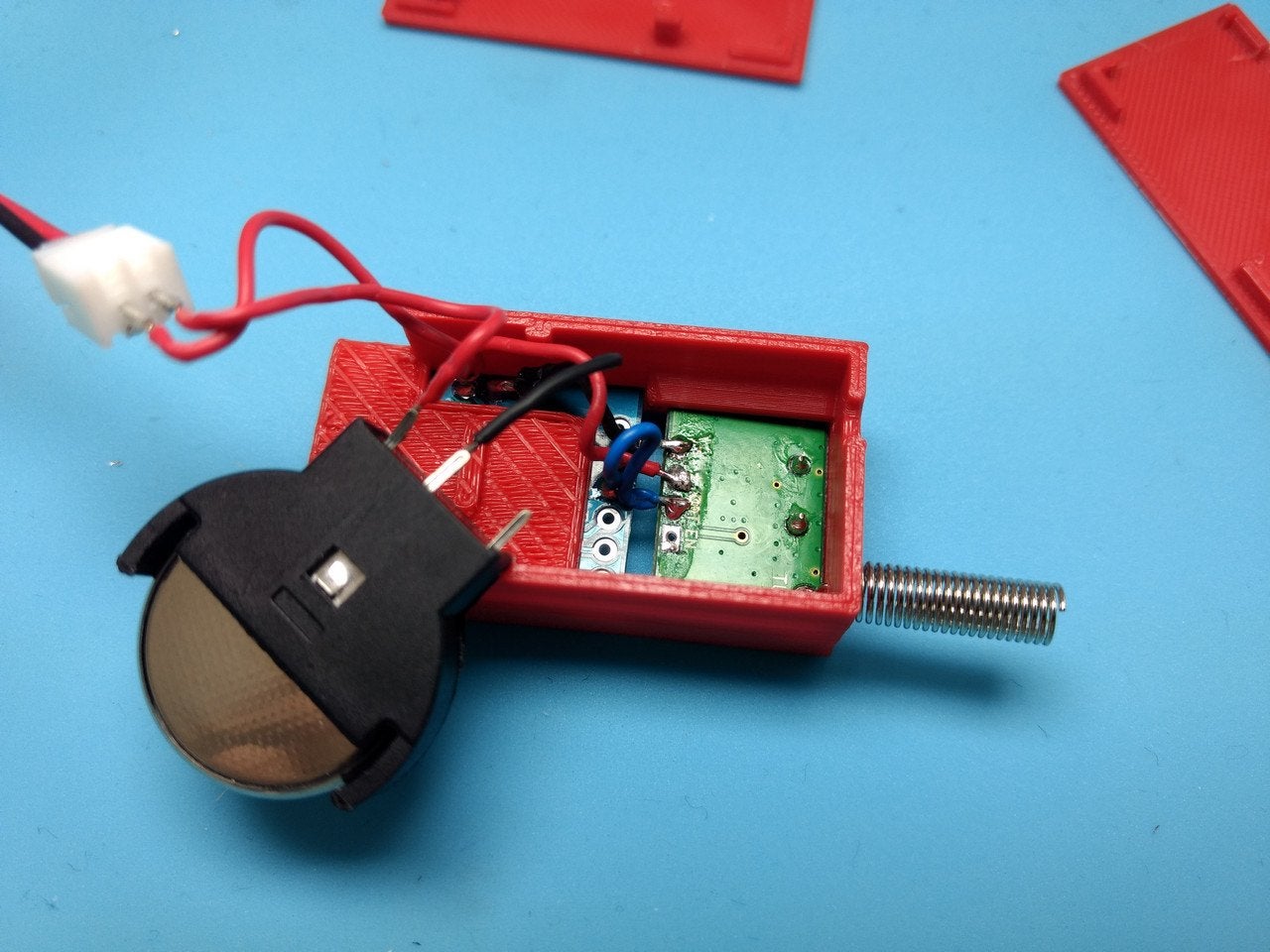

Case assembly bottom view

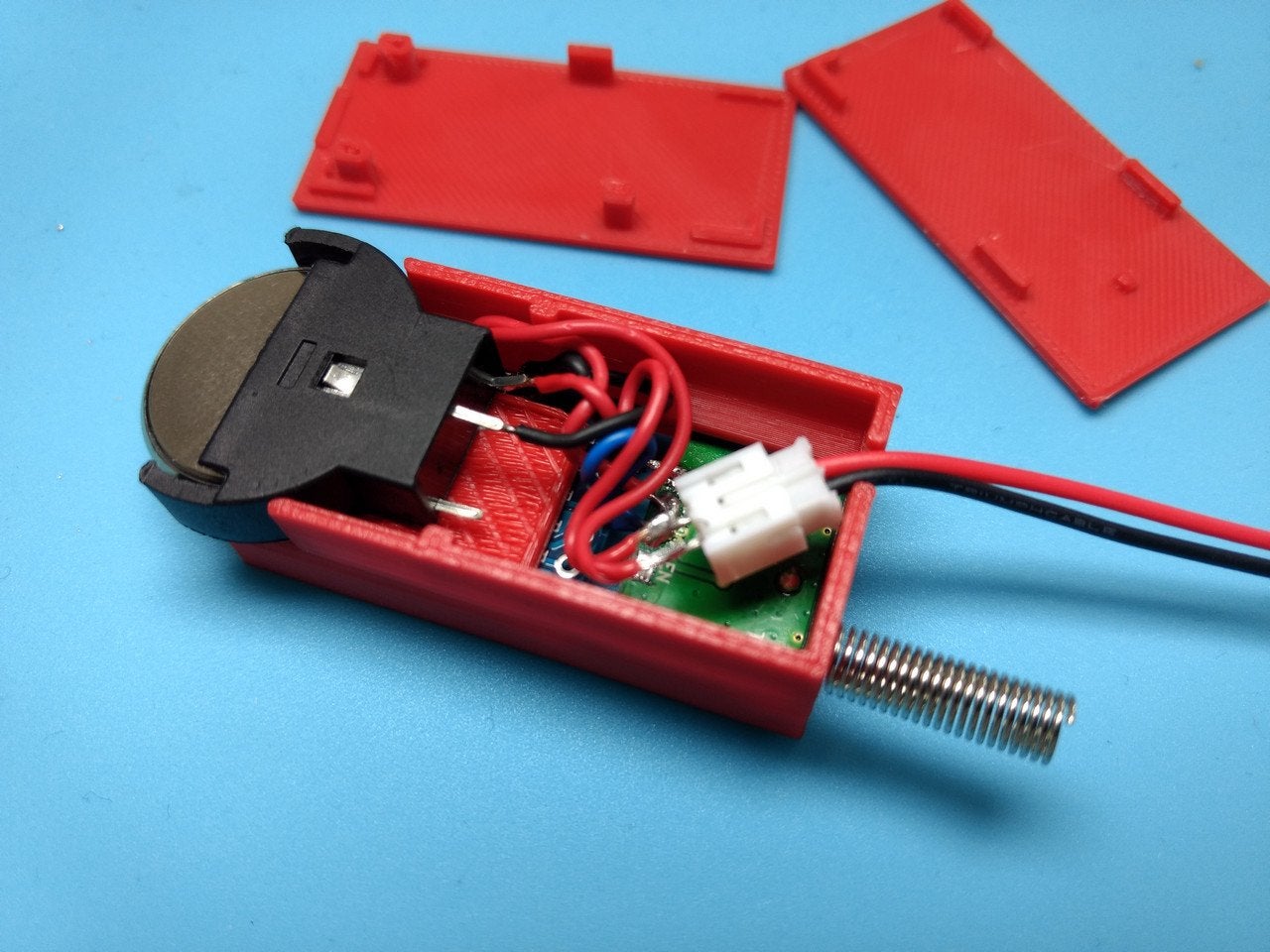

Case assembly bottom view expanded
