"Sting" freestyle frame - sub100g - 2s - 2,5" - DJI HD

Update 06-12-2021:

Just added a step-file, so you can make changes more easily.

Update 04-04-2021:

I build the frame and can confirm: it's finalized!

Update 03-01-2021:

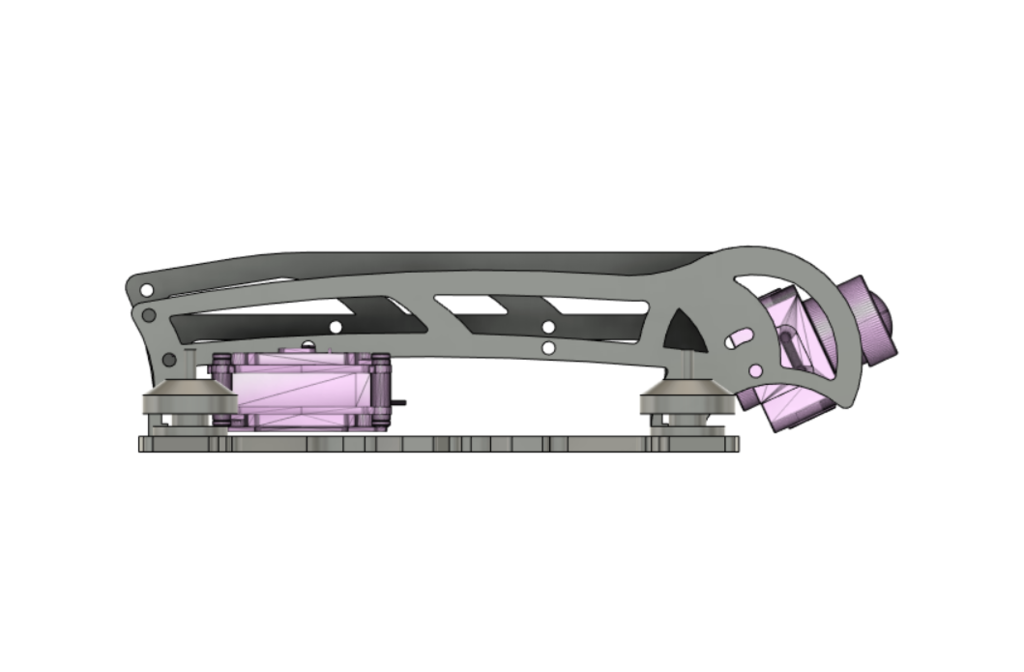

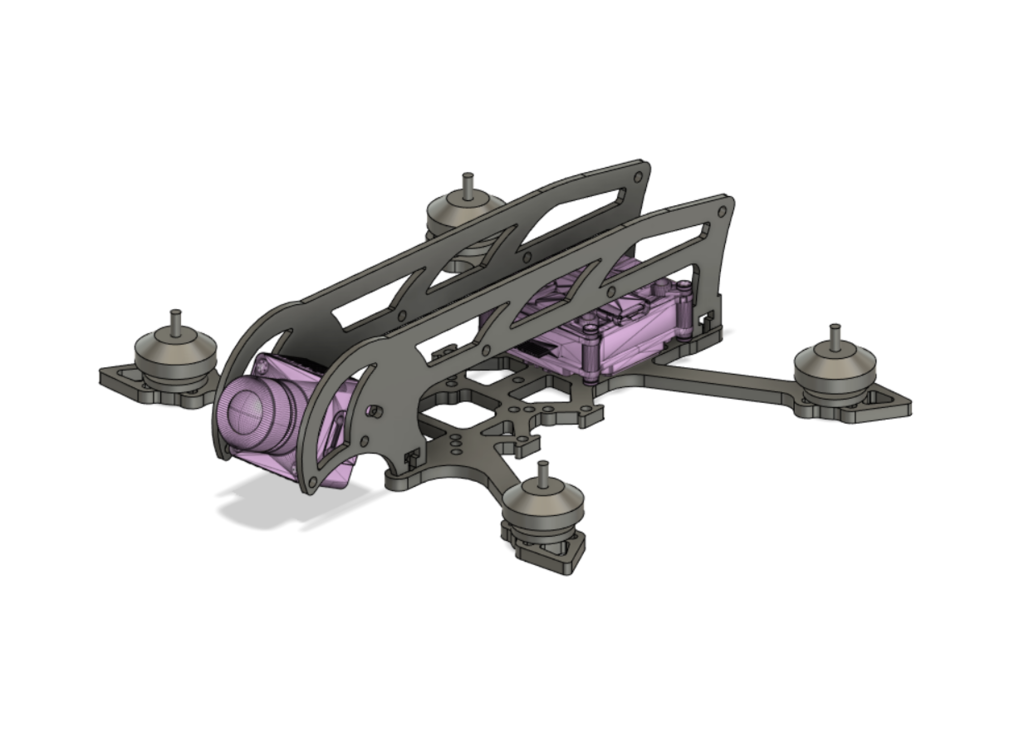

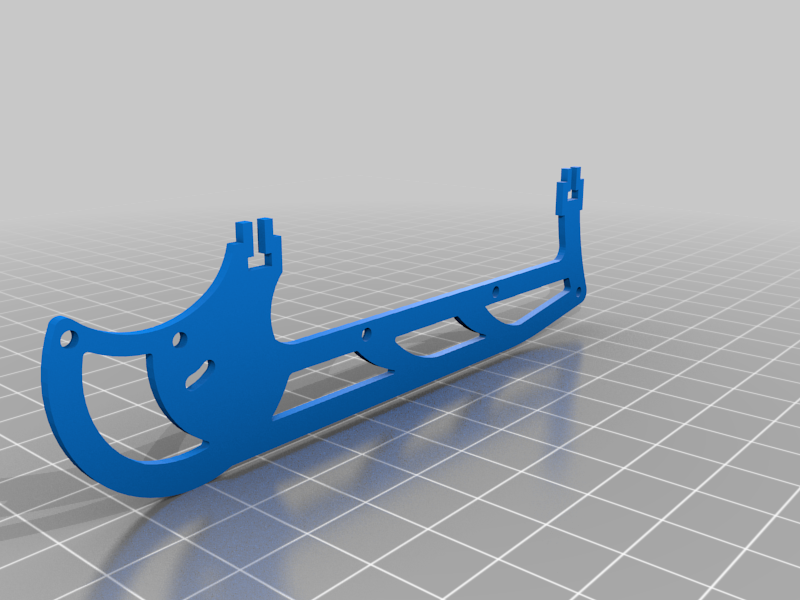

As requested i uploaded an alternative version of the side plates that allow using a standard (non-stripped) Caddx Vista. I also added pictures so you can see the comparison. Everything else stayed the same.

---

This is the "Sting" frame. The goal was to design a frame that would fullfill the following conditions:

• 2,5inch size (in my view the best compromise between size and flight characteristics
• 2s battery setup (super silent - park flyer9
• sub 100g total weight
• "naked" Caddx Vista (DJI HD)

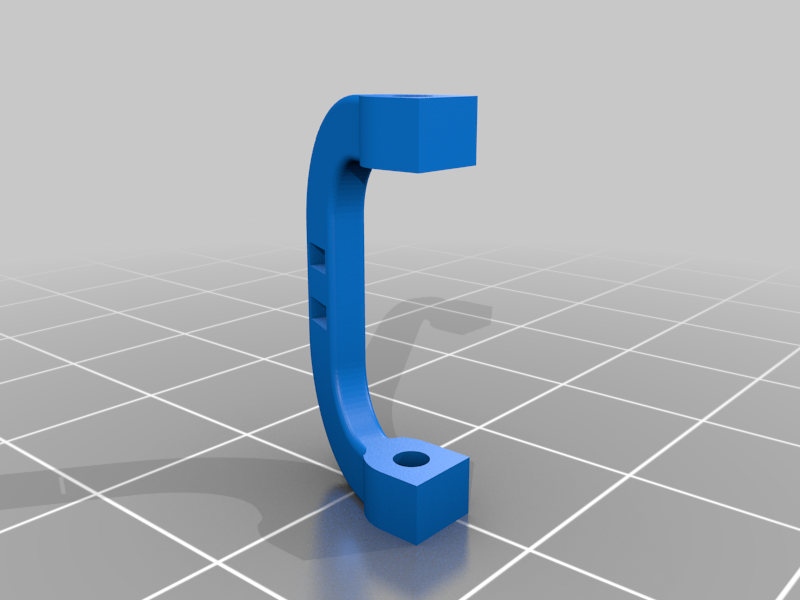

With this frame the only 3d-printed part is the antenna holder. Print in TPU.

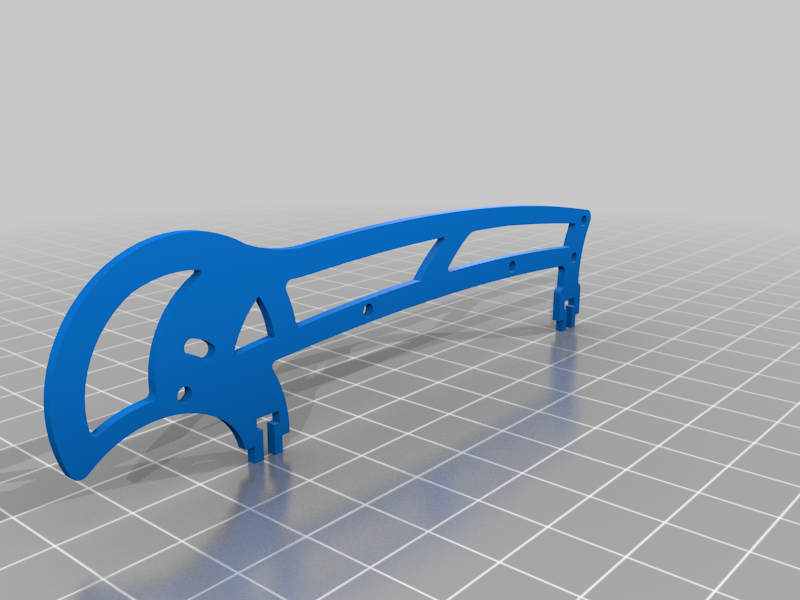

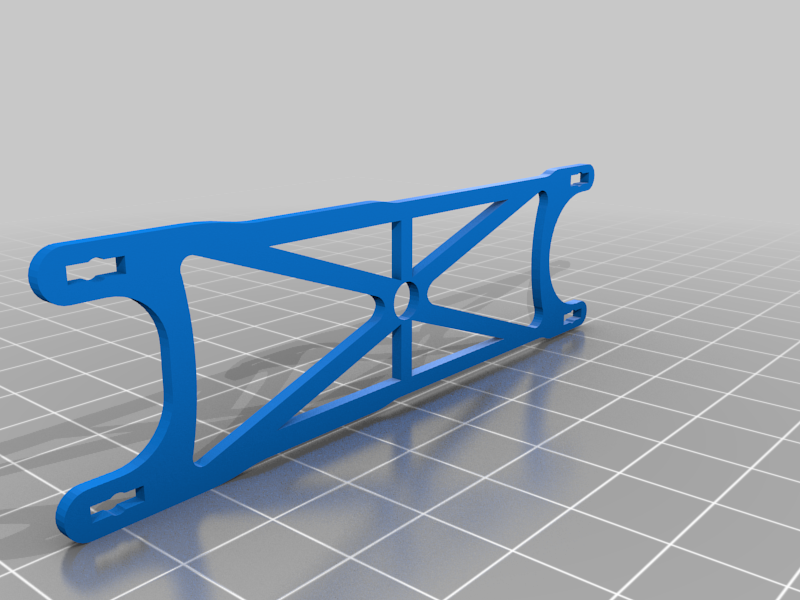

The top plate is optional - can be used instead of the side plates if you need more space. Current version of the side plates require a "naked" Caddx Vista. Looks way better being this slim :-)

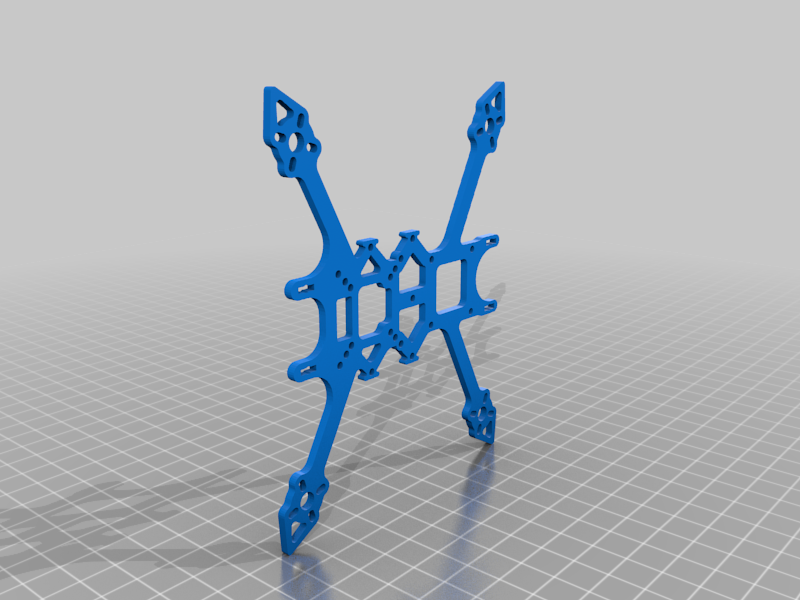

Important info for CNC cutting: Please ask them to cut everything "as is". I already left some extra spacing around the female parts of the main plate. It should work fine in most cases. In some cases you might need to file down the male parts a little.

I design frames for fun - each one goest through 4 phases, which are documented on Youtube:

Concept & Design: https://youtu.be/wo-MyfFTyyg

Build video: https://youtu.be/Bq2J9Fh6MjY

Fly&Improve: video coming soon

You can find videos from all my frame design projects on my Youtube-Channel: https://www.youtube.com/c/eyeflytinkerings

Print Settings

Printer Brand:

Prusa

Printer:

Rafts:

No

Supports:

Resolution:

0.2

Infill:

Filament: Prusament PC Grey

Notes:

Category: R/C Vehicles
