Planting Shovel
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor & Garden
- Licencja
- Creative Commons — Attribution — Noncommercial

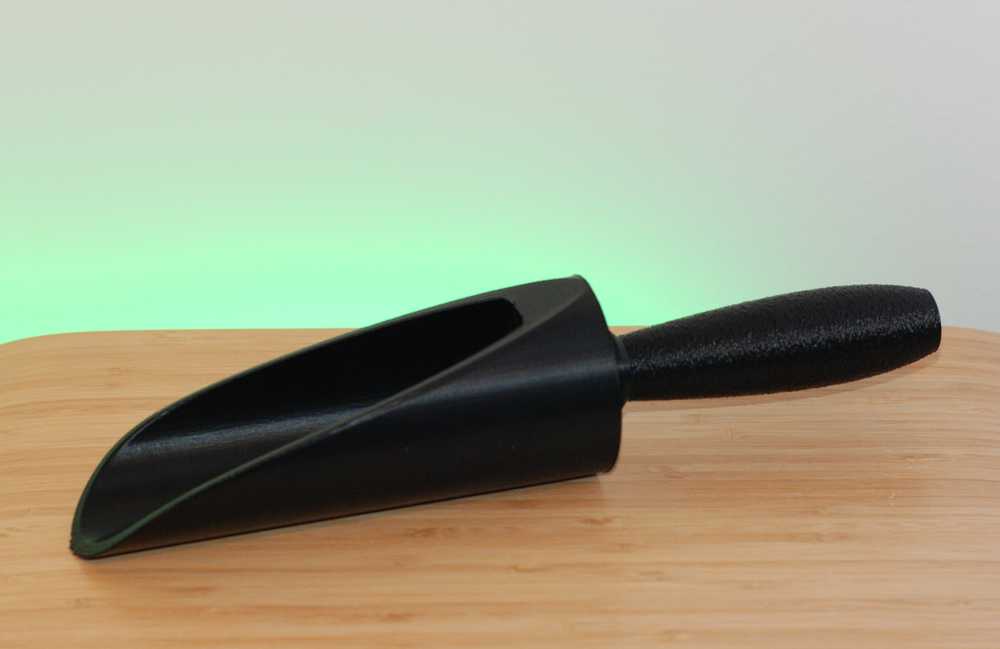

This model is a simple to print two part planting shovel. Both parts can be printed without supports (I think the propper alignment is obvious).
Update (05.02.2023): I have added a variant of the shovel part with slightly thinner walls. This reduces printing time as well as consumed material and is still strong enough for digging planter soil. The thicker version is preferred for loosen clay soil.
Printing
I recommend using enough perimeters to fill the shovel's front part. Furthermore, I suggest to apply “Fuzzy Skin” on the lower 100mm of the handle.
As this tool is likely left in the garden, printing with a UV resistant filament would be benificial.
The threads are designed to fit tightly (0.15mm gap), so your printer will have to be well calibrated.

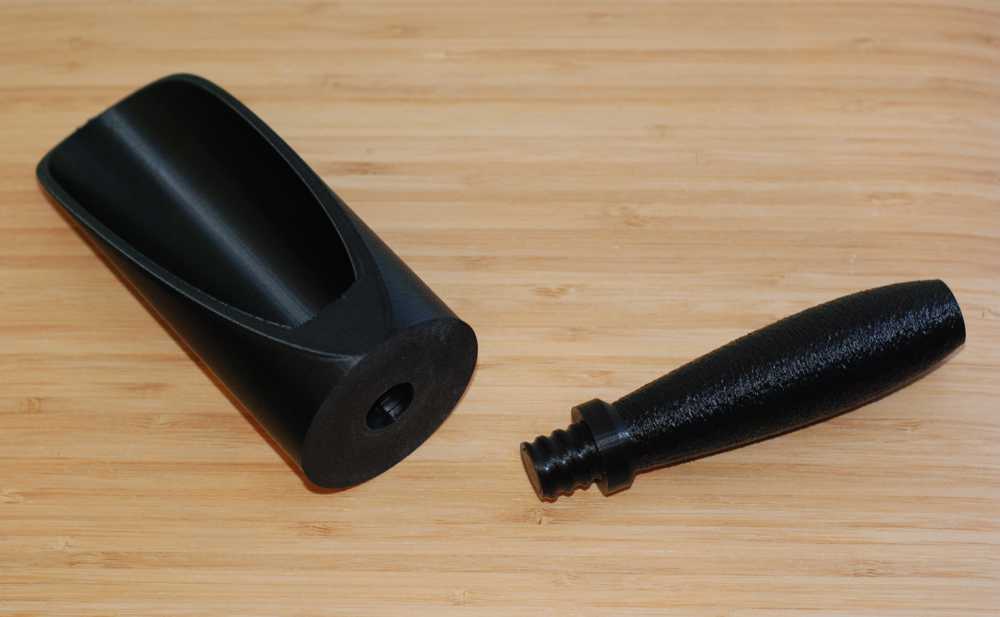

Assembly
To assemble the handle's threaded upper part is to be screwed into the shovel part. No additional material required.
