Supper Rapman

Update 1/12/2013

Aduino electronics adidid

Software loaded

Testing all funktions compleate

Vidio link to follow

Printer bilt

Dimentions 1meter by1.3 meter by1.2 meter b.l.h

I found my 3D PRINTER a wee bit small.

I started with a up sised Supper Rapman.

Some parts are my own dezine.

Some parts are frome other peoples projegts.

I say thanks to them for there work that helpd me to make my printer possible

Wilwerk work with all printers that have x y and z axis

.

My rapman 3.2 update

3rd head added

Perspex full frame box made and upgrade with 4 layers of HT ANTI STATIC SPRY to stop static from interfering with the electronics

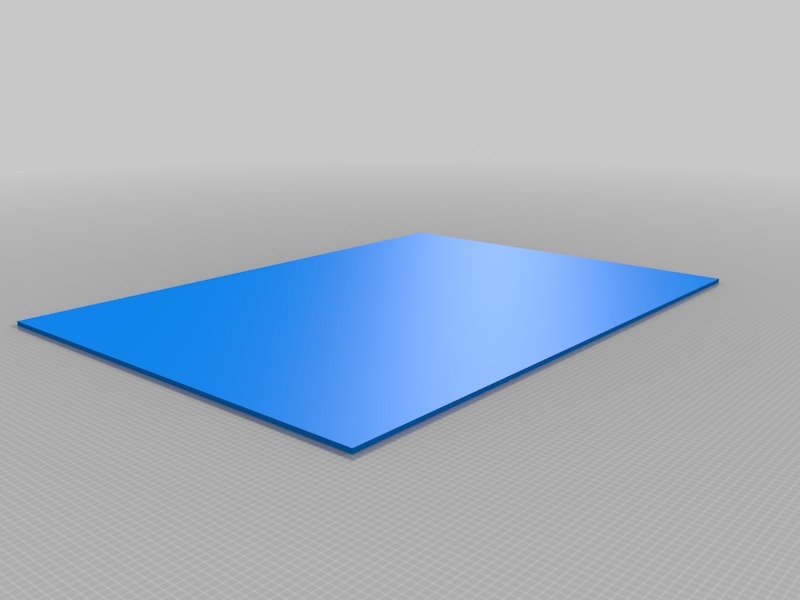

Heatted bed added

auto fillemint fhedder added

a 1000 amp loadshedding backup power pack added beacase of escom

no more print faillers

working on a fillemint splyser as a mod ad on

printer can run of grid and is solar back up

RAPMAN Rapman 3.1 double Head Conversion to RAMPS 1.4 Marlin http://www.cdschools.org/site/default.aspx?PageID=17142

THANK YOU Jim Chronister FOR RAPMAN 3.1 Dual Head RAMPS 1.4 Marlin FIRMWARE

RAMPS 1.4 Marlin FIRMWARE third extruder addid https://www.repetier.com/firmware/v100/

IT WORKS WELL ON THIS PRINTER

X Y Z PARAMETERS ADJUSTED TO SOOT

https://www.thingiverse.com/thing:788968

https://www.thingiverse.com/thing:3146630

Instructions

Please look at the pictures as I do not like writing long build instructions.Please forgive me and a full set of parts list in 2 sets will follow list1 my parts and list2 parts from other people.

ALL STLS WILL BE AVALEBLE TO DOWNLOAD.

I say agane thanks to them for there hard work

Updated 1-12-2912

Files addit

Supper Rapman.rar

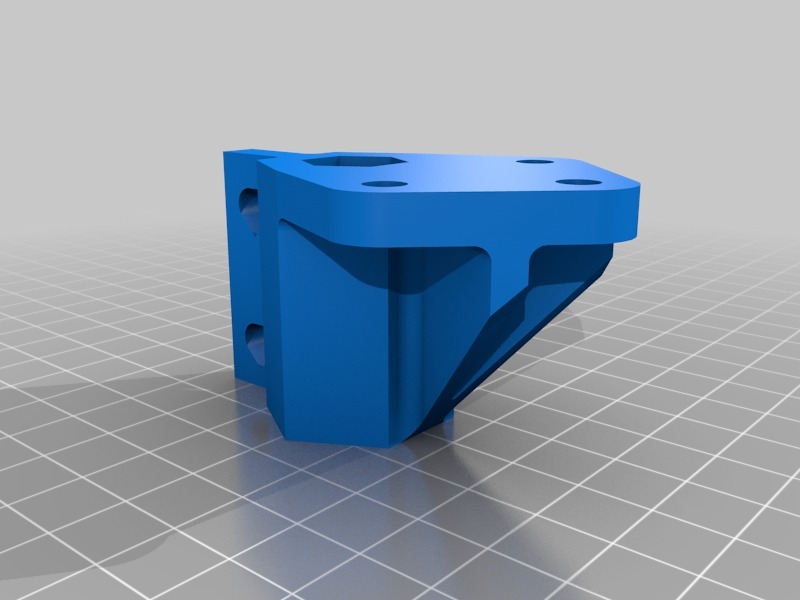

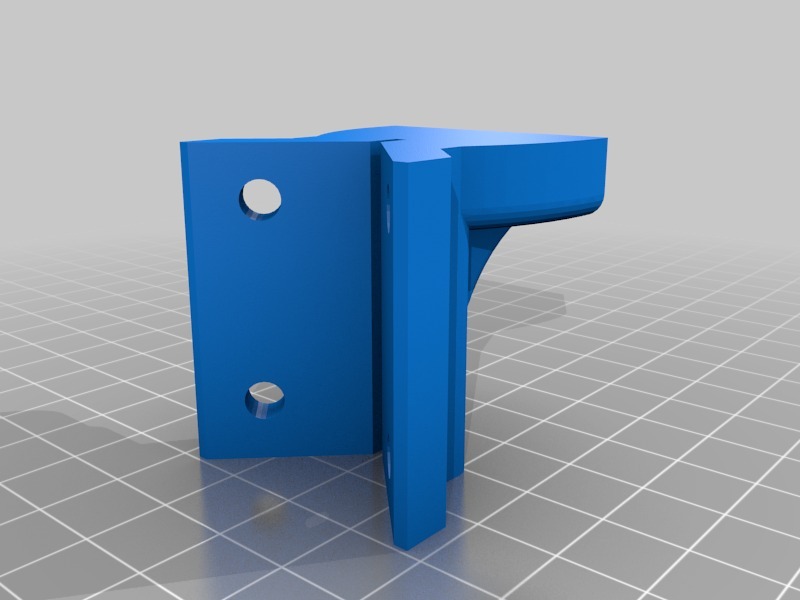

ERapMan 3.x Corner Set.rar

lidt1

list2

top_bearing_plate_v90.stl

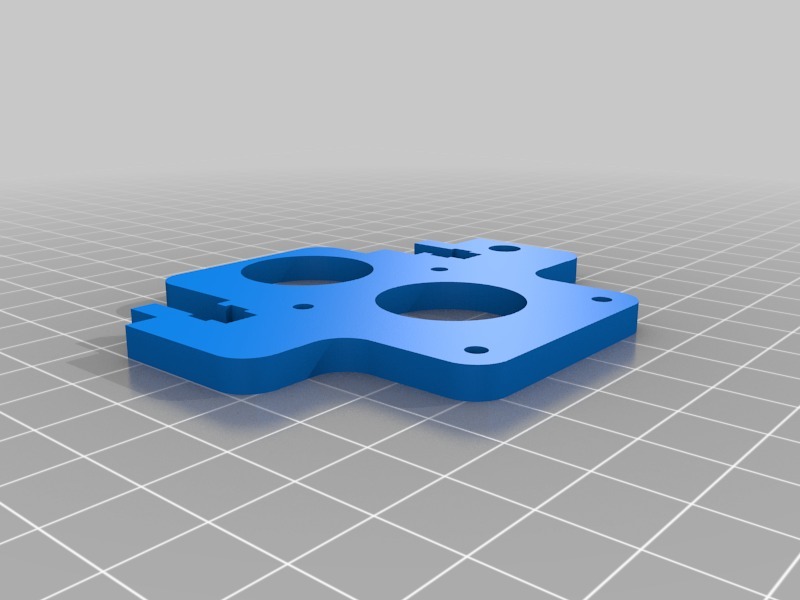

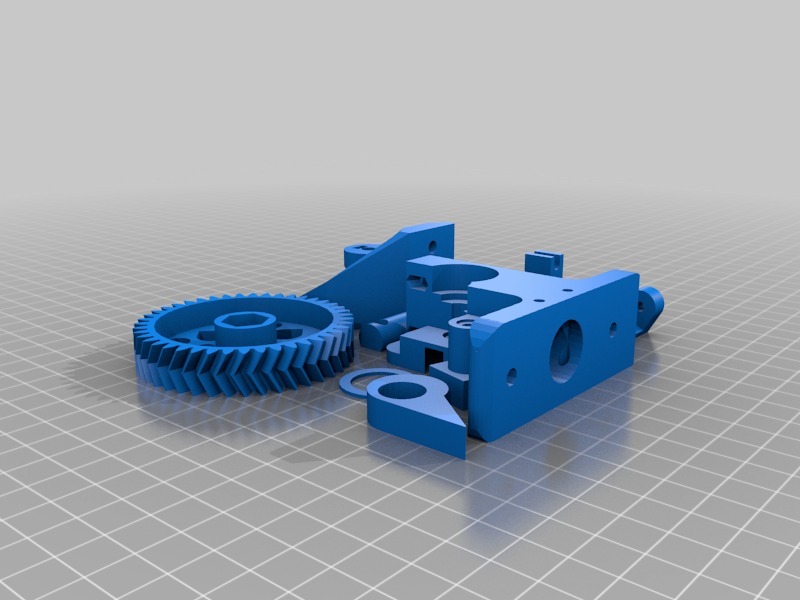

extruder_motor_mount.stl

jpg immage addad
