METEORITE TRAIL
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Home Decor
- Licencja
- Creative Commons — Attribution — Noncommercial

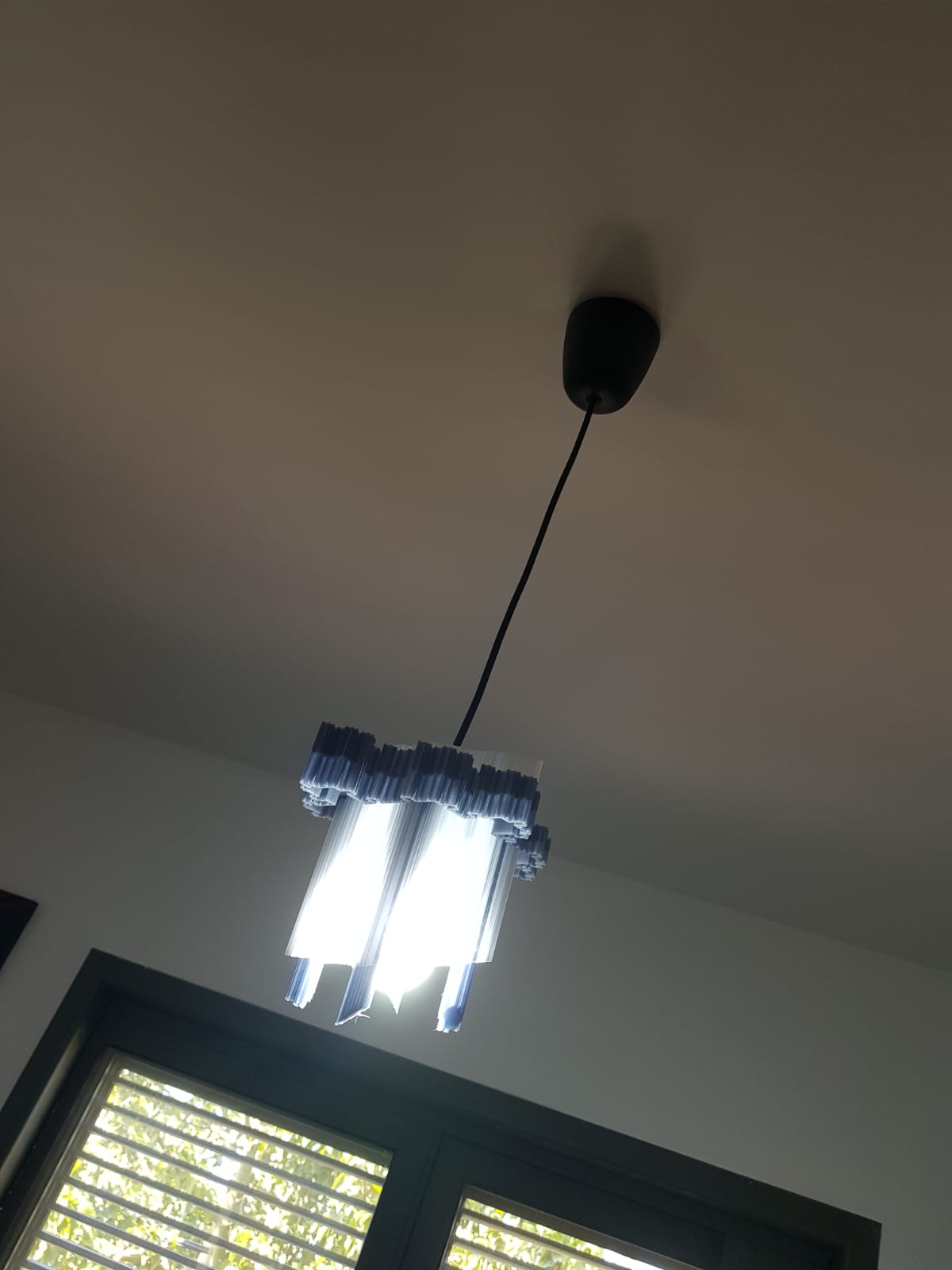

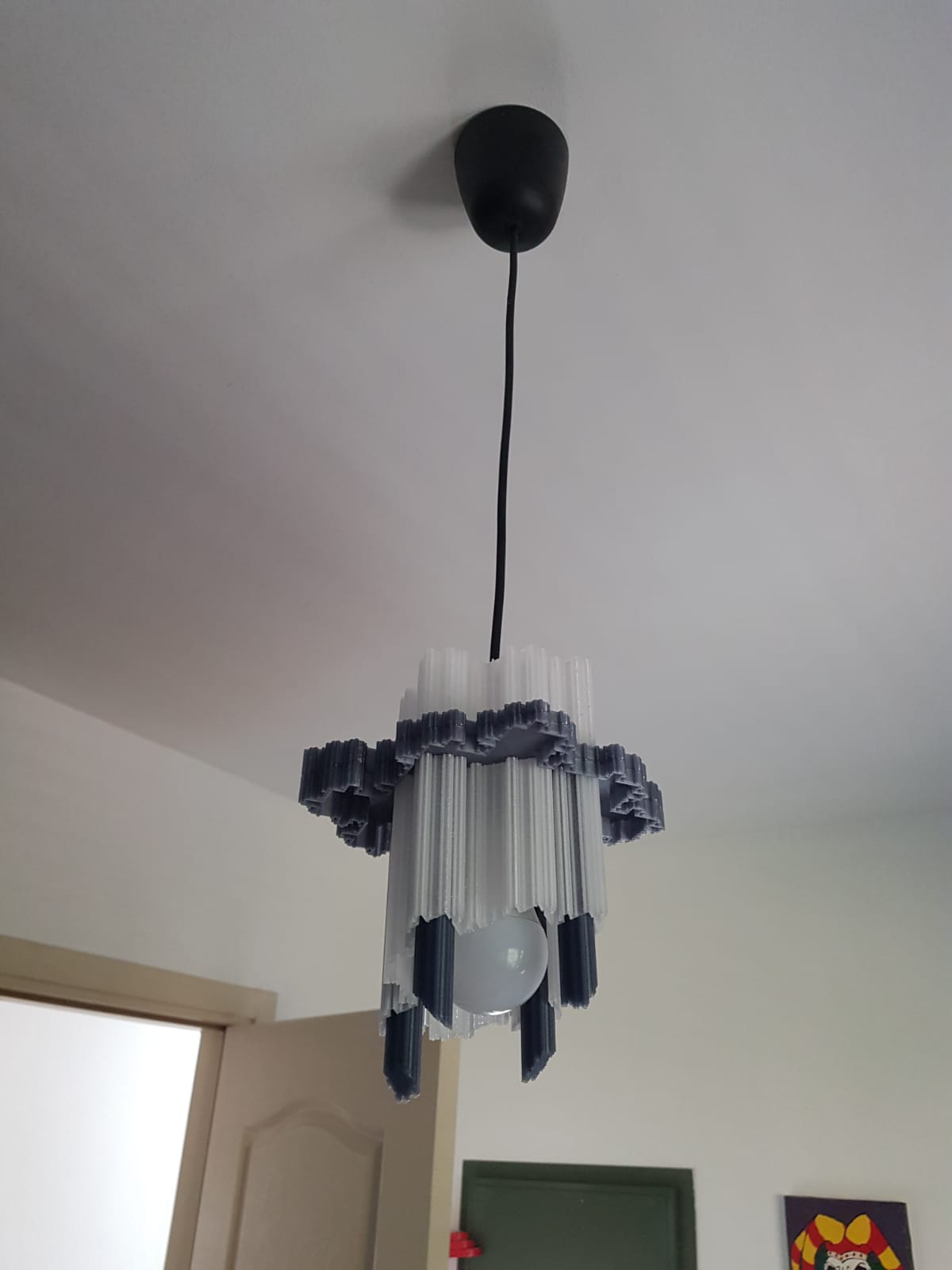

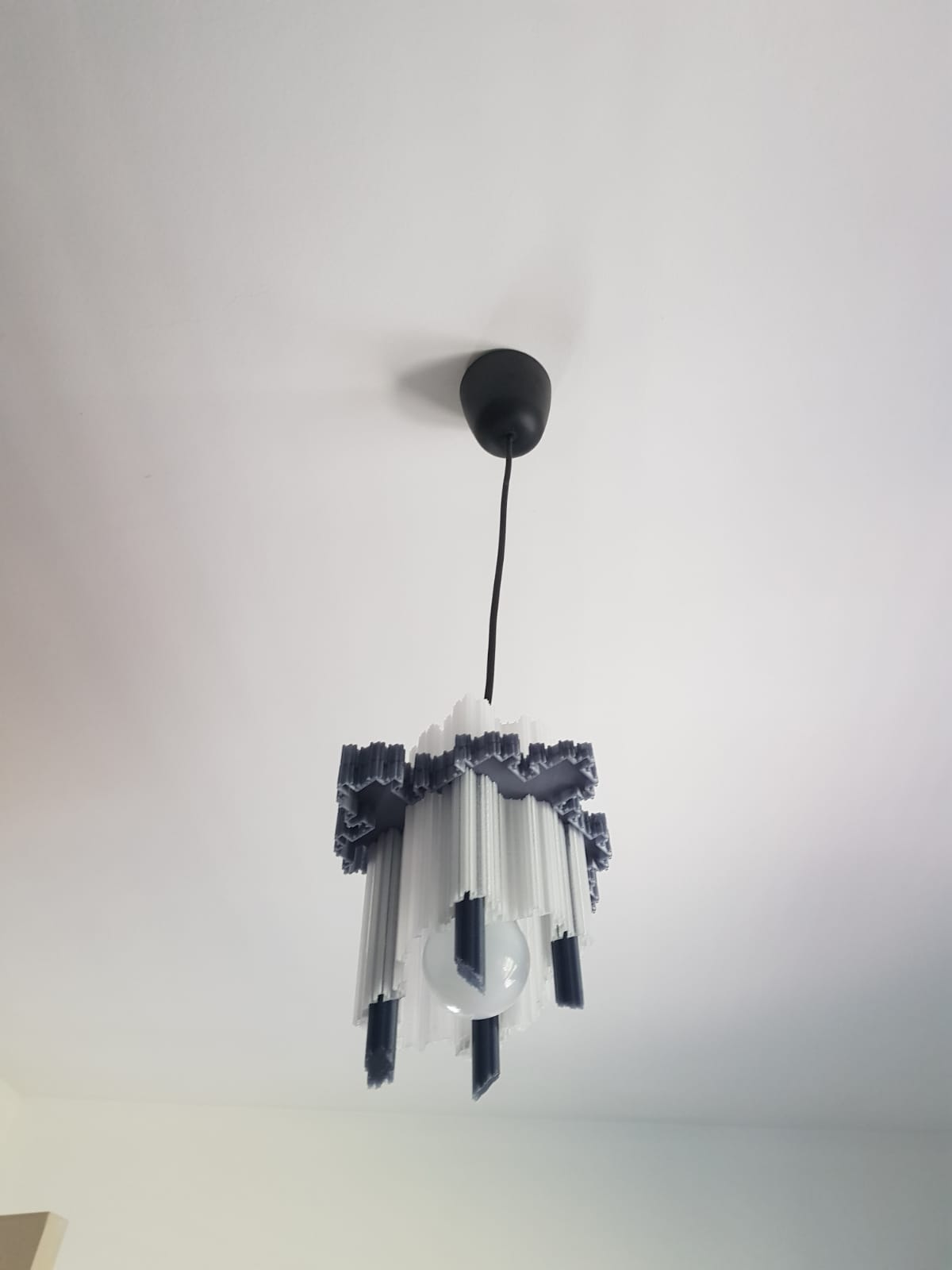

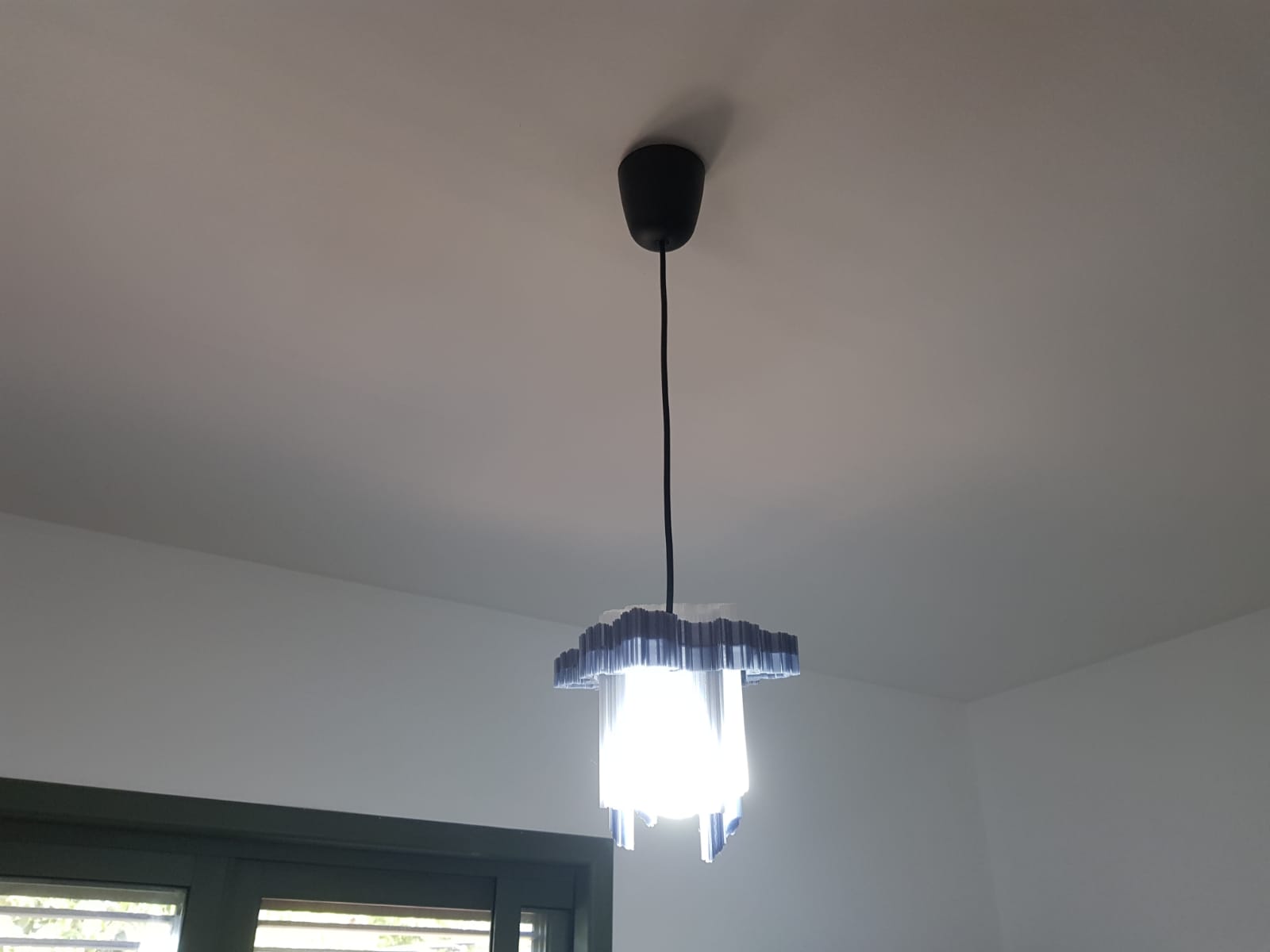

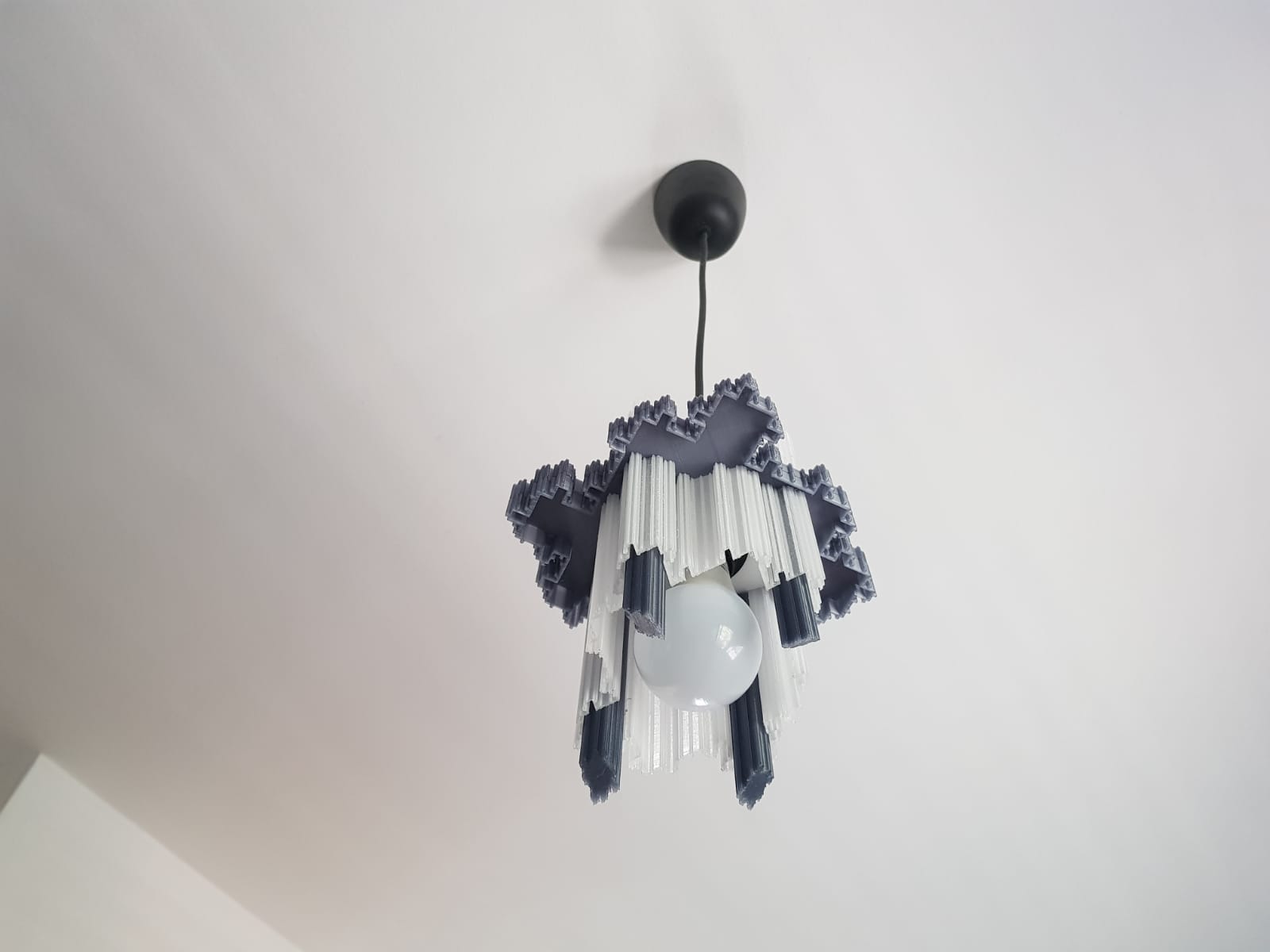

Small lampshade for Ikea "hemma" bulb connector. easy assembley (I used M4 screw with t-nuts because that what I've left ...)
Print instructions
Top and Bottom parts:
Layer height: 0.28mm
Perimeter: walls 2. top 5. bottom 4.
Infill: No matter.
Pulpit parts:
Layer height: 0.28mm
Perimeter: walls 2. top 5. bottom 4.
Infill: No matter.
No support needed.
Assembley Instruction
printed parts:
big meteorite trail top+bottom
small meteorite trail top+bottom
4 pulpits
Hardware:
4 pcs M4X10mm
4 pcs M4Tnut
step 1:
insert all Tnuts in the designated slot at the pitpul parts.
step 2:
Align the parts at that order- top small- top big - bottom big - bottom small.
the big parts right position - top is mirrow of the bottom.
put at least 2 screws to secure the poosition.
step 3:
take pulpit 1 , place him at the lower protrusion of the bottom small part and tight the screw.
do the same with the other pulpits (pulpit 2 to the next height and so on)
step 4:
connect Ikea "HEMMA" bulb connector and ENJOY THE LIGHT!
HAPPY PRINTING
