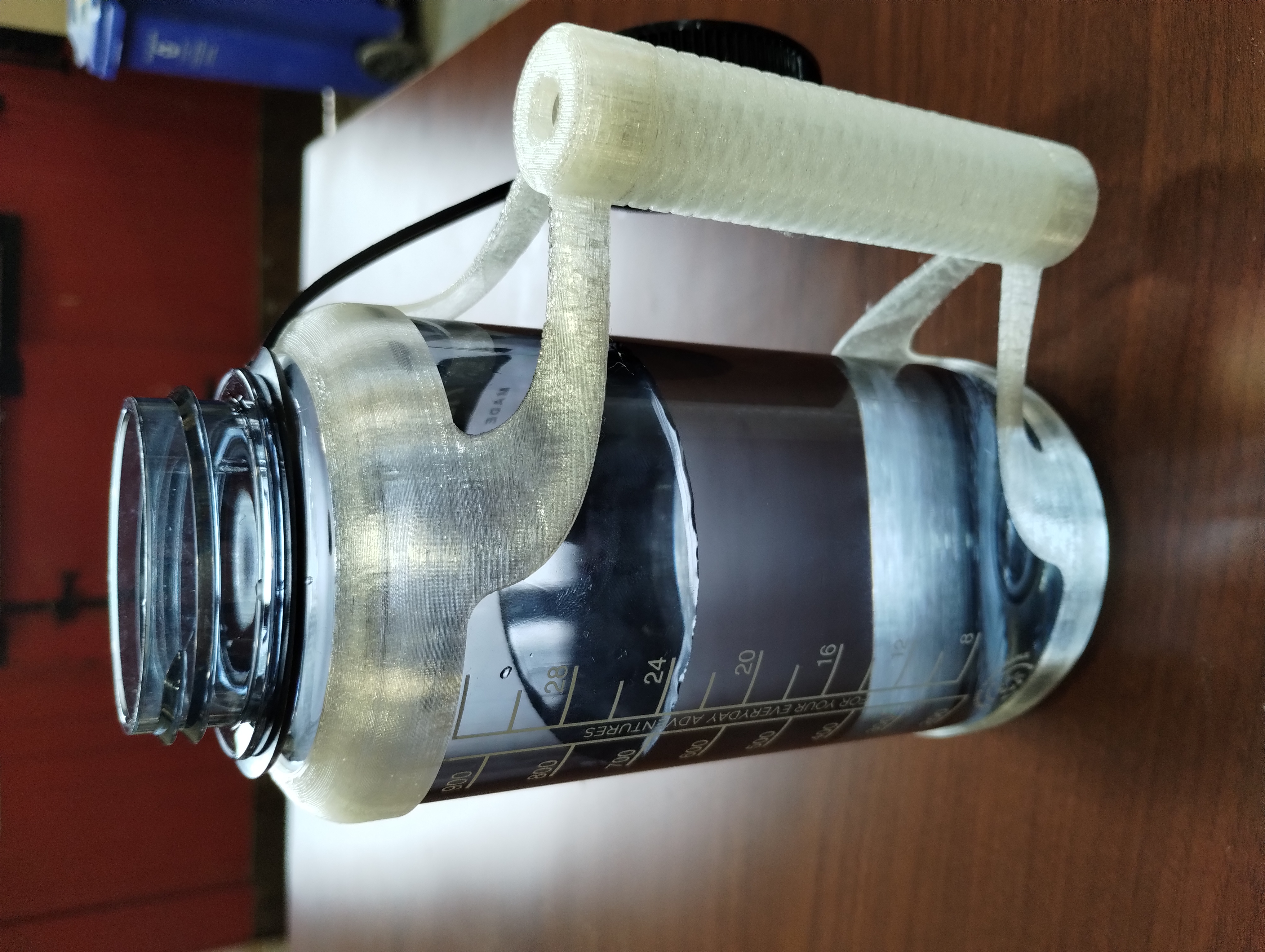

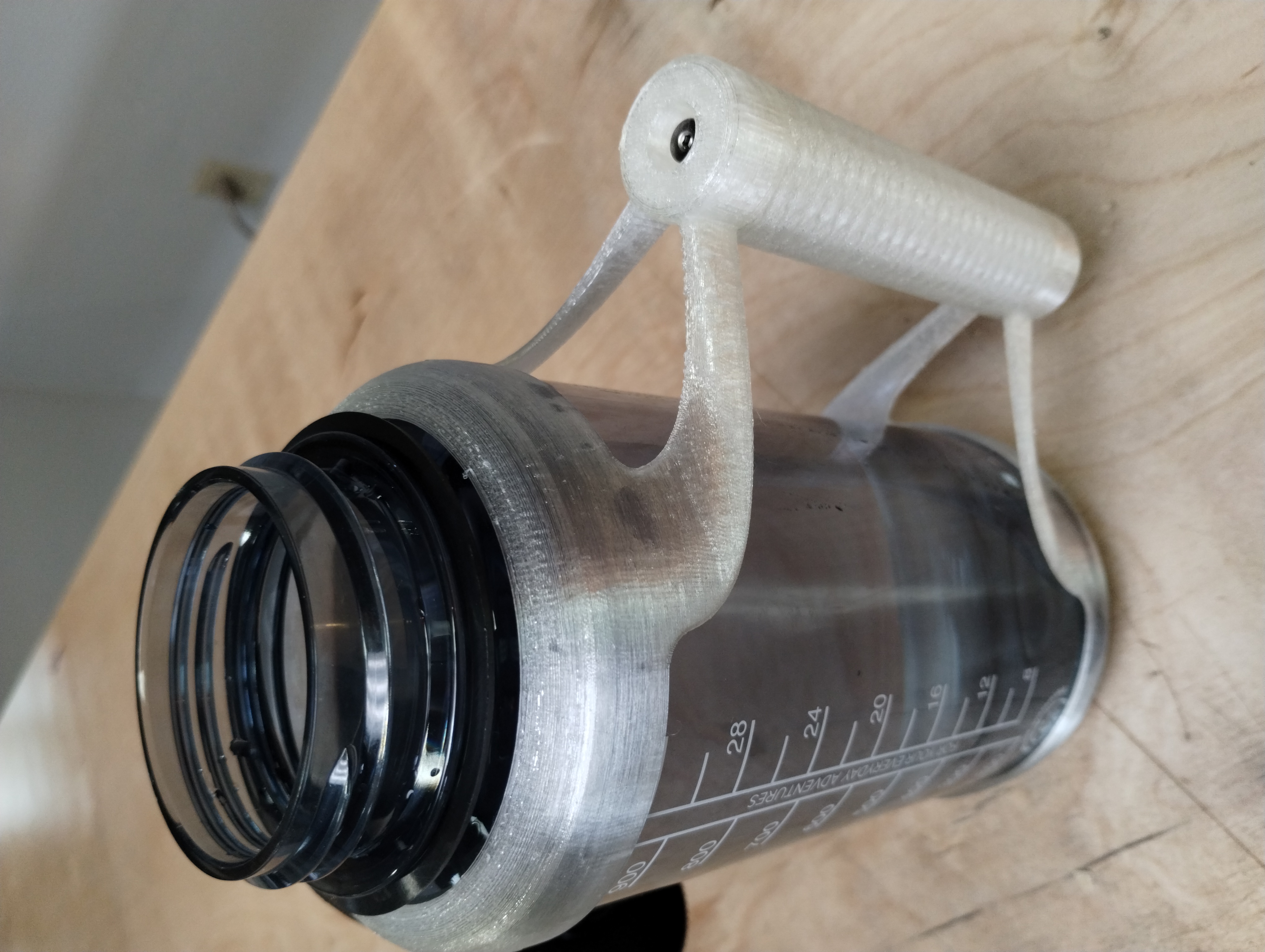

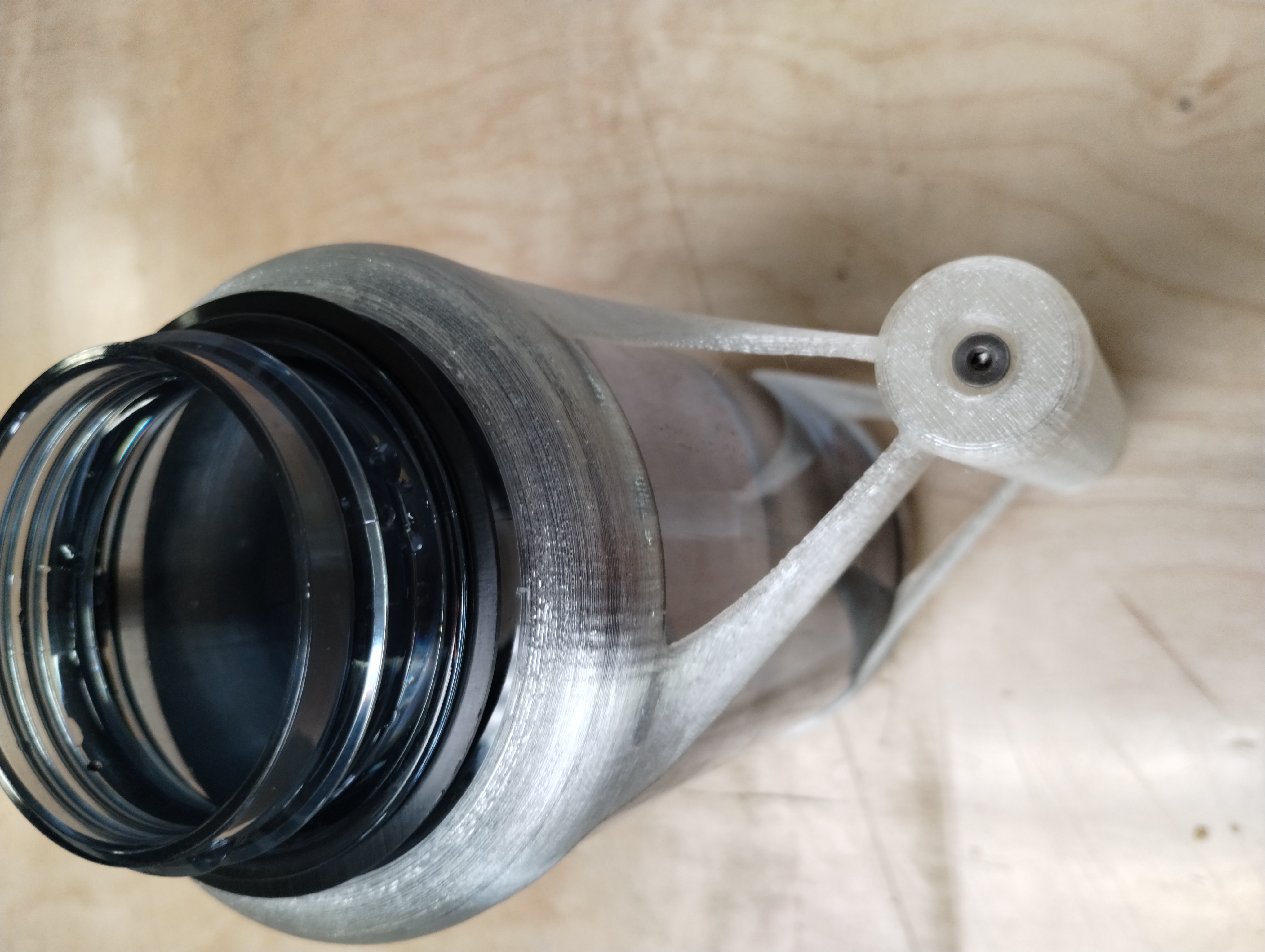

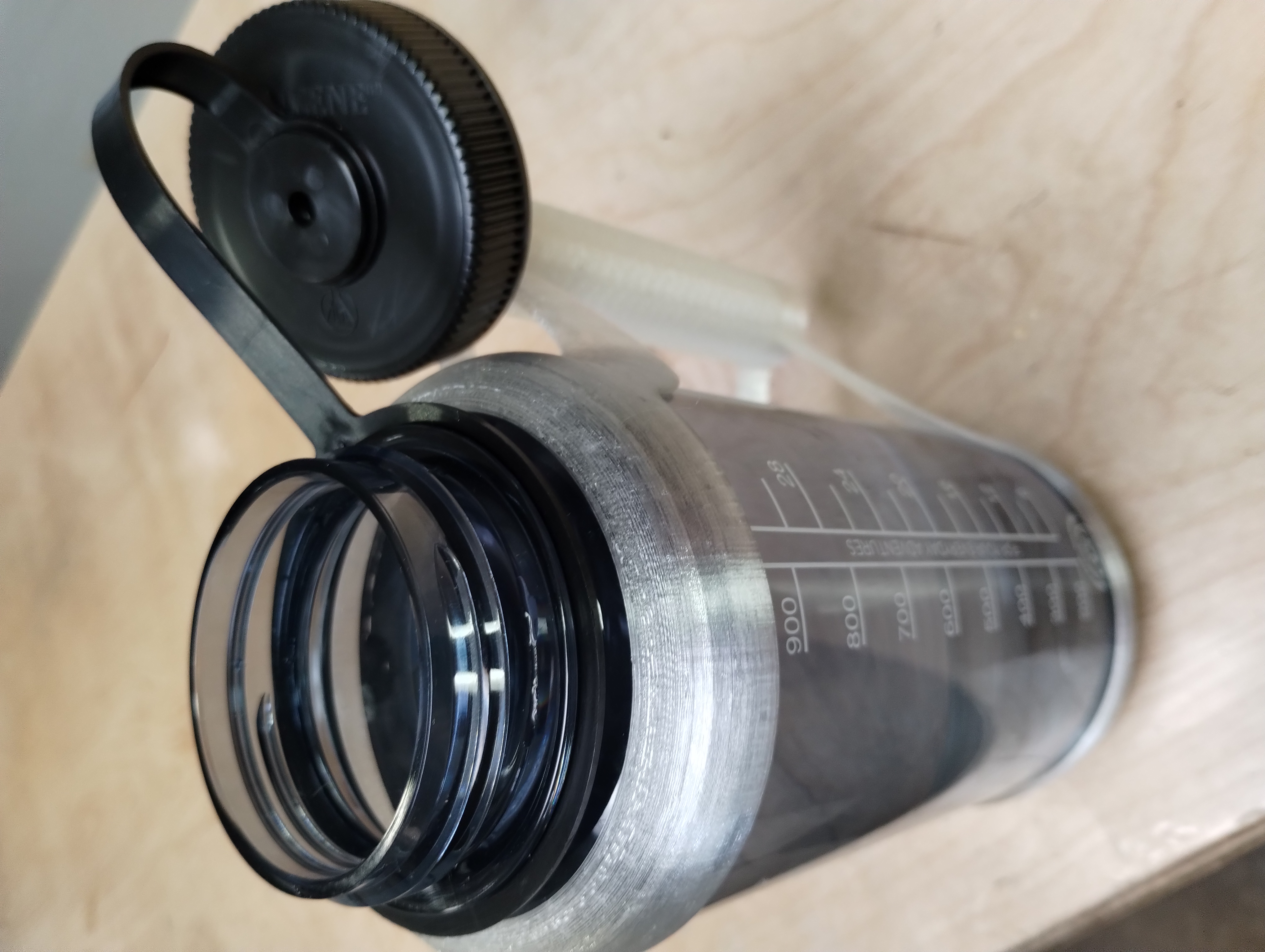

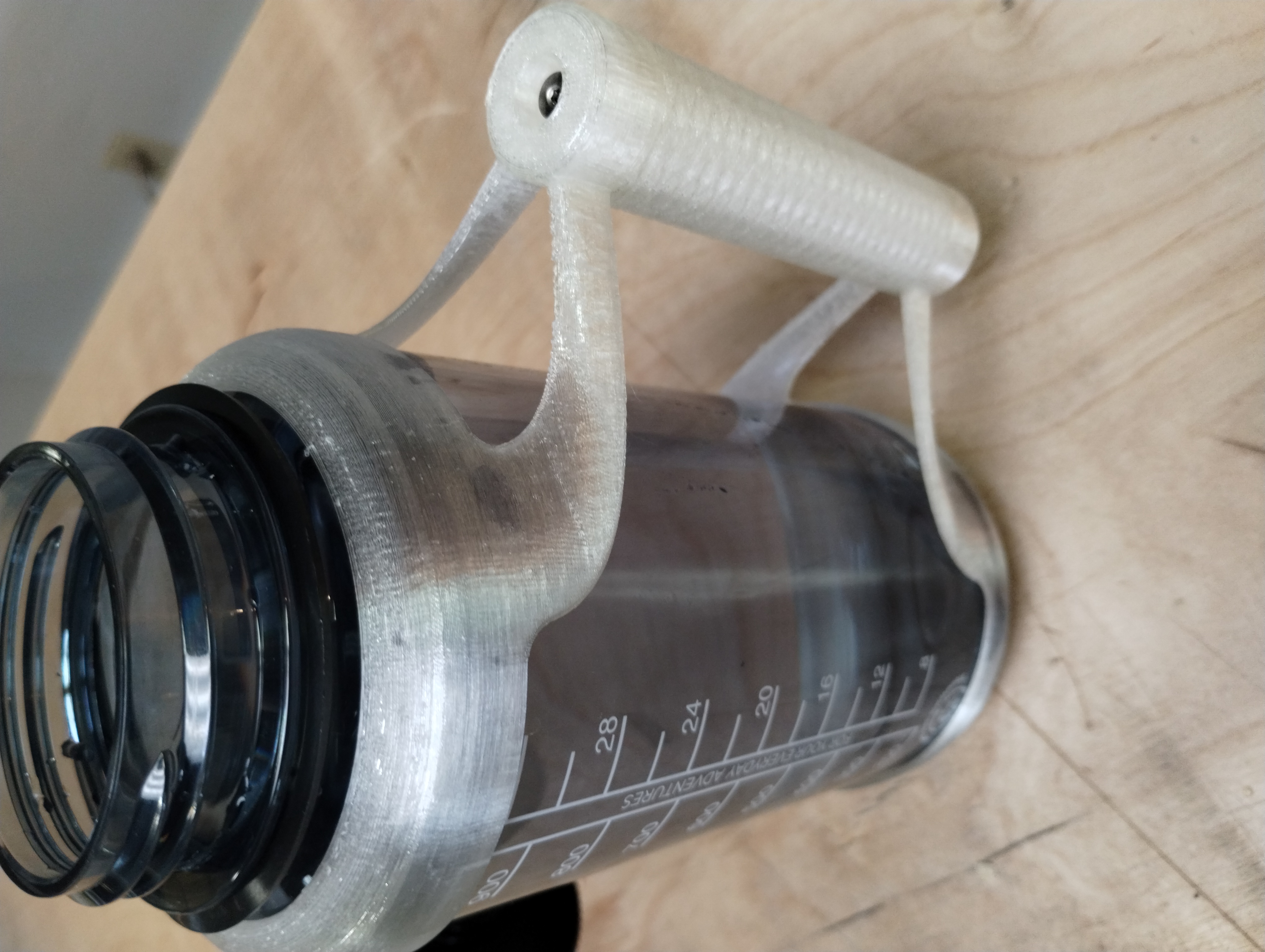

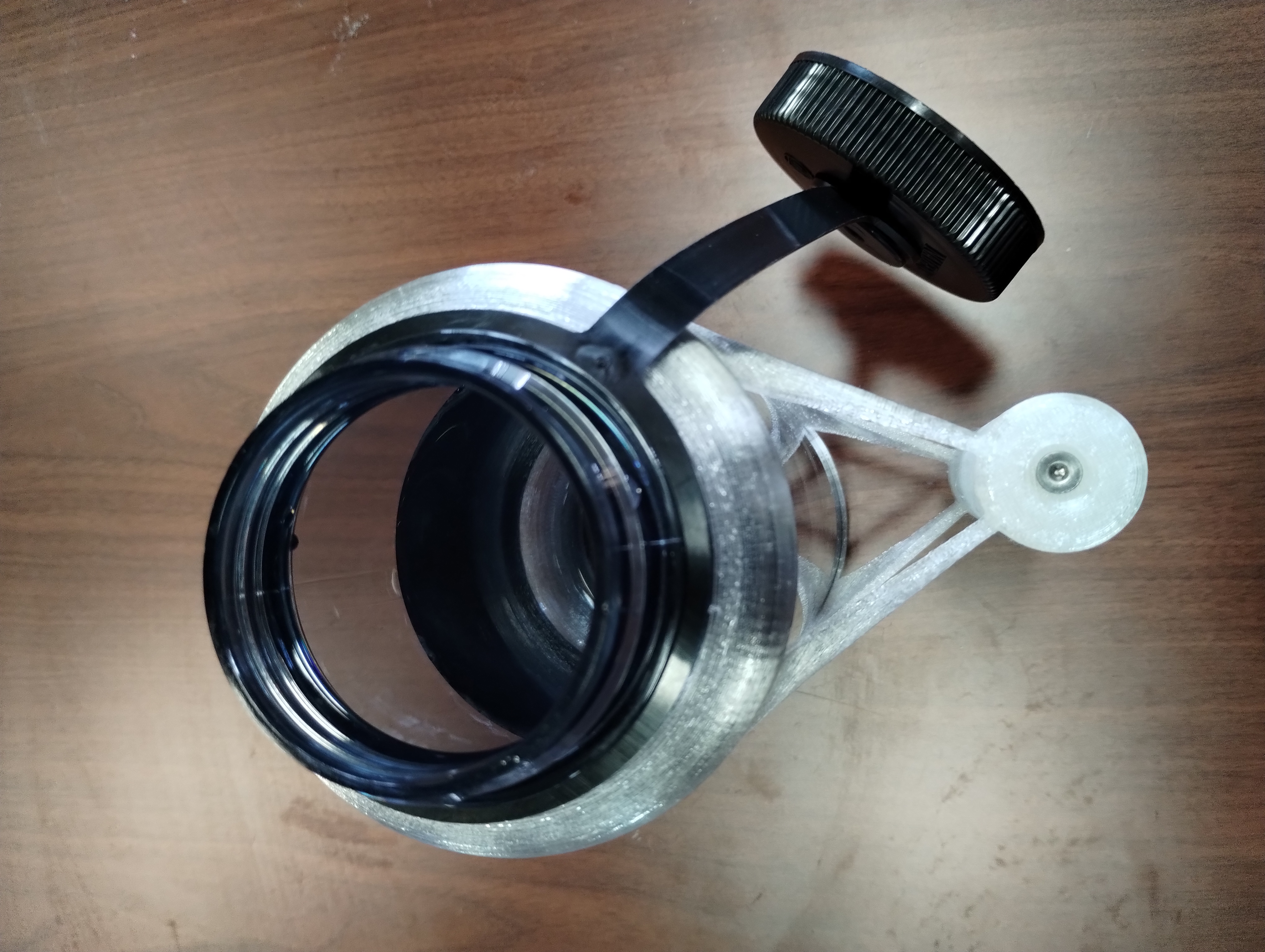

I got myself a new Nalgene water bottle a little while ago, and decided I wanted to try making a handle for it. This is the result! It holds the bottle securely but not so tightly that it scratches the bottle. It was a fun model to draw and print, and I think it works pretty well! The grip on the handle was particularly fun to model, and I'm really pleased with how it came out.
I wanted to be able to take it apart semi-regularly for cleaning and whatnot so it's in 3 parts. It fastens together with screws that go into heat-set threaded inserts. I used #6-32 threaded screws and inserts, but you could probably modify it for a different size or use self-tapping screws or even just glue it together.
I've also uploaded the Solidworks part files so you can modify it yourself if you like.
