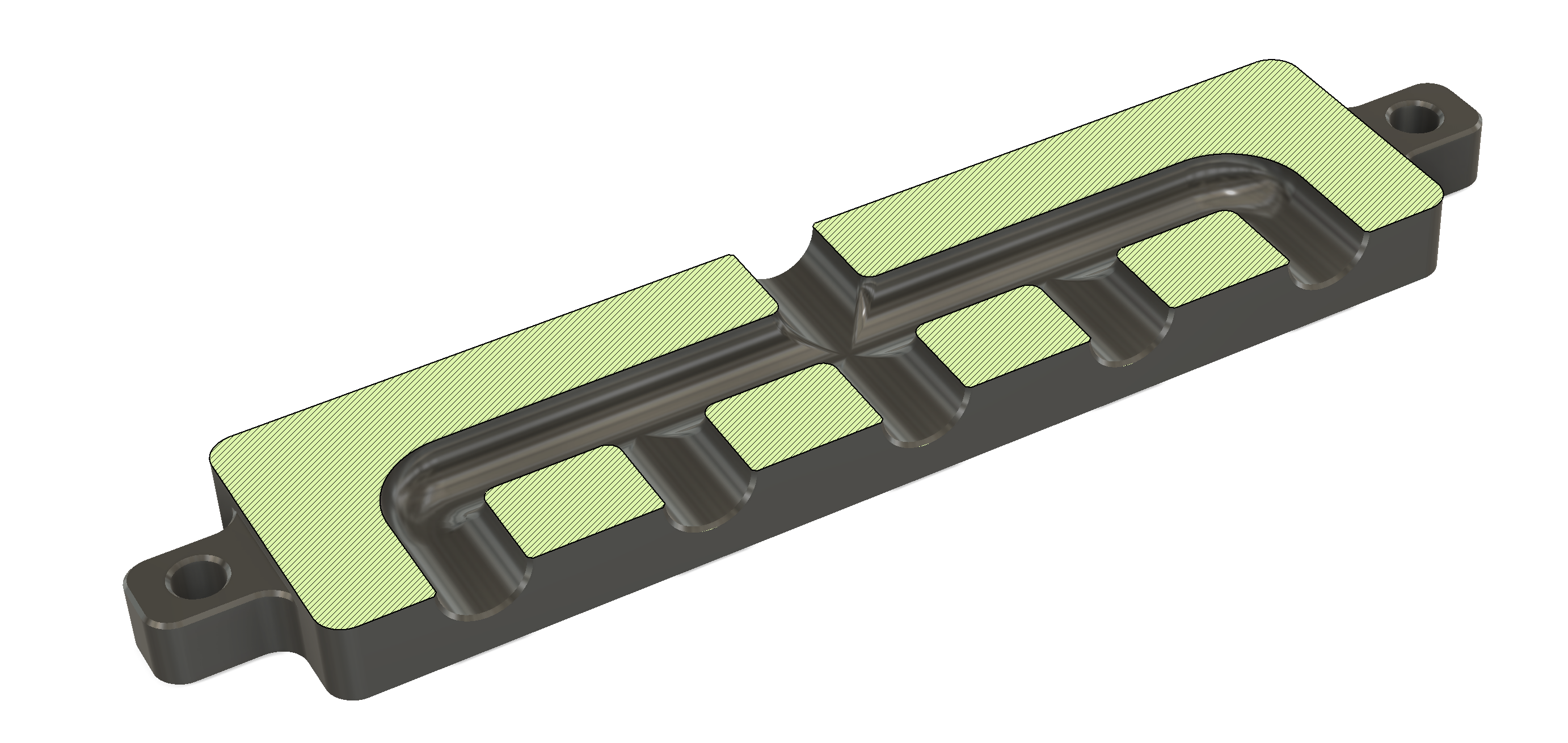

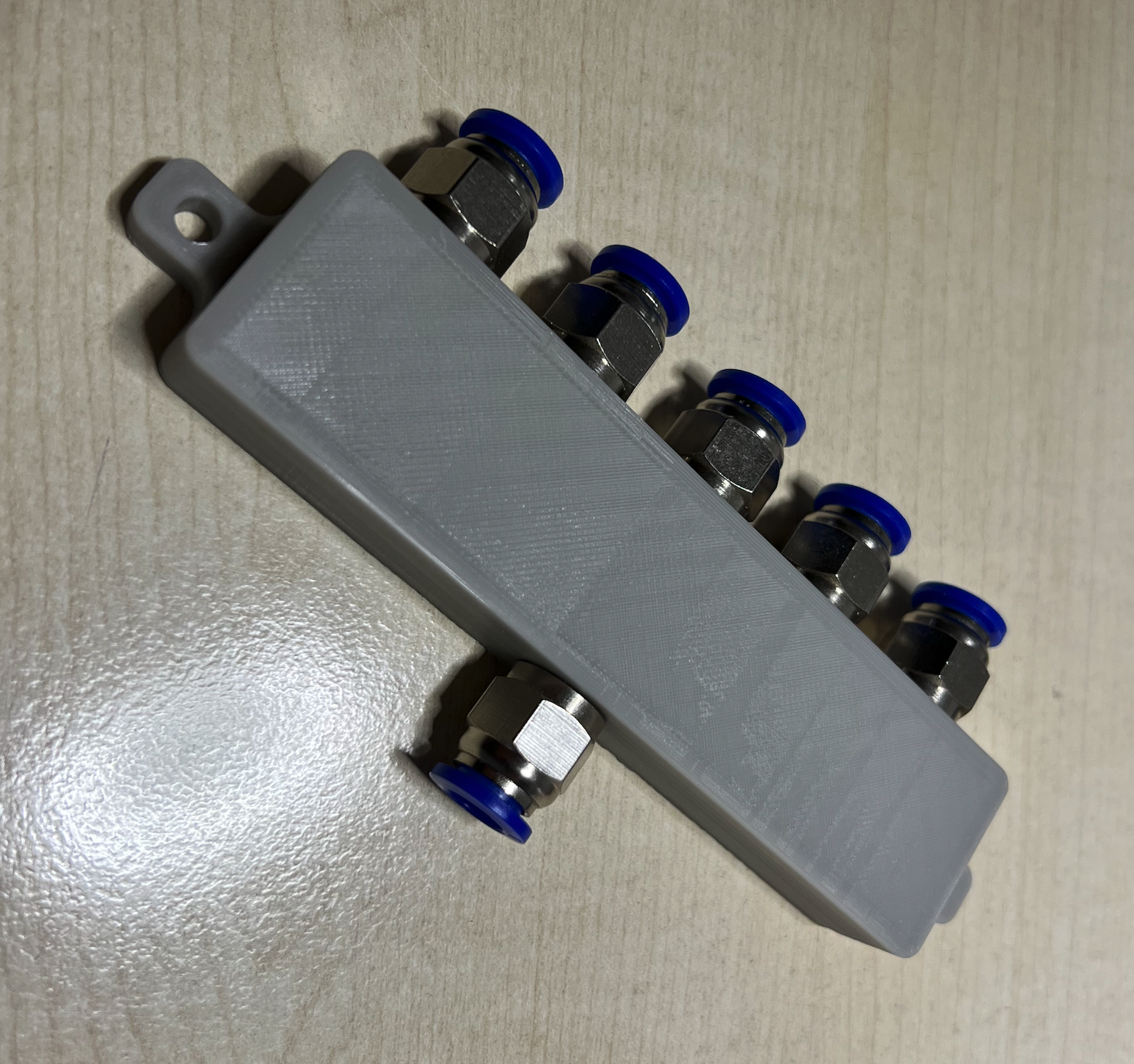

This thing is five way distributor for vacuum or compressed air.
It can be used for vacuum tensioning, airbrush or other air applications.

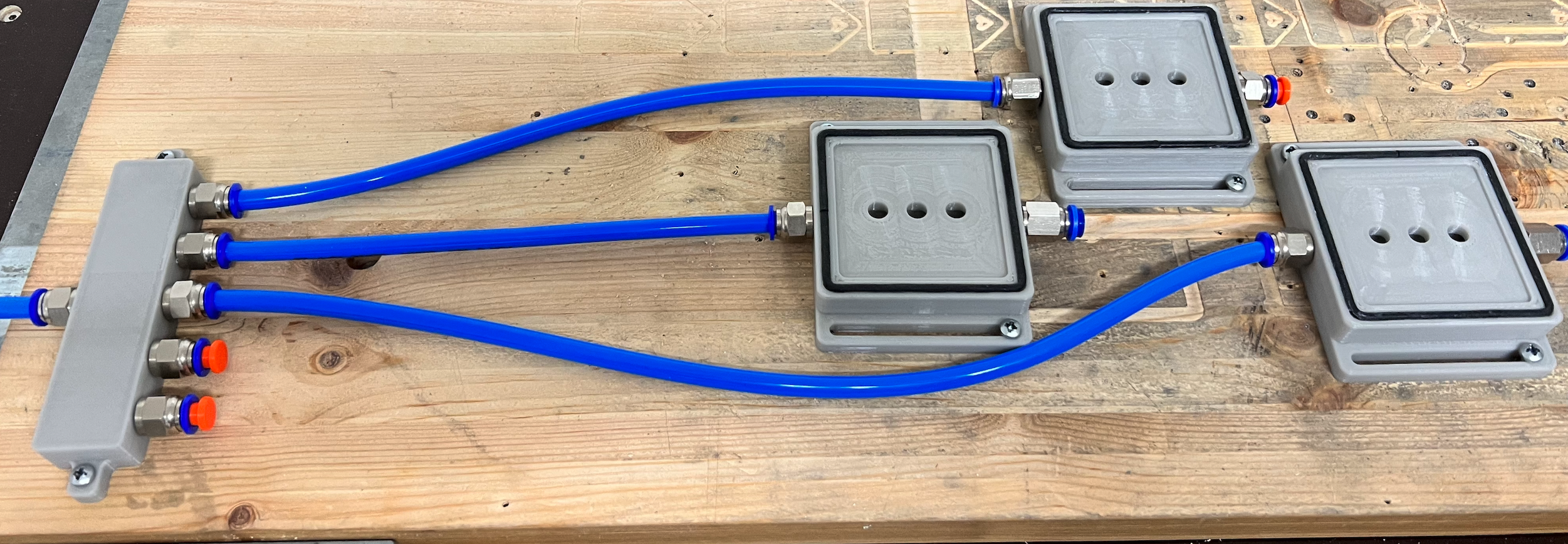

I use the part for vacuum tensioning on my cnc machine.

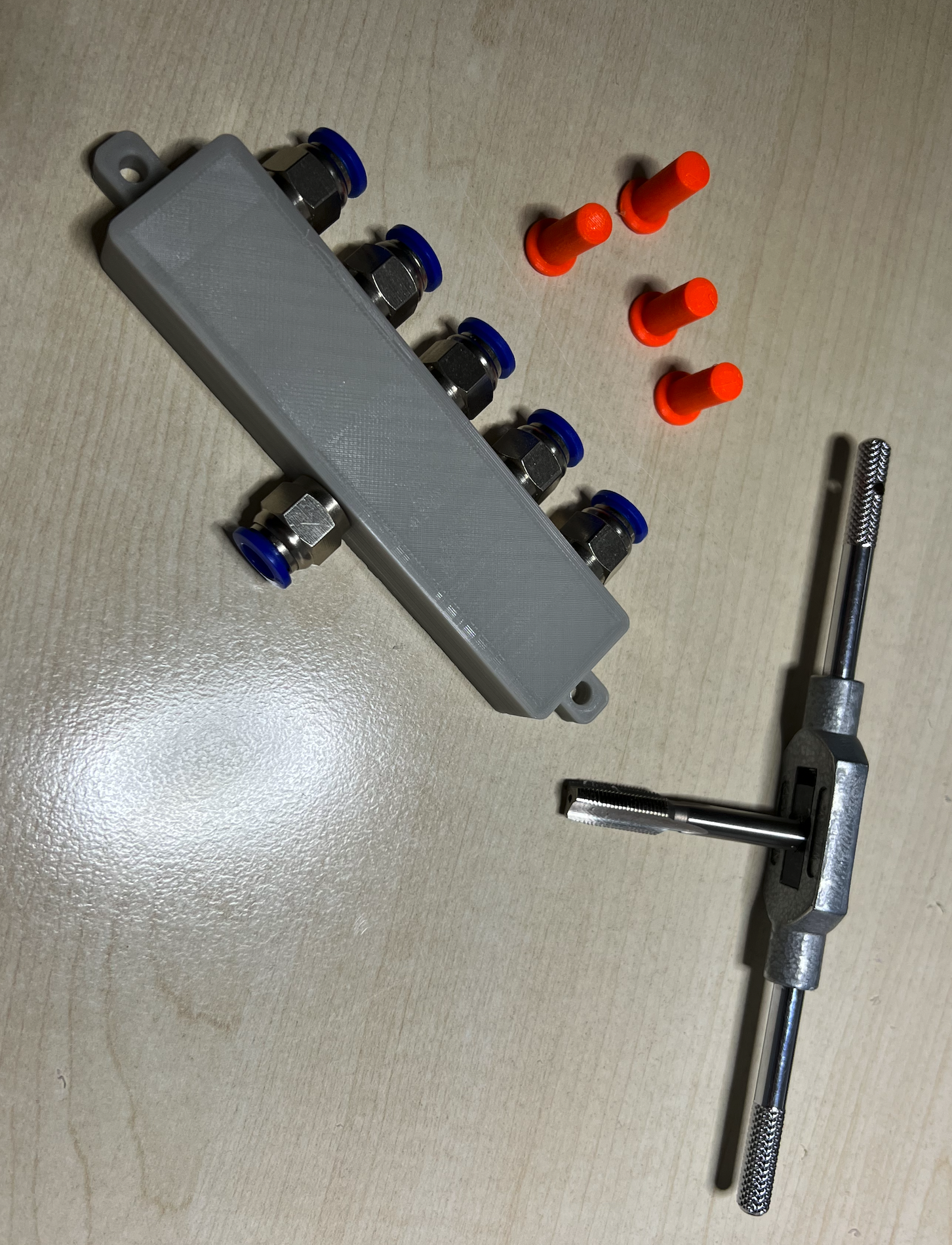

To finish the part jou need the following things:
- 1x the 3d printed part
- 6x push fitting PC8-01 (1/8" 8mm) or (1/8" 6mm)
(e.g. https://de.misumi-ec.com/vona2/detail/221000066298/?HissuCode=PC8-01 ) - thread cutter 1/8"
threadcutting in 3D printed parts has to be done verry carefully ... maximum 4 turns, than clean the cutter and continue!!!
For density and good threads a minimum of 6 bottom/top/outer layers ist recomended.
I use the part with a Thomas 2660 pump.
Other usefull printable things for vacuum tensioning as
- vacuum pad

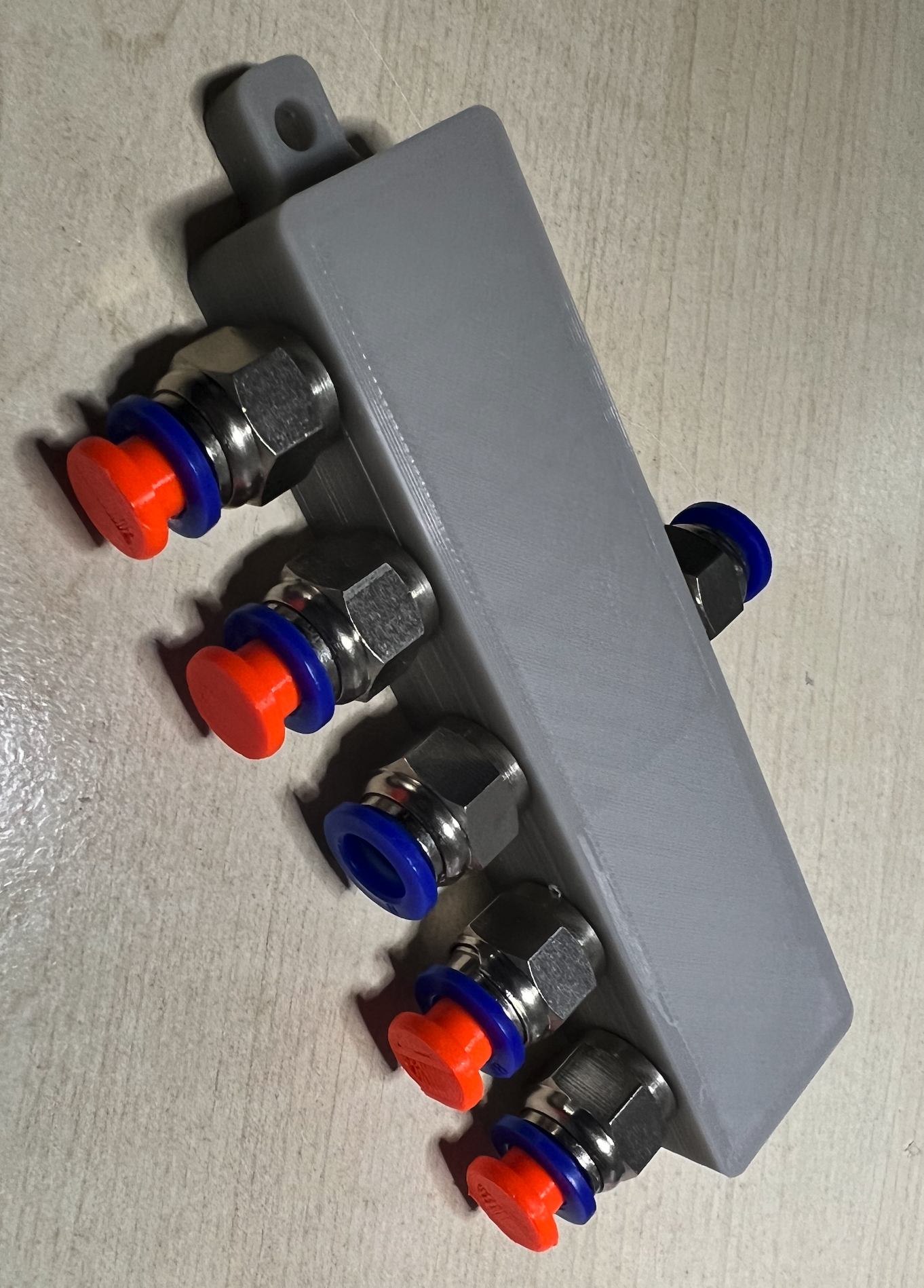

- air plug to tighten unused outlets
- mounting kit for thomas 2660 pump
you can find here: https://www.printables.com/de/social/34509-snowbird/models
Please share your makes, modifications and improvements for the community.
