Tessellation/Tiling Coaster Collection
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.

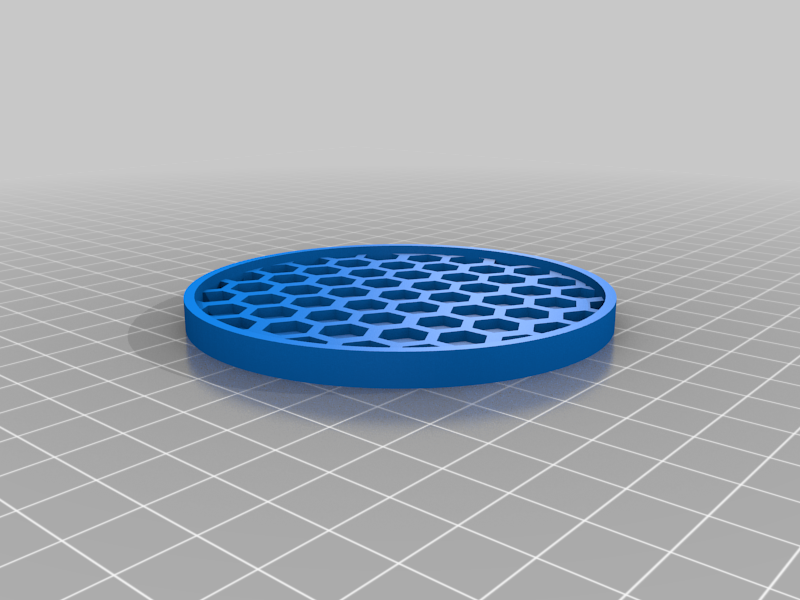

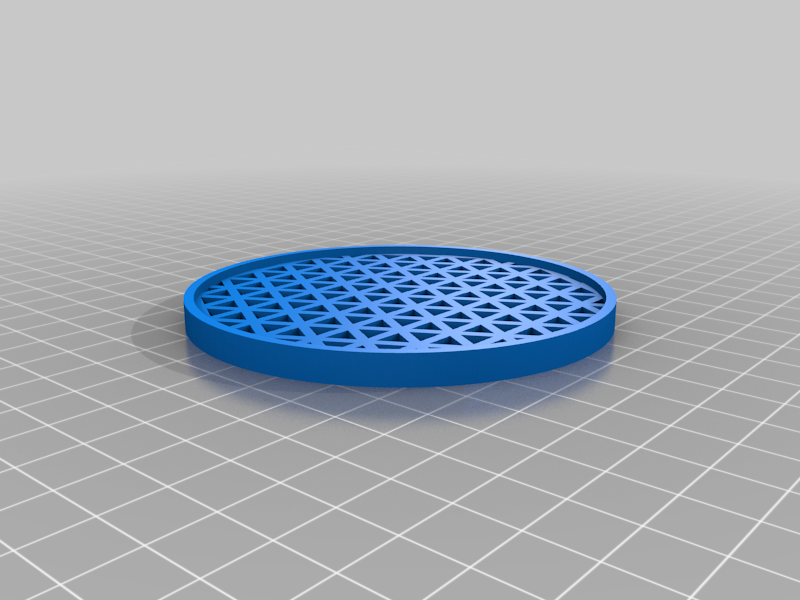

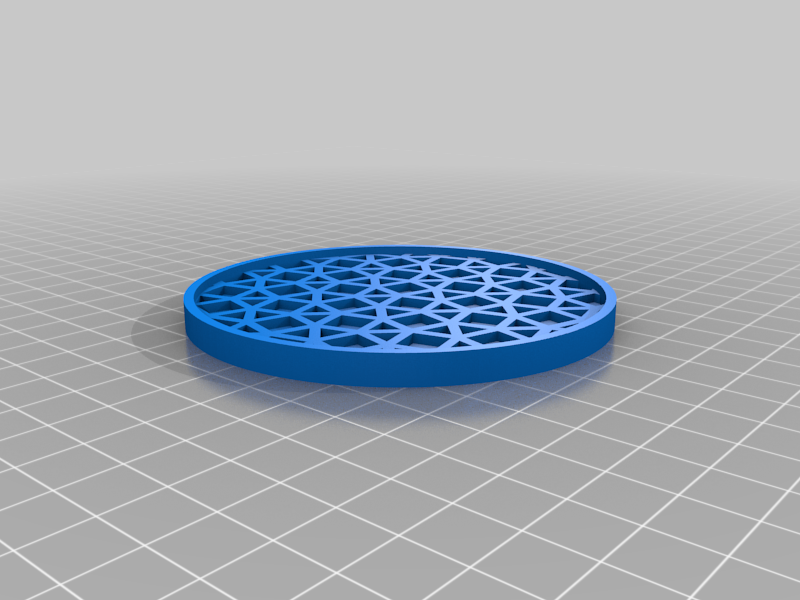

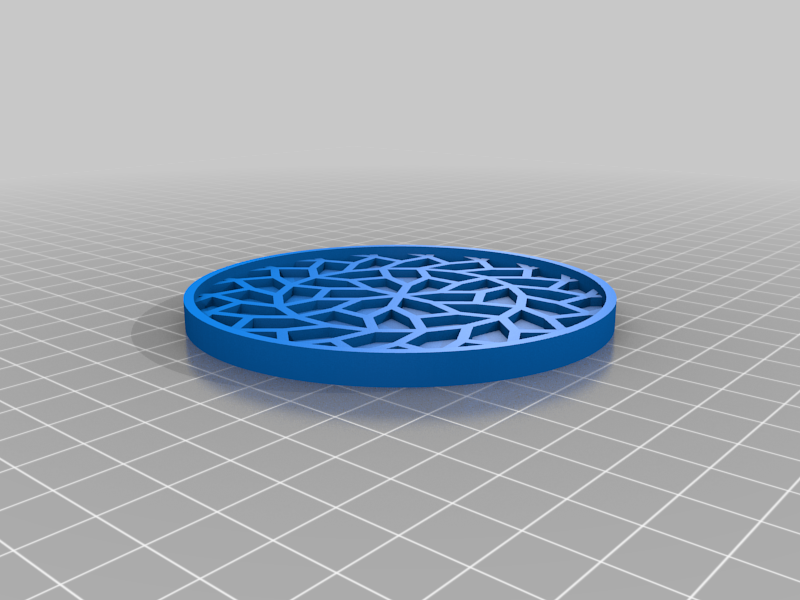

A collection of raised drink coasters done in various tessellation/tiling patterns.
- Ocena
- 5 / 5
- Polubienia
- 11
- Pobrania
- 61
- Wydruki
- 1
- Wyświetlenia
- 307
- Oceny
- 1
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Kitchen
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
A collection of raised drink coasters done in various tessellation/tiling patterns. I use these all around the house in various colors and they work great. The pattern is raised so the moisture can collect down in the negative space of the pattern.
I have fitted the bottoms of mine with circular-cut cork with adhesive backing. They provide a nice, stable and slip-resistant base of the coaster.
The overall diameter of the coaster is 89 mm with a height of 6mm. The inner part where the drinking vessel sits has a diameter of 85 mm with a height of 4mm, which is offset 2mm above the negative space below.
Print Settings
Printer Brand: Anycubic
Printer: All-metal Mega
Rafts: No
Supports: No
Resolution: 0.2 mm
Infill: 15%
Filament: PLA
Notes:
These are designed to be printed with an extrusion width of 0.4 mm. The walls of the design and rim are 2.0 mm wide, so a width of 0.4 mm give you 5 evenly spaced perimeters. Mine are printed in PLA and hold up just fine, even to a cup of coffee.
