Foldable Tea Baskets (multiple versions)

Overview

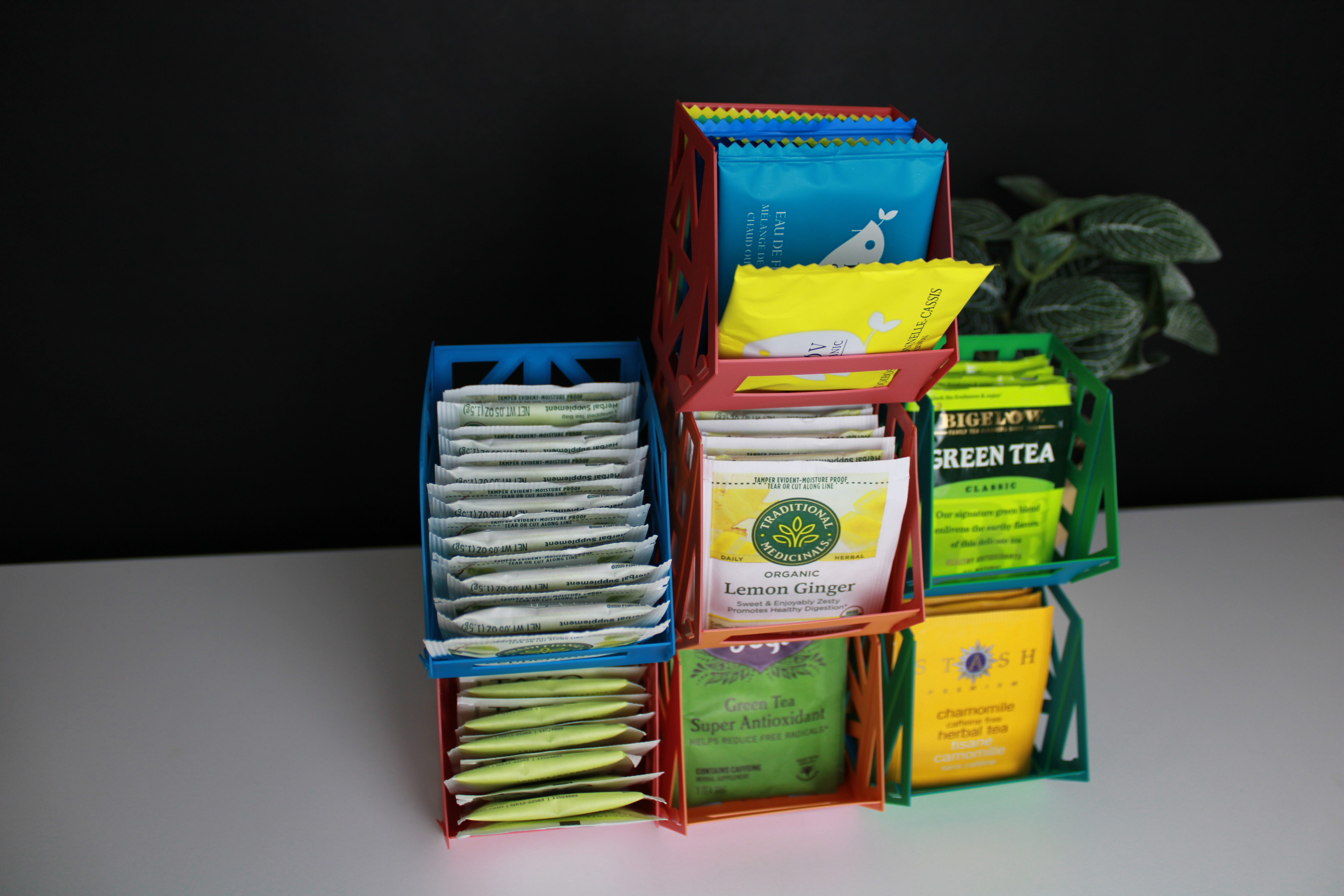

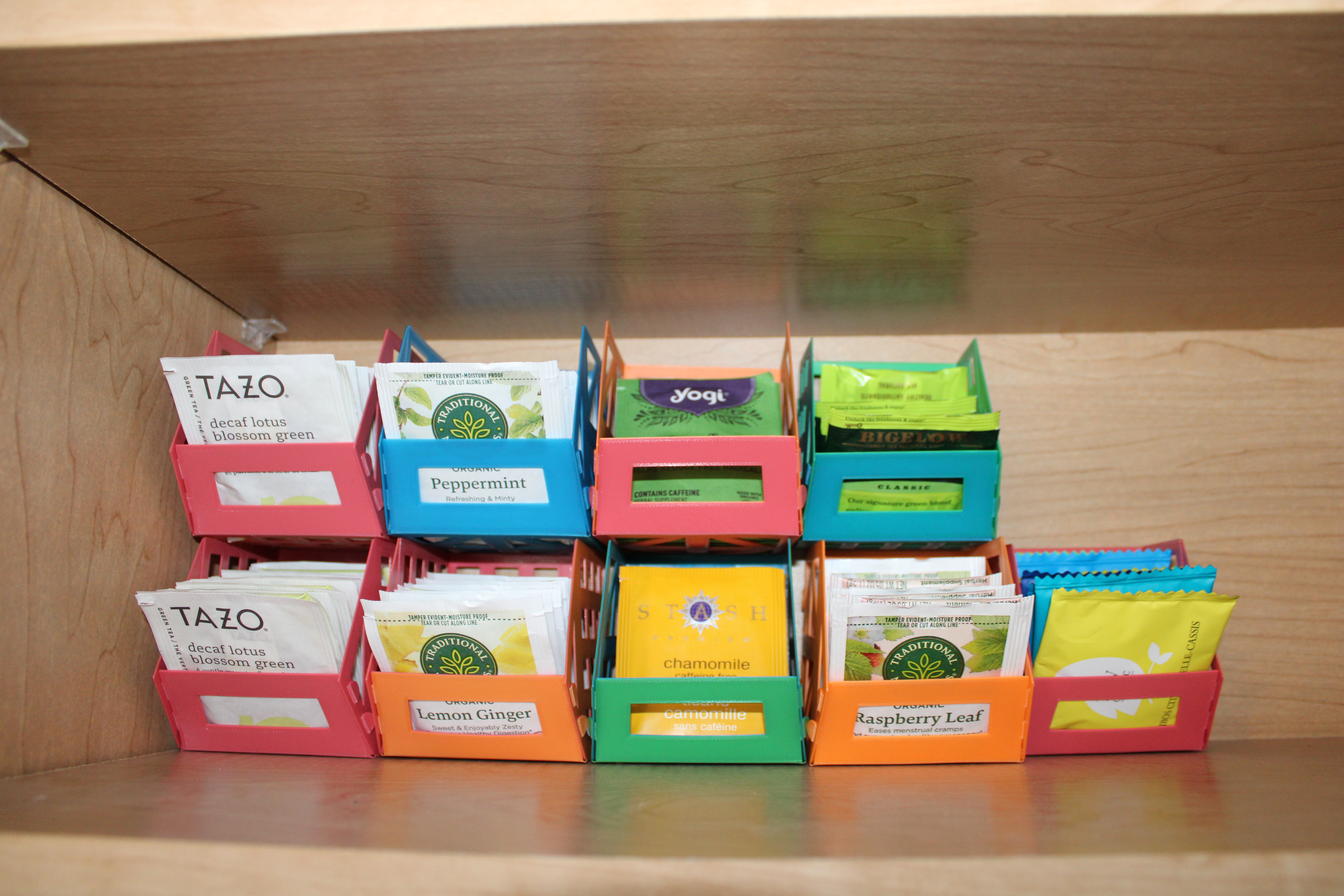

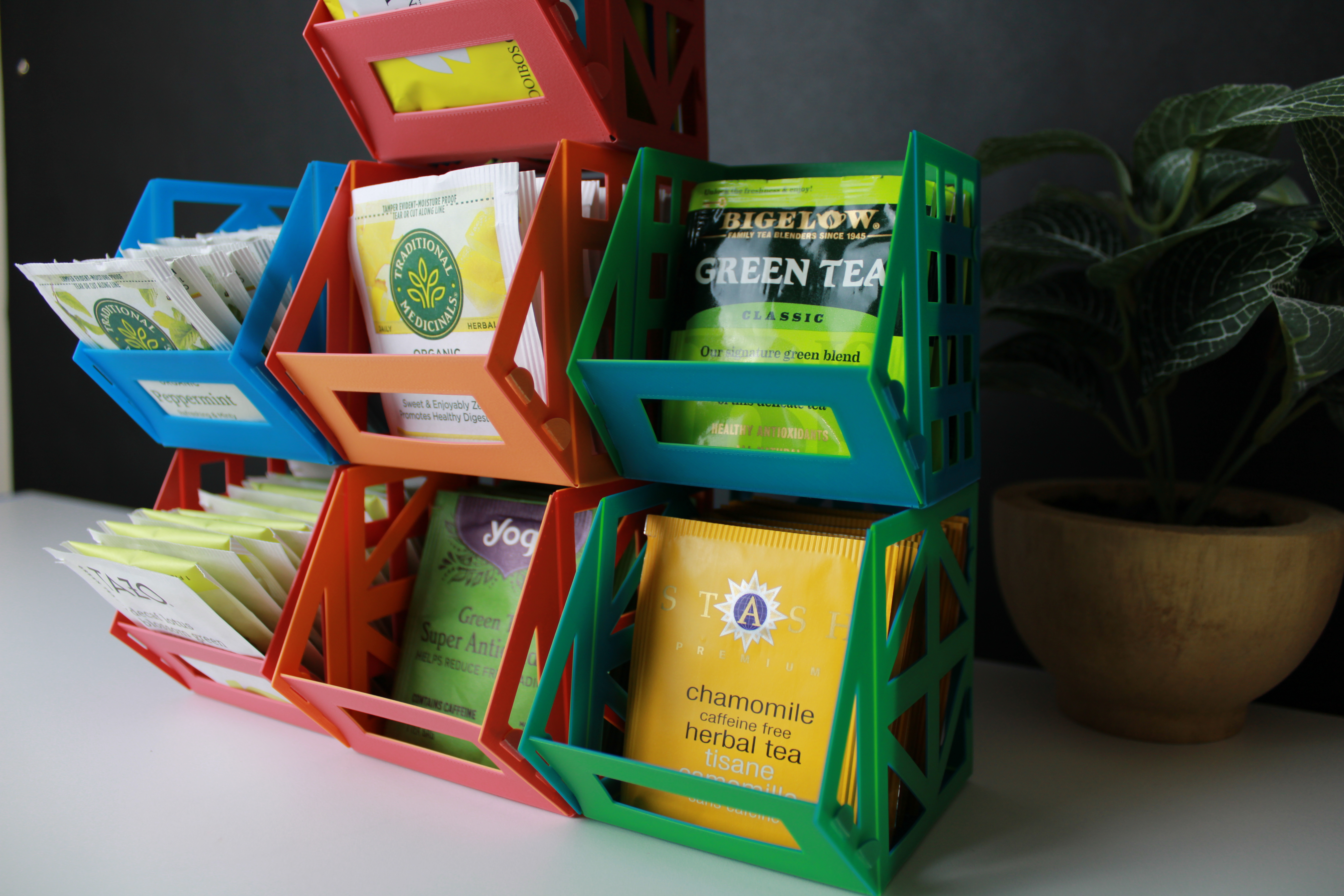

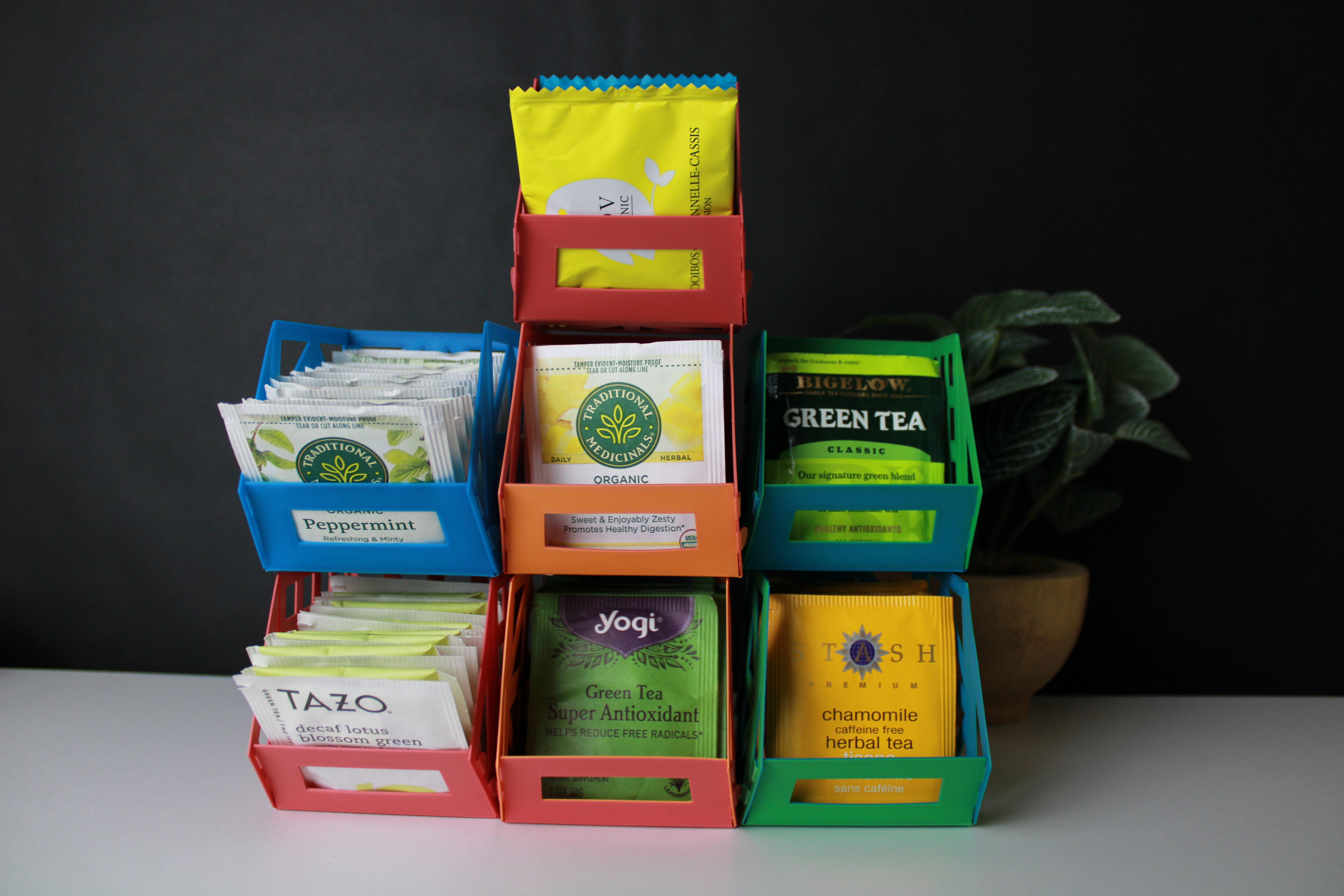

These foldable tea bag baskets are perfect for the filament-conscious tea-lover!  They print in under two hours, fold really simply, and are designed to be stackable.

I made the design in OnShape and there are a few options to choose from:

• Single Color - both rectangular and diagonal patterns for all sizes
  • Short basket - 2 inches long
  • Long basket - 3 inches long
  • Extra Long basket - 4 inches long
    • This one will require a larger print bed than my Prusa i3 MK3 but I figured I'd make the version available for those that have larger print beds.
• Dual Color - when it's folded the inside of the box will be a different color than the outside
  • Same versions as the single color option

Printing

I printed a bunch of the different versions in several different colors of PLA on the Prusa i3 MK3.  I've included the original STLs and g-code for all printing options (except the Extra Long version), but let me know if you'd like any other versions and I'd be happy to make them!

If you re-slice, I recommend the following settings as a minimum:

• First layer height: 0.25mm
• Layer height: 0.2mm
• No skirt

My included g-code also has the following settings:

• Solid infill extrusion width: 125%
• Top solid infill extrusion width: 125%
• Solid infill speed: 60mm/s
• Top solid infill speed: 50mm/s
• First layer speed: 30mm/s

To “assemble” the baskets, just insert the tabs into their respective slots and gently fold at the crease.  Refer to the photos for help.
