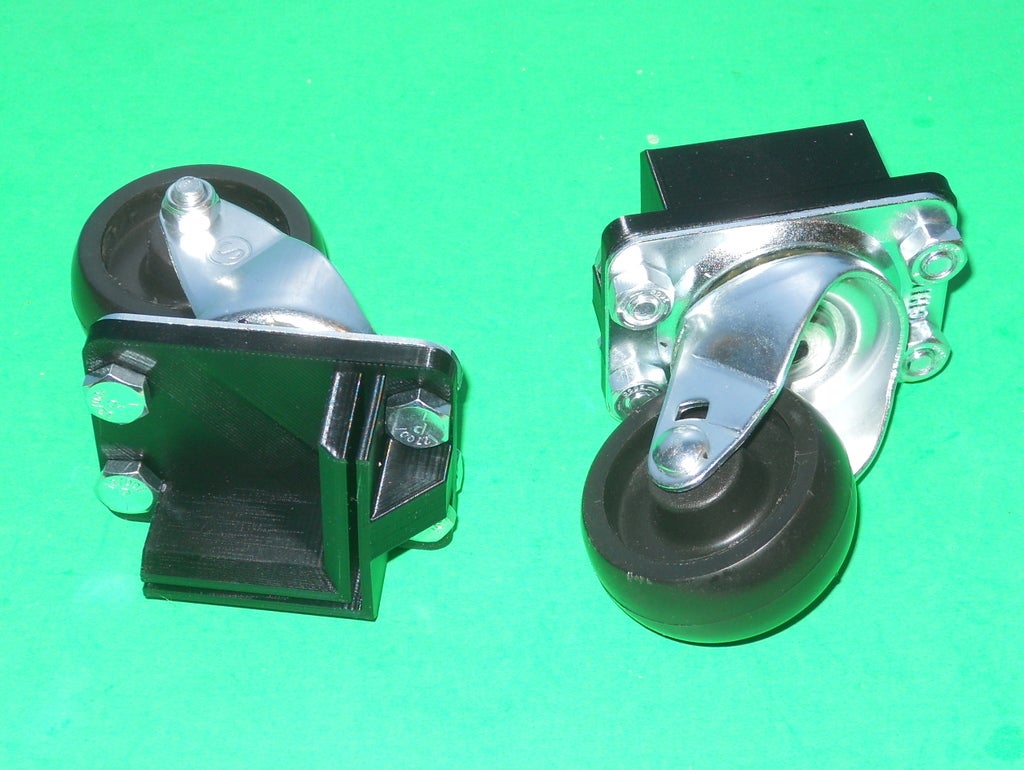

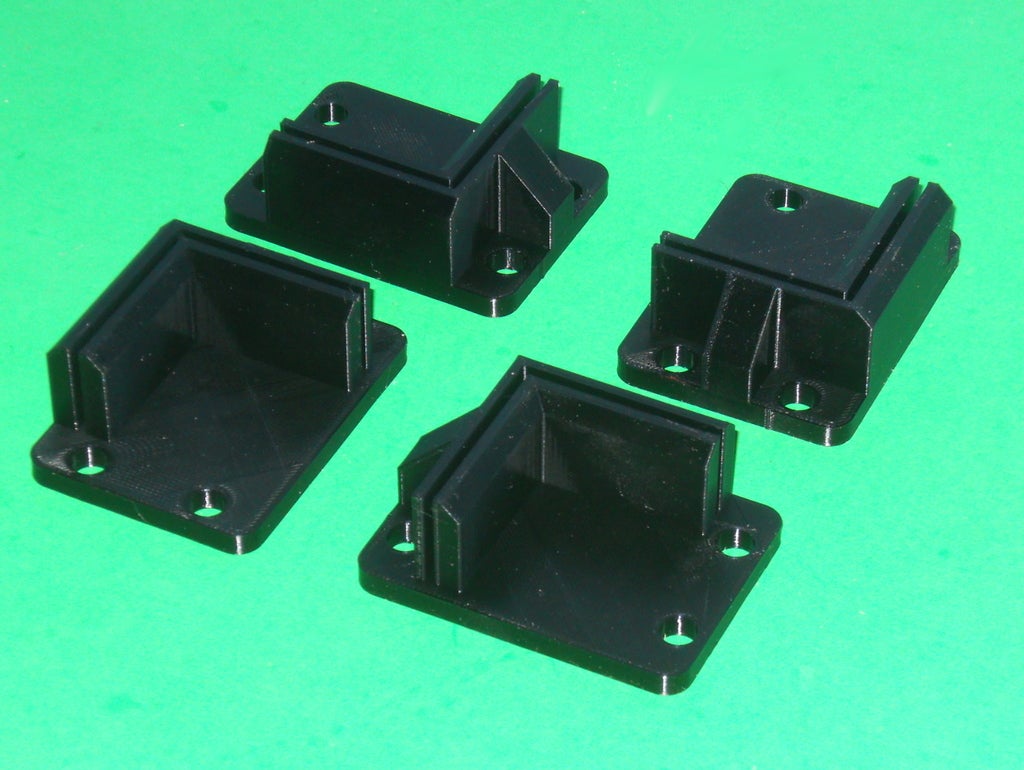

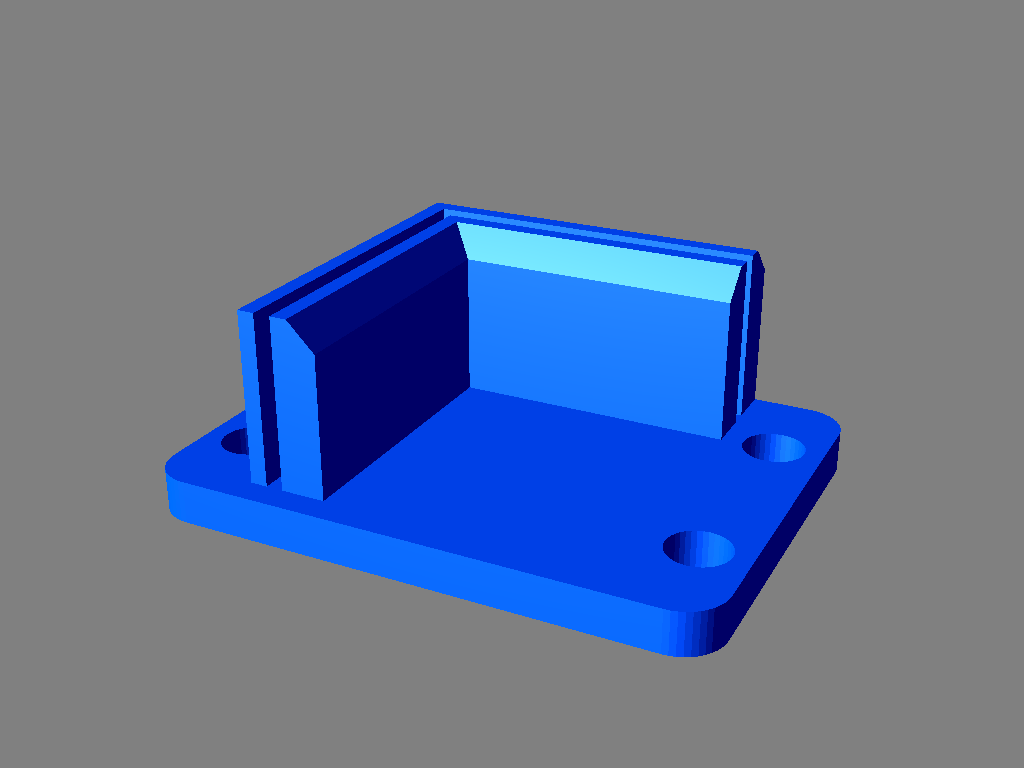

This object lets you install casters to a Bror workbench. It is designed for
1-7/8" (48.5 mm) x 2-9/16" (65.5 mm) casters. The holes for the bolts are
2-1/8" (54 mm) x 1" (25 mm) apart. The bolts I used are 1/4" (6.25 mm) in
diameter, 1/2" (12.5 mm) long.
This object works very well for me. Nevertheless, YOU must make sure that this
object can handle the usage you will make of it. Many factors may contribute
to making this object fail. The quality of the print, the strength of the
casters, and so on. You are solely responsible for using it.
Support material is not needed. An infill of 35% is recommended.
This object main web page is:
http://www.ctheroux.com/ikea-bror-caster-holder/.
You can request the source files on the page listed above.
