Effector.
SeeMeCnC Rostock.
Bobblejot Website
Bobblejot GitHub
Bobblejot Twitter
Bobblejot Patreon
Update 28082019:
Tweaked the mounting holes for the fans because some people were finding them to be too tight.
Details:
Variation on my other Effector by removing the BLTouch mount.
Rostock Pro Effector With BLTouch

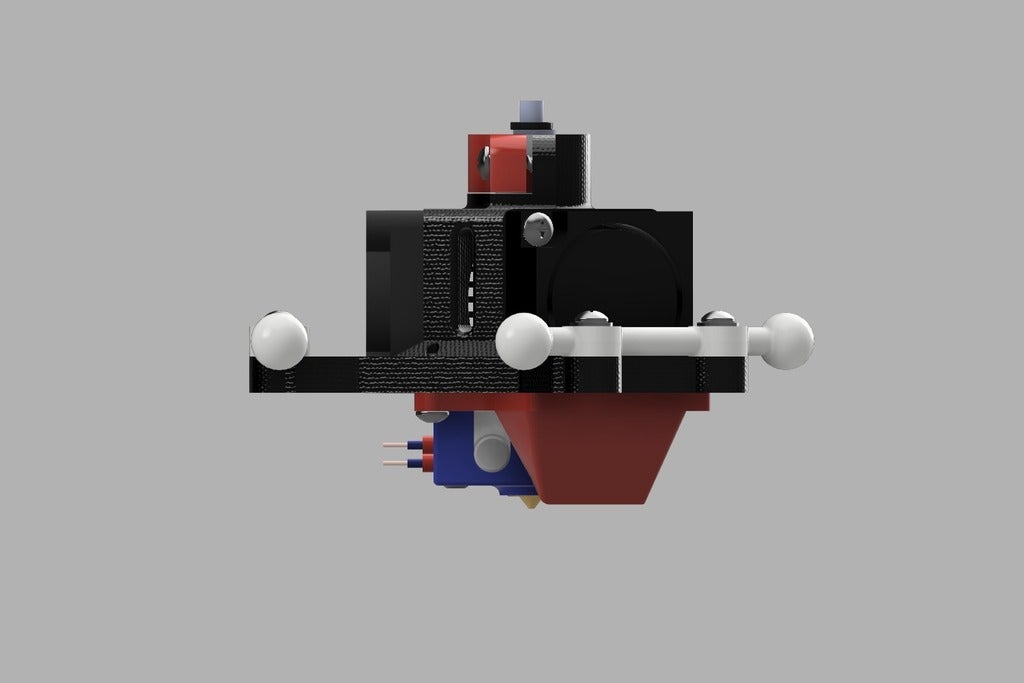

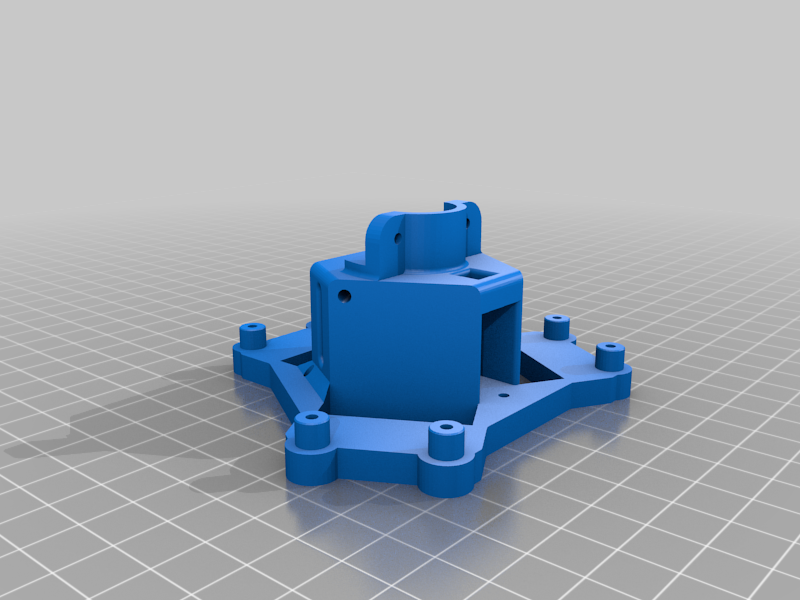

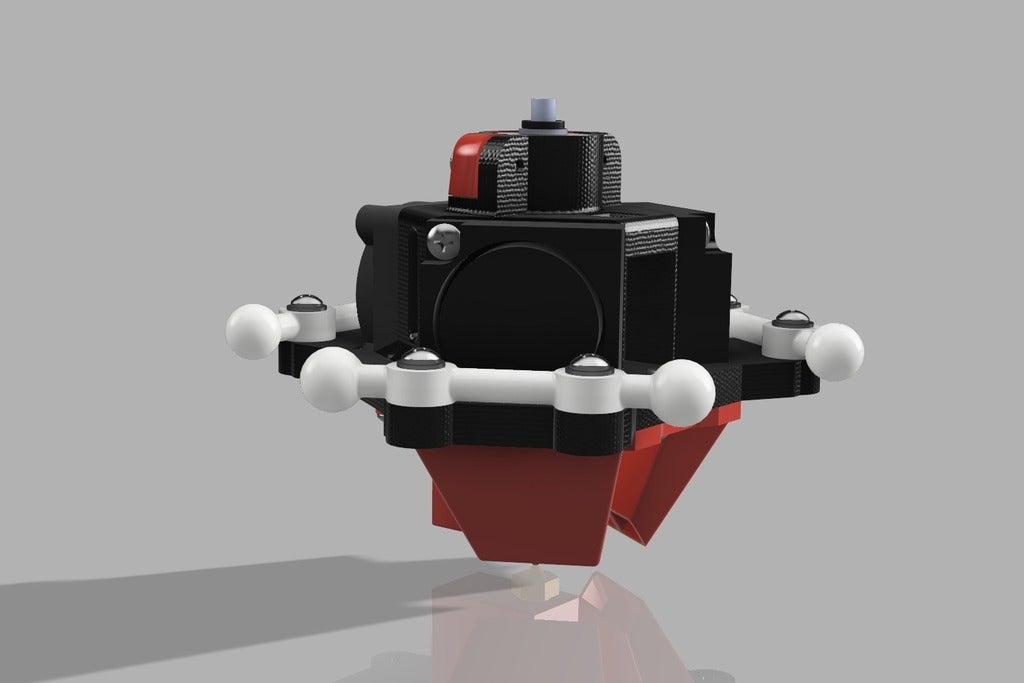

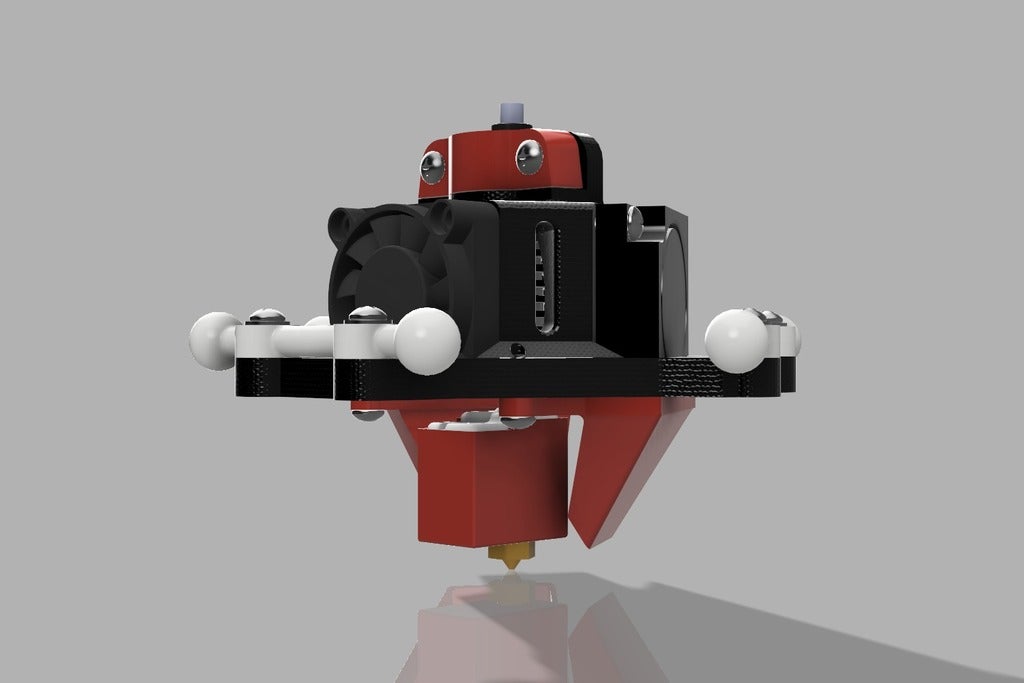

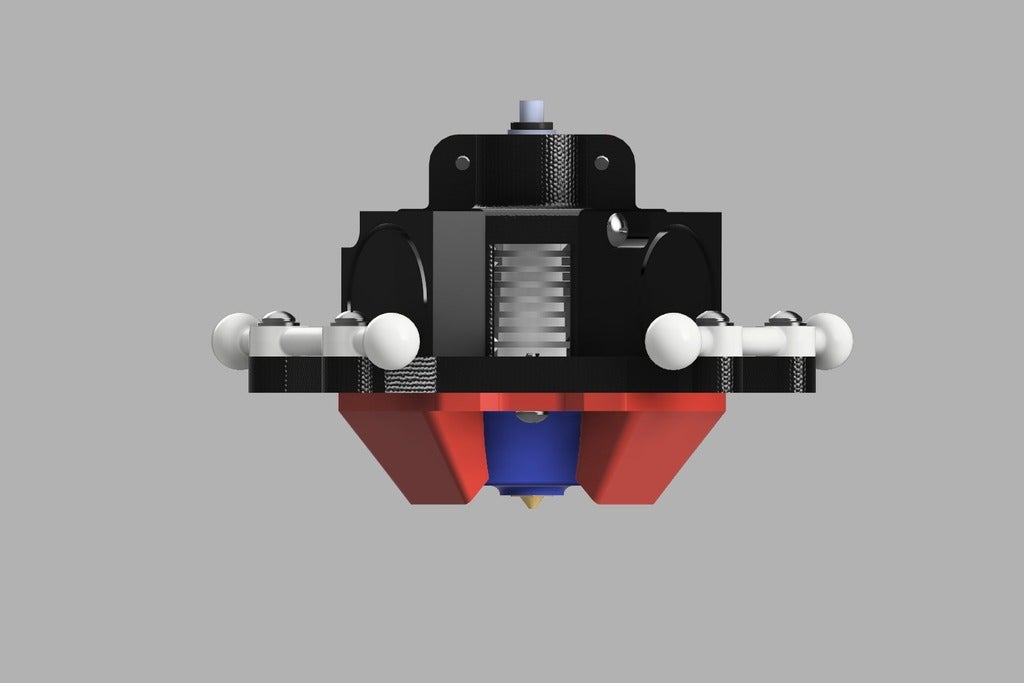

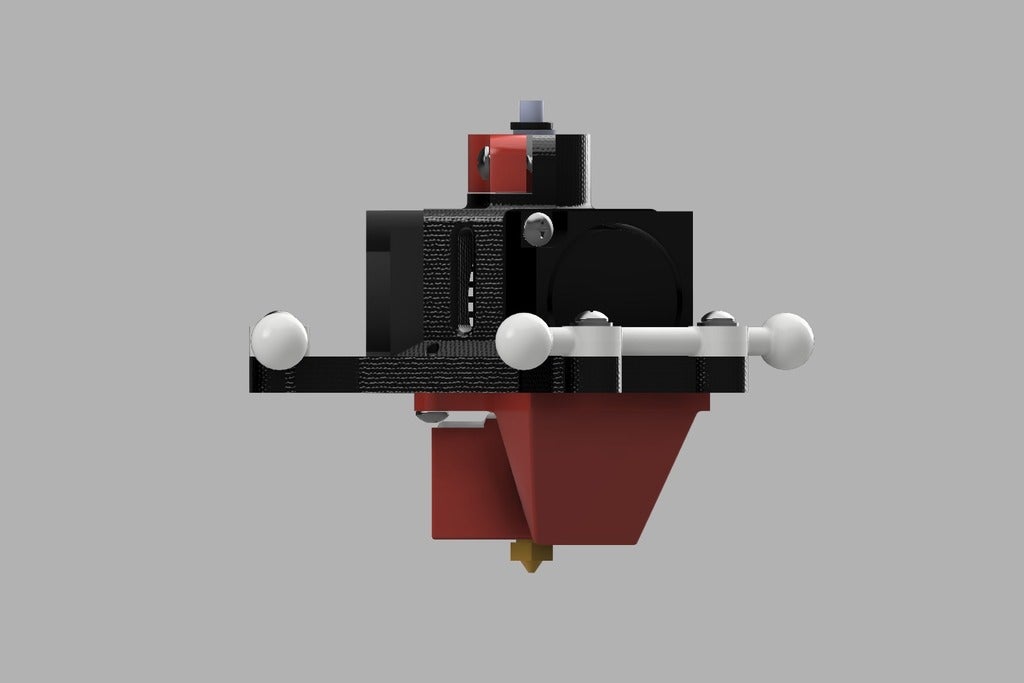

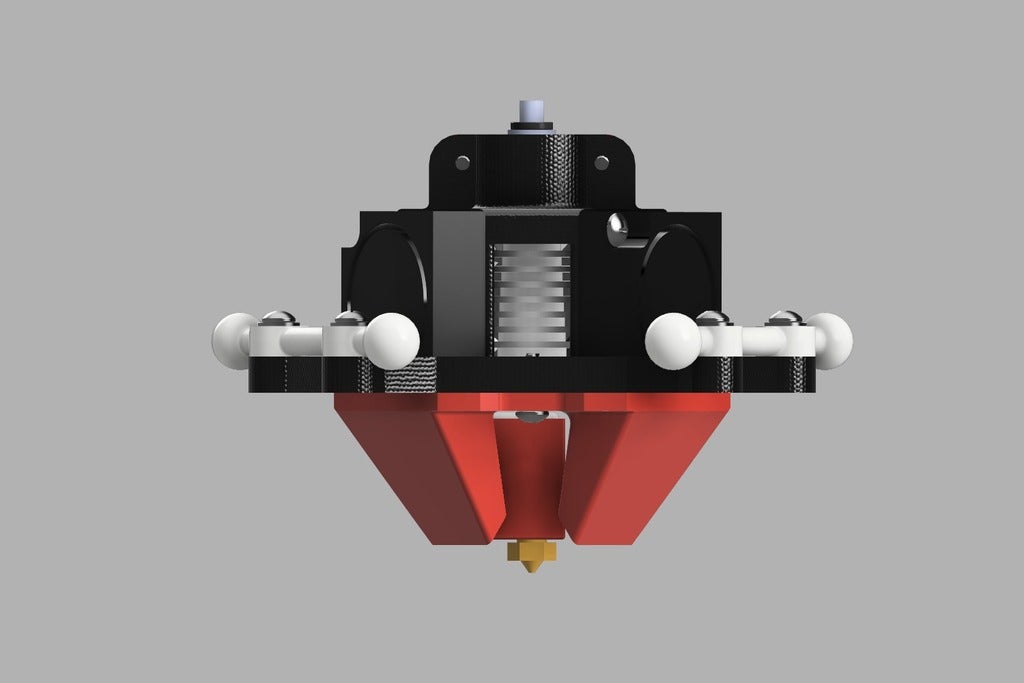

Delta printer End Effector that uses the Original SeeMeCnC injection molded Cup and ball arms.

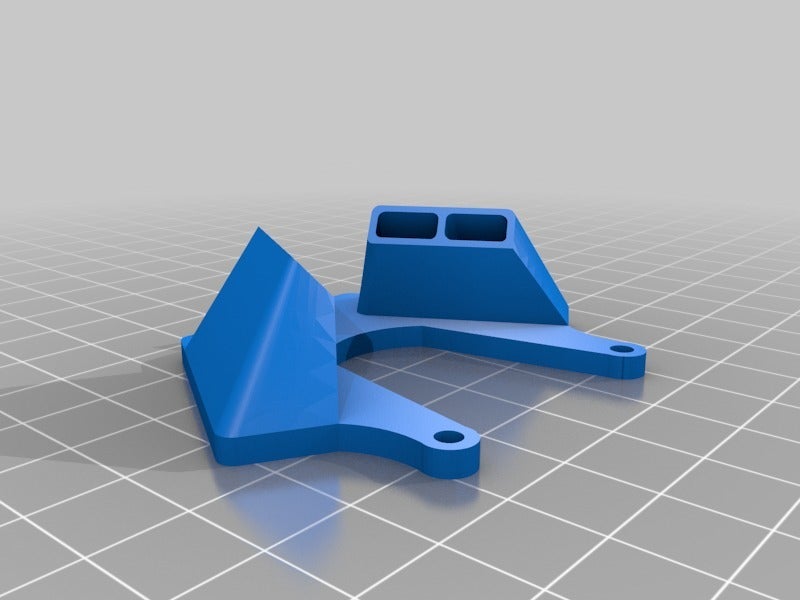

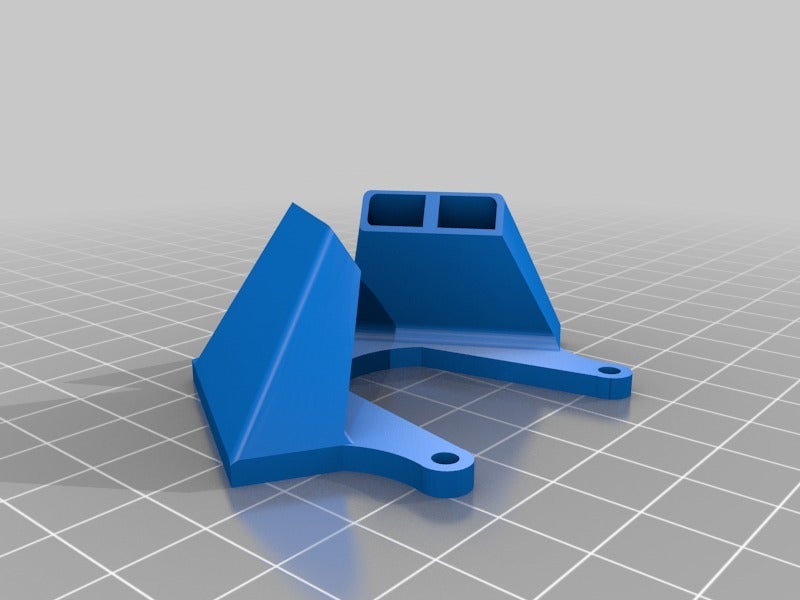

Different fan ducts included so that you can either use an E3D V6 or Volcano block.
Hopefully you may find it useful.
Materials
1 x 3010 Fan - Aliexpress
2 x 3010 Blowers BFB0312MA - Aliexpress
1 x BLTouch or 3D Touch - Aliexpress
Fixings
13 x Small Plastic self tapping screws #4 ⅜”
6 x M3 washers
For E3D V6 Bltouch:
2 X M3x12mm Bolts
2 x M3 Nylocs
For E3D Volcano Bltouch:
2 X M3x22mm Bolts
2 x M3 Nylocs
For the 3010 Fan i used the Original screw fixings from E3D.
Enjoy :-)
Print instructions
Print Settings
Printer: Axis One
Notes:
Printed in Real Filament Black PETG purchased from Amazon.
Nozzle : 0.4mm
Layer Height : 0.3mm
Print Temp : 235°C
Bed Temp : 80°C
Print Speed : 60mm/s
Top Layers : 6
Bottom Layers : 4
Perimeters : 3
Infill : 30%
Printed on PEI.
