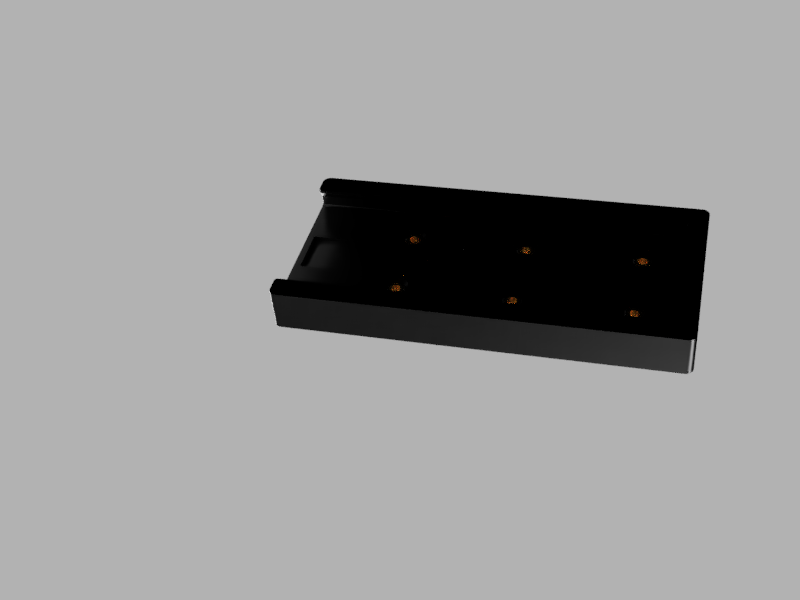

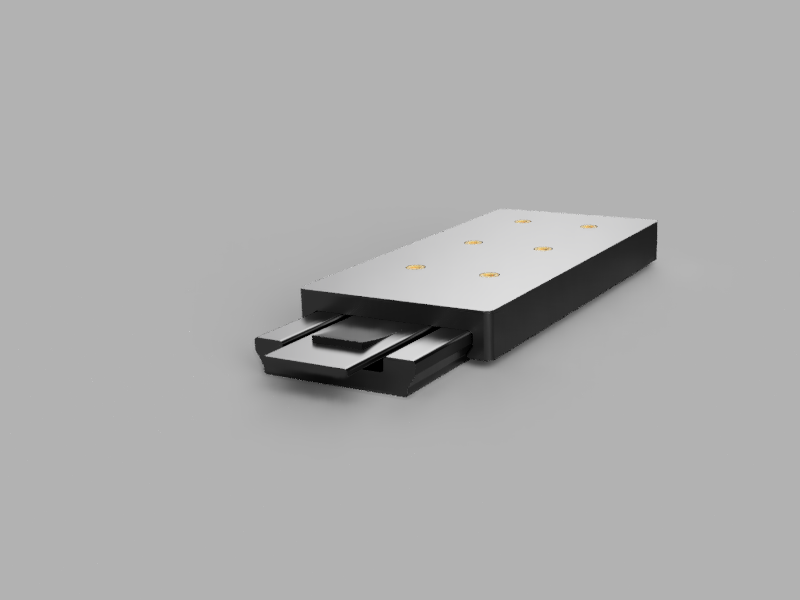

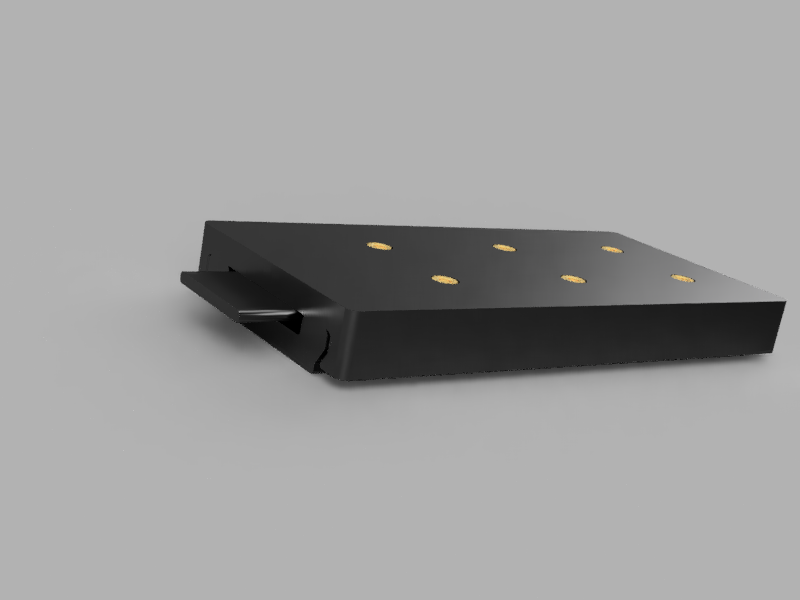

This universal wallmount mounts as a slider into a base and snap-fits at its end-position. Push to release again.
Fusion360-parametric file with some custom parameters is attached in order to comfortably fit to your needs.
I have 3D printed it in ABS with 0.28mm. clearings are generous, so it should print easily.
Buildingplate-order is also attached, to print without supports (if your bridging-setting are fine).
I have used RUTEX-threaded inserts (thanks to @Thorsen Mühlke for his RUTEX-designs on https://grabcad.com/library/ruthex-thread-inserts-1), but you can go without.
The wallmount-rail should provide space for something like SPAX-6x40 or similar.
