The Answer.
Also, just having fun trying out a some 3D CAD and printing ideas. More versions on the way.
This one : 42 Ball
Note : Alternatively consider printing just the "42 hemisphere" - looks interesting sitting on the desk.

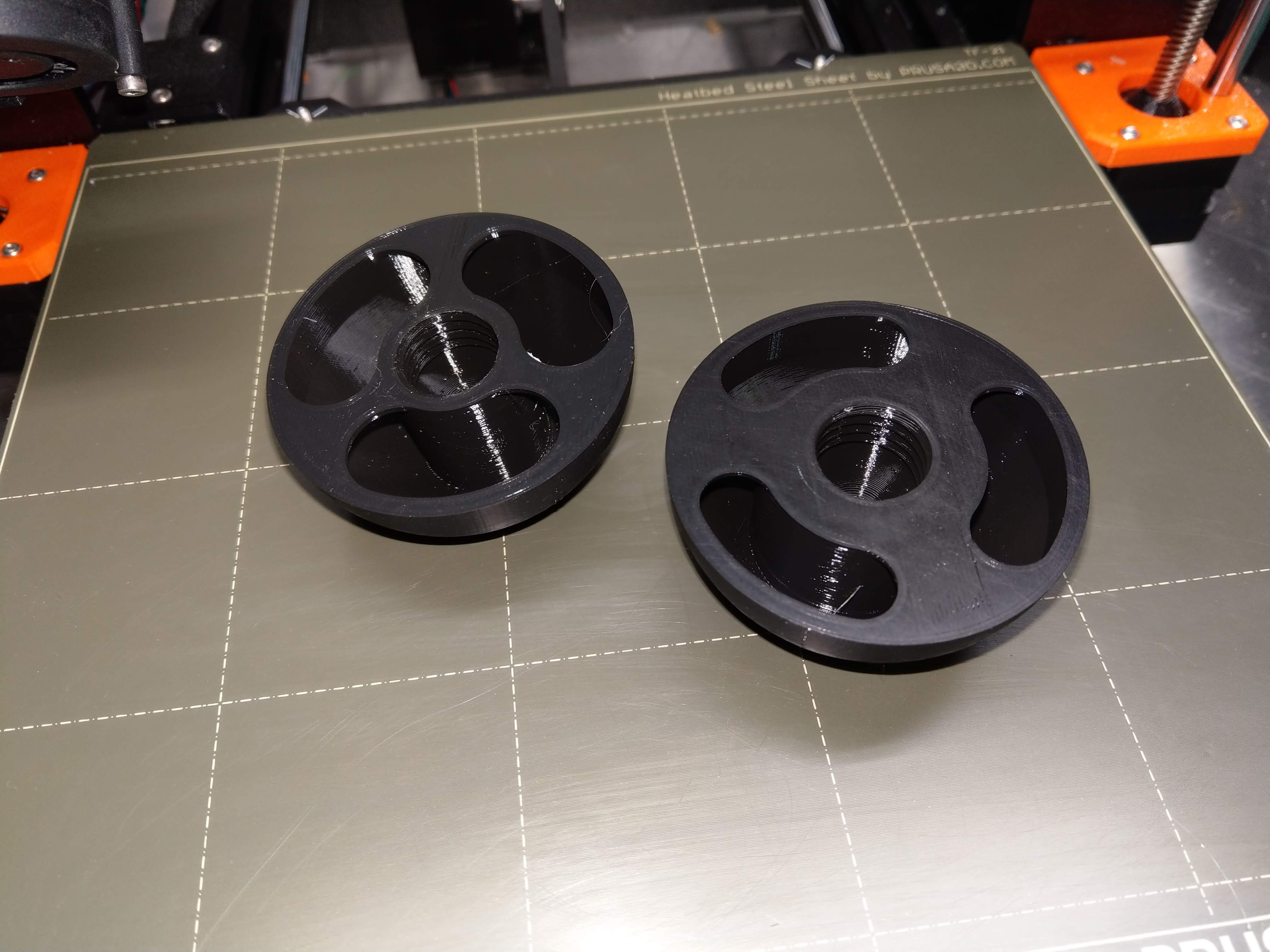

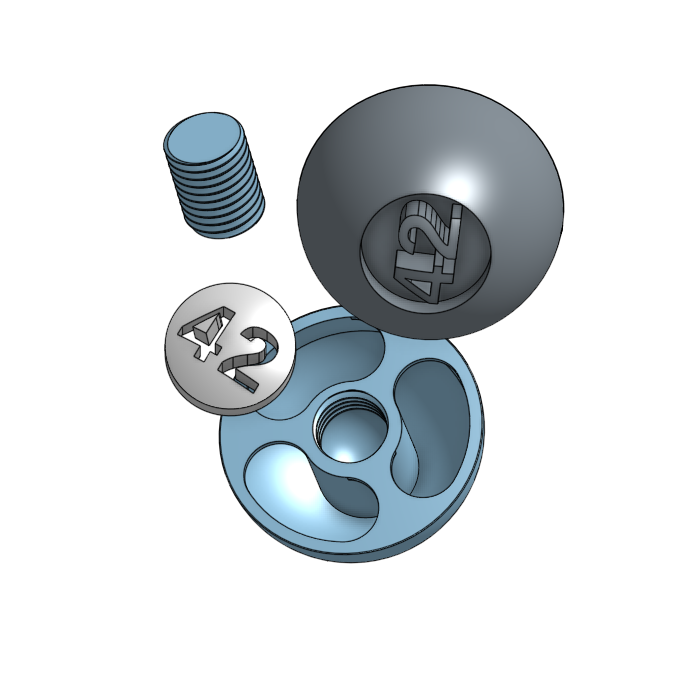

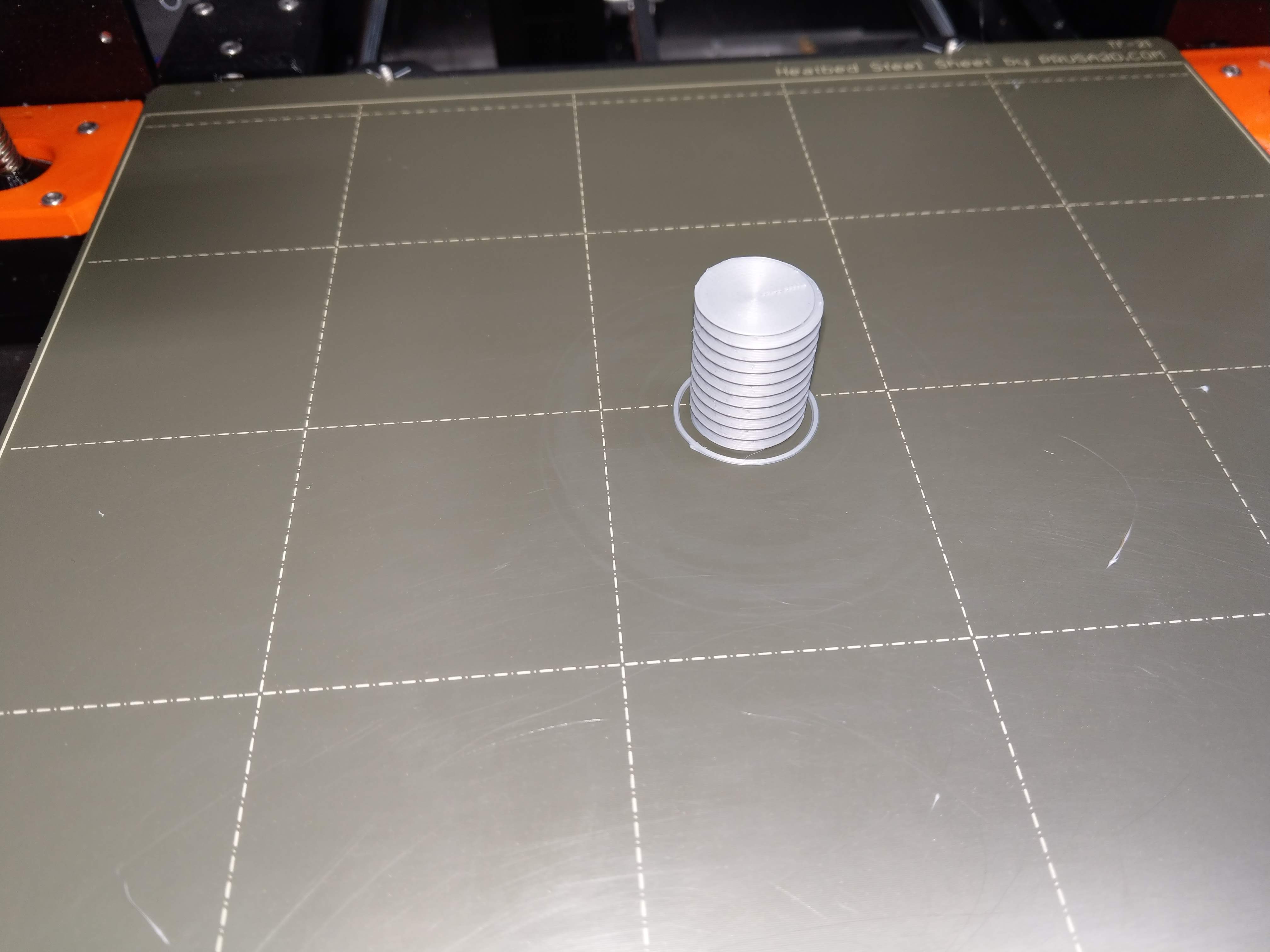

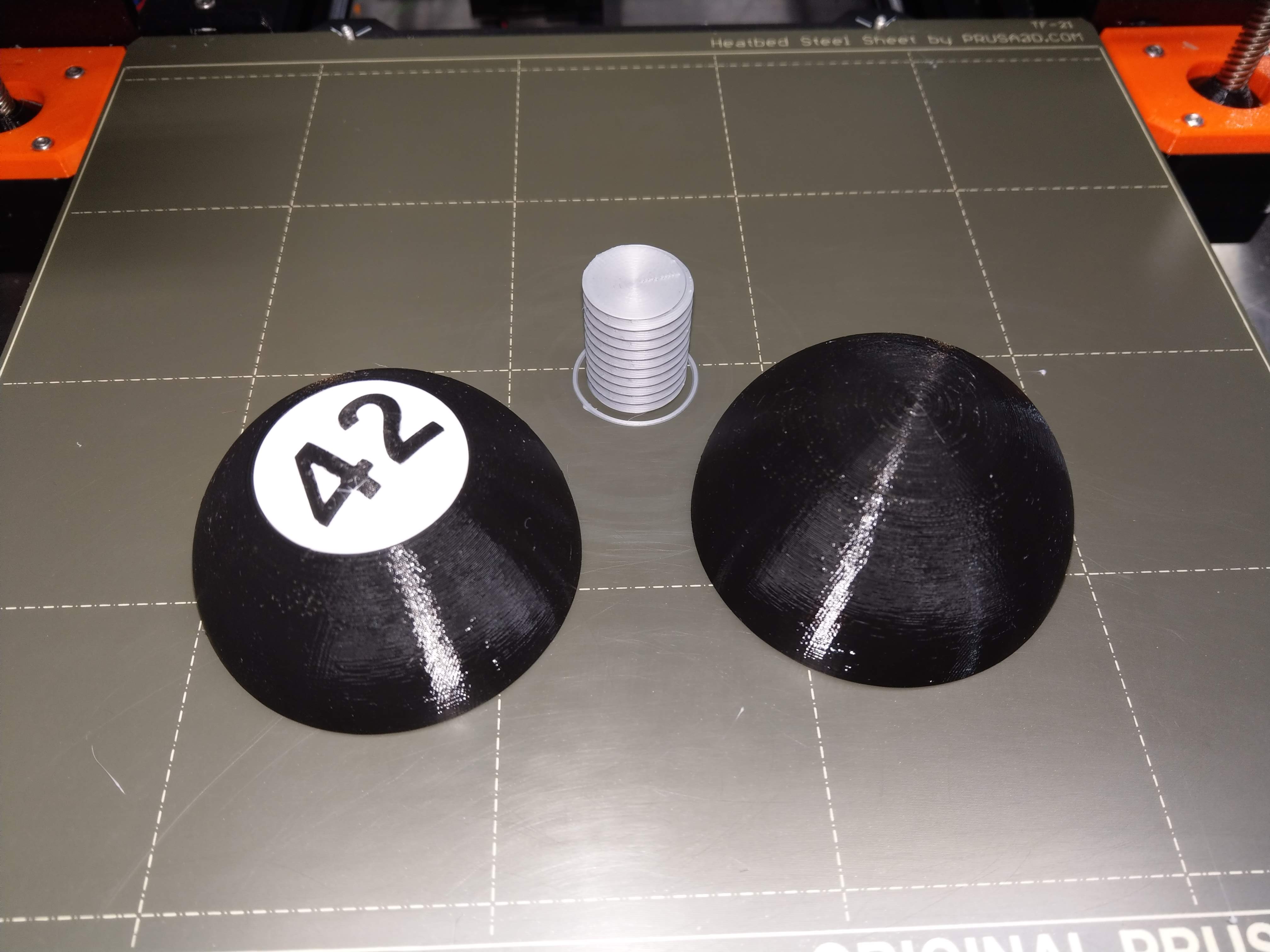

The idea for a sphere made from two hemispheres screwed together was taken from "schraitle", but I made a new design which uses a bit less filament (and of course has another obvious difference). The nominal diameter of this ball is 65mm.
The talon holder shown in the photo is a separate print referenced under re-mixes.
OnShape 3D CAD files :
Print instructions
Print in PLA using the 3mf files provided. Otherwise :
- 10% rectilinear infill
- variable layer height (more layers at the top of the prints)

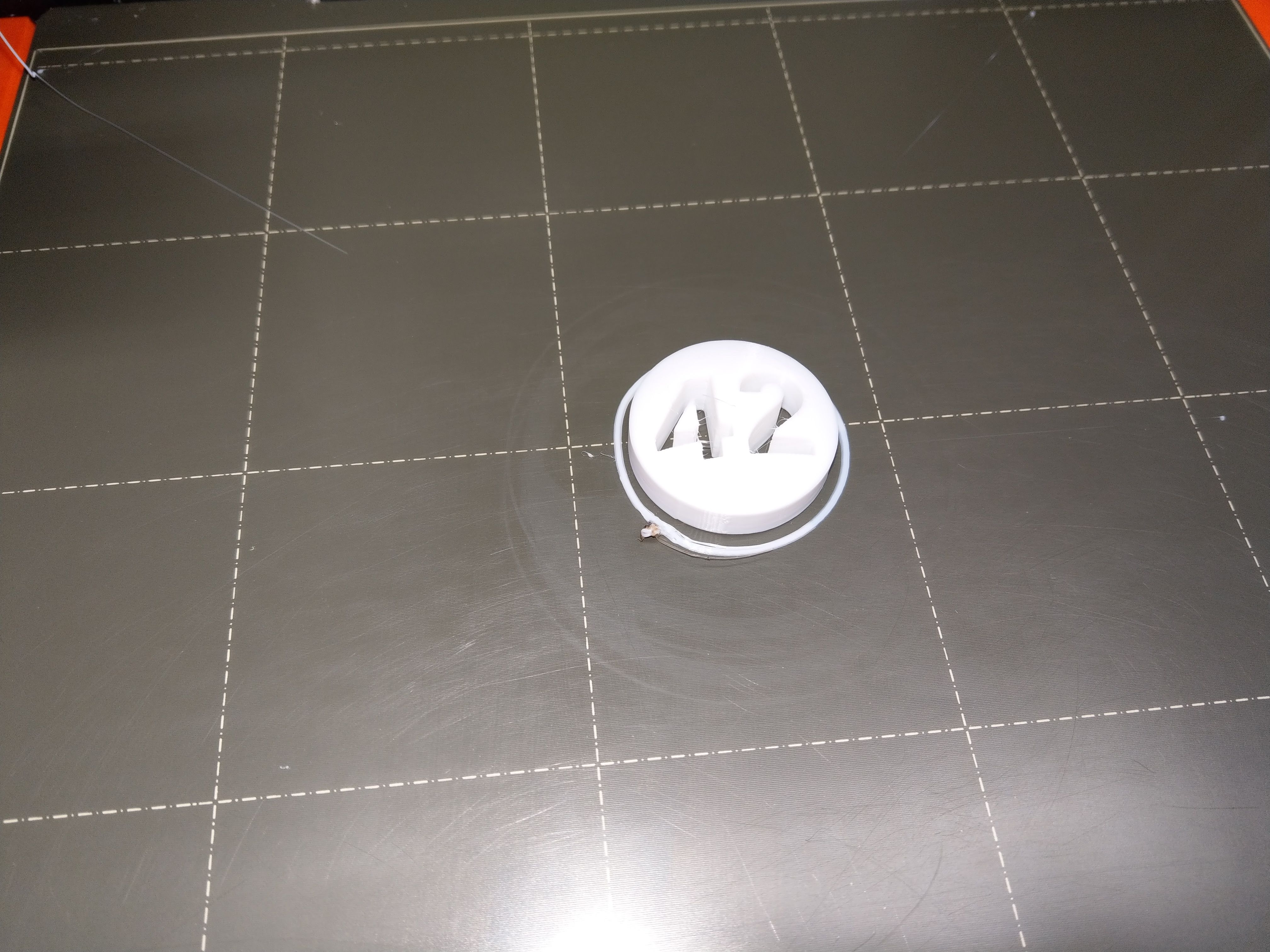

Note : When removing the "surround" (white parts around the number) be careful about the little piece in the middle of the four- it's easy to misplace. Ask me how I know!
Also - the surround pieces are a tight fit, but they will go in with care. Once they are in, you will likely not be able to remove them.
