Nema 17 Cycloidal Gear box prototype
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Accessories
- Licencja
- Creative Commons — Attribution — Share Alike

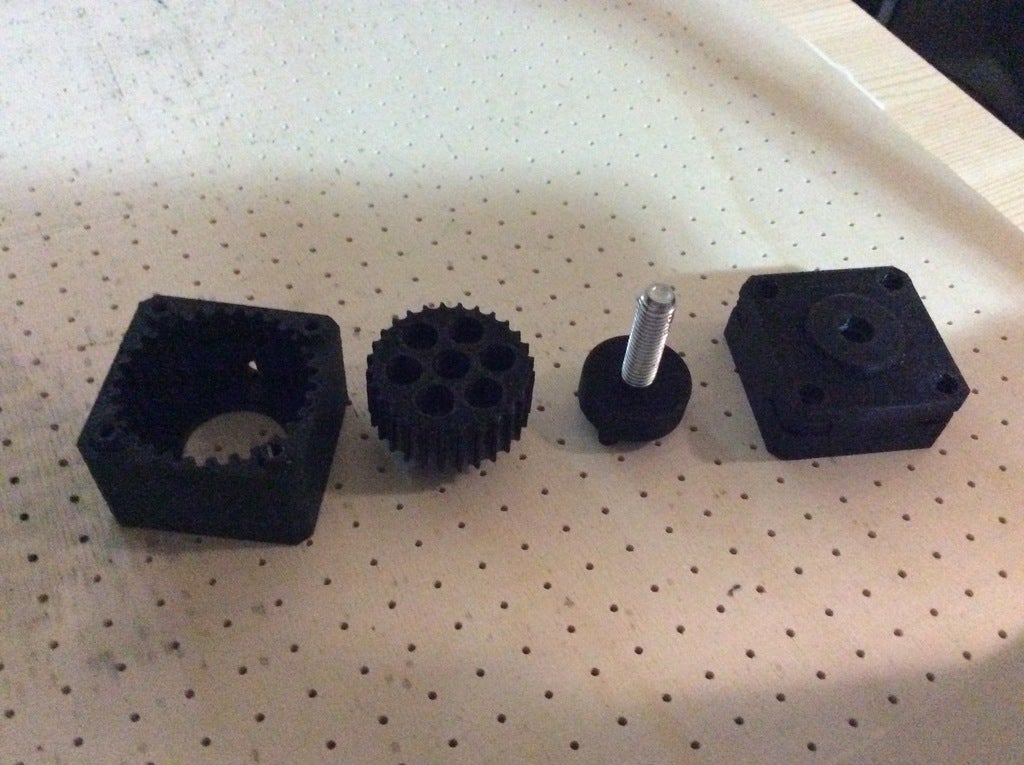

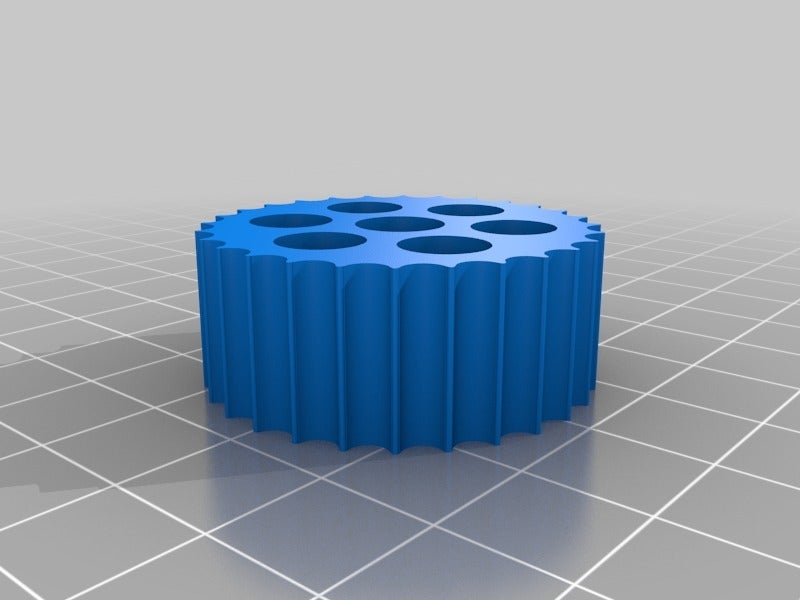

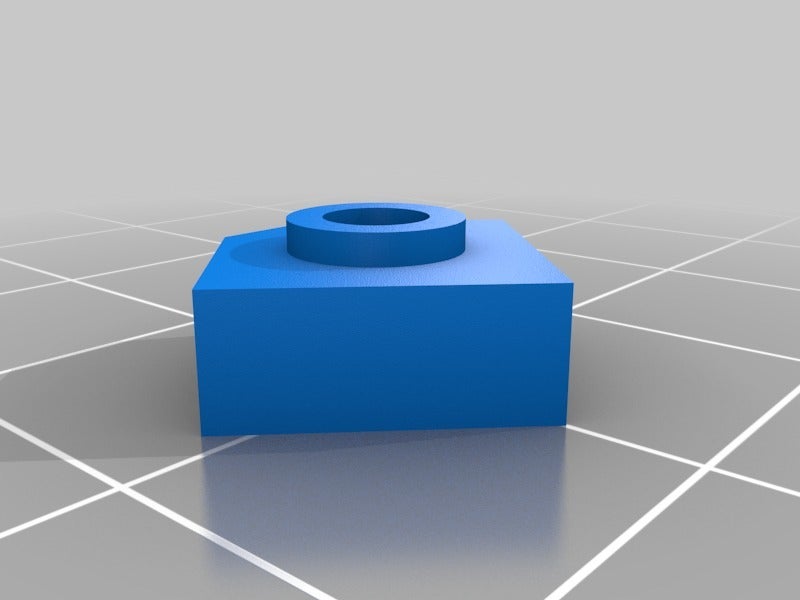

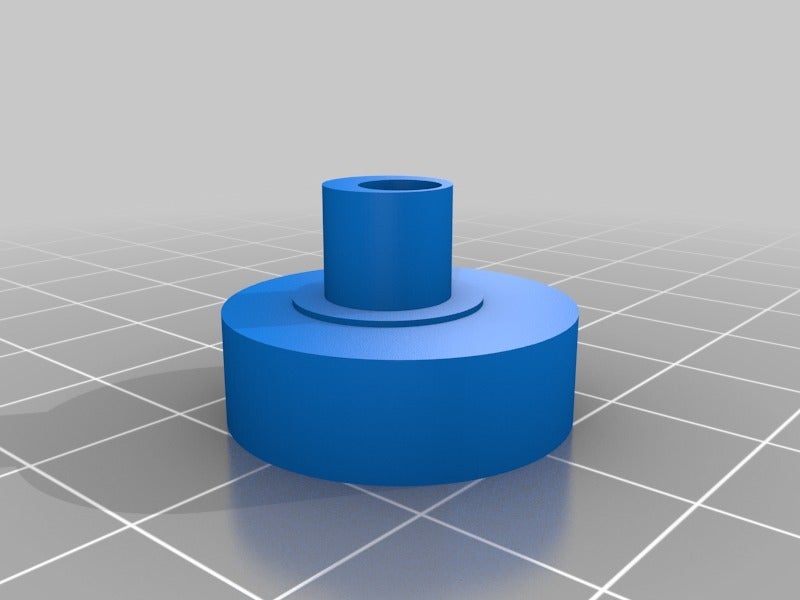

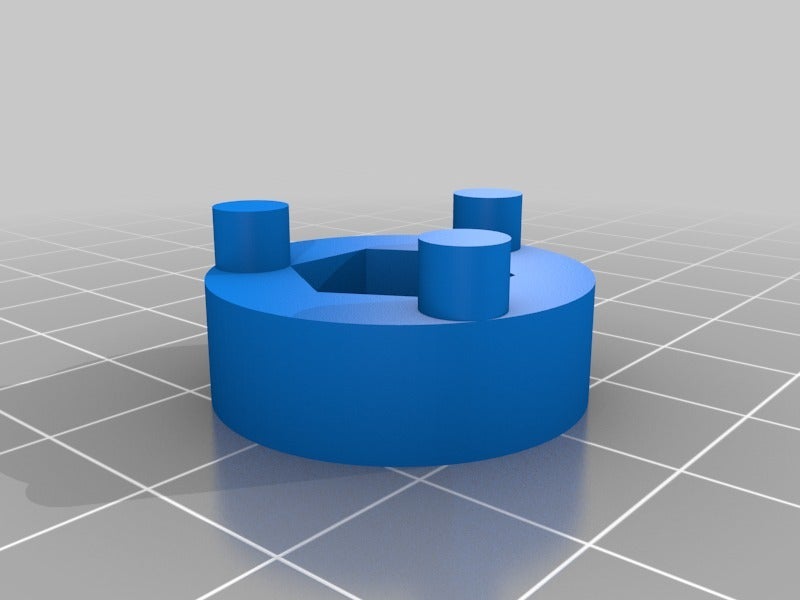

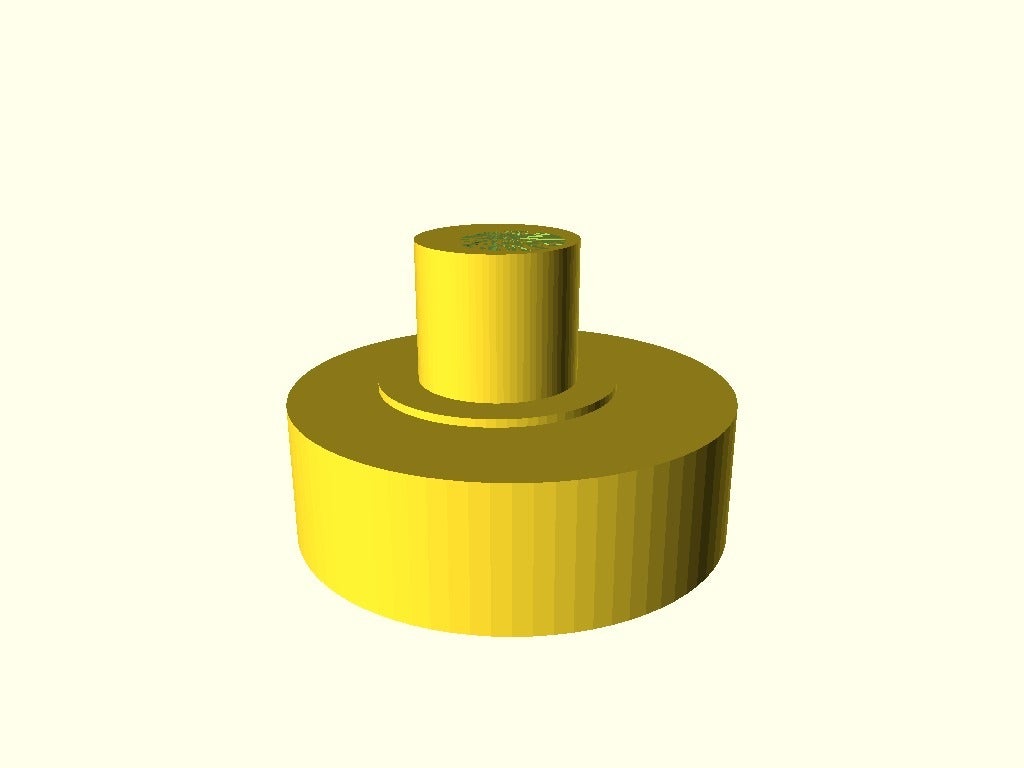

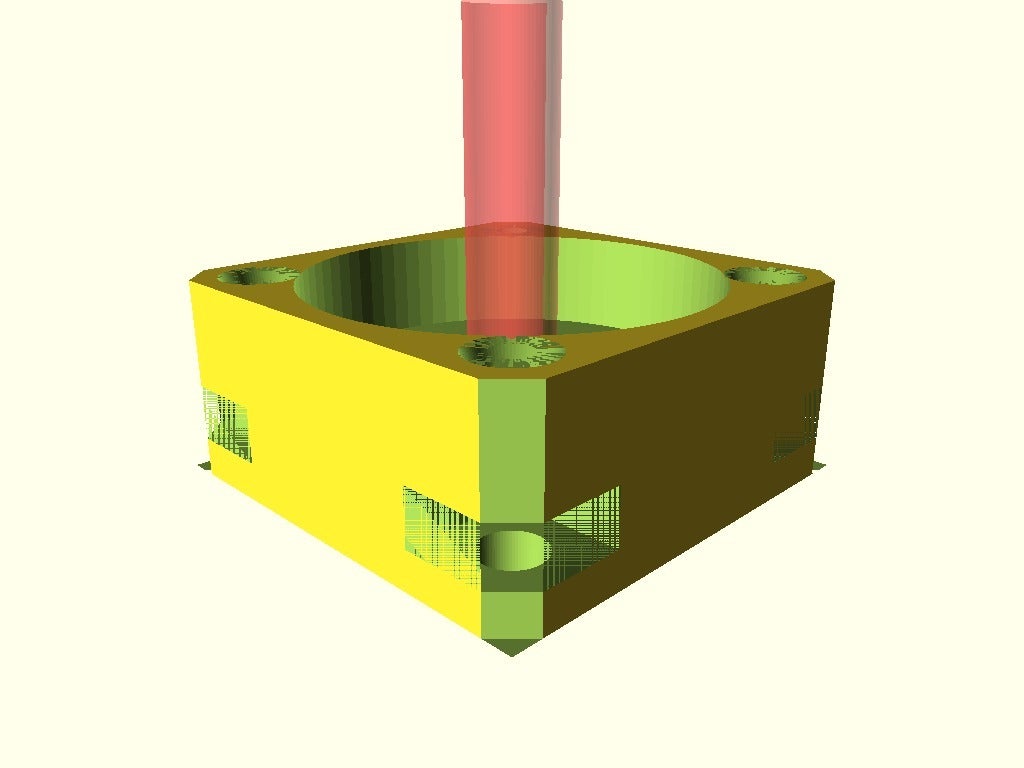

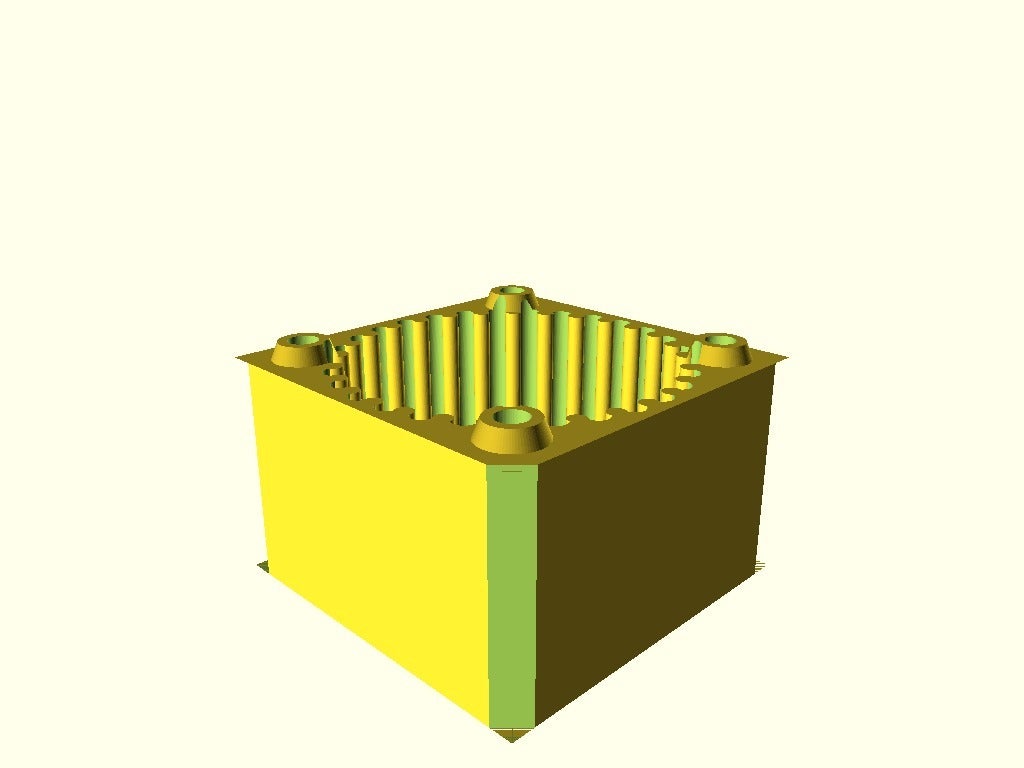

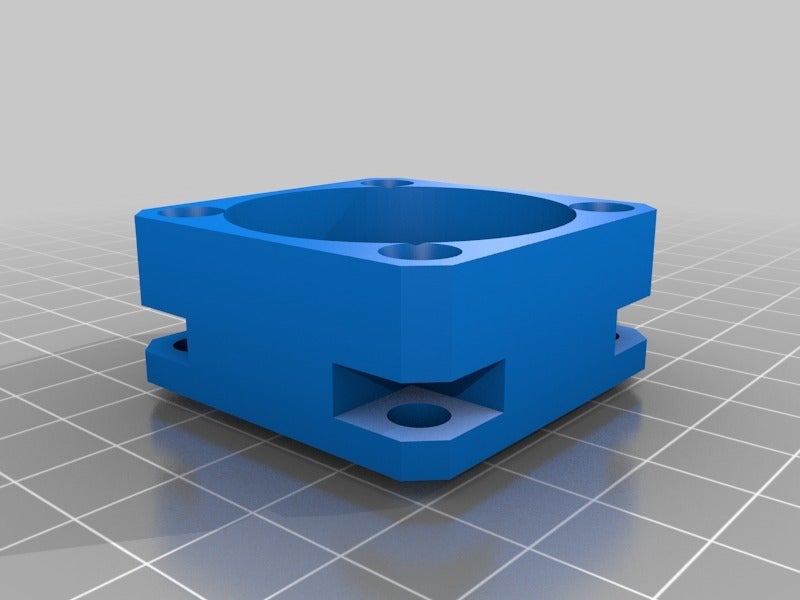

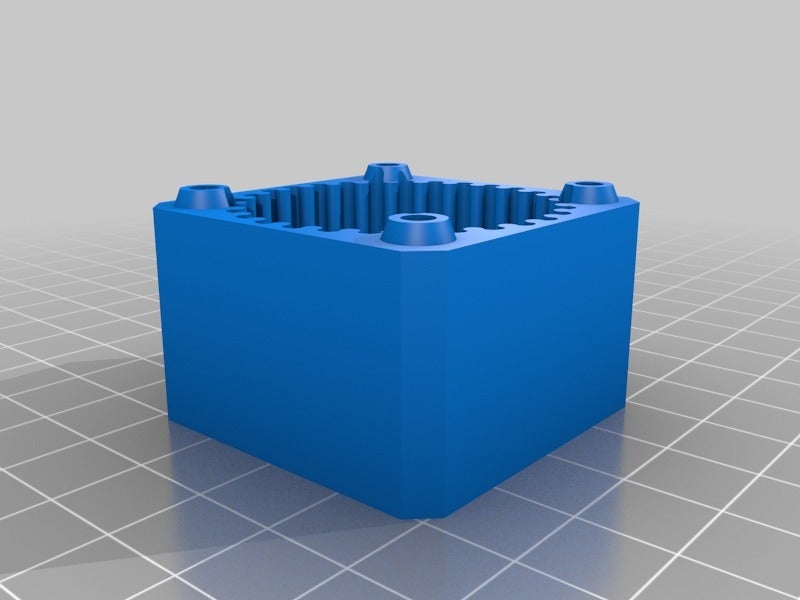

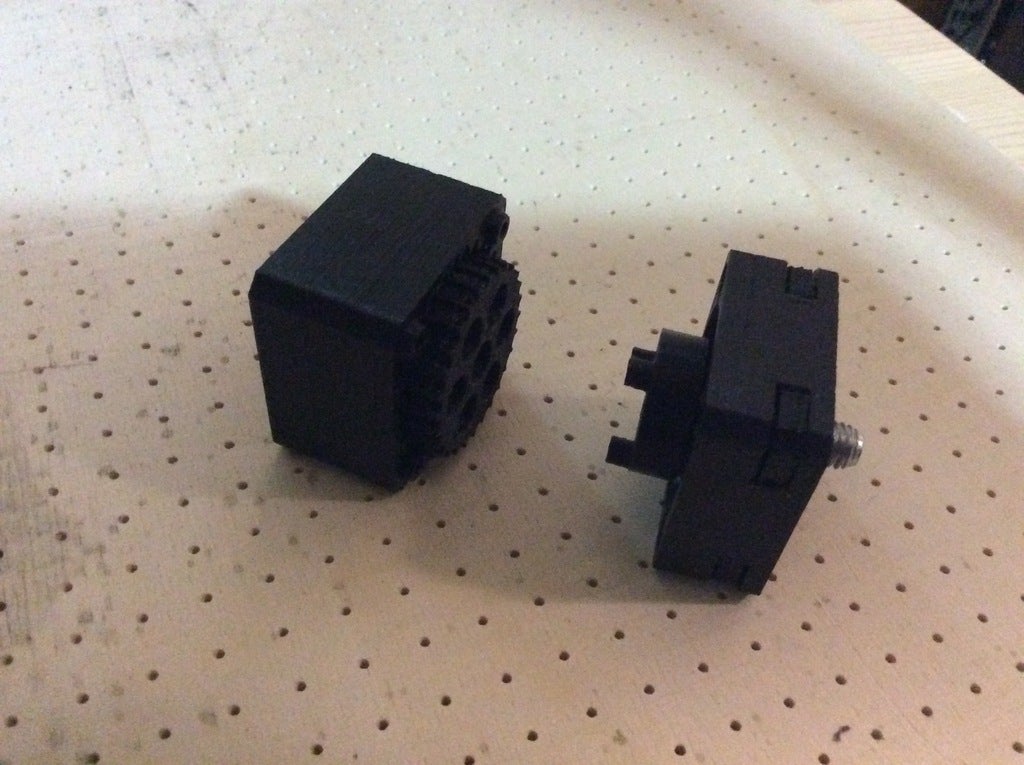

This is a prototype for a nema 17 size cycloid gearbox with a reduction 1/28
you need
2 ball bearings 608
4 M3x35
4 M3 nut
1 M3x12
1 M8x ... Output shaft
a nema 17 stepper motor with 5mm axle
and some washer
things to do :
calculate the teeth ...in the moment they are constructed
calculate for different gear ratios
test the speed at which it is useful with only one runner
construct it for counterweight runners for faster speed
test the weight it can handle without breaking
multiple output shaft options

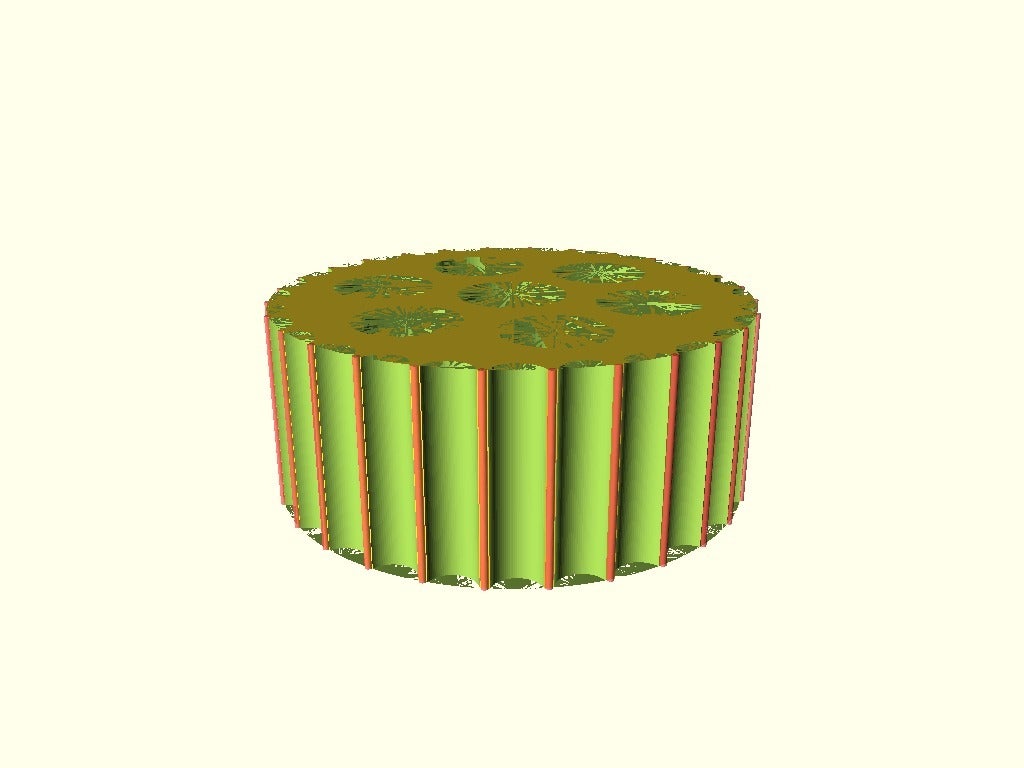

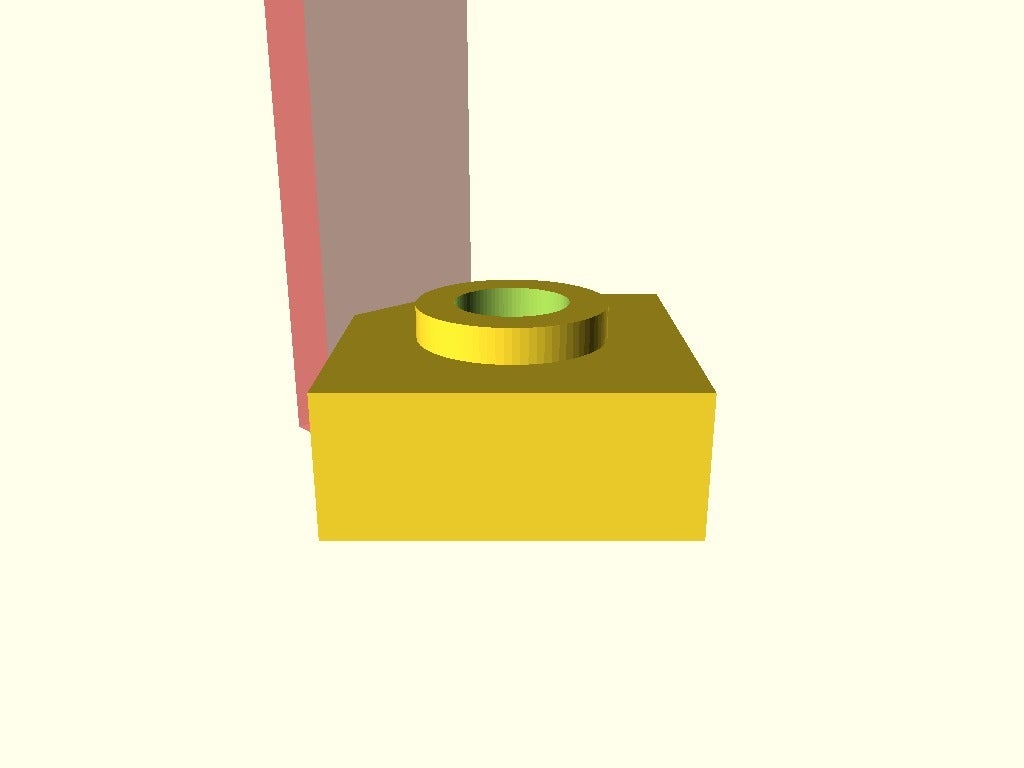

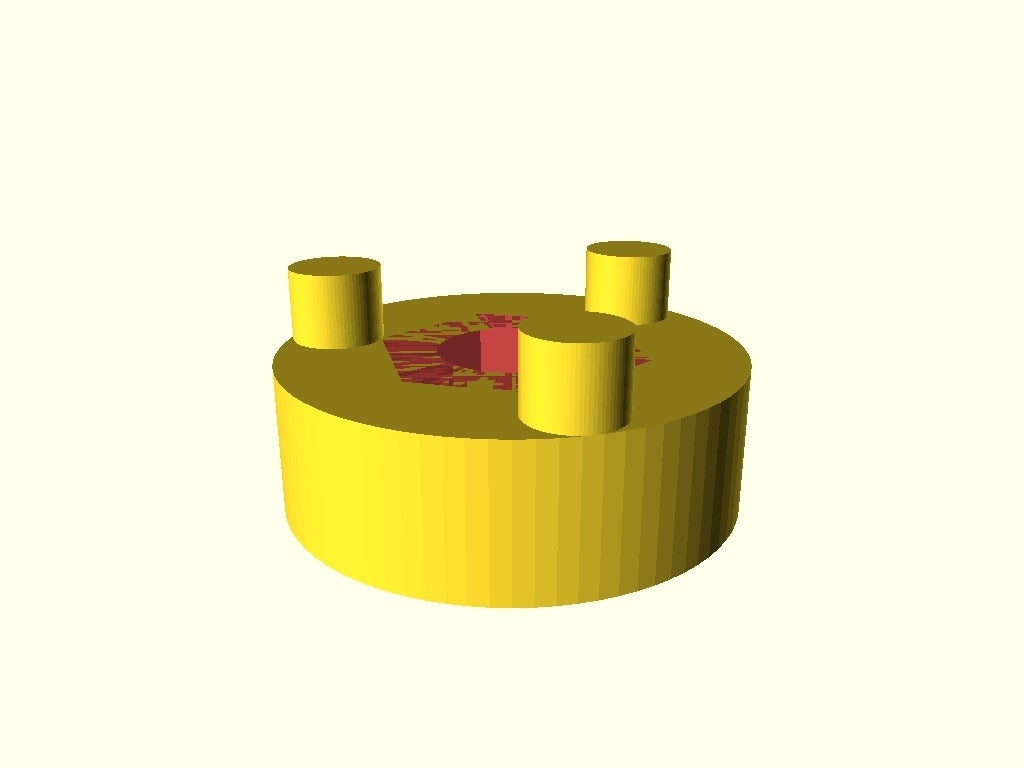

cleanup openscad files for publishing
as i have no time at the moment i post the messy openscad files
