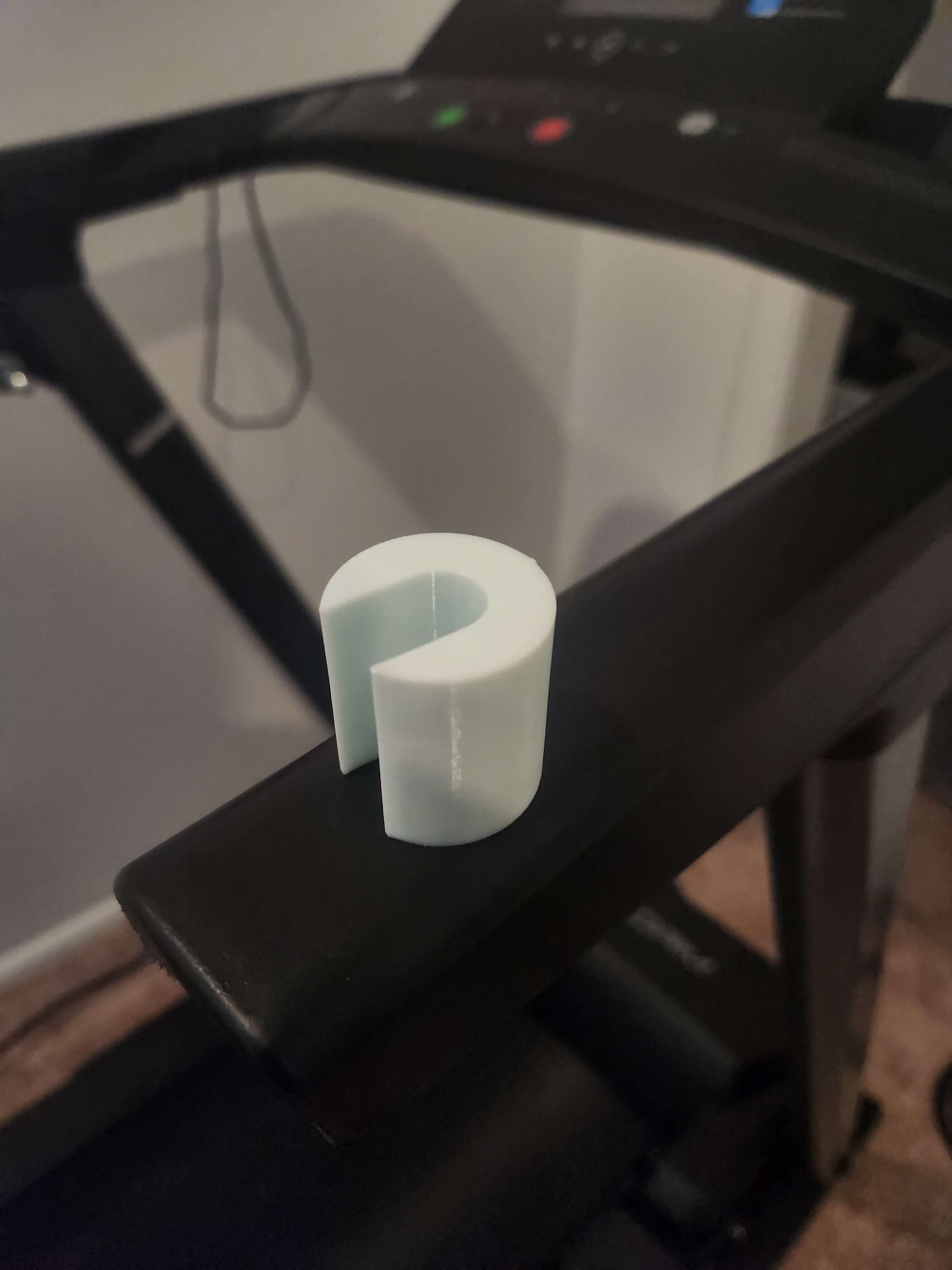

Insert that holds back the protruding bolt found on most folding treadmills/gym equipment. The design is parametric.
- Ocena
- 0 / 5
- Polubienia
- 2
- Pobrania
- 9
- Wydruki
- 1
- Wyświetlenia
- 293
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Indoor Sports
- Licencja
- Creative Commons — Public Domain

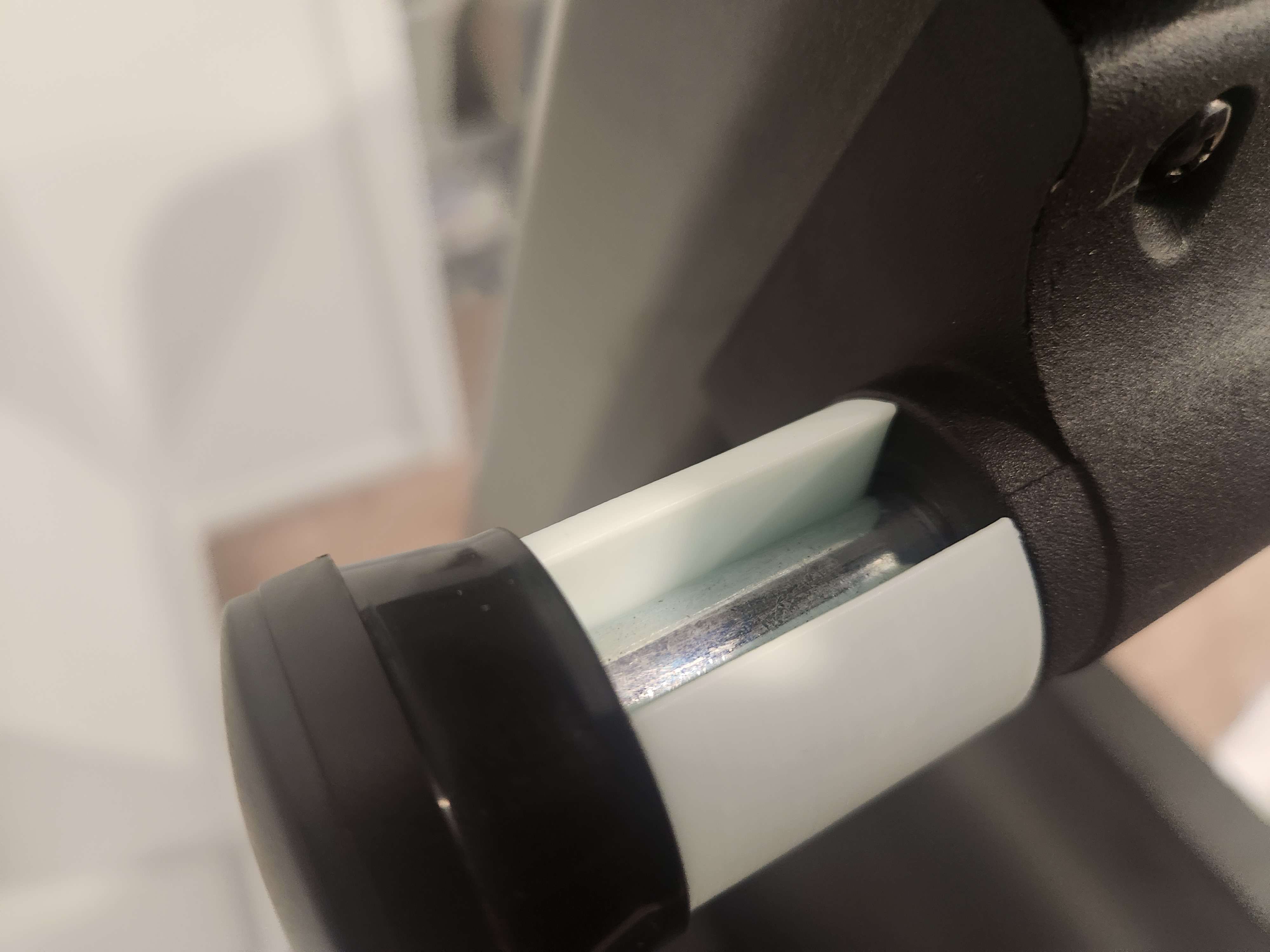

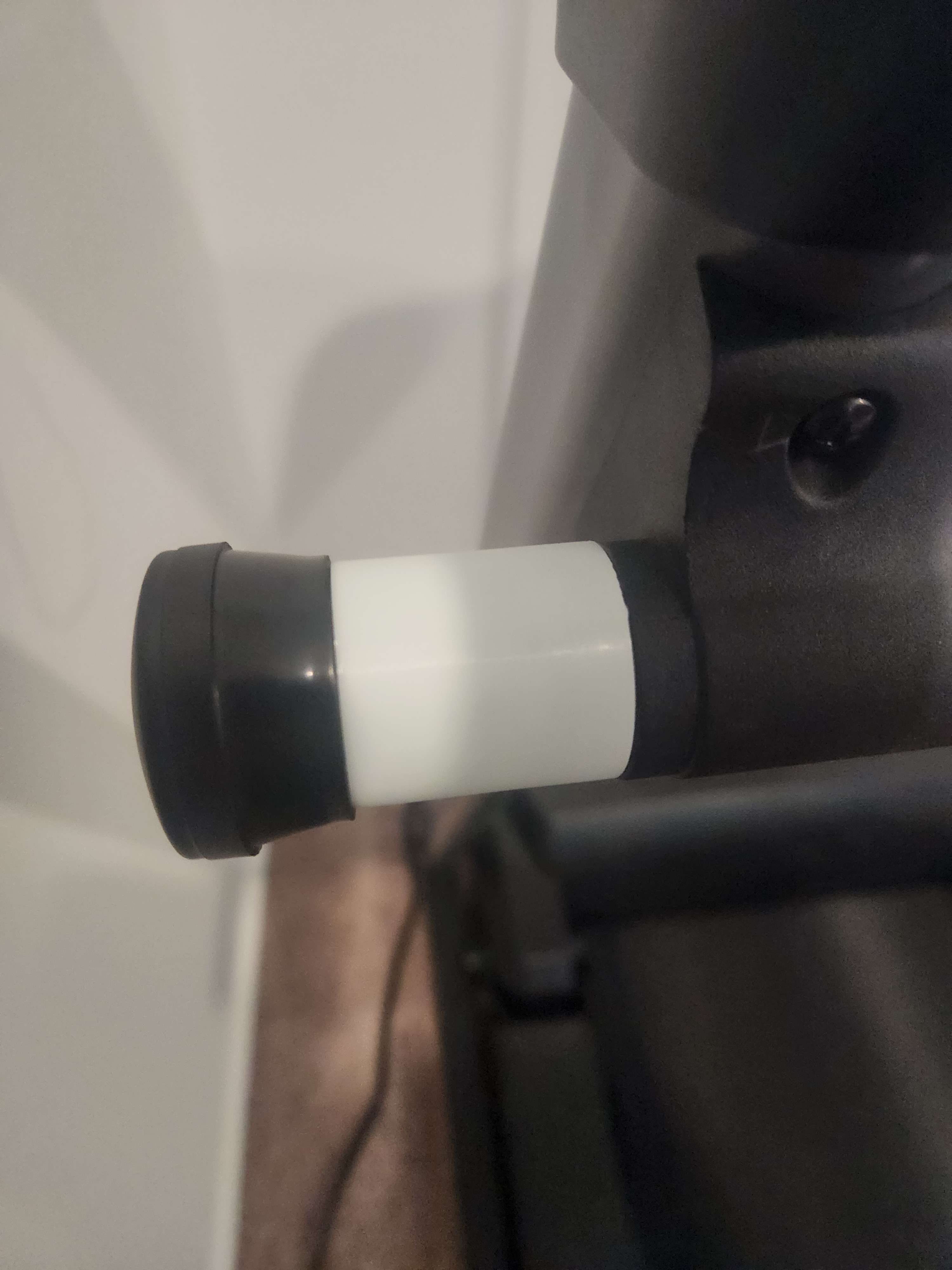

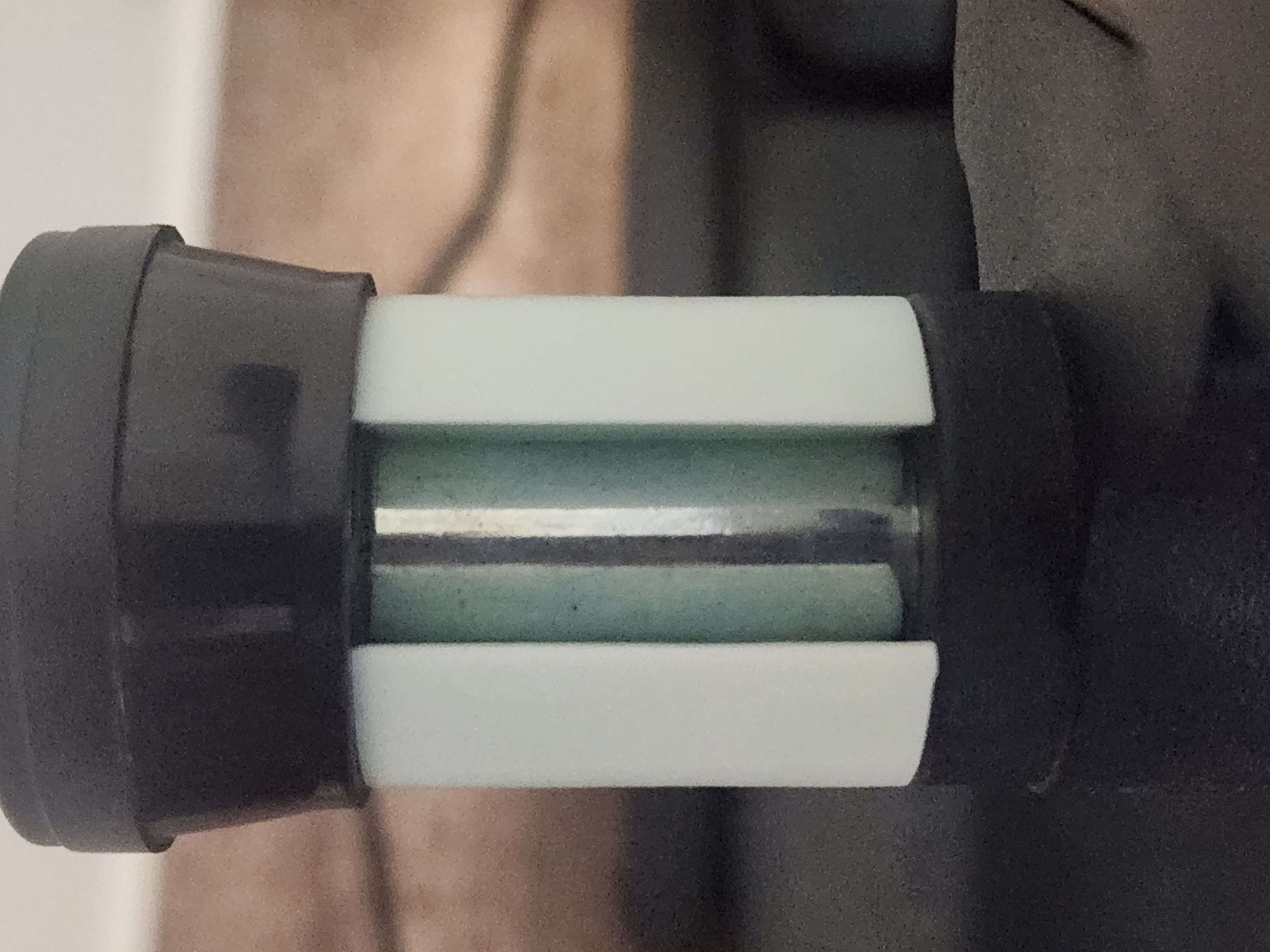

Sick of using your foldable treadmill and having the spring-loaded bolt scrape against you? This insert can be used to keep the bolt out of the way! The insert was designed to fit the ProForm CC300 treadmill but the design is parametric and can be modified to fit any other piece of equipment.

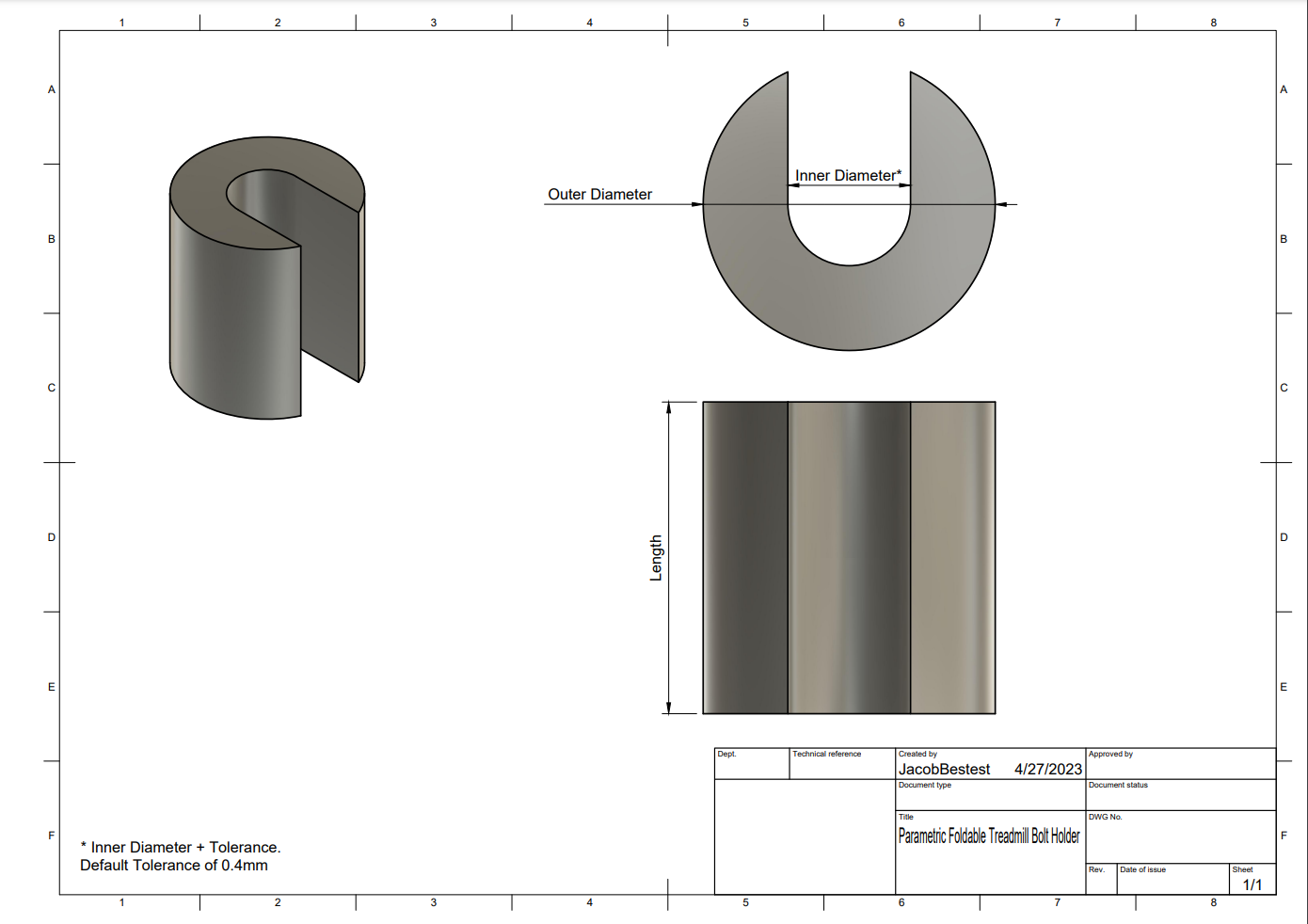

To modify the design open the files in Fusion360 and modify the parameters “InnerDiameter, OuterDiameter,” and “Length.” There is also a tolerance parameter that can be adjusted to fit your printer's capabilities.
Print Settings Recommendations
NA, should be an easy print
Changelog
Apr 27, 2023 Initial V1 Release
