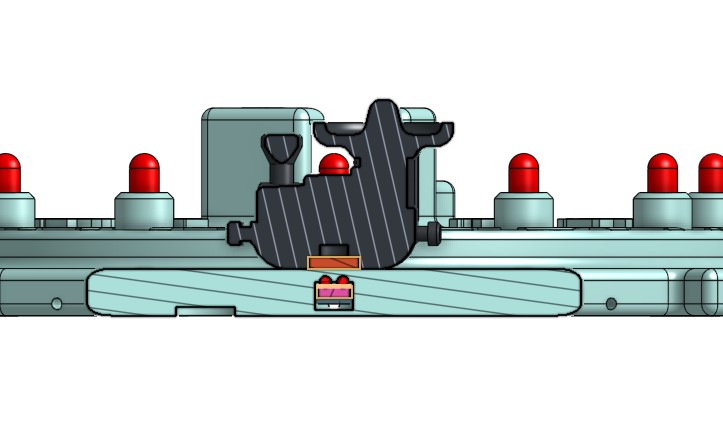

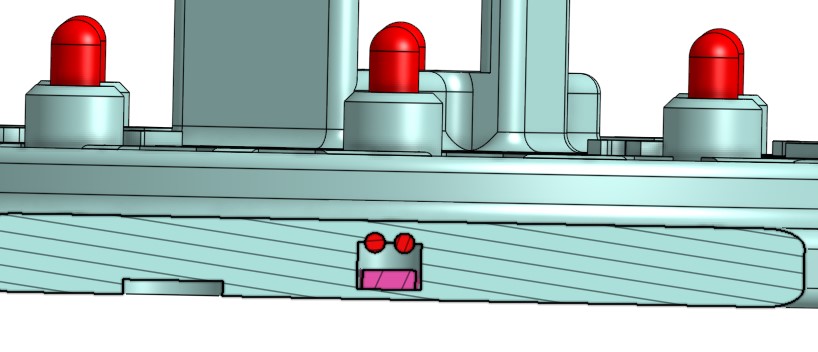

Station for the Mexican Train Game with 12 stations. Train has a magnet in the bottom and when placed on the station next to the players number the LED will light up. There is also a magnet in the base that will rest in the bottom of it's pocket until a train the a magnet is present. Then the magnet in the base will make contact with two wires completing the circuit to light the LED. This light will signal other players that the train associated with that player is not available for play. The magnet and wires in the station are wired to a power source (battery or UBS) and work much like a reed switch would work. One picture show the circuit open with no train and the other picture show the circuit close with a train present.
