3L Bottle Hookah

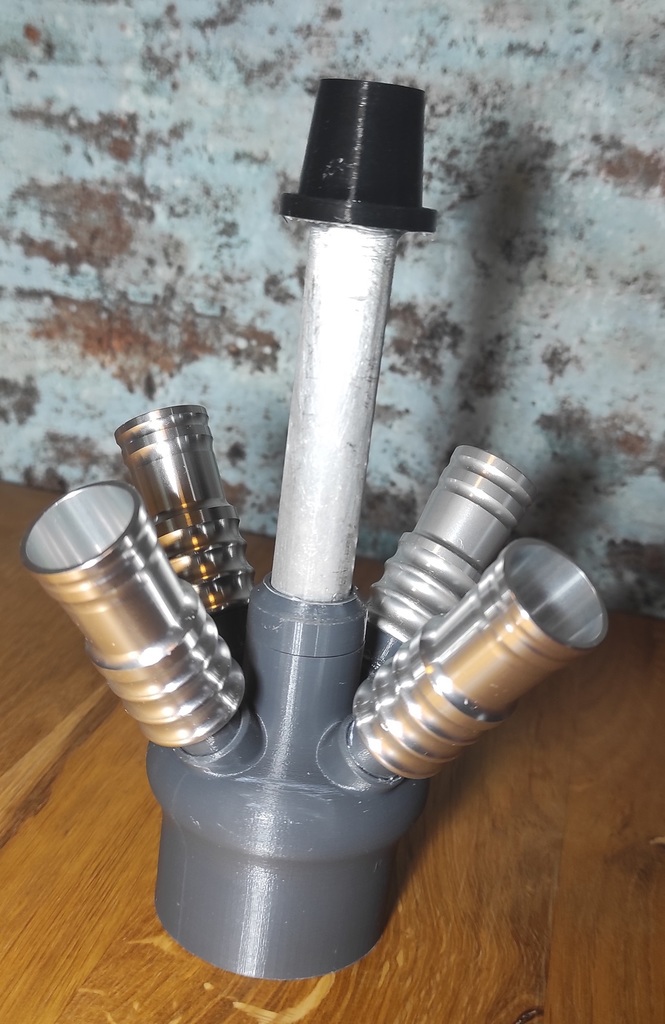

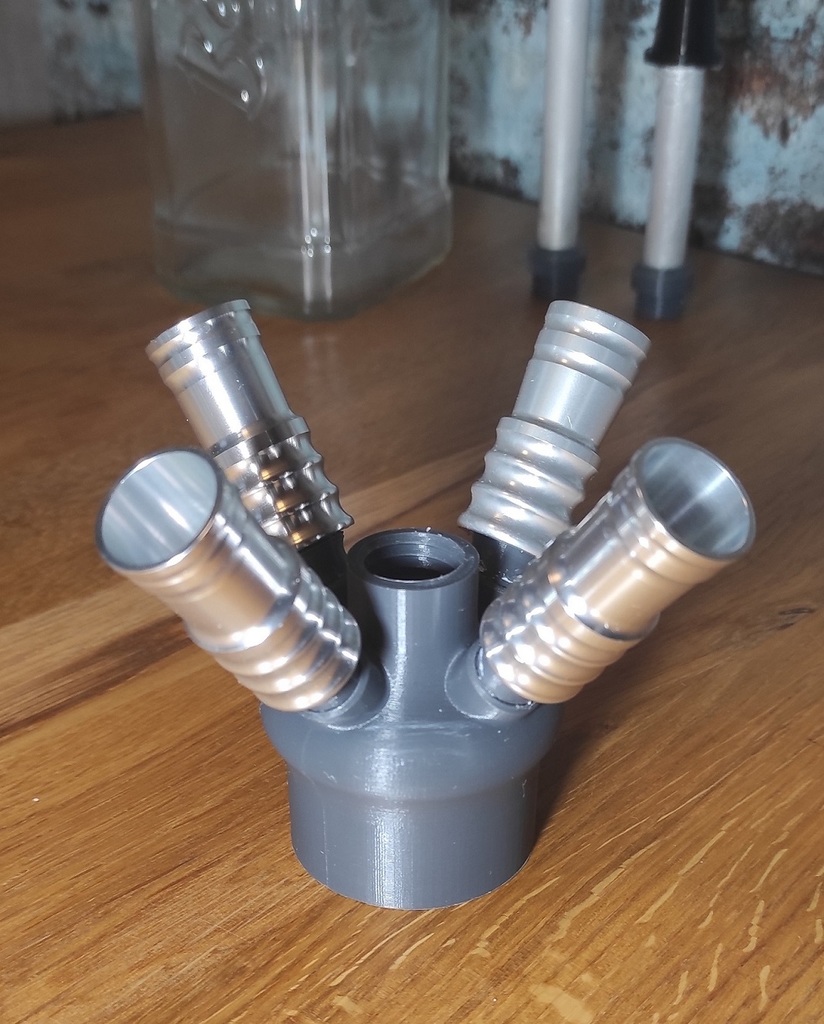

This is my first 3d Designed and Printed Hookah.

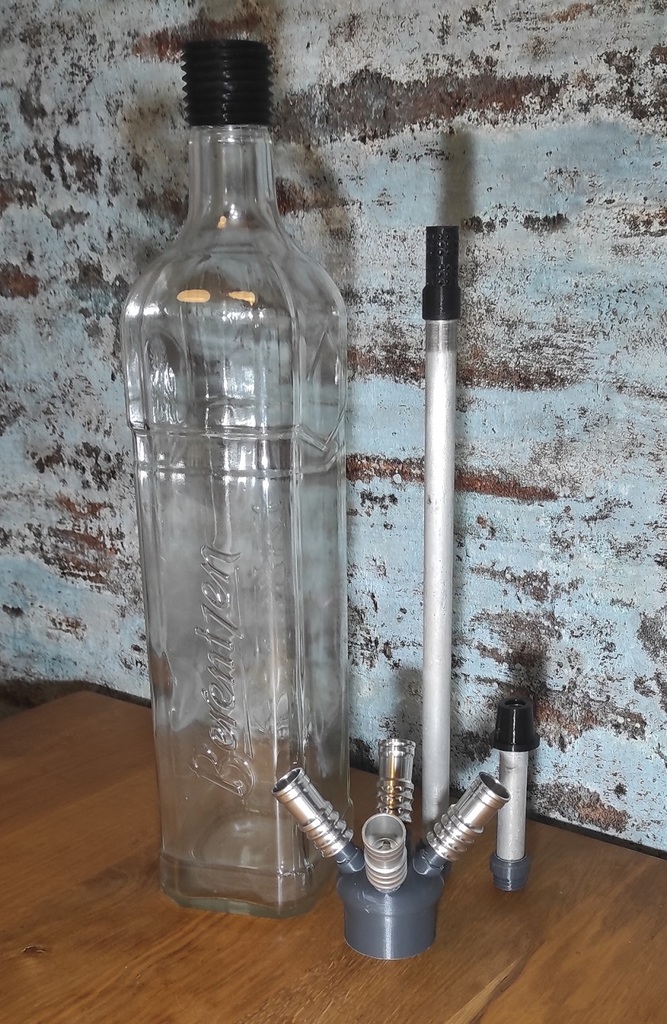

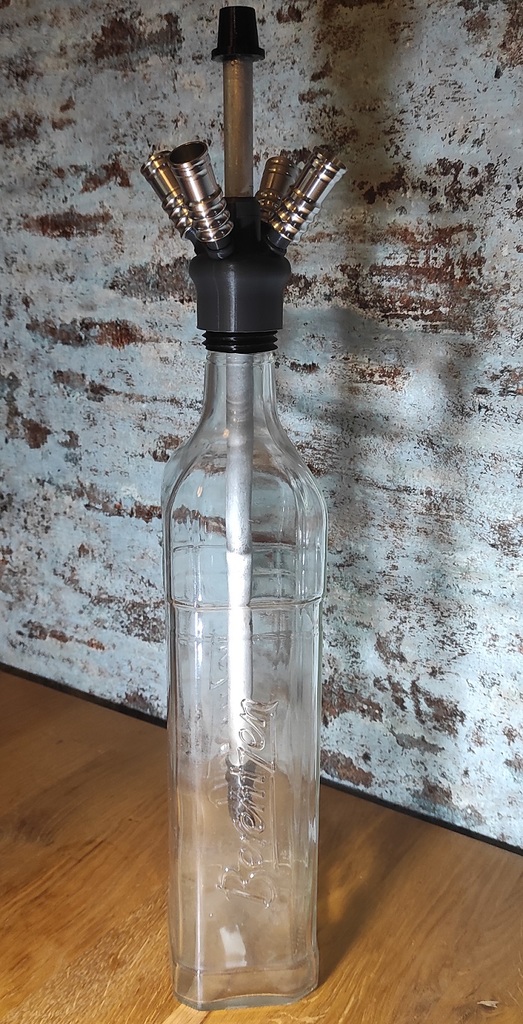

I used an old 3L Bottle of Berentzen. Every Bottle with a neck OD of 36mm and a length of 36mm would work

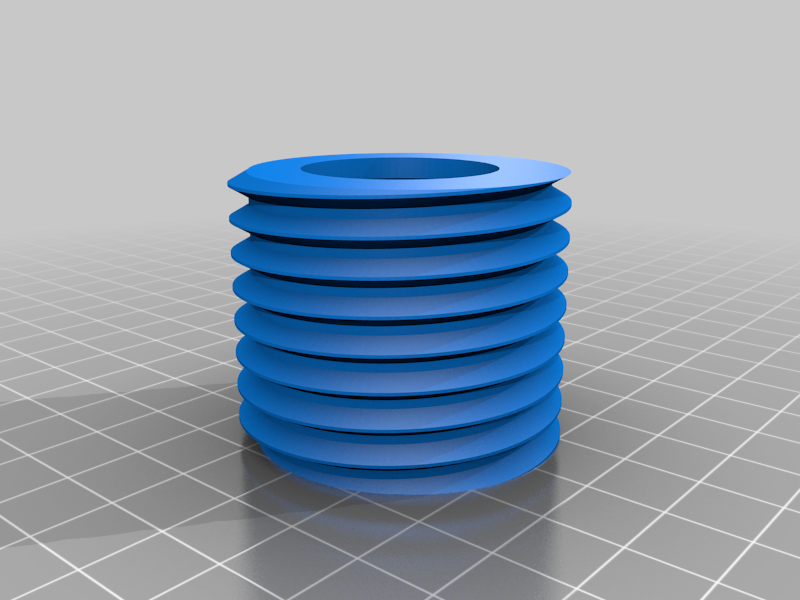

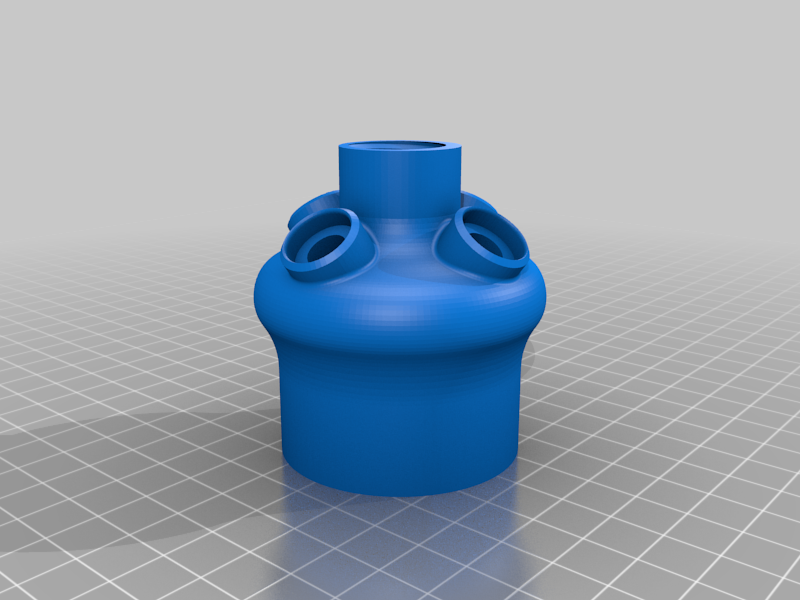

The Thread of the Base is a 45x4,5 Metric Thread

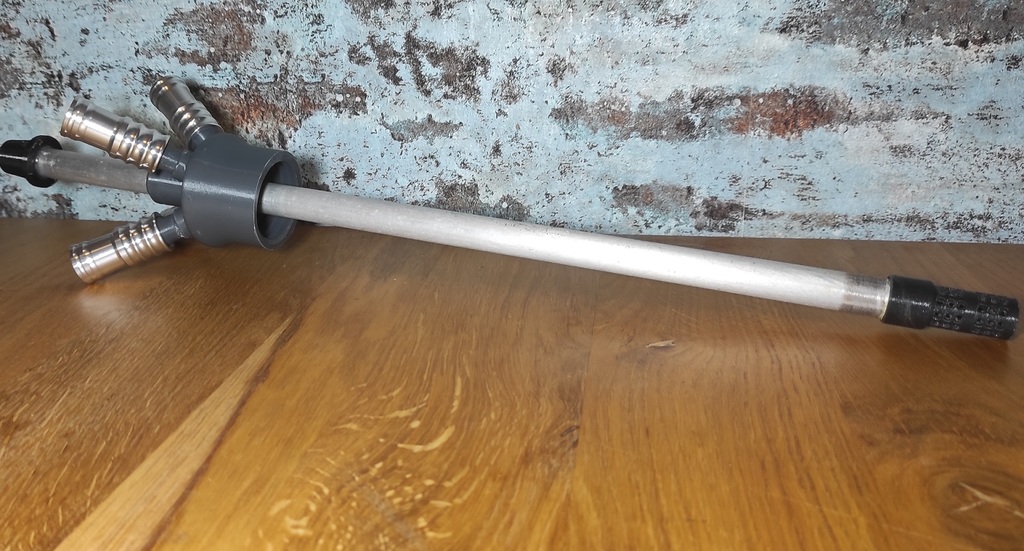

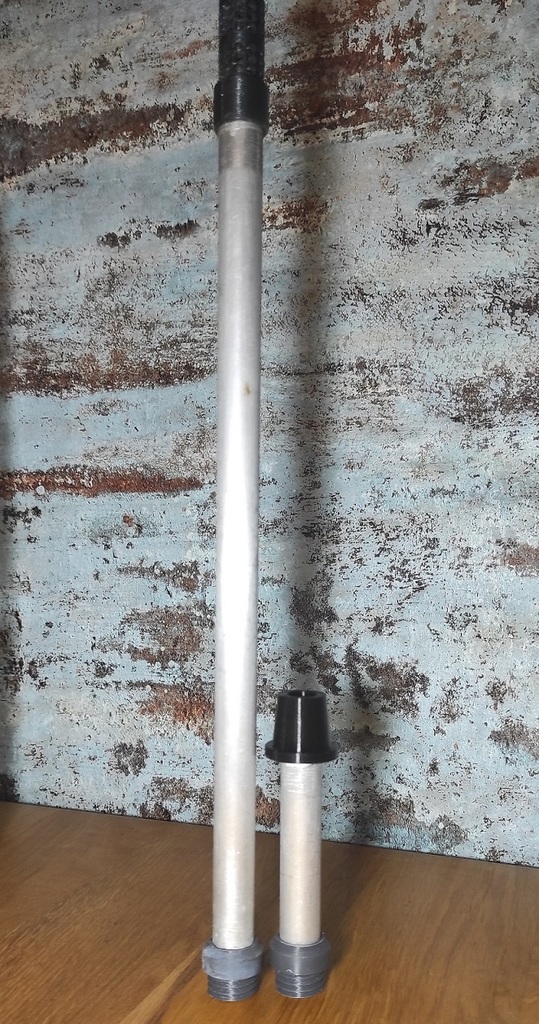

The Pipe is a 16mm OD Aluminum Pipe, which length do you need depends on your Bottle

To glue everything together i used Silicone caulk and Super Glue.

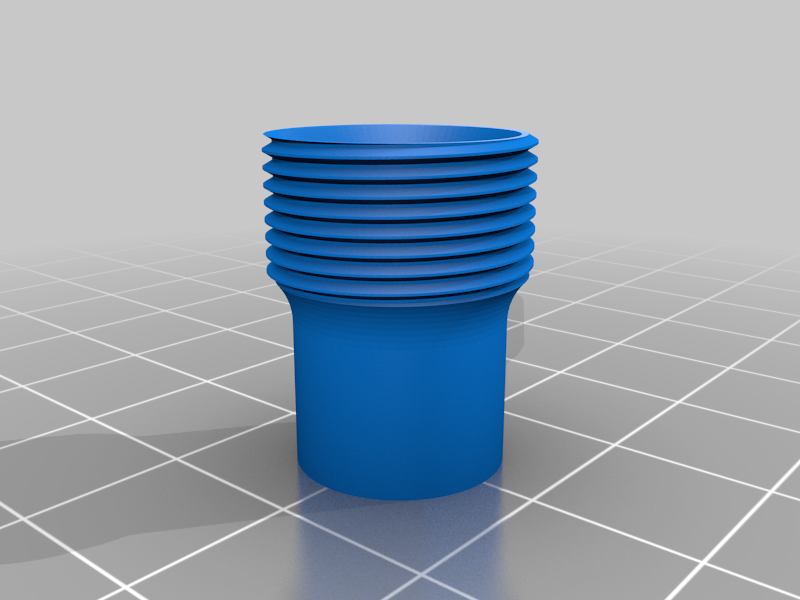

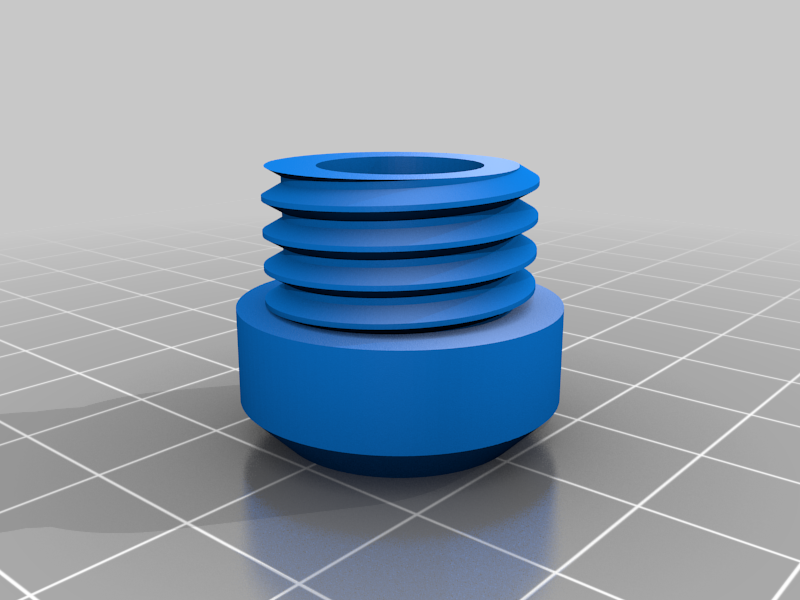

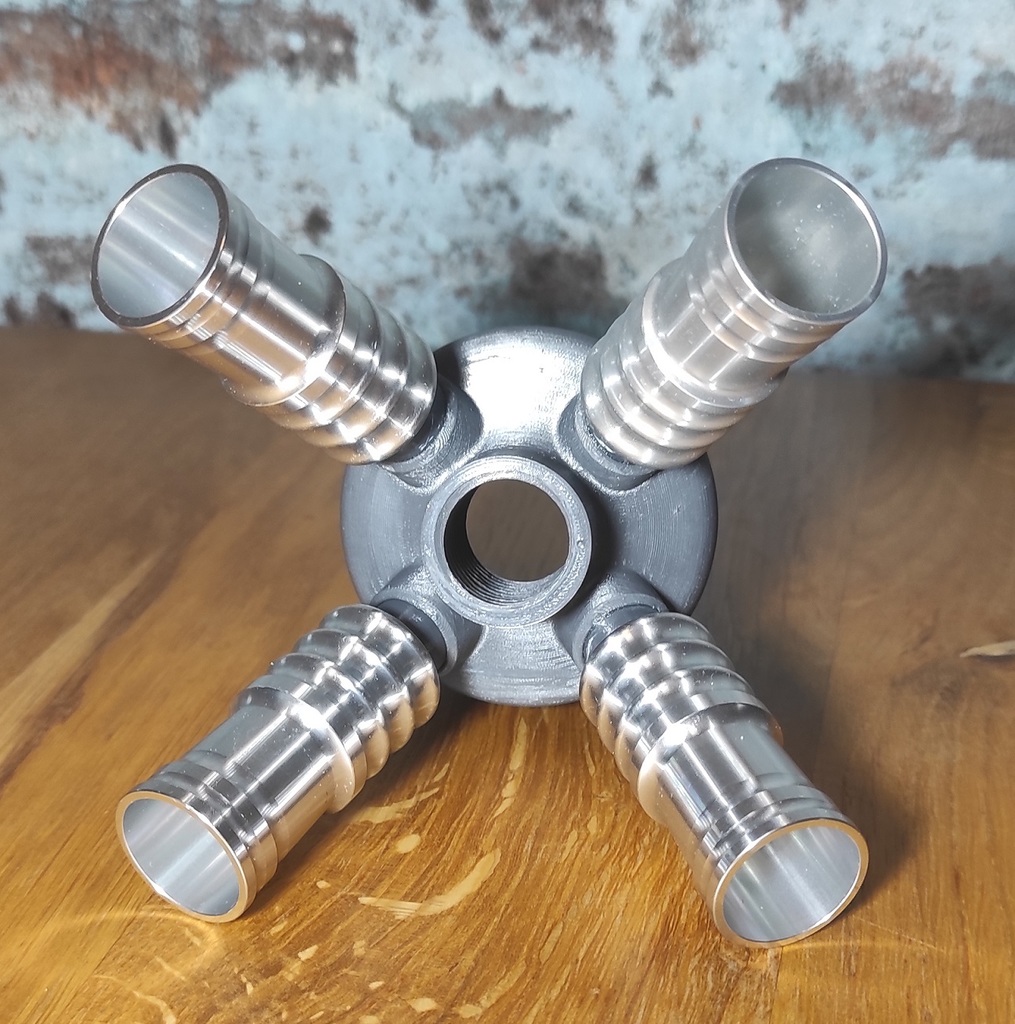

The Thread for the Hose Adapter is a 16x1mm Metric thread (standard thread for Hoseadapters).

I designed this Hokkah to use with a Juice-Catcher. Mine is from M. Rosenfield.

you can technicaly print everything with PLA except the Adapter for the bowl/Juice-Catcher which you should print with PETG. But i recommend to print everything in PETG

Happy Printing

Print Settings

Printer Brand:

Ultimaker

Printer:

Rafts:

No

Supports:

Resolution:

0.1

Infill:
