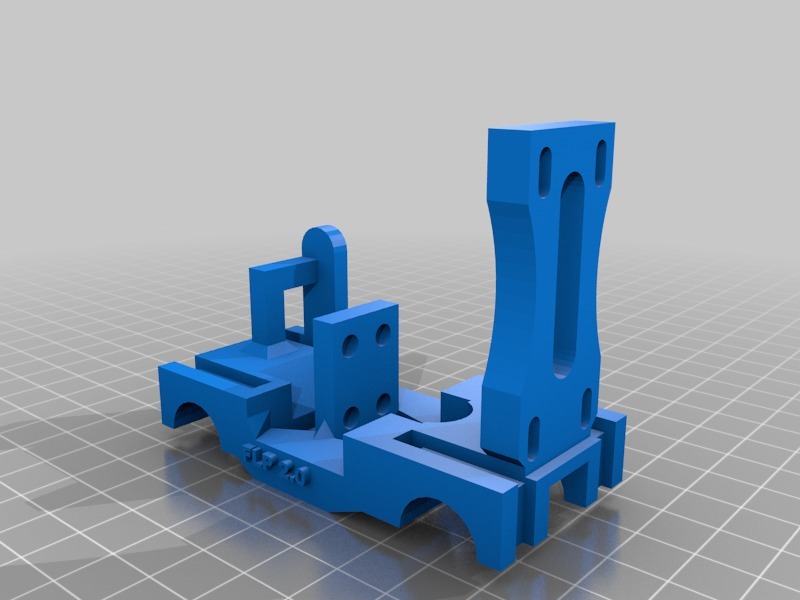

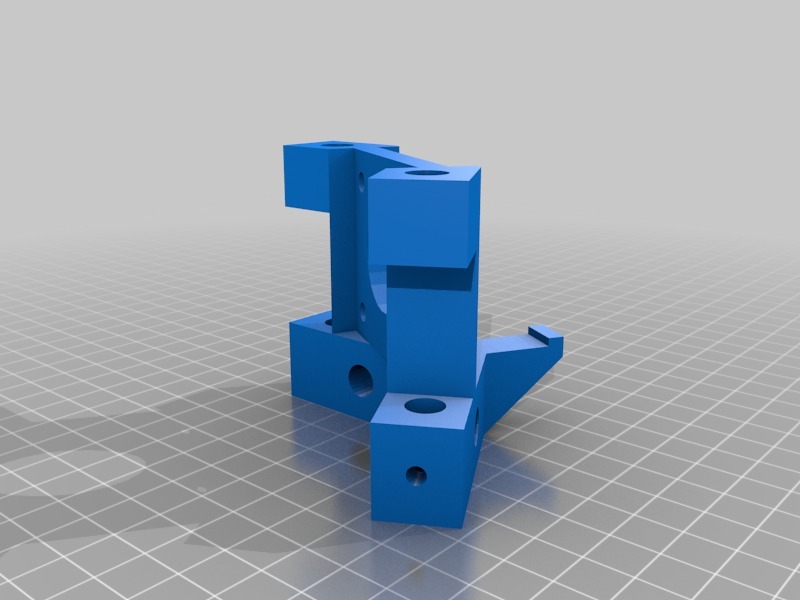

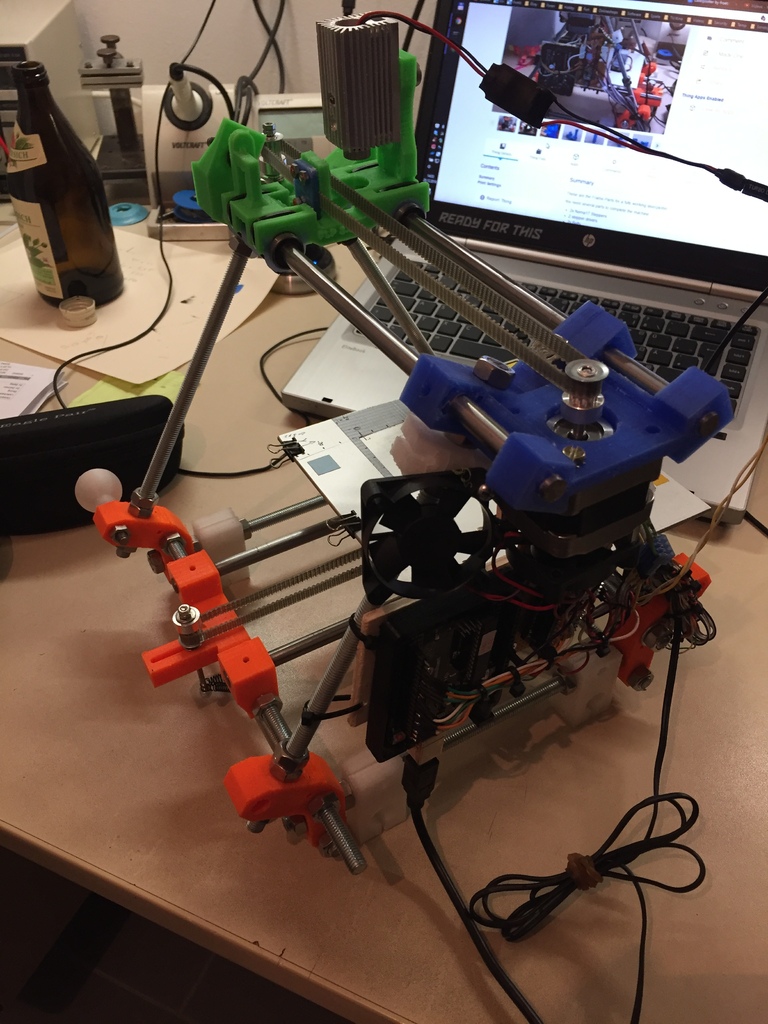

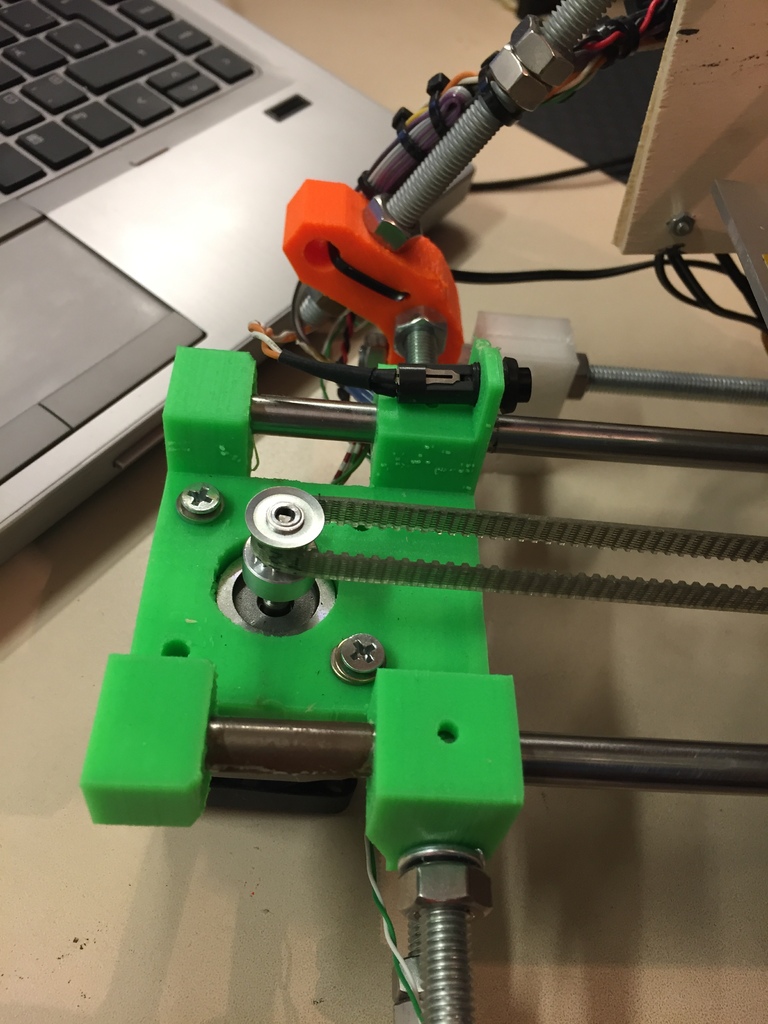

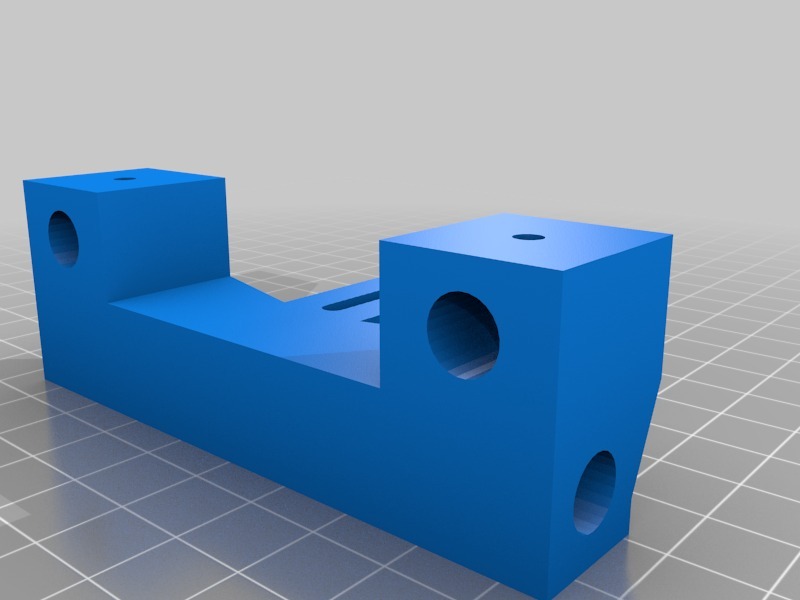

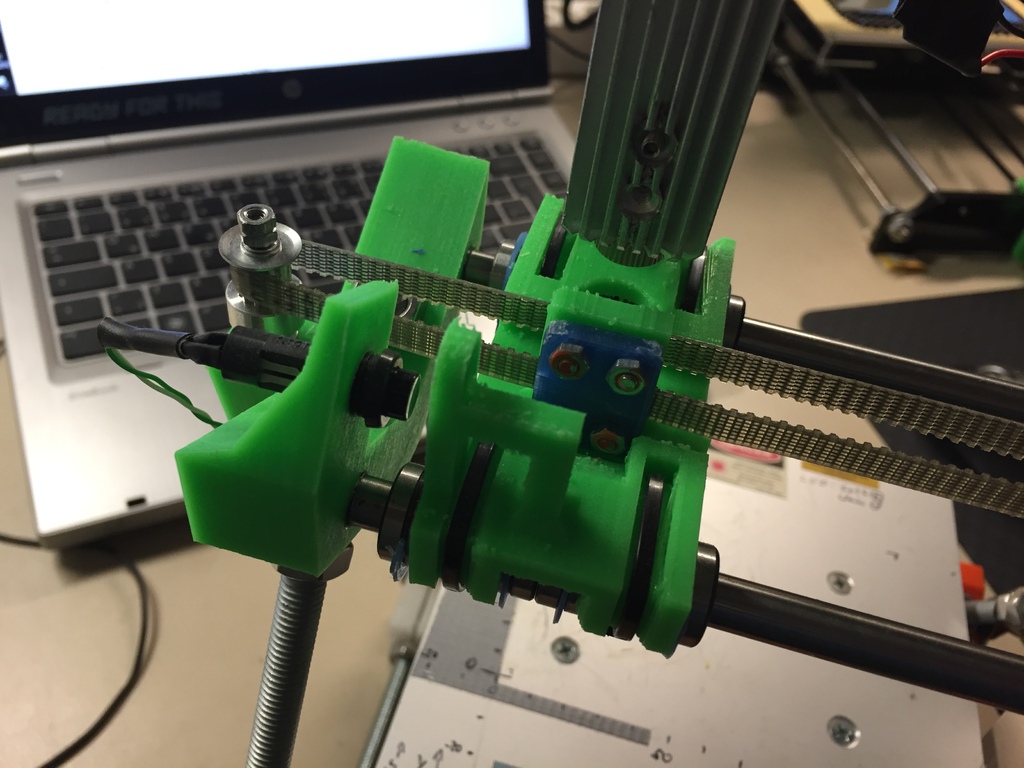

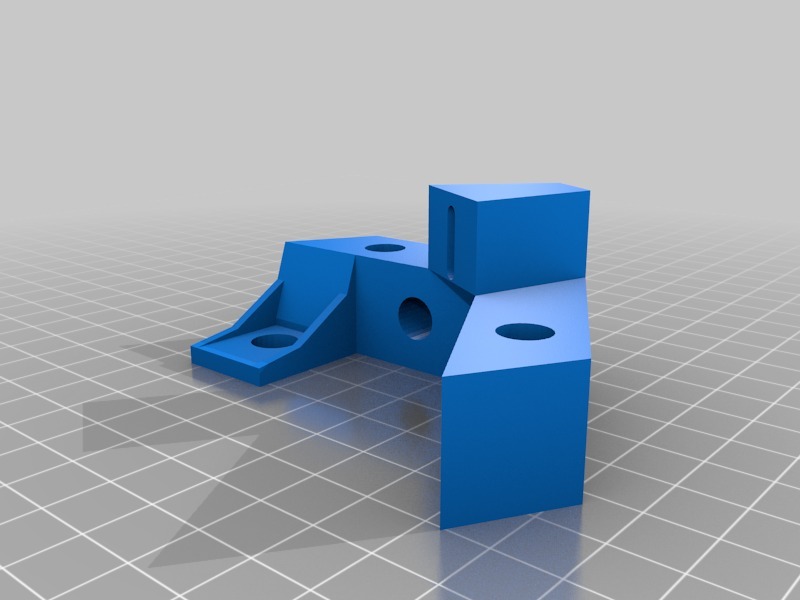

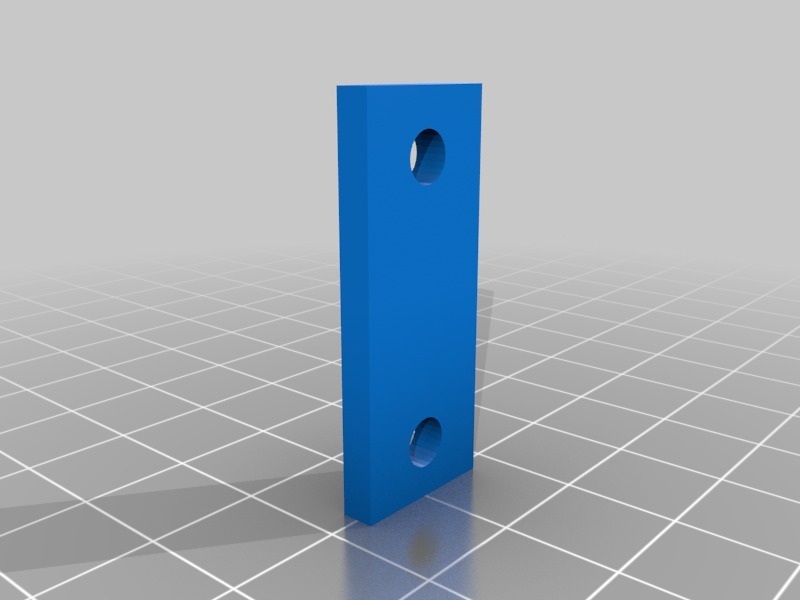

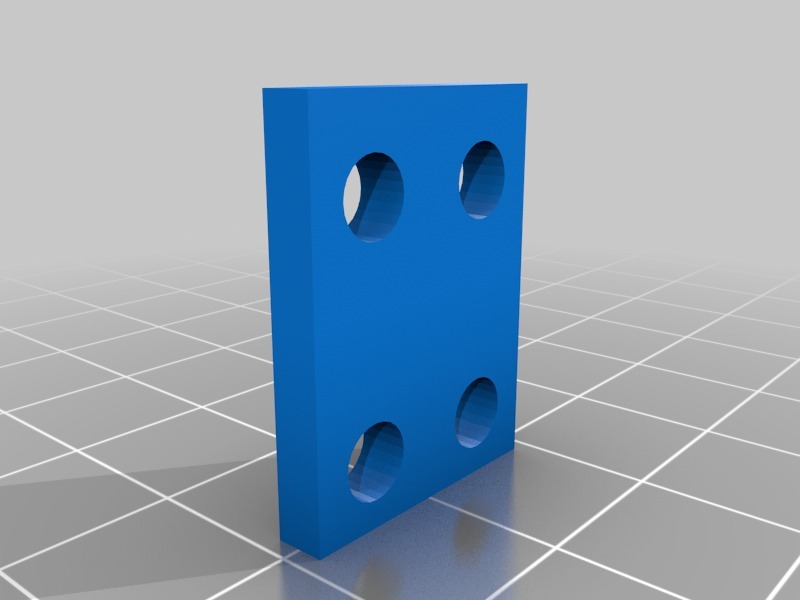

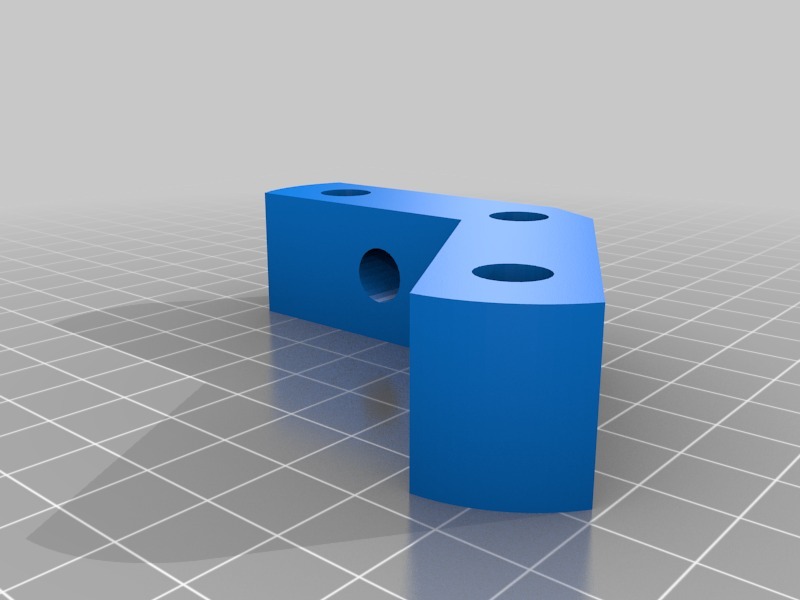

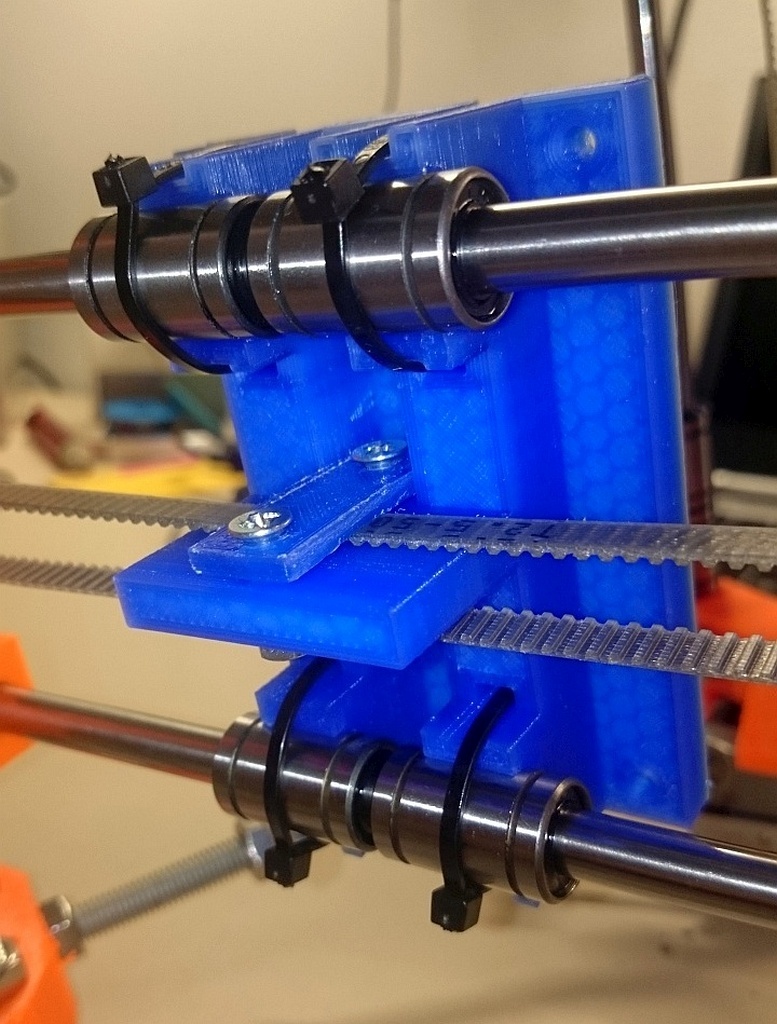

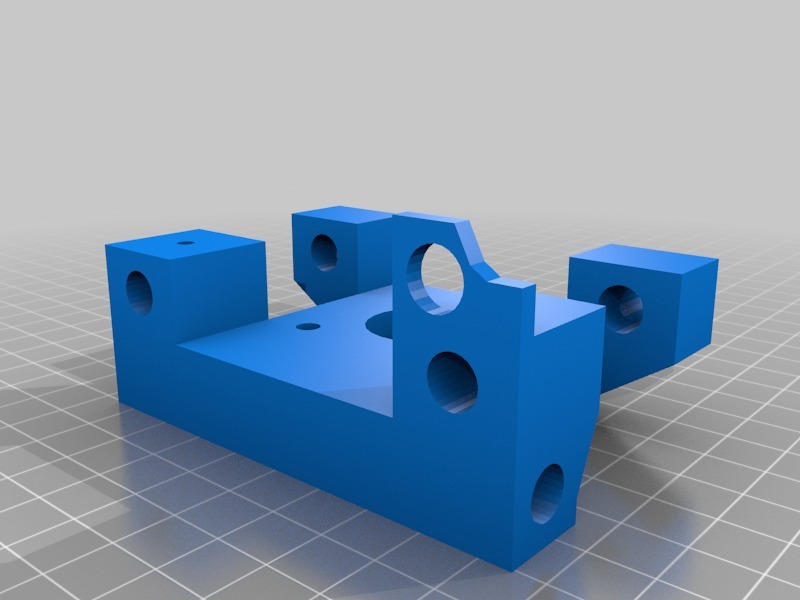

These are the Frame-Parts for a fully working laserplotter.
You need several parts to complete the machine:
- 2x Nema17 Steppers
- 2 stepper drivers
- 2x Belts
- 4x matching toothwheels
- ~16x16cm tile of alloy or something similar
- arduino uno
- 9V power supply
- 8x LMU8 linear bearings
- 8mm rods
- M8 threated rods
- laserdiode (uv for engraving, red for cutting)
- safety glasses
- some wires
optional:
- buttons for the endstops
Firmware for the arduino is GRBL - to convert graphics into g-code, you can use inkscape with one of the laser-engraver-plugins.
To get this thing to work, you have to read a lot about configuring GRBL.
Here is a video: https://www.youtube.com/watch?v=KrK0hxPkIi8
Print Settings
Printer:
German RepRap NEO
Rafts:
No
Supports:
Yes
Resolution:
0,2
Infill:
45%
Notes:
Printed with Performance-PLA from German RepRap and Nunus Glow in the Dark PLA.
