Grappling hook arrowhead
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Cosplay & Costumes in general
- Licencja
- Creative Commons — Attribution — Noncommercial

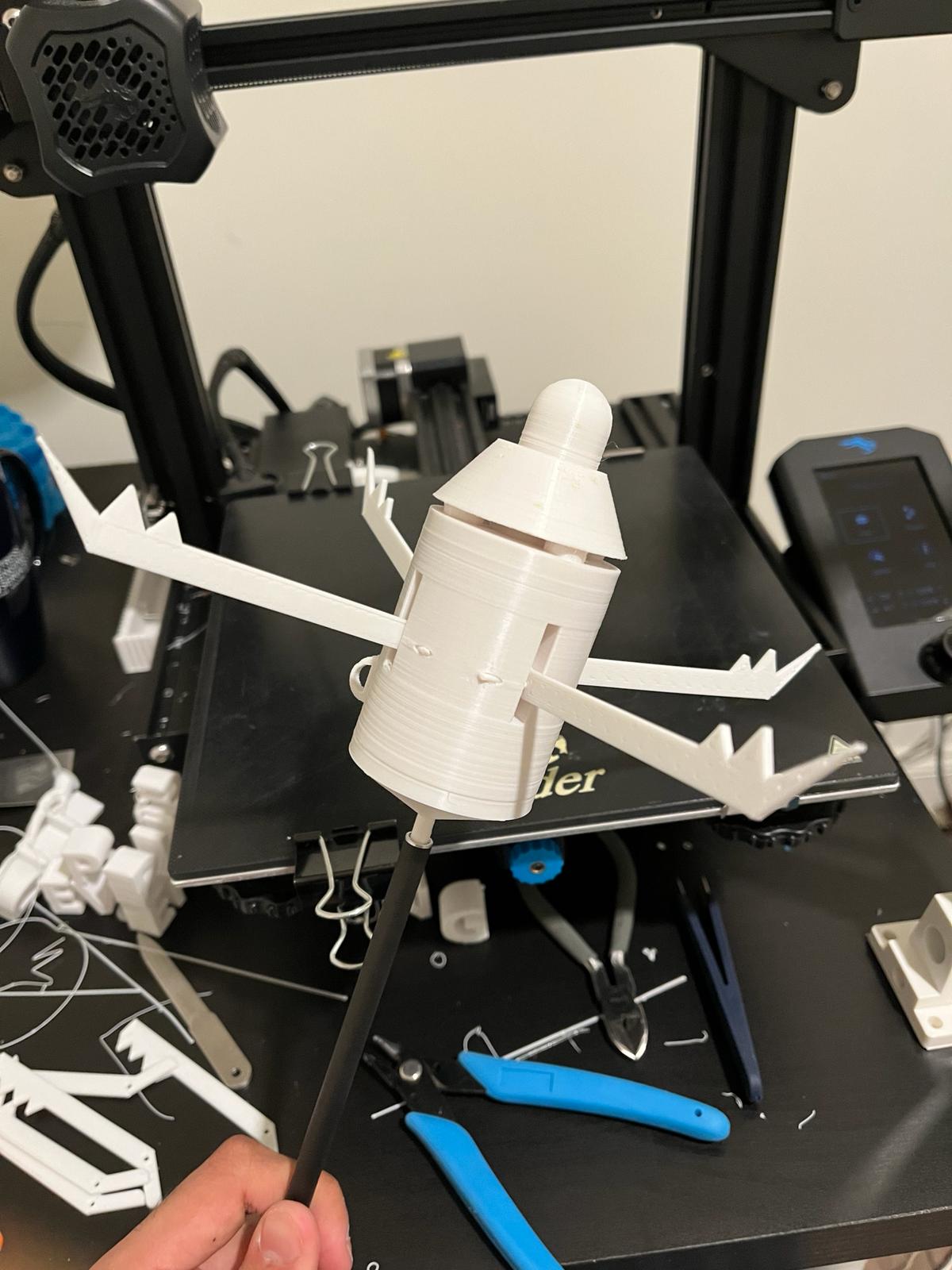

Its a grappling hook arrowhead bases of off Hawkeye and Green Arrow
Use 1.75 mm filament for the hinge
Adding a spring for the piston isn't necessary but it will make resetting the arrowhead easier

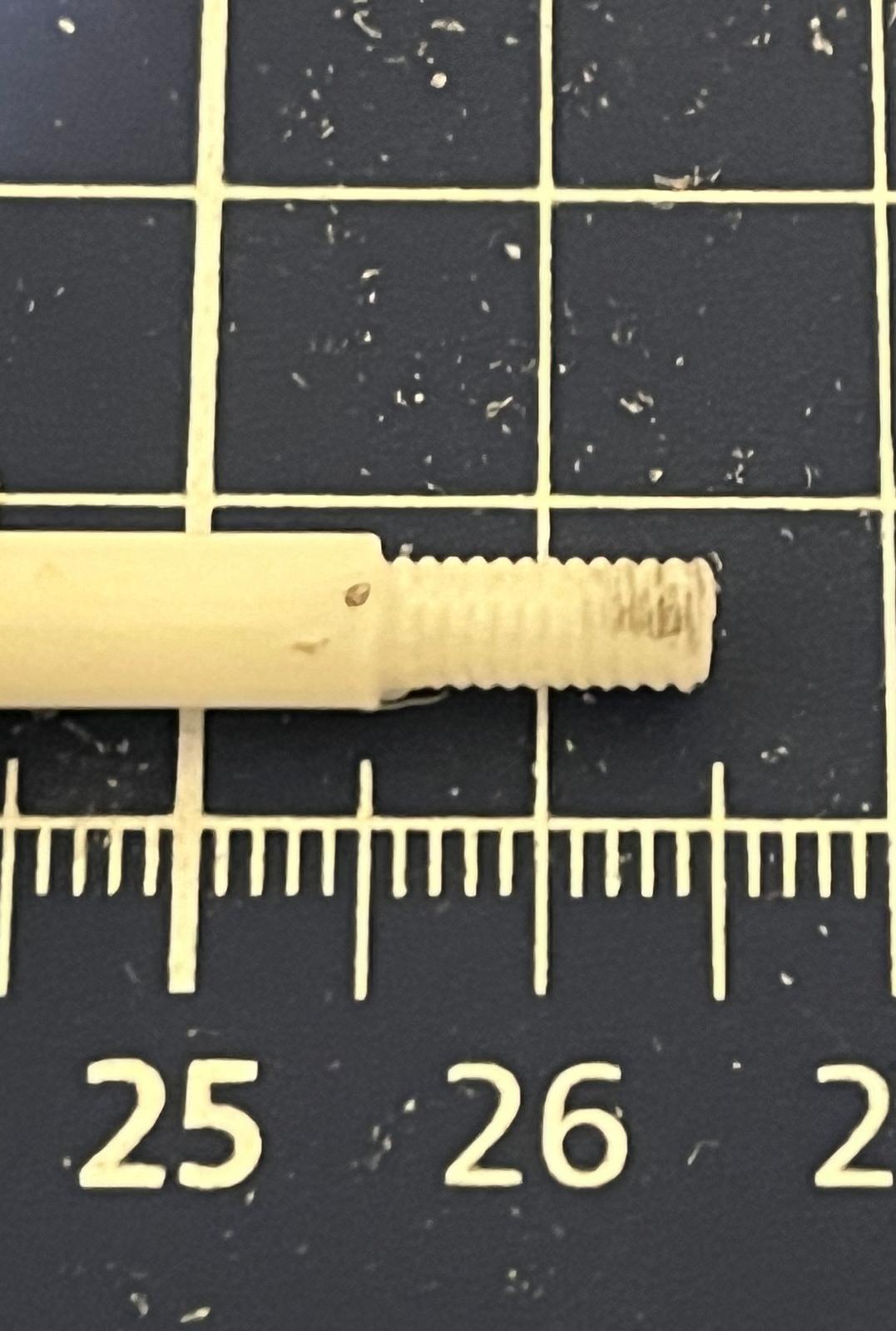

In order to make sure the screw fit I printed it with a 0.2 mm nozzle, if you don't have that you could print it with a 0.4 nozzle but you should adjust the z seam settings as they generally mess with the threads. Also printing it horizontally with supports helps.
If your slicer allows for different infill at different parts of the build I would recommend 100% infill for the screw and base area.
You can also watch this youtube video for more info on assembly -
