The deadbolt guide (door side) on my door fell out and made it really difficult to lock since it wasn't aligning with the the deadbolt slot (frame side).

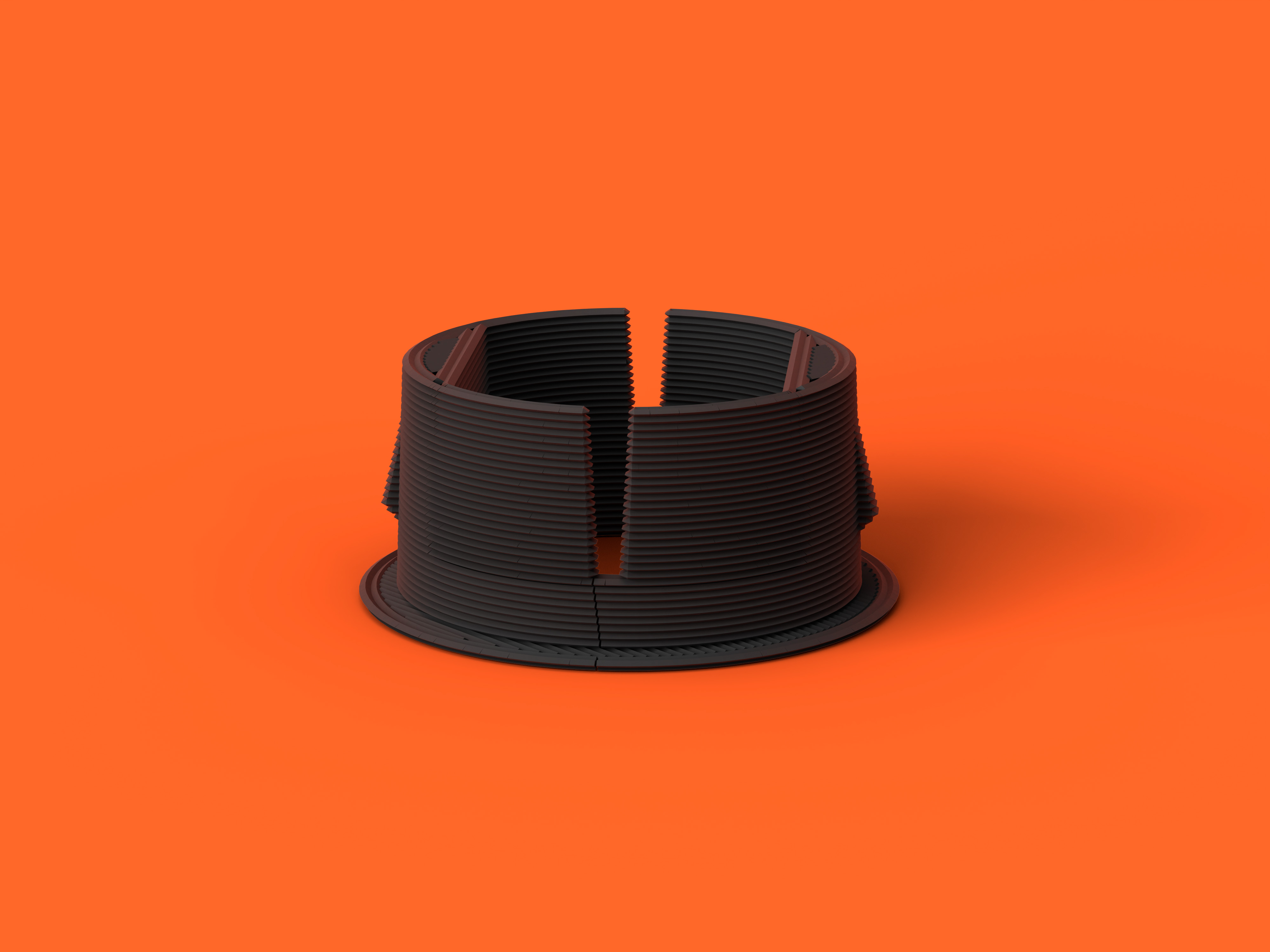

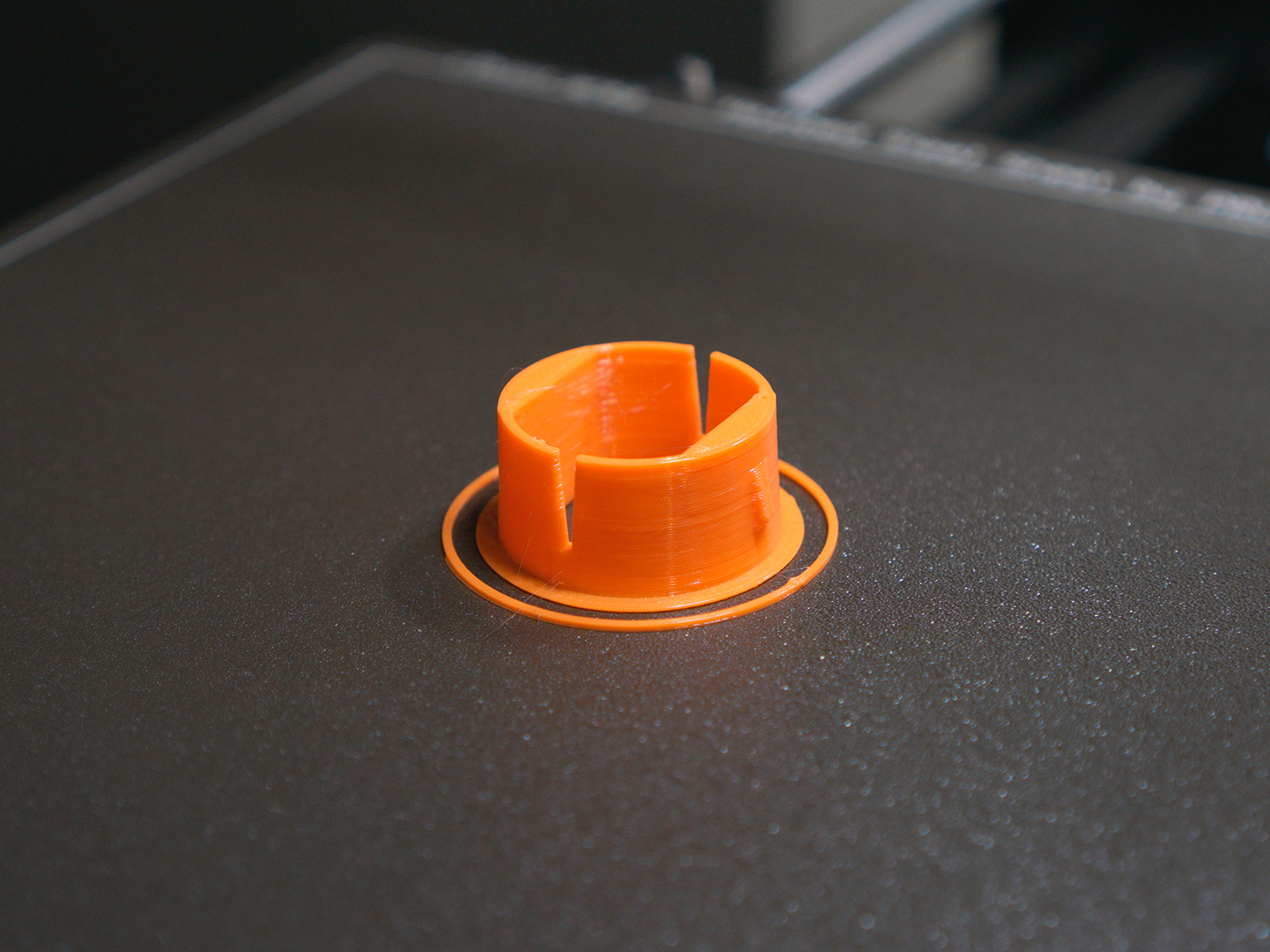

Whipped together a quick OnShape model and it worked wonderfully. It prints without any supports and with a 0.6mm nozzle finishes in around 7 minutes.
If you need to adjust sizing, grab a copy of the OnShape model: Round Drive-In Faceplate.
| Reference Images | |
|---|---|
 | Without the guide, the deadbolt would turn sideways. This would cause it to become misaligned with the slot on the frame and make locking the door difficult. |

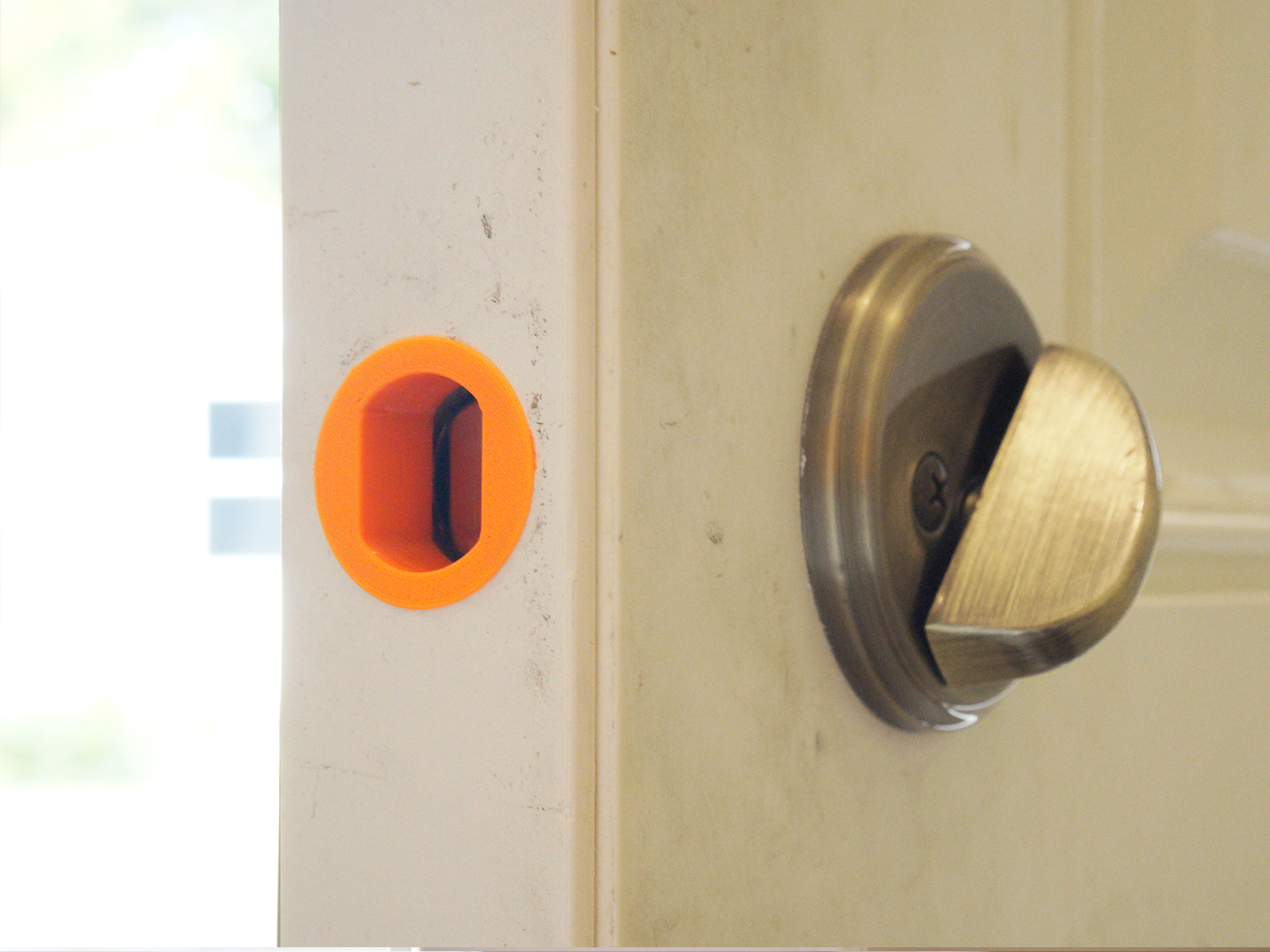

 | Now it aligns perfectly and adds a fun splash of color! |
