DIY Doubled Up!

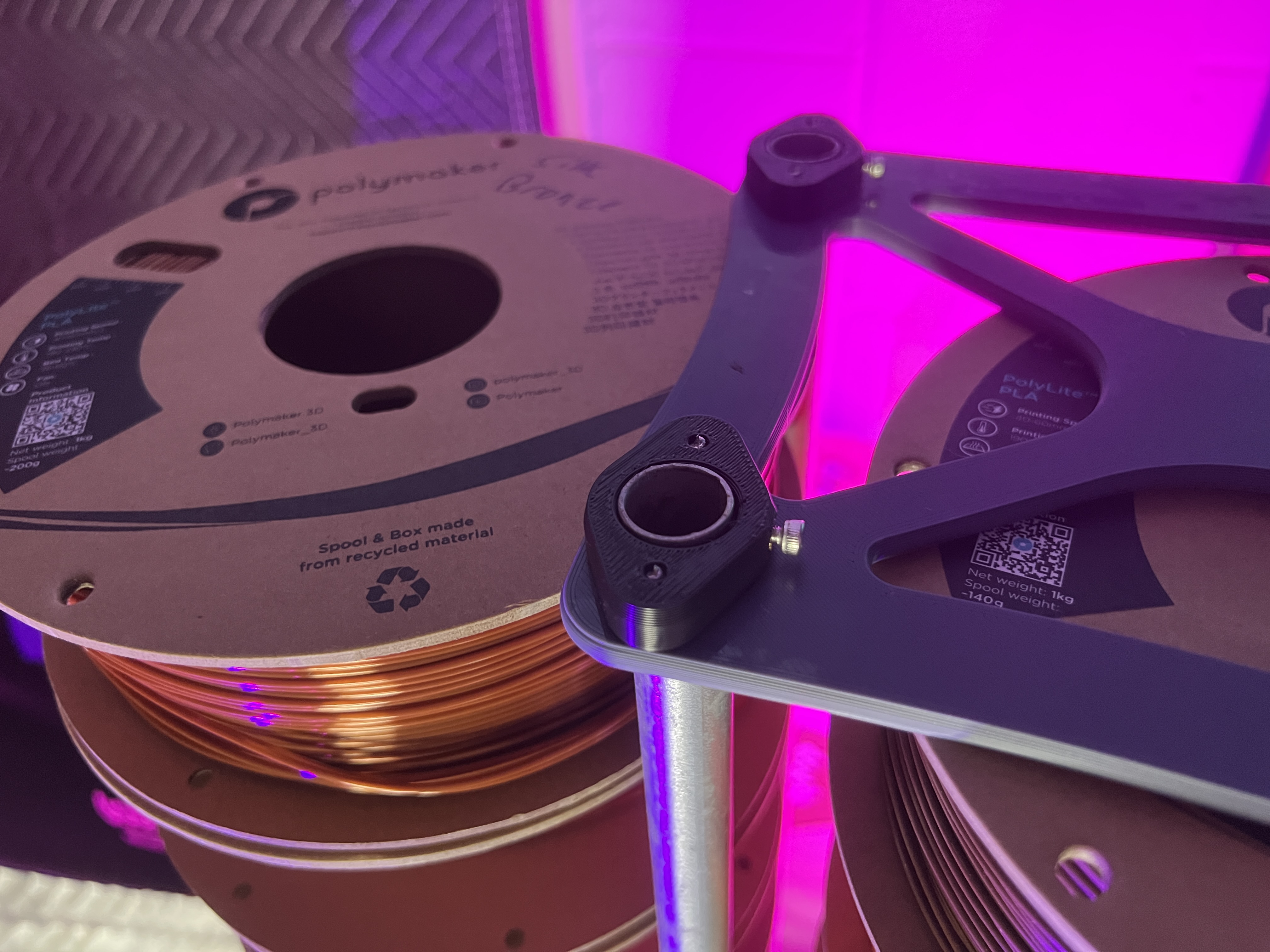

Remixed version of "RepRack" Clamps for the RepRack filament storage system. Clamps the conduit onto the RepRack brackets (or my Remix, Double RepRack parts).
Redesigned to be more streamlined (cooler looking), require less filament to print (barely), and off the option of either M4 hardware or use of M3 Heat Press Inserts.
Requires additional hardware:
- Thread Cutting Screws
- M4 Hardware
- M3 Hardware
- M3 Heat Press Inserts
- 1/2" EMT Conduit
Parts Needed (Affiliate Links):
- 1/2" Conduit: https://www.lowes.com/pd/Common-1-2-in-Actual-50-In-Metallic-Emt-10-ft-Conduit/3129551
- M3 Heat Inserts: https://amzn.to/3LEMezN
- Polymaker Filament: https://tinyurl.com/Polymakerr
Files Included:
- Streamlined RepRack Clamps STEP
- M4 Clamp STL
- Thread Cutting Screw Clamp STL
- M3 Insert Clamp STL
Recommended Print Settings:
- 3+ Perimeters
- 20% Infill
- No Supports Required
- PLA filament is generally fine for this application. If near hot components ASA or ABS would be preferred.
