W.I.P. Acer spin 511 case
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Computers
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

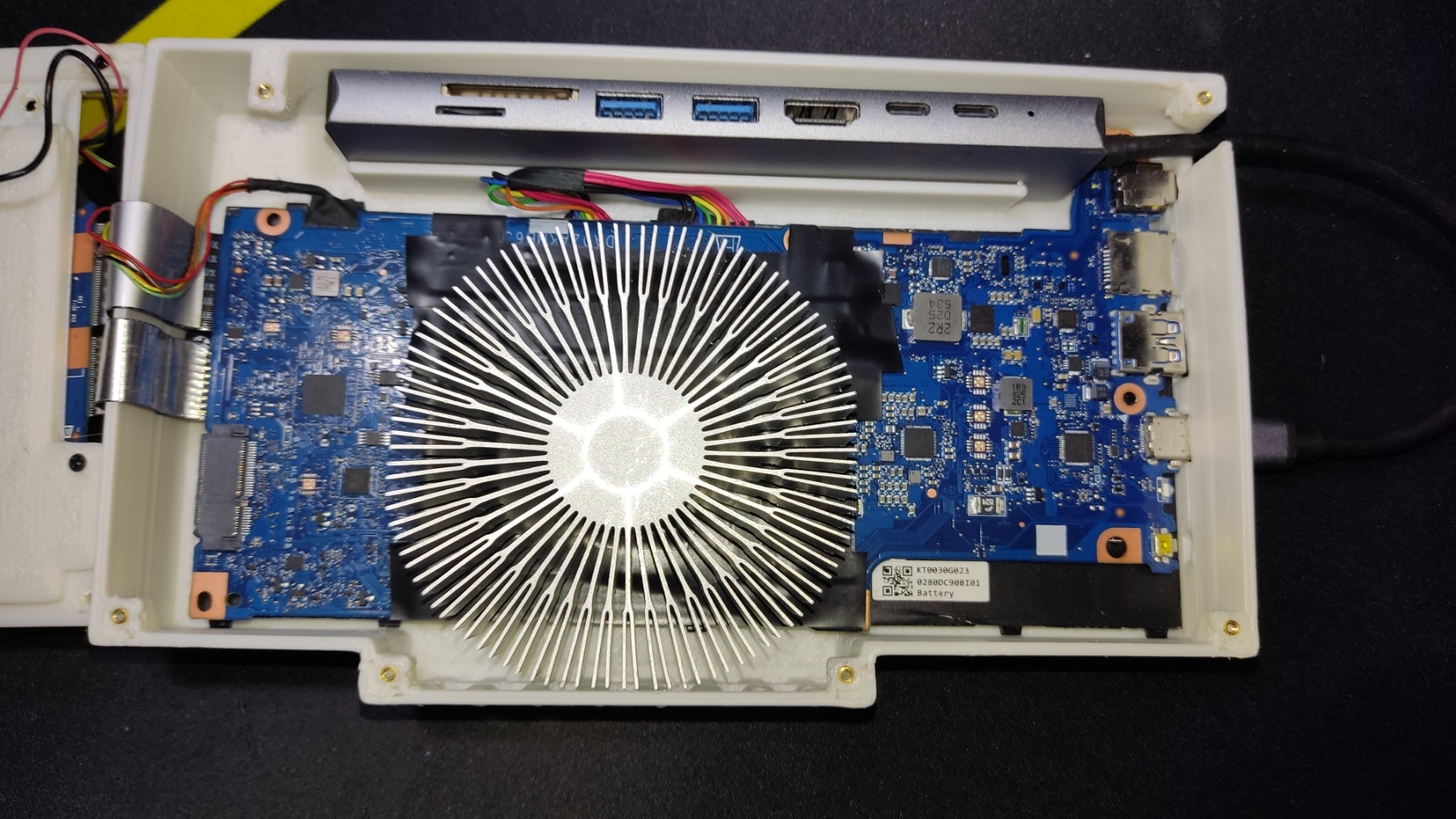

This is a W.I.P. case for battery, motherboard, daughterboard of Acer spin 511, Intel stock cooler, and a USB hub.
Great for a mini pc with low power usage (up to 20W)
Using this case with this cooling configuration, u can expect as much as 200% performance boost
Printed with a 1 mm (about 2 hours to print) nozzle for better results, print with
0.4 nozzle (about 6+ hours to print)
0.6 nozzle (haven't tested)
0.8 nozzle (haven't tested)
Parts used:
Threads used - 2x2.5x3.2

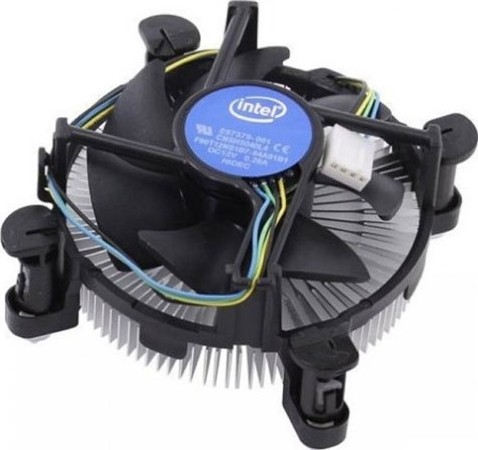

Stock intel cooler - (Picture) LGA 1151/1200 others might work too but haven't tested.

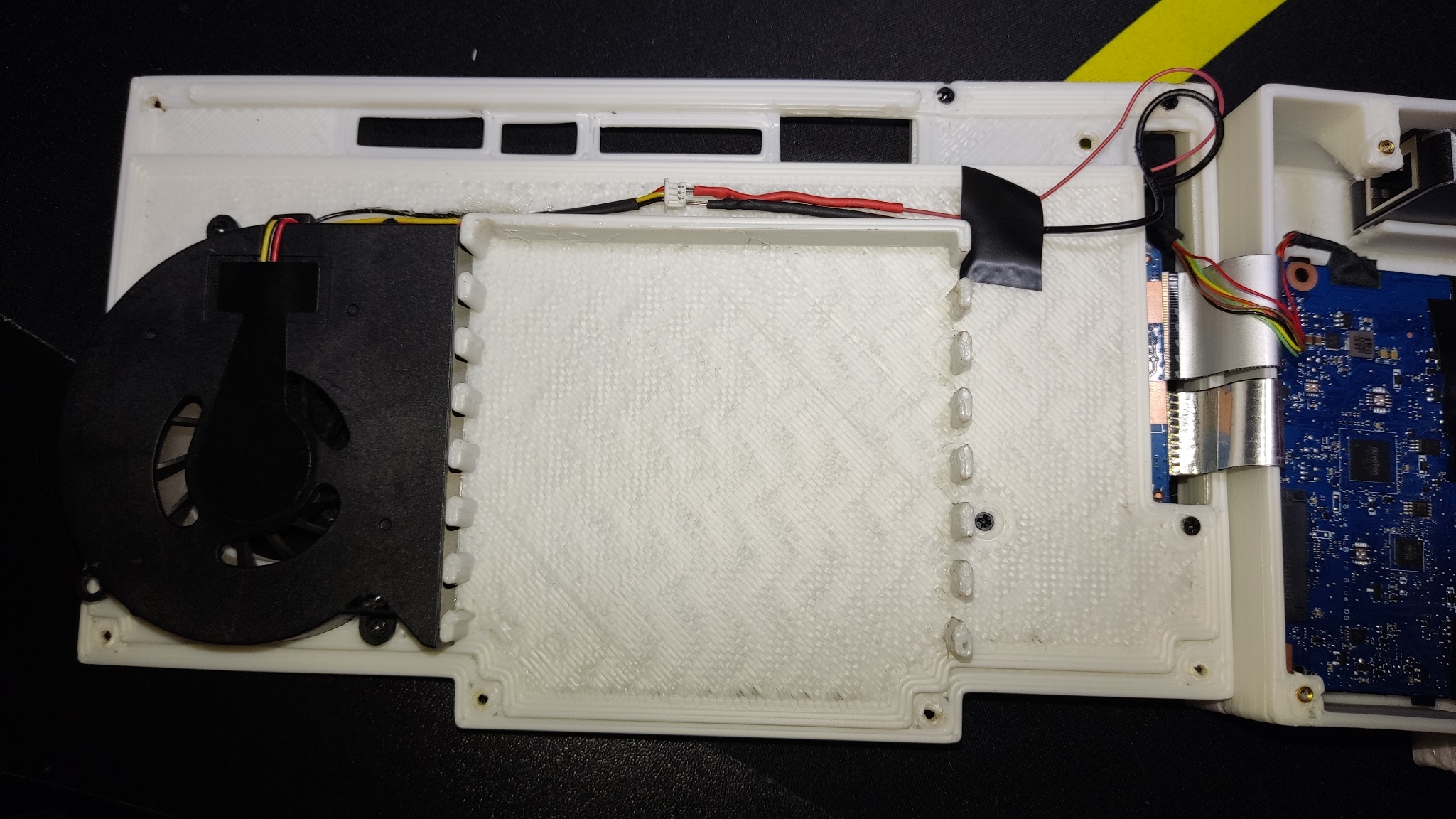

Some old laptop fan 15 mm height soldered to daughterboard USB A for power (still functional)
USB hub - 2x USB c 2x USB a 1x HDMI 1x SD card reader 1x micro SD card reader 1x Ethernet (No hole for it)
And of course battery, motherboard, daughterboard of Acer spin 511
