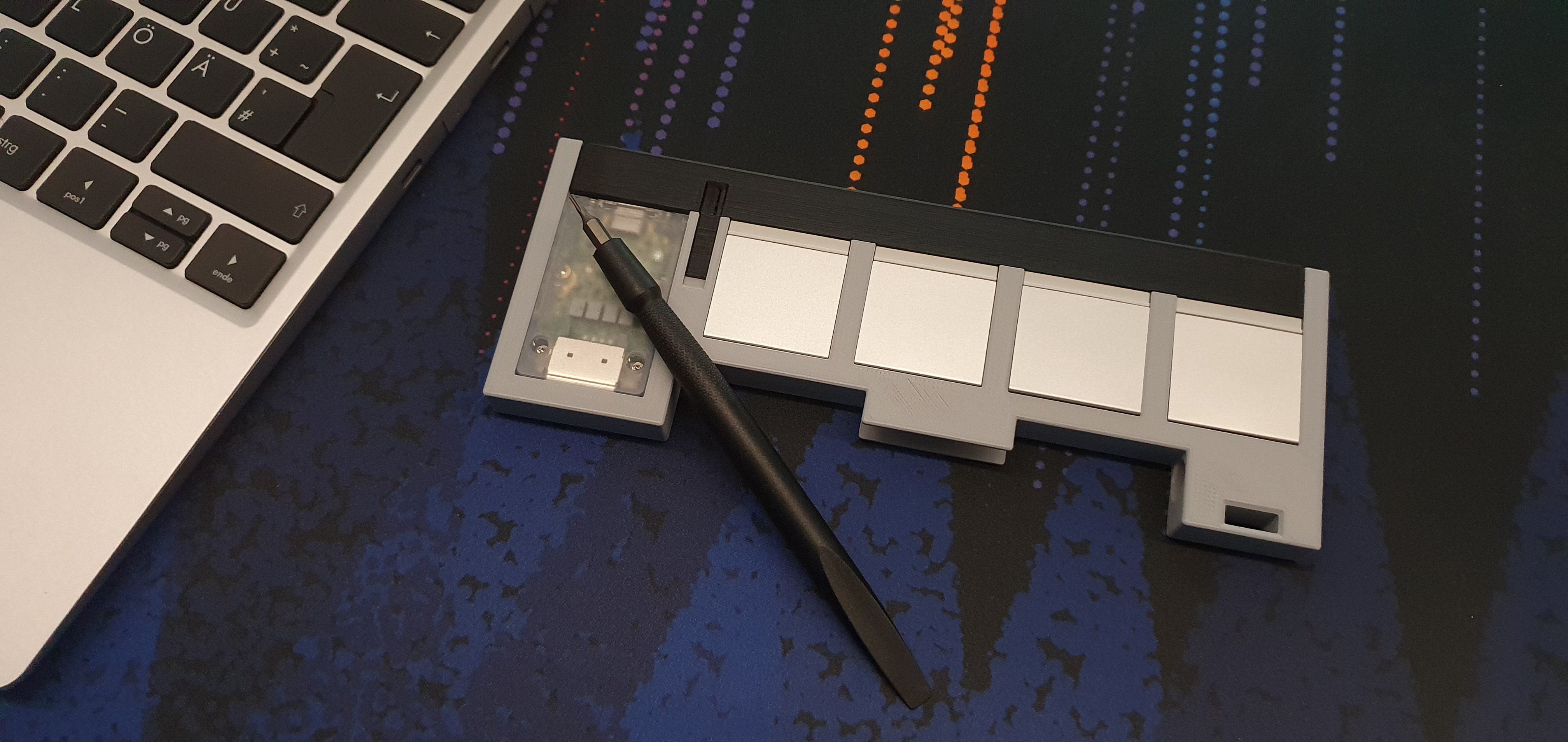

Portable Framework Expansion Card Holder for Four Expansion Cards additionally to LAN and the Original Screwdriver
- Ocena
- 4 / 5
- Polubienia
- 49
- Pobrania
- 406
- Wydruki
- 4
- Wyświetlenia
- 3071
- Oceny
- 4
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Computers
- Licencja
- Creative Commons — Attribution
Instructions
For assembly you first need to print all three parts and proceed with the following steps:
- Grab the rotary part, an soldering iron and your two M4 threaded inserts.
Install both inserts at both sides as seen in this video.
You may want to let the part cool down afterwards. - Grab the pin and main part.
Slide the pin with the slightly longer length to the middle connector (lower side of 3D model from files download) into the hole as seen in the pictures. It should completely go inside the part.
Depending on your printer this can be a tight fit. You may want to file off some material. - Grab the parts from step 1. and 2., and two M4 screws.
Align the printed parts as seen in the pictures and screw them in place with light force.
If the rotary part wont move, try loosening the screws to allow for movement.
After assembly you can now use the expansion card holder with your favorite modules.
Simply slide the pin out of the rotary part, rotate it up a bit, remove or add any cards you want, and rotate it back in position, securing it with the pin again to prevent it from opening accidentally.
Additionally, the screwdriver can be easily pushed in place by sticking the tip into the hole at the right of the main model.
If you have the need for any short USB device (e.g. dongles), you can install them at the right of the main model. I didn't really have the need for this feature, but just enough space due to the wish for symmetry.
Requirements
As stated before, the following items are required for assembly:
Not Yet Satisfied?
If you like to make changes to my model, you can simply edit it on OnShape.
Please share with attribution :)
This model is made completely by myself, but is heavily inspired from agizmo's and bradstopher99's models. The original discussion thread can be found here.
