Firewall Flanged XL
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution — Share Alike

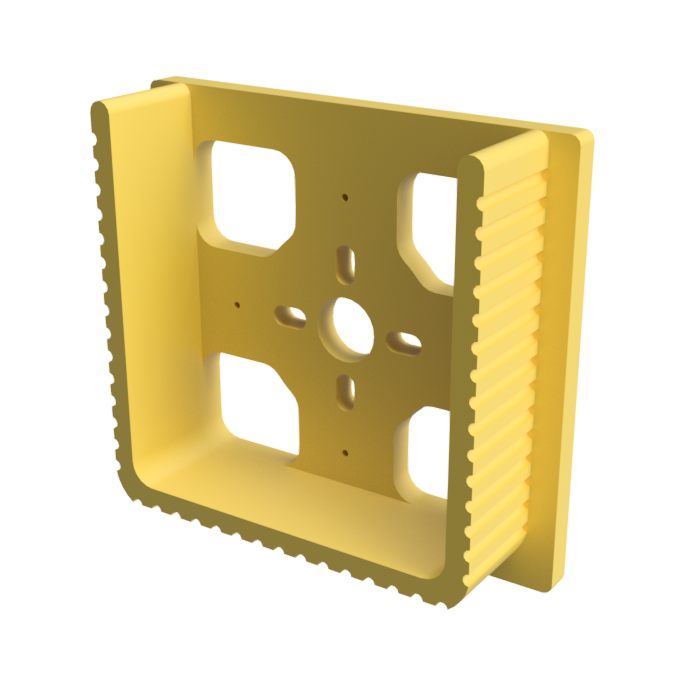

Brushless outrunner electric motor firewall for use with most motors with a 19mm x 25mm bolt circle for direct mount, or 44mm X-mount bolt circle. 19mm x 25mm mounting locations are slotted to accommodate any motor orientation. Ribbed flanges provide extra surface area for adhesion. The firewall can be hot glued directly to foam board without the need of adding tape for reinforcement.
Can be used for some Flite Test XL series models (FT Simple Scout XL) using FT 2814 motor.
Can be printed in PLA, but I highly recommend using PETG or other stronger materials (ASA, ABS, Nylon, etc.) for improved strength and heat tolerance.
