HYPERFORMA_Floatwheel ADV Rail Guards
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.

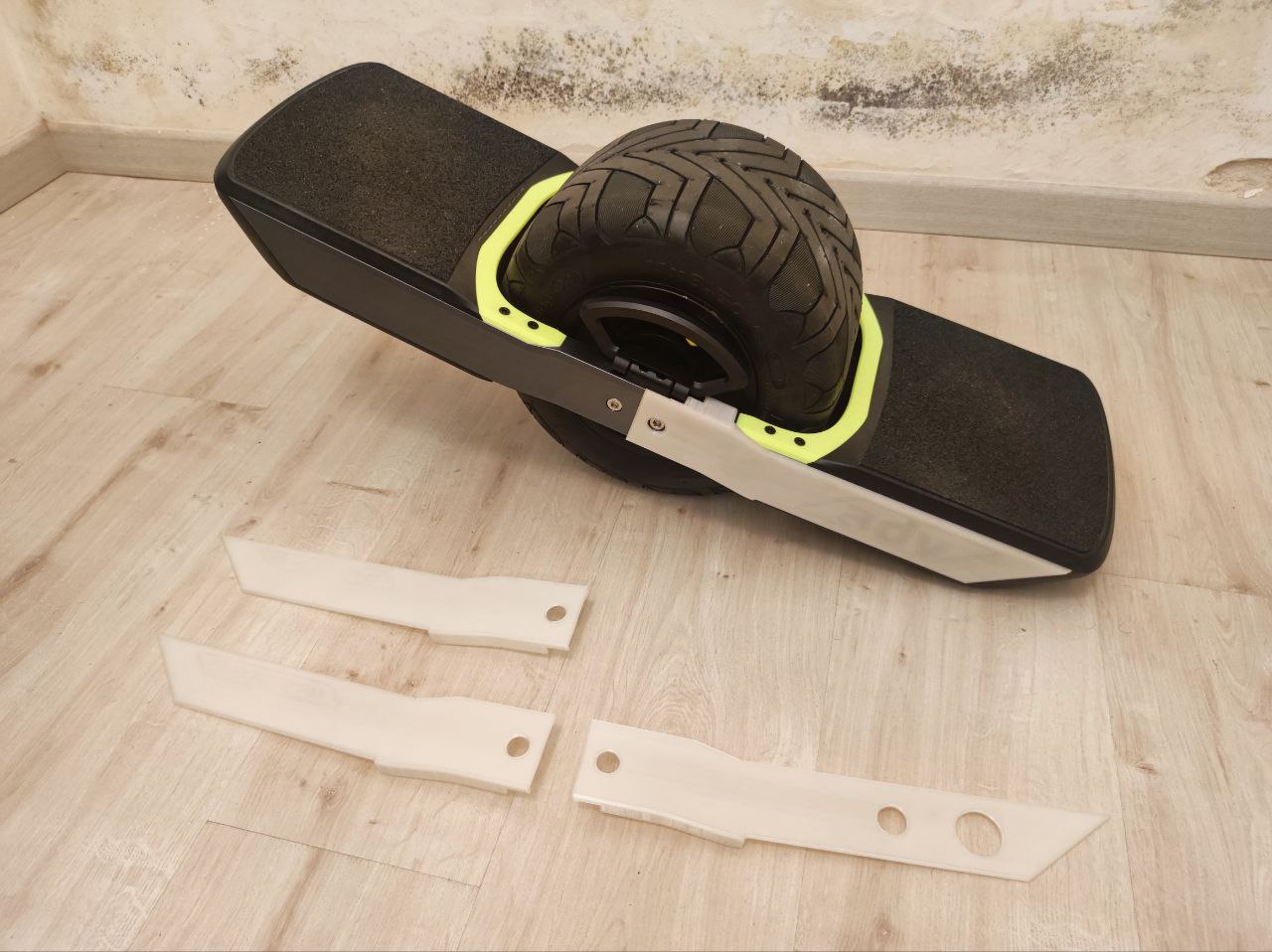

Custom Rail guards for Floatwheel ADV
- Ocena
- 0 / 5
- Polubienia
- 6
- Pobrania
- 102
- Wydruki
- 1
- Wyświetlenia
- 1004
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Automotive
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
The part has an original design and was designed directly on the ADV Standard CAD model provided by Tony from Floatwheel.
It's similar to the original Design by Tony, but optimized for 3d printing, the external surface is completely flat.
I've designed the ADV Logo and HYPERFORMA Logo on the top of the print, if you use a very transparent material like PLA CRYSTAL you can paint the logos or the entire railguards on the internal side
Fits in a 300x300 mm build plate.
RECOMMENDED MATERIAL: PLA
| Printing Parameters: PLA | |
| NOZZLE | ≥0,4 mm |
| LAYER | ≥0,2 mm |
| WALL | 2 |
| INFILL PERCENTAGE | FULL |
| INFILL TYPE | \ |
| TOP/BOTTOM THICKNESS | 6 LAYERS |
| SPEED | 60 mm/s |
No supports needed!
Update 22/09/2023: added folders with models with NO HANDLE
Update 17/10/2023: added Covers for handle mounting holes and head cap for hex Screws
