Nemesis Technical Corridor / ducts

PERSONAL USE ONLY
Reason: The ventilation was grabbed from:
https://nextlevelboardgaming.com/product/nemesis-3d-game-board-stl-files/
If you decide to use it for other purpose, check the site and purchase a license, it that's applicable, please.

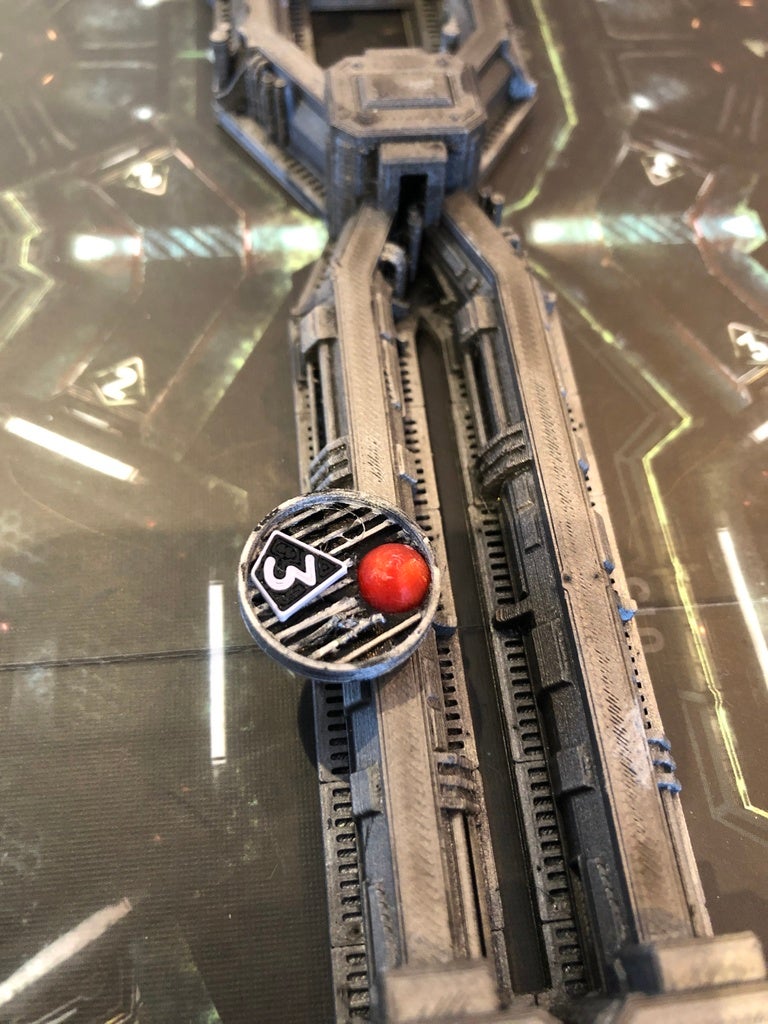

This addon I designed specifically for use because of these awesome walls. Problem: they obscured the technical shafts from view. So modern problems require modern solutions. Just add more!

So what are all these files?

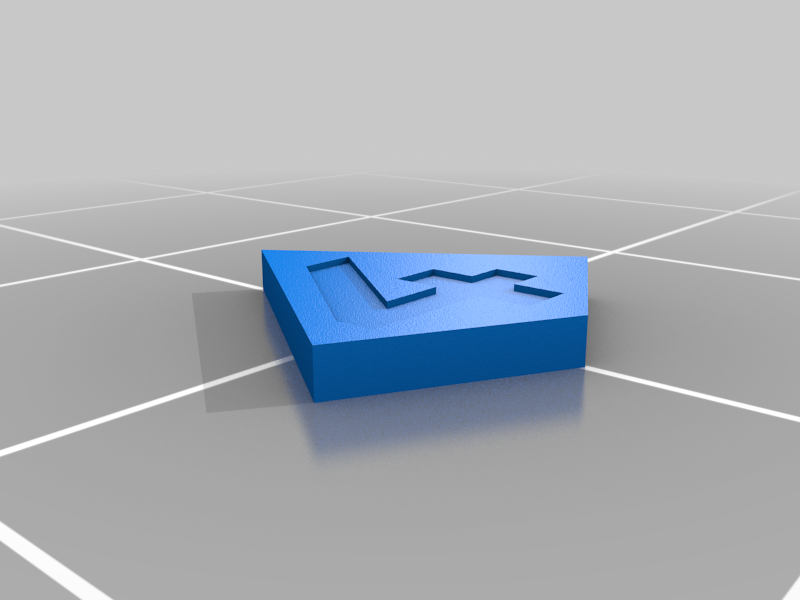

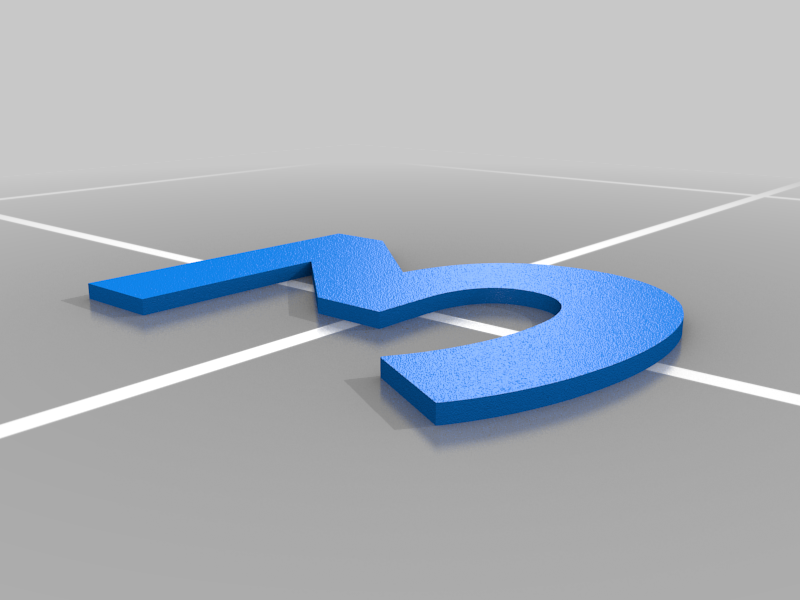

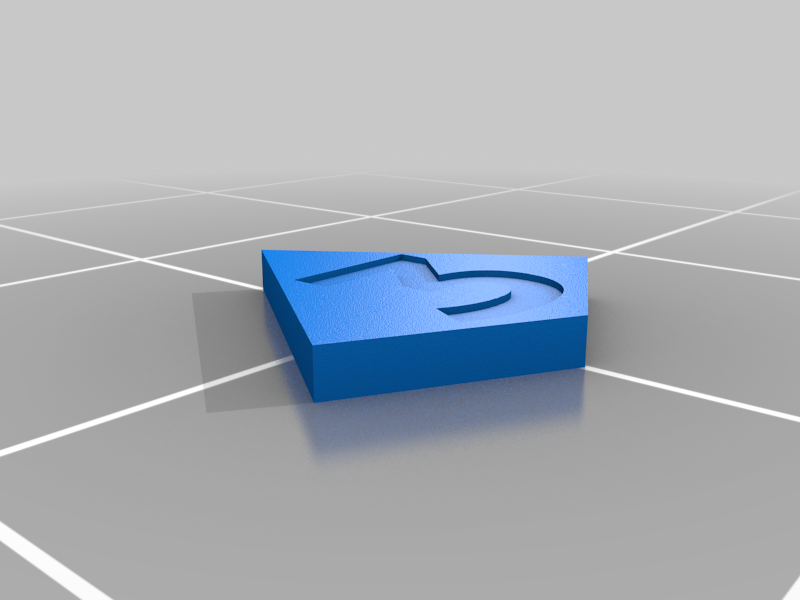

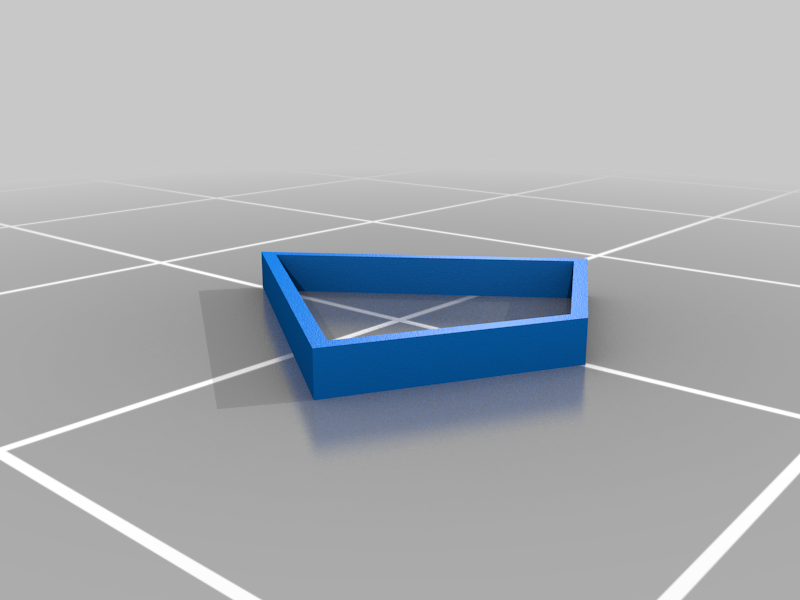

Markers

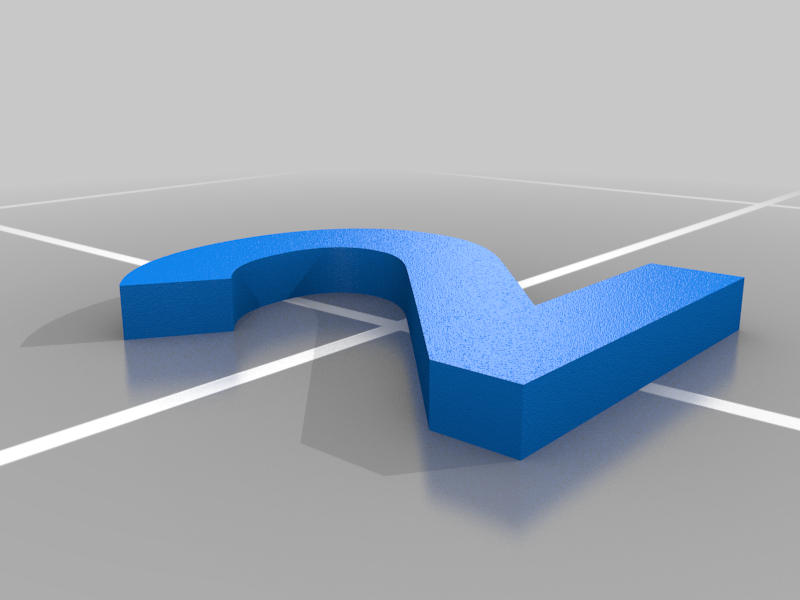

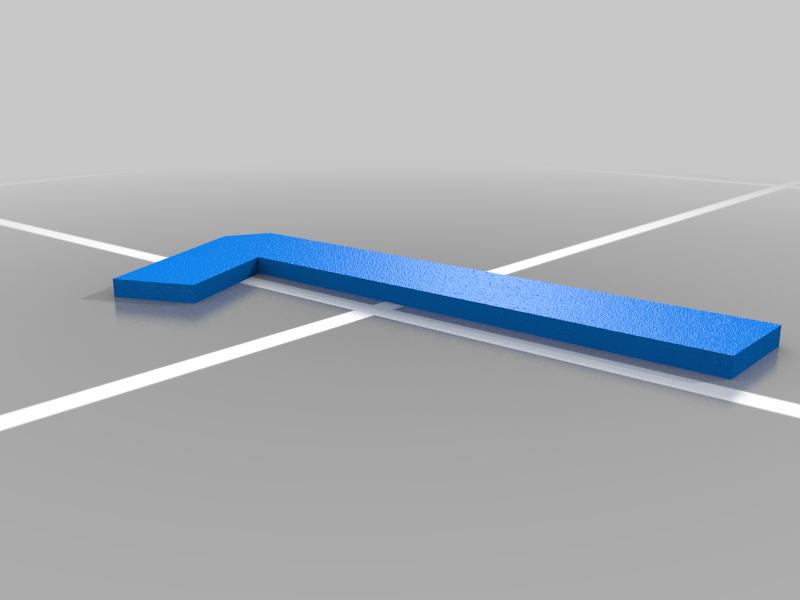

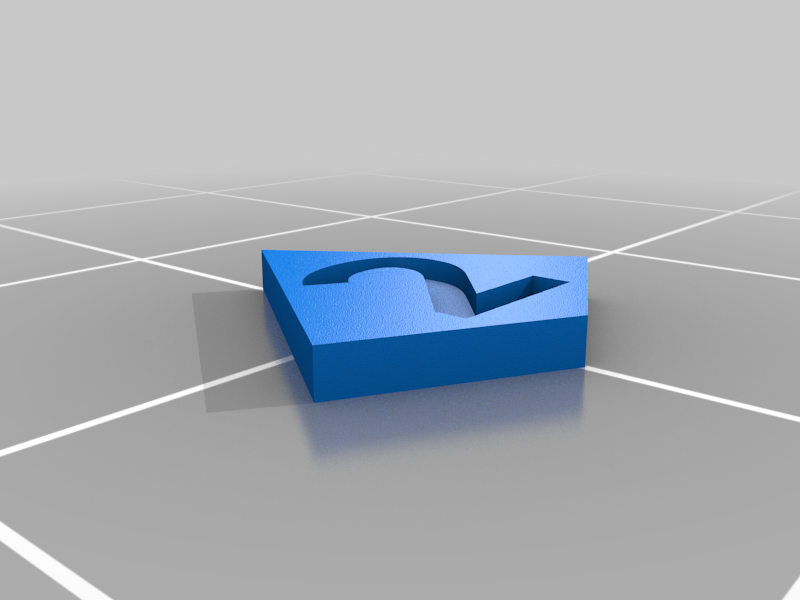

I have a Prusa MMU, so I can make more colors in a single print. If that's what you want, you can useDuct Markers.3mf which you can load direcly in PrusaSlicer. Alternatively, load Marker 1 (1, 2, 3).stl for the "1" marker, and so forth.

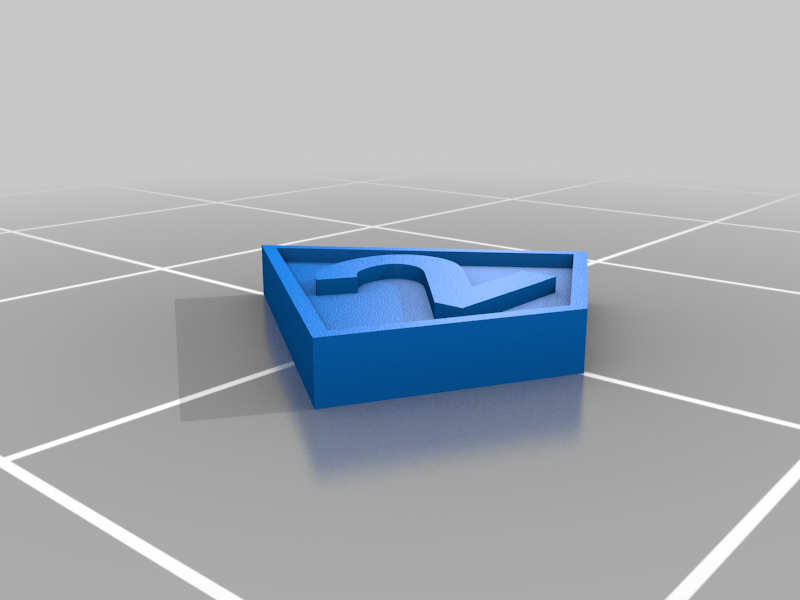

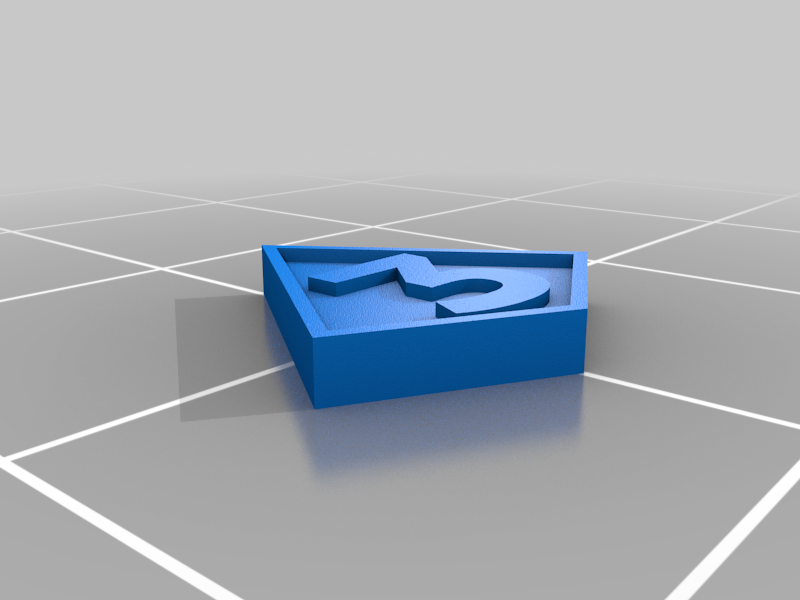

If you don't have an MMU, just use "Marker 1 single" for "1" and so forth.

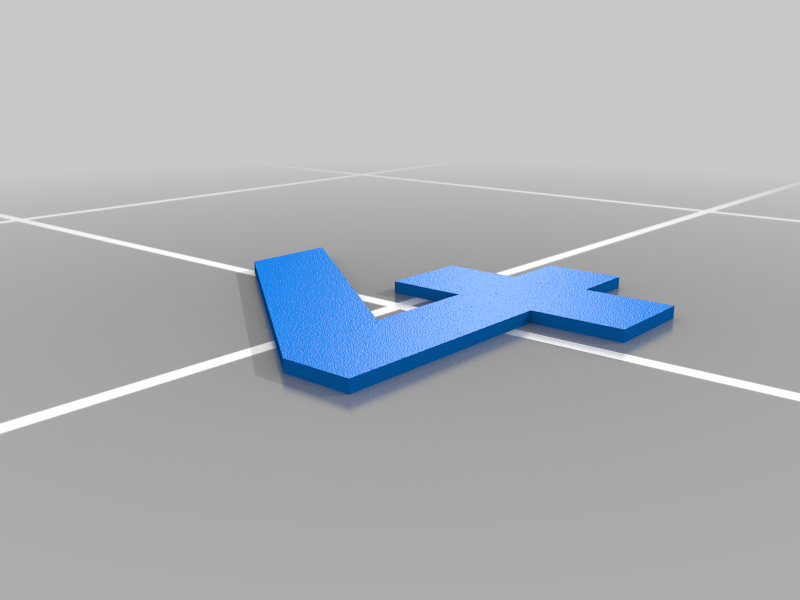

You'll need: "1": 1 piece. "2": 3 pieces. "3": 5 pieces. "4": 3 pieces.

Vents
I didn't make a version for MMU, just for printing with different colors.

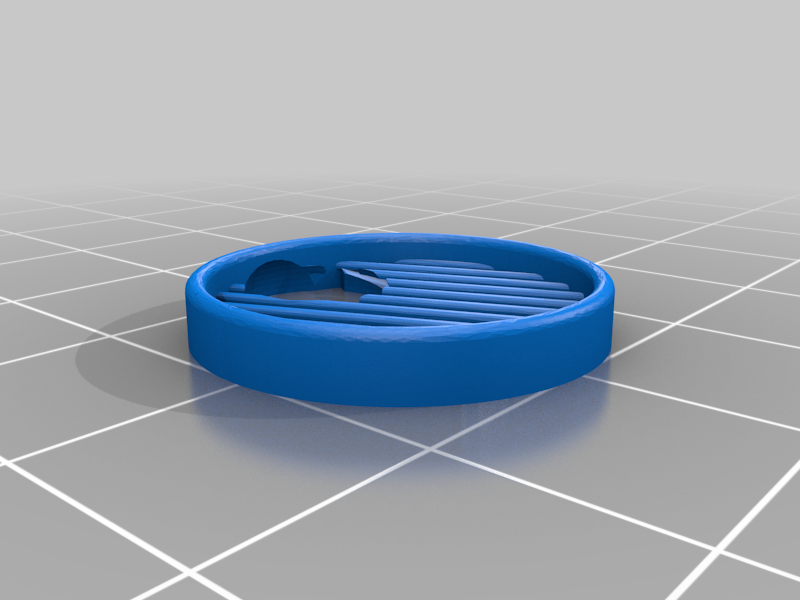

duct single.stl

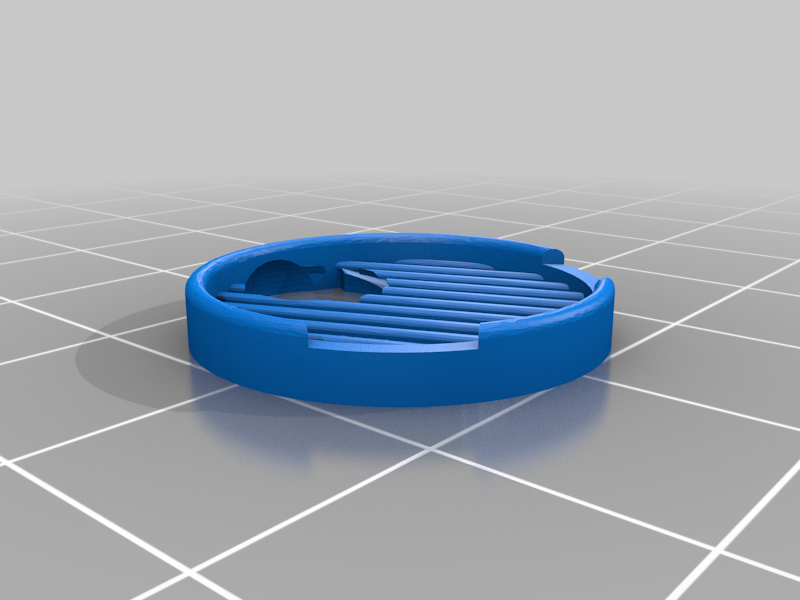

duct double.stl

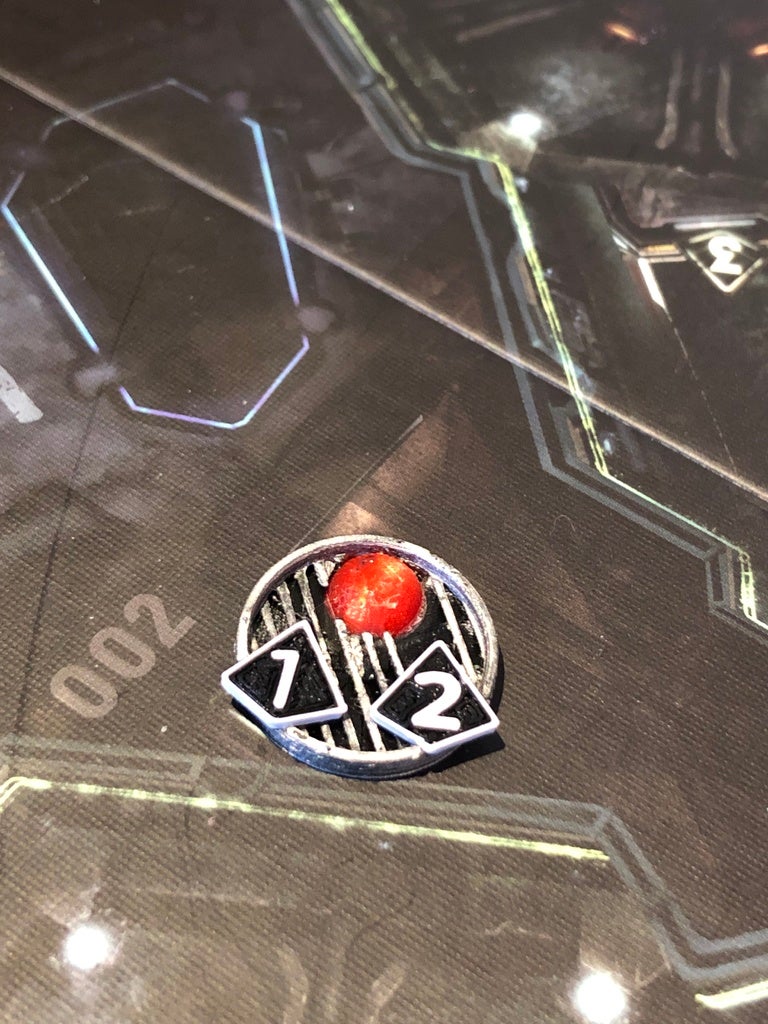

The double has indents for adding two numbers, while Single, just add it in the center. I used glue.

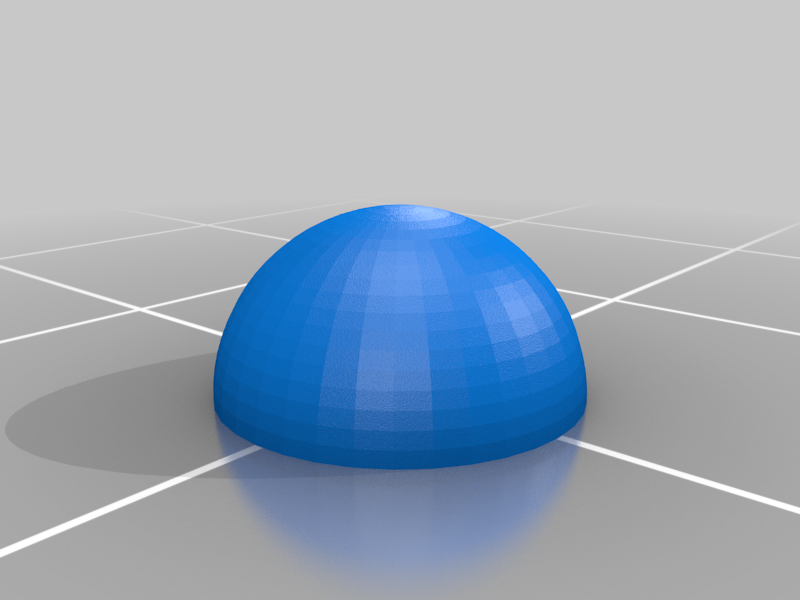

Ducts Red Dot: I printed with red filament. This is glued into the hole of the ducts.

You'll need: 4 double, 4 single. 2 base.

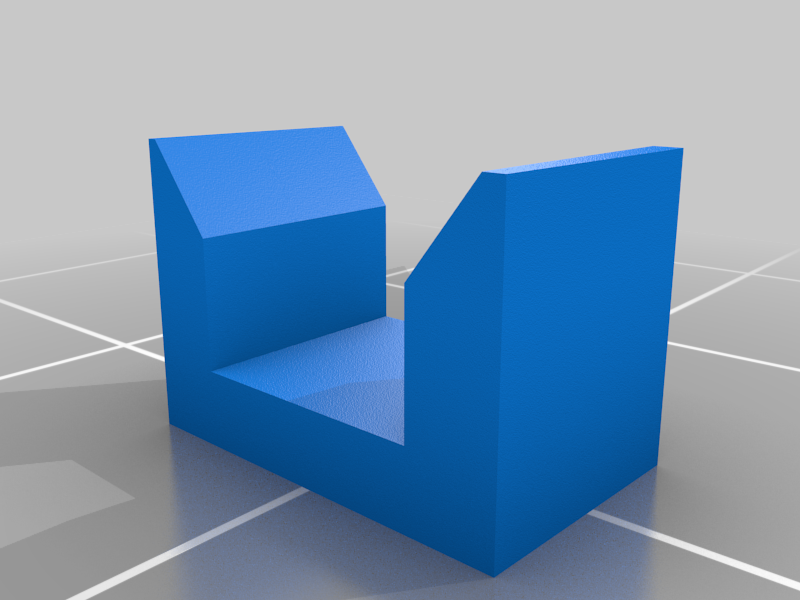

The base goes in top of the aforementioned walls, no glue required. But glued underneath the ducts.

Have fun :)
